Design and Realization of Digital Surveying and Mapping of Pocket PC Based on MAPGIS
-

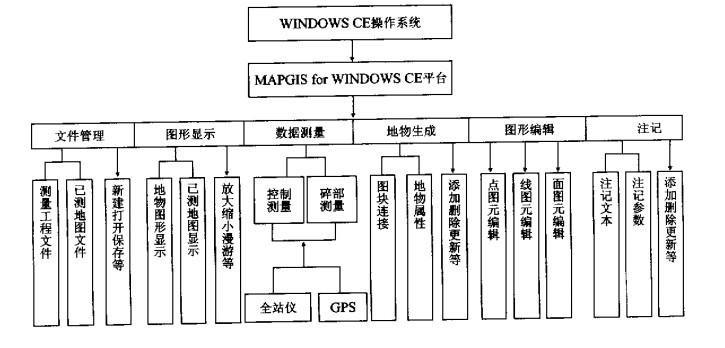

摘要: 在测量单位, 采用电子手簿进行野外测量是非常普遍的.但是电子手簿有个缺点就是只能记录点, 无法查看所测图形.随着硬件的发展, 使用掌上电脑, 开发掌上电子平板, 以其方便、灵活、图形可视性好、功能强大等优点可以取代传统的电子手簿.基于WINDOWSCE操作系统和MAPGIS平台, 根据界面图形化、格式标准化、图形可视化等原则, 设计了一个完整的集计算、采集、管理于一体的野外现场成图系统.该系统能够记录原始数据、图形以及属性, 能够方便地注记文字; 实现野外现场成图, 无需内业进行编辑.同时, 介绍了数据通讯、UNICODE编码、符号库设计、图形显示、修测等功能, 以及实现方法.Abstract: The electric notebook is often used for field surveying in survey departments. But it only records position coordinates, and cannot display any map surveyed. Now a digital surveying and mapping system of pocked PC can be used for this purpose. This paper discusses the selection of development tools, the general structure, function of the surveying and mapping system. According to the design fundamental of graphical interfaces, a large scale software system of pocket PC is designed with data calculation, collection and management. It can record the primary data, map and attribution of the surveyed object, and can conveniently note text or content. More important, it can look over the actual landform and directly draw maps by the surveyed data without continuing to edit and draw indoors. At the same time, the paper introduces some problem of its realization in development. With the development of pocked PC hardware, a digital surveying and mapping system of pocked PC will be widely used in the map and data updating.
-
Key words:
- pocked PC /
- digital surveying and mapping /
- WINDOWS CE /
- MAPGIS
-
[1] 樊文有, 谢忠. GIS空间数据的误差校正[J]. 地球科学———中国地质大学学报, 1998, 23(4): 344-347. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX804.006.htmFAN W Y, XIE Z. Error rectification of geographic information system map data[J]. Earth Science—Journal of China University of Geosciences, 1998, 23(4): 344-347. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX804.006.htm [2] 杨德麟. 大比例尺数字测图的原理方法与应用[M]. 北京: 清华大学出版社, 1998.YANG D L. Theory, method and application of a large-scale digital surveying and mapping system[M]. Beijing: Tsinghua University Press, 1998. [3] 陈刘成, 郝金明, 吕志伟. 基于Windws CE的GPS观测数据质量检测系统[J]. 测绘通报, 2001, 11: 19-20. https://www.cnki.com.cn/Article/CJFDTOTAL-CHTB200111010.htmCHEN LC, HAO J M, Lü Z W. The GPS raw data quality detection system based on Windows CE[J]. Bulletin of Surveying and Mapping, 2001, 11: 19-20. https://www.cnki.com.cn/Article/CJFDTOTAL-CHTB200111010.htm [4] 李德仁, 关泽群. 空间信息系统的集成与实现[M]. 武汉: 武汉测绘科技大学出版社, 2000.LI D R, GUAN Z Q. The integration and realization of space information system[M]. Wuhan: Wuhan Technical University of Surveying and Mapping Press, 2000. [5] 李超岭, 张克信. 基于GIS技术的区域性多源地学空间信息集成若干问题探讨[J]. 地球科学———中国地质大学学报, 2001, 26(6): 545-550. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX200105021.htmLI C L, ZHANG K X. study on regional multi-source geological Spatial information system based on techniques of GIS[J]. Earth Science—Journal of China University of Geosciences, 2001, 26(6): 545-550. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX200105021.htm [6] 周成虎, 李军. 地球空间元数据研究[J]. 地球科学———中国地质大学学报, 2000, 25(6): 579-585. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX200006006.htmZHOUC H, LI J. Disquisition on metadata of geospace[J]. Earth Science—Journal of China University of Geosciences, 2000, 25(6): 579-585. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX200006006.htm [7] Goggin TA. WINDOWS CE高级开发指南[M]. 龙滔, 张平, 周晓权, 等译. 北京: 电子工业出版社, 2000.Goggin TA. Aguide to the advanced development aboutWINDOWS CE[M]. Beijing: The Electrical Industry Press, 2000. [8] 张夏林, 汪新庆, 吴冲龙. 计算机辅助地质填图属性数据采集子系统的动态数据模型[J]. 地球科学———中国地质大学学报, 2001, 26(2): 201-204. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX200102021.htmZHANG X L, WANG XQ, WUC L. The dynamic data model of attribute data processing subsystem in computer aided geological map filling[J]. Earth Science—Journal of China University of Geosciences, 2001, 26(2): 201-204. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX200102021.htm [9] 石伟伟, 钟耳顺, 王康宏, 等. 以GIS为核心的数字化成图系统的设计与实现[A]. 2001中国GIS年会论文集[C]. 成都: [s. n. ], 2001.SHI W W, ZHONG E S, WANG K H, et al. The development of digital mapping system for GIS[A]. The collection of articles in 2001 annual meeting of Chinese GIS[C]. Chengdu: [s. n. ], 2001. [10] GB/T7929-1995, 1∶ 500 1∶ 1 000 1∶ 2 000地形图图式[S]. 北京: 中国标准出版社, 1995.GB/T7929-1995, Specifications for cartographic symbols 1∶ 500 1∶1 000 1∶2 000 topographic maps[S]. Beijing: China Standard Press, 1995. -
