会泽铅锌矿床成矿流体浓缩机制

张振亮; 黄智龙; 饶冰; 管涛; 严再飞

会泽铅锌矿床成矿流体浓缩机制

张振亮^{1, 2,},
黄智龙¹,
饶冰³,
管涛^{1, 2},
严再飞^{1, 2}

1.
中国科学院地球化学研究所矿床地球化学开放实验室, 贵州贵阳 550002
2.
中国科学院研究生院, 北京 100039
3.
南京大学地球科学系内生金属成矿机制研究国家重点实验室, 江苏南京 210093

基金项目:

国家自然科学基金项目 40372048

云南省省院省校科技合作项目 2000YK-04

详细信息

作者简介:
张振亮(1974—),男,江西丰城人,在读博士研究生,矿床地球化学专业. E-mail: liangzhen_74@163.com

中图分类号: P618.1
计量
- 文章访问数: 3546
- HTML全文浏览量: 445
- PDF下载量: 9
- 被引次数: 0
出版历程
- 收稿日期: 2005-01-28
- 刊出日期: 2005-07-25

Concentration Mechanism of Ore-Forming Fluid in Huize Lead-Zinc Deposits, Yunnan Province

ZHANG Zhen-liang^{1, 2
,},
HUANG Zhi-long¹,
RAO Bing³,
GUAN Tao^{1, 2},
YAN Zai-fei^{1, 2}

1.
Open Laboratory of Ore Deposit Geochemistry, Chinese Academy of Sciences, Guiyang 550002, China
2.
Postgraduate School, Chinese Academy of Sciences, Beijing 100039, China
3.
State Key Laboratory of Mineral Deposit Research, Department of Earth Sciences, Nanjing University, Nanjing 210093, China

摘要

摘要: 云南会泽铅锌矿床位于扬子板块西缘川-黔-滇铅锌银多金属成矿域的中南部, 严格受断裂带的控制.长期以来, 对于该矿的成矿流体来源存在着较大的争论.研究表明, 矿石中脉石矿物方解石的C、O同位素组成相对均一, 其δ¹³C (PDB) 为-2.1×10^-3~-3.5×10^-3、极差-1.4×10^-3、均值-2.8×10^-3, δ¹⁸O (SMOW) 为16.7×10^-3~18.6×10^-3、极差1.9×10^-3、均值17.7×10^-3, 不同矿体(不同标高)、不同产状以及相同矿体不同产状方解石的C、O同位素组成不具明显差别; 除了纯液相包裹体(L) 和富液相的气液两相包裹体(L+V) 外, 还存在含子晶的三相包裹体(S+L+V) 和不混溶的CO₂三相包裹体(V_CO₂+L_CO₂+L_H₂O), 流体包裹体均一温度介于110~400℃之间, 具有双峰现象; 矿床的(⁸⁷Sr/⁸⁶Sr) ₀ (0.713676~0.717012) 不仅明显高于地幔(0.704±0.002) 和峨嵋山玄武岩(0.703932~0.707818;85件样品) 的(⁸⁷Sr/⁸⁶Sr) ₀, 也相对高于矿区赋矿地层(C₁b) 的(⁸⁷Sr/⁸⁶Sr) ₀ (0.70868~0.70931;3件样品), 但明显低于基底岩石的(⁸⁷Sr/⁸⁶Sr) ₀ (0.7243~0.7288;5件样品), 且成矿过程中流体基本没有发生Sr同位素分馏现象.因此, 成矿流体为均一流体, 是不同性质流体的混合产物, 具有多源性.而从气液两相包裹体盐度-均一温度图解可以看出, 在300~400℃区间, 包裹体盐度基本被孤立为两群: 一群为5%~6% (w (NaCl)), 另一群为12%~16% (w (NaCl)).而在100~300℃特别是150~250℃区间, 包裹体盐度则基本均匀分布在7%~23% (w (NaCl)) 之间.断裂带形成压力为(50~320) ×10⁵Pa, 矿体上覆岩石压力为(574~640) ×10⁵Pa, 矿床成矿压力为(145~754) ×10⁵Pa.流体在上升到断裂带后压力的剧降, 导致了沸腾作用的发生.在混合作用和沸腾作用的双重影响下, 受狭窄断裂带控制的成矿流体高度浓缩, 金属矿物得以大规模地从流体中沉淀出来, 形成品位极高的铅锌矿石.
- 混合流体 /
- 沸腾作用 /
- 降压 /
- 高品位
Abstract: The Huize Pb-Zn ore deposits, Yunnan Province, located in the southern-center of the Sichuan-Yunnan-Guizhou Pb-Zn-Ag multimetal mineralization district, are strictly controlled by faulted zones. There has long been controversy about the sources of ore-forming fluid in these ore deposits. Calcite is one of the gangue minerals in the ores of these ore deposits. Their δ¹³C (PDB) values vary from -2.1×10^-3 to -3.5×10^-3, and their δ¹⁸O (SMOW) values are 16.7×10^-3 to 18.6×10^-3. There are no obvious difference in the δ¹³C (PDB) values and the δ¹⁸O (SMOW) values of calcites from different orebodies, different occurrences and different elevations. Besides pure liquid inclusions (L) and gas-liquid inclusions with rich liquid (L+V), three-phase inclusions containing a daughter (S+L+V) and immiscible three-phase CO₂ inclusions (V_CO₂+L_CO₂+L_H₂O) occur in the minerals. The homogenization temperatures of all these inclusions vary from 110 ℃ to 400 ℃, and have two peaks. (⁸⁷Sr/ ⁸⁶Sr) ₀ ratios of these ore deposits (0.713 676-0.717 012) are obviously higher than those of the mantle (0.704±0.002) and Emeishan basalt (0.703 932-0.707 818; 85 samples), and slightly higher than those of the Baizuo Formation of Huize lead-zinc ore deposits (0.708 68-0.709 31; 3 samples). But all these ratios are lower than the ones of the basement rocks (0.724 3-0.728 8; 5 samples). The (⁸⁷Sr/ ⁸⁶Sr) ₀ ratios of these ore deposits also show that the isotopic fractionation of Sr does not occur in the ore-forming fluid during the precipitation of minerals. So, the ore-forming fluid is homogeneous and a product of different fluid mixing.Gas-liquid inclusions can be obviously separated into two groups in the range of 300-400 ℃ according to their salinities: a group with the salinity of 5%-6% (w (NaCl)) and the other group with the salinity of 12%-16% (w (NaCl)). However, the salinities of inclusions vary from 7% to 23% (w (NaCl)) in the range of 100-300 ℃, especially the range of 150-250 ℃. The pressures of faulted zones are 50×10⁵-320×10⁵ Pa and the pressures of overlying rocks on the ore bodies are 574×10⁵-640×10⁵ Pa, and those of the ore-forming processes vary from 145×10⁵ to 754×10⁵ Pa. When the ore-forming fluid flows into the faulted zones, its pressure sharply reduces. Then boiling occurs in the ore-forming processes. As a result of fluids mixing and boiling, the ore-forming fluid is highly concentrated. When the fluid is saturated or oversaturated, metallic minerals begin to precipitate on a great scale. So, the grade of lead-zinc ores is very high.
- fluid mixing /
- boiling /
- relief of pressure /
- high grade

HTML全文

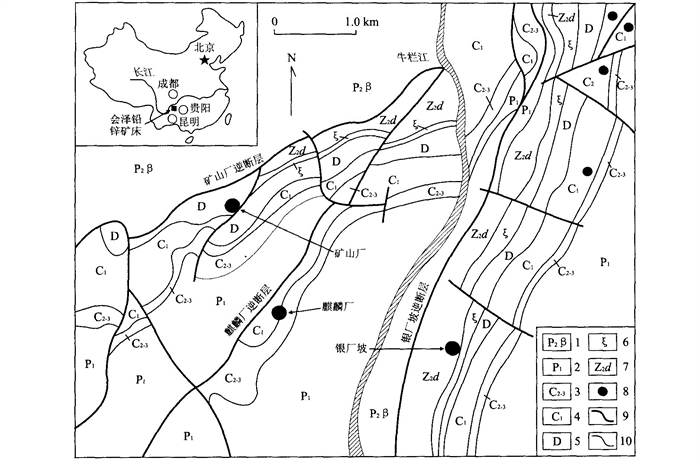

图 1 会泽铅锌矿床矿区地质图

1.二叠纪峨嵋山玄武岩; 2.下二叠系灰岩; 3.中上石炭系白云质灰岩; 4.下石炭系白云岩; 5.泥盆系灰岩和硅质白云岩; 6.寒武系泥质页岩; 7.震旦系硅质白云岩; 8.铅锌矿床或矿体; 9.构造; 10.地层界线

Fig. 1. Geological map of Huize lead-zincore deposits, Yunnan Province

下载: 全尺寸图片幻灯片

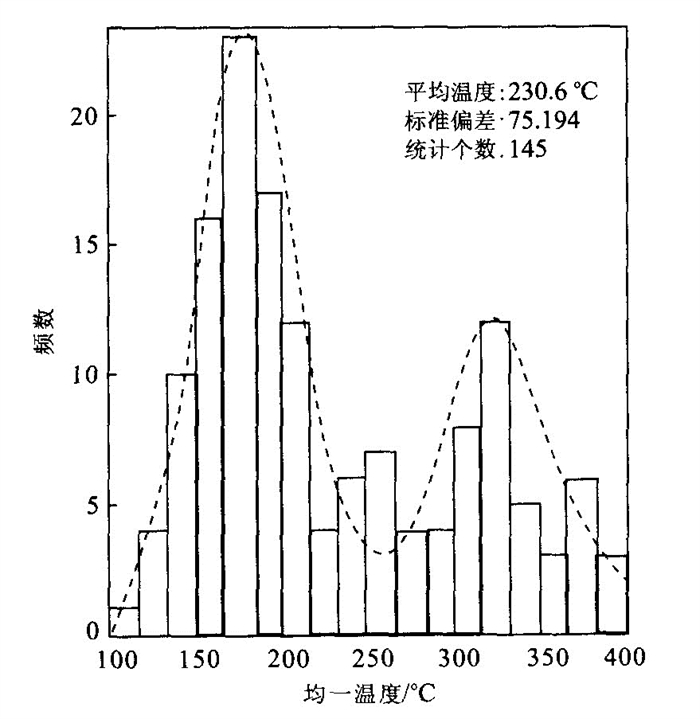

图 2 会泽铅锌矿床矿物流体包裹体均一温度分布

Fig. 2. Homogenization temperatures of minerals in Huize lead-zinc ore deposits

下载: 全尺寸图片幻灯片

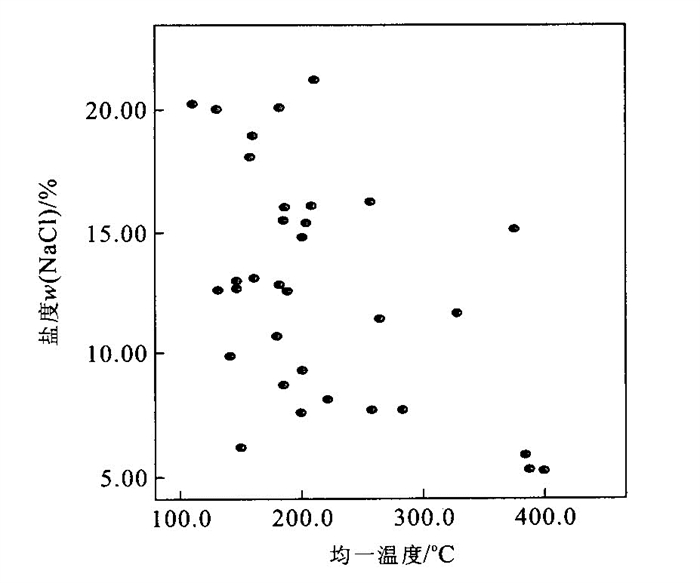

图 3 会泽铅锌矿床气液包裹体盐度-均一温度

Fig. 3. Plot of total homogenization temperatures (T_h) versus salinity in weight percent w (NaCl) -equivalent for fluid inclusions

下载: 全尺寸图片幻灯片

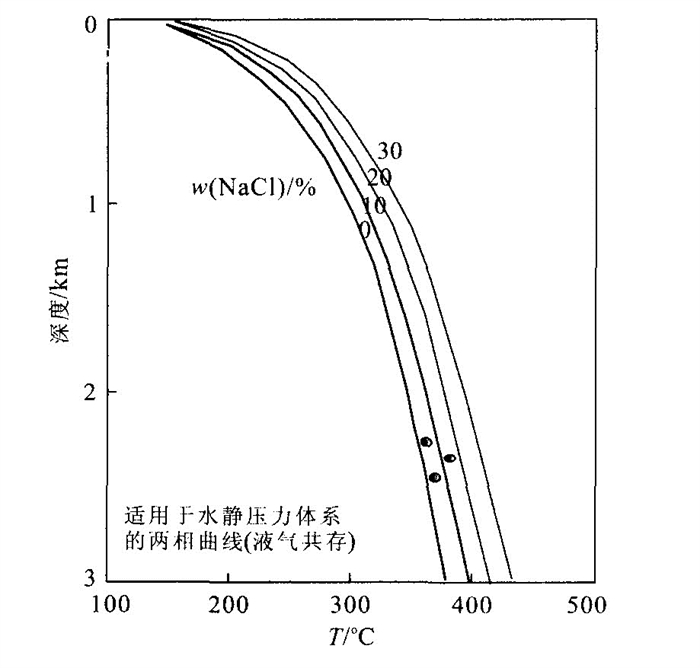

图 4 会泽铅锌矿床成矿深度(据Hass, 1971, 1976)

Fig. 4. Plot of mineralization depth in Huize lead-zinc ore deposits

下载: 全尺寸图片幻灯片

表 1 会泽超大型矿床Sr同位素组成

Table 1. Sr isotopic compositions of minerals in Huize lead-zinc ore deposits

表 2 会泽铅锌矿床各成矿阶段流体性质

Table 2. Characteristics of fluid in Huize lead-zinc ore deposits

参考文献(50)

Chen, H.S., Ran, C. Y., 1992. Study on the isotopic geochemistry of the copper deposits in Kangdian axis. Geological Publishing House, Beijing, 1-62(in Chinese).
Chen, J., 1993. Genesis and metalogenic pattern of the Qilinchang Pb-Zn ore deposits. Geological Exploration for Non-Ferrous Metals, 2(2): 85-90(in Chinese with English abstract).
Chen, S.J., 1986. Study on the genesis of Pb-Zn ore deposits in the west of Guizhou Province and the northeast of Yunnan Province, China. Geology of Guizhou, 3(3): 211-222(in Chinese with English abstract).
Cong, B. L., 1988. The formation and evolvement of Panxi rift zone. Science Press, Beijing, 1-81(in Chinese).
Cooke, D.R., McPhail, D.C., Bloom, M.S., 1996. Epithermal gold minerlization, Acupan, Baguio distrist, Philippines: Geology, mineralization, alteration and the thermochemical environment of ore deposition. Econ. Geol., 91: 243-272. doi: 10.2113/gsecongeo.91.2.243
Drummond, S.E., Ohmoto, H., 1985. Chemical evolution and mineral deposition in boiling hydrothermal conditions. Econ. Geol., 80: 126-147. doi: 10.2113/gsecongeo.80.1.126
Han, R. S., 2002. Characteristics of geology, geochemistry and prognosis of concealed ores in Huize super-large Pb-Zn-Ag ore deposits, Yunnan Province of China. Institute of Geochemistry, Chinese Academy of Sciences.
Han, R.S., Chen, J., Li, Y., et al., 2001a. Tectono-geochemical features and orientation prognosis of concealed ores of Qilinchang lead-zinc ore deposit in Huize mine, Yunnan Province of China. Acta Mineral. Sinica, 21(4): 667-673(in Chinese with English abstract).
Han, R. S., Liu, C. Q., Huang, Z. L., et al., 2001b. Oreforming model of Huize rich Pb-Zn deposit, Yunnan. Acta Mineral. Sinica, 21: 674-680(in Chinese with English abstract).
Hass, J.L., 1971. The effect of sality on the maximum thermal gradient of a hydrothermal system at hydrostatic pressure. Econ. Geol., 66: 940-946. doi: 10.2113/gsecongeo.66.6.940
Hass, J.L., 1976. Physical properties of the coexisting phases and thermochemical properties of the H₂O component in boiling w(NaCl) solutions. Preliminary steam tables for w(NaCl)solutions. U.S. Geol. Surv. Bullet., 1421-A.
Hayba, D.O., Bethke, P.M., Healed, P., et al., 1985. Geologic, mineralogic and geochemical characteristics of volcanic-hosted epithermal precious-metal deposits. In: Berger, B.R., Bethke, P.M., eds. Geology and geochemistry of epithermal system. Reviews in Economic Geology, 2: 129-167.
Haynes, D. W., Cross, K. C., Bills, R. T., 1995. Olympic dam ore genesis: A fluid-mixing model. Econ. Geol., 90: 281-307. doi: 10.2113/gsecongeo.90.2.281
Hu, Y.G., 1999. Occurrence of silver, sources of mineralized substances and ore-forming mechanism Yinchangpo silver-polymetallic deposits, Guizhou Province, China: [Dissertation]. Institute of Geochemistry, Chinese Academy of Sciences, Guiyang, 1-98(in Chinese with English abstract).
Huang, Z.L., Li, W.B., Chen, J., et al., 2003. Carbon and oxygen isotope constraints on the mantle fluids join the mineralization of the Huize super-large Pb-Zn deposits, Yunnan Province, China. Journal of Geochem. Explor., 78 /79: 637-642. doi: 10.1016/S0375-6742(03)00149-3
Huang, Z.L., Chen, J., Liu, C.Q., et al., 2001a. A preliminary discussion on the genetic relationship between Emeishan basalts and Pb-Zn mineralization: As examplified by the Huize Pb-Zn deposits, Yunnan Province, China. Acta Mineral. Sinica, 31: 681-688(in Chinese with English abstract).
Huang, Z.L., Chen, J., Han, R.S., et al., 2001b. REE geochemistry of calcite— A gangue mineral in the Huize oredeposits, Yunnan Province. Acta Mineralogica Sinica, 31(4): 659-666(in Chinese with English abstract).
Huang, Z.L., Li, W.B., Chen, J., et al., 2003. REE geochemistry of calcites from fault zone of Huize superlarge Pb-Zn ore deposits in Yunnan Province. Mineral Deposits, 22(2): 199-207(in Chinese with English abstract).
Huang, Z.L., Li, W.B., Zhang, Z.L., et al., 2004. Characteristics of geochemistry and genesis in Huize superlarge Pb-Zn ore deposits, Yunnan Province of China. Institute of Geochemistry, Chinese Academy of Sciences(in Chinese with English abstract).
Li, F.H., Qin, J.M., 1988. Pre-Sinian in Kangdian district, China. Chongqing Press, Chongqing, 286-303(in chinese).
Liao, W., 1984. Study on S, Pb isotopic compositions and metallogenic model of Pb-Zn metallogenic province in the west of Yunnan Province, China. Geology and Prospecting, (1): 1-6(in Chinese with English abstract).
Liu, H.C., Lin, W.D., 1999. Study on Pb-Zn-Ag ore deposits law in northeast Yunnan Province. Yunnan University Press, Kunming, 1-468(in Chinses).
Liu, Y. J., Ma, D.S., 1991. Geochemistry of gold. Science Press, Beijing, 235-257(in Chinese).
Zhang, D.H., 1997. Overview of research on the ore depositional mechanisms in ore-forming fluid. Geological Science and Technology Information, 16(3): 53-58(in Chinese with English abstract).
Zhang, W.J., 1984. Study on sedimentogenesis and mineralization rules of Pb-Zn ore deposits in the northeast of Yunnan Province, China. Geology and Prospecting, (7): 11-16(in Chinese with English abstract).
Zhao, Z., 1995. Metallogenic model of lead-zinc ore deposits in the east and the northeast of Yunnan Province, China. Geology of Yunnan Province, 14(4): 364-376(in Chinese with English abstract).
Zheng, Q.A., 1997. Research on mineralization of convention circulating hot-water and rich Pb-Zn ore bodies hosted in karst caves of Kuangshanchang and Qilinchang ore deposit, Huize region of Yunnan Province, China. Mineral Resources and Geology of Xi'nan District, 1-2: 8-16(in Chinese with English abstract).
Zhou, C.X., Wei, C.S., Guo. J.Y., 2001. The source of metals in the Qilinchang Pb-Zn deposit, northeastern Yunnan, China: Pb-Sr isotope constraints. Econ. Geol., 96: 583-598. doi: 10.2113/gsecongeo.96.3.583
Zhou, C.X., 1996. The origin of the mineralizing metals, the geochemical characteristics of ore-forming fluid, and the genesis of Qilinchang Zn-Pb deposits, Northeast Yunnan Province, China: [Dissertation]. Chinese Academy of Sciences, Guiyang(in Chinese with English abstract).
陈好寿, 冉崇英, 1992. 康滇地轴铜矿床同位素地球化学. 北京: 地质出版社, 1-62.
陈进, 1993. 麒麟厂铅锌硫化矿床成因及成矿模式探讨. 有色金属矿产与勘查, 2(2): 85-90.
陈士杰, 1986. 黔西滇东北铅锌矿成因探讨. 贵州地质, 3(3): 211-222. https://www.cnki.com.cn/Article/CJFDTOTAL-GZDZ198603000.htm
从柏林, 1988. 攀西裂谷形成与演化. 北京: 科学出版社, 1-81.
韩润生, 2002. 会泽超大型银铅锌矿床地质地球化学及隐伏矿定位预测. 中国科学院地球化学研究所博士后出站报告.
韩润生, 陈进, 李元, 等, 2001b. 云南会泽麒麟厂铅锌矿床构造地球化学及定位预测. 矿物学报, 21(4): 667-673. https://www.cnki.com.cn/Article/CJFDTOTAL-KWXB200104016.htm
韩润生, 刘丛强, 黄智龙, 等, 2001a. 论云南会泽富铅锌矿床成矿模式. 矿物学报, 21(4): 674-680. https://www.cnki.com.cn/Article/CJFDTOTAL-KWXB200104017.htm
胡耀国, 1999. 贵州银厂坡银多金属矿床银的赋存状态、成矿物质来源与成矿机制. 中国科学院地球化学研究所博士学位论文, 1-98.
黄智龙, 陈进, 刘丛强, 等, 2001a. 峨嵋山玄武岩与铅锌矿床成矿关系初探———以云南会泽铅锌矿床为例. 矿物学报, 21(4): 681-688. https://www.cnki.com.cn/Article/CJFDTOTAL-KWXB200104018.htm
黄智龙, 陈进, 韩润生, 等, 2001b. 云南会泽铅锌矿脉石矿物方解石REE地球化学. 矿物学报, 31(4): 659-666.
黄智龙, 李文博, 陈进, 等, 2003. 云南会泽超大型铅锌矿床构造带方解石稀土元素地球化学. 矿床地质, 22(2): 199-207. doi: 10.3969/j.issn.0258-7106.2003.02.012
黄智龙, 李文博, 张振亮, 2004. 云南会泽超大型铅锌矿床地球化学及成因. 中国科学院地球化学研究所结题报告.
李复汉, 覃嘉铭, 1988. 康滇地区的前震旦系. 重庆: 重庆出版社.
廖文, 1984. 滇东、滇西Pb-Zn金属区S、Pb同位素组成特征与成矿模式探讨. 地质与勘探, (1): 1-6.
柳贺昌, 林文达, 1999. 滇东北铅锌银矿床规律研究. 昆明: 云南大学出版社, 1-468.
刘英俊, 马东升, 1991. 金的地球化学. 北京: 科学出版社, 235-257.
张德会, 1997. 成矿流体中金属沉淀机制研究综述. 地质科技情报, 16(3): 53-58. https://www.cnki.com.cn/Article/CJFDTOTAL-DZKQ703.010.htm
张位及, 1984. 试论滇东北Pb-Zn矿床的沉积成因和成矿规律. 地质与勘探, (7): 11-16. https://www.cnki.com.cn/Article/CJFDTOTAL-DZKT198407002.htm
赵准, 1995. 滇东、滇东北地区铅锌矿床的成矿模式. 云南地质, 14(4): 364-376. https://www.cnki.com.cn/Article/CJFDTOTAL-YNZD504.010.htm
郑庆鳌, 1997. 云南会泽矿山厂、麒麟厂铅锌矿床对流循环成矿及热水溶硐赋存块状富铅锌矿体的实践与认识. 西南矿产地质, 1-2: 8-16.
周朝宪, 1996. 滇东北麟麒厂锌铅矿床成矿金属来源、成矿流体特征和成矿机理研究. 中国科学院地球化学研究所硕士学位论文.
