Zircon U-Pb Ages and Significance of Bottom and Top Beds ofZhangjiakou Formation in Liaoning and Hebei Provinces
-
摘要: 辽西凌源附近地区张家口组(J3z)火山岩及以前的中生代地层以北东东向构造为主,而义县组(K1y)沉积-火山岩以北北东向构造为主,张家口组与义县组之间为角度不整合接触.新的LAICPMS的单颗粒锆石UPb的测年结果表明,辽西凌源地区张家口组的底界年龄为132Ma,顶界年龄为129.5~130Ma; 冀北滦平地区张家口组的底界年龄为136Ma,顶界年龄为135Ma.经综合分析,得出以下的初步结论: (1)冀北滦平与辽西凌源地区的张家口组是可比的; 同时,说明了冀北滦平地区到辽西凌源地区的张家口组火山岩有明显的随时间迁移的特点.(2)凌源地区张家口组的顶界与义县组的底界有约5~6Ma的时间间隔,从年代学上证明了凌源附近地区张家口组与义县组之间为角度不整合接触的可靠性.暗示了该5~6Ma的间隔期是冀北—辽西附近地区中生代构造格架转换的主要时期,该时期也正是我国东北地区中生代岩浆作用的鼎盛时期; 暗示了该时期岩浆作用的动力学背景应与构造格架的转换有直接的联系; 同时在冀北—辽西地区,该间隔期之后发生了热河动物群的大爆发,说明该时期也是一个重要的生物界限.(3)从年代学方面厘定了冀北滦平的大北沟组在时代上应相当于张家口组的上部层位,而不是广义义县组的底部层位.Abstract: In Lingyuan region,Liaoning Province,the Zhangjiakou Formation and the Lower Mesozoic strata are in an ENE orientation,while the Yixian Formation is NNE orientated,the two formations are angular unconformity.According to the new U-Pb isotopic age analysis of zircon by LA-ICP-MS,the bottom bed of the Zhangjiakou Formation in Lingyuan is about 132 Ma,and the top bed is about 129.5-130 Ma.In Luanping region,Hebei Province,the bottom bed of the Zhangjiakou Formation is about 136 Ma,and the top bed is about 135 Ma.The Zhangjiakou Formation in the Lingyuan and Luanping regions is comparable,which reflects that the volcanic rock of the Zhangjiakou Formation from Luanping to Lingyuan becomes younger in time.The top bed of the Zhangjiakou Formation in Lingyuan has about a 5-6 Ma interval with the bottom bed of Yixian Formation,which proves that the angular unconformity of Zhangjiakou Formation and Yixian Formation is credible; suggesting that the 5-6 Ma interval period is the main period of the transition of tectonic framework in the Mesozoic in Hebei and Liaoning provinces.In the interval period,the magnetic action went up to high tide in the Mesozoic in the northeast of China.Moreover,after the interval period,the Rehe fauna developed into the erupted period,which also reflects that the interval period is an important biological interface in Hebei and Liaoning provinces.According to the isotopic age,the Dabeigou Formation in Luanping region corresponds to the upper bed of the Zhangjiakou Formation,not to the bottom bed of the Yixian Formation.
-
Key words:
- zircon U-Pb age /
- Zhangjiakou Formation /
- bottom and top beds /
- Luanping /
- Lingyuan
-

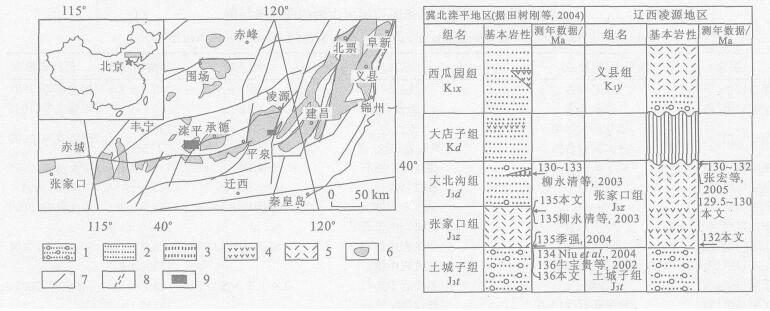

图 1 冀北滦平—辽西凌源附近地区构造位置及中生代地层层位对比
1.砂砾岩; 2.砂岩、粉砂岩; 3.凝灰岩; 4.中性火山岩; 5.酸性火山岩; 6.中生代盆地; 7.断裂; 8.韧性剪切带; 9.工作区.J3t.土城子组; J3z. 张家口组; J3d.大北沟组; Kd.大店子组; K1y.义县组; K1x.西瓜园组
Fig. 1. Geological map in brief and contrast of Mesozoic strata in Lingyuan and Luanping regions

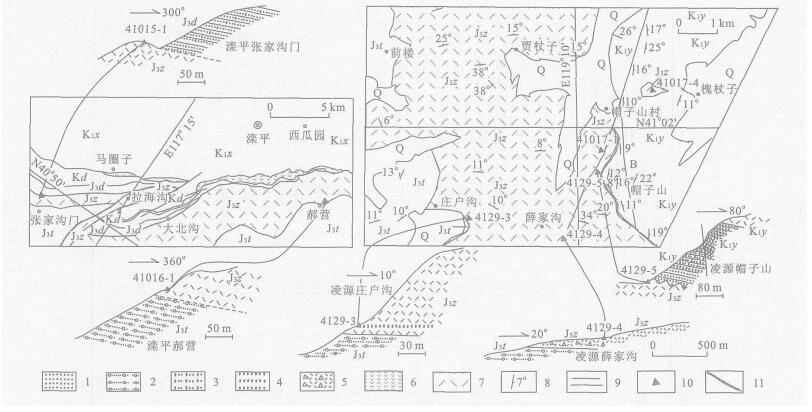

图 2 冀北滦平—辽西凌源地区同位素采样点位置
1.砂岩、粉砂岩; 2.砂砾岩; 3.凝灰质砂岩; 4.凝灰岩; 5.火山角砾岩; 6.中性火山岩; 7.酸性火山岩; 8.地层产状; 9.断裂; 10.同位素采样点; 11. 角度不整合; J3t.土城子组; J3z.张家口组; J3d.大北沟组; Kd.大店子组; K1y.义县组; K1x.西瓜园组; Q.第四系
Fig. 2. Geological map in brief of isotopic sample location in Lingyuan and Luanping regions

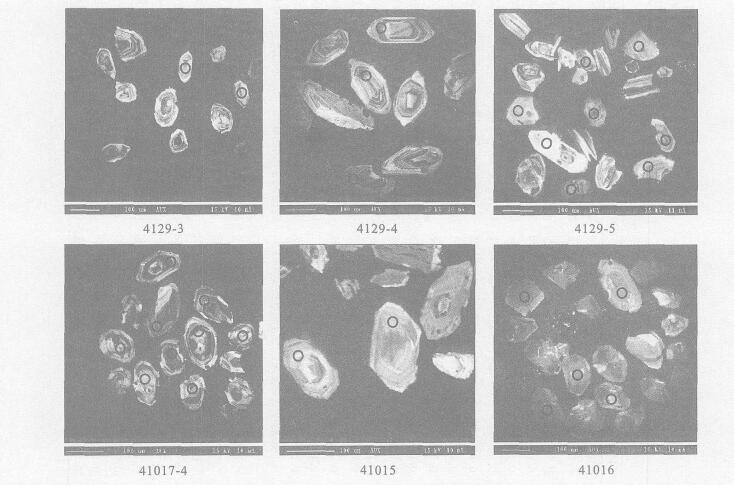

图 3 样品中锆石的阴极发光照片(其中的黑色圆圈为激光剥蚀位置)
Fig. 3. Magmatic zircon in samples, the black circles are the positions of laser points

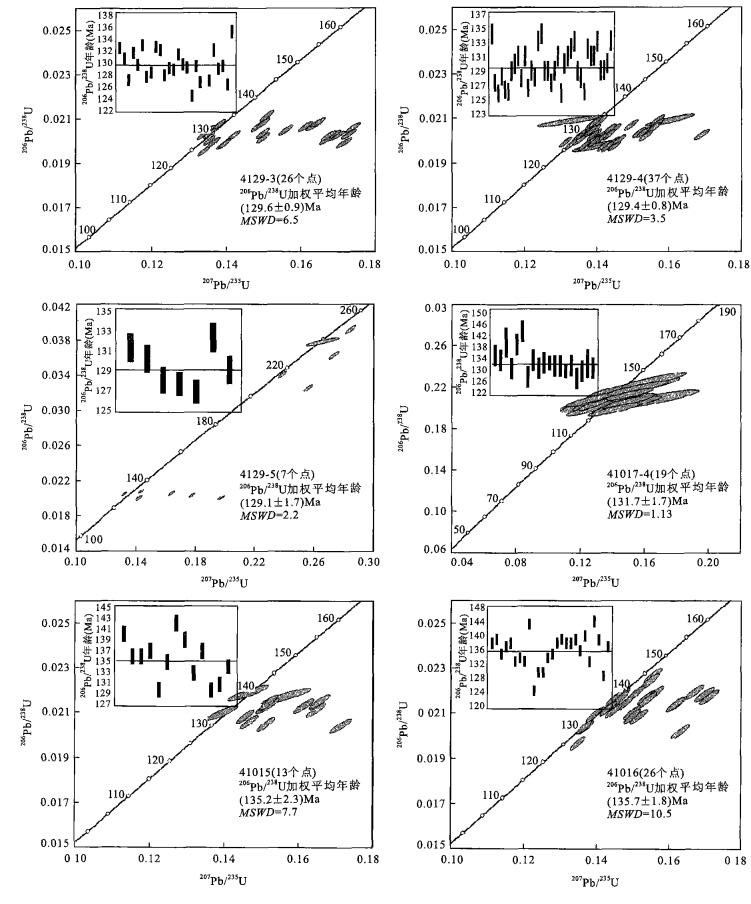

图 4 滦平、凌源地区张家口组火山岩样品的锆石U-Pb谐和图
Fig. 4. Zircon U-Pb concordant diagram of samples of Zhangjiakou Formation
表 1 冀北—辽西地区张家口组火山岩的同位素年龄
Table 1. Isotopic ages of Zhangjiakou Formation in West Liaoning and North Hebei
表 2 采样点位置情况
Table 2. Information of sample locations
表 3 样品激光ICP-MS锆石U-Pb分析数据
Table 3. Zircon U-Pb data by LA-ICP MS for samples
-
Chen, P.J., Dong, Z.M., Zhen, S.N., 1998.An exceptionally well-preserved theropod dinosaur from the Yixian Formation of China.Nature, 391: 147-152. doi: 10.1038/34356 Chen, P.J., Wang, Q.F., Zhang, H.C., et al., 2004.Discuss the Jianshangou bed of Yixian Formation.Science in China(Series D), 34(10): 883-895(in Chinese). Gao, S., Rudnick, R.L., Yuan, H.L., et al., 2004.Recycling lower continental crust in the North China craton.Nature, 432: 892-897. doi: 10.1038/nature03162 Geological Bureau of Hebei Province, 1996.Polycontrasting study to the whole-country strata(13)—rock strata in Hebei Province.China University of Geosciences Press, Wuhan, 80-82(in Chinese). Hu, G.H., Hu, S.L., Wang, S.S., et al., 1982.Discussing the age of the Jurassic-Cretaceous volcanic strata according isotopic ages.Acta Geologica Sinica, 56(4): 315 -323(in Chinese with English abstract). Ji, Q., 2004.Mesozoic Jehol Biota of western Liaoning, China.Geological Publishing House, Beijing, 1-375(in Chinese). Ji, Q., Currie, P.J., Norell, M.A., et al., 1998.Twofeathered dinosaurs from northeastern China.Nature, 393: 753-761. doi: 10.1038/31635 Ji, Q., Ji, S., Yuan, C.X., et al.2002.Restudy on a small dromaeosaurid dinosaur with feathers over its entire body.Earth Science Frontiers, 9(3): 57-63(in Chinese with English abstract). Liu, Y.Q., Li, P.X., Tian, S.G., 2003.SHRIMP U-Pb zircon age of Late Mesozioc tuff(lava)in Luanping basin, Northern Hebei, and its implications.Geological Bulletin of China, 22(3): 238-244(in Chinese with English abstract). Luo, X.Q., Li, P.X., 1997.Study of the Jurassic-Cretaceous boundary.Acta Geoscientica Sinica, 18(3): 242-247 (in Chinese with English abstract). Niu, B.G., He, Z.J., Song, B., et al., 2002.SHRIMP geochronology of volcanics of the Zhangjiakou and its significance.Geological Bulletin of China, 22(2): 140-141(in Chinese with English abstract). Niu, B.G., He, Z.J., Song, B., et al., 2004.SHRIMP geochronology of volcanics of the Zhangjiakou and Yixan formations, northern Hebei Province, with a discussion on the age of the Xing'anling Group of the Great Hinggan mountain and volcanic strata of the southeastern coastal area of China.Acta Geologica Sinica(English Edition), 78(6): 1214-1228. doi: 10.1111/j.1755-6724.2004.tb00778.x Niu, S.W., Li, P.X., Tian, S.G., et al., 2002.New research progress of conchostracon fossils from the Dabeigou Formation in the Luanping basin, Hebei, China.Geological Bulletin of China, 21(6): 322-328(in Chinese with English abstract). Ren, J.S., 2002.China and adjacent tectonic map(1∶ 5 000 000).Geological Publishing House, Beijing, 3-10 (in Chinese). Shao, J.A., Zhang, L.Q., Chu, Z.Y., 2003.Early Cretaceous volcanism-sedimentation in northern Hebei and its tectonic setting: A discussion.Geological Bulletin of China, 22(6): 384-390. Sun, G., Dilcher, D.L., Zheng, S.L., et al., 1998.In search of the first flower: A Jurassic angiosperm: Archaefructus, from Northeast China.Science, 282(5394): 1692-1695. doi: 10.1126/science.282.5394.1692 Sun, G., Zheng, S.L., 2000.New proposal on division and correlation of Mesozoic from northeastern China.Journal of Stratigraphy, 24(1): 60-64(in Chinese with English abstract). Swisher, C.C., Wang, Y.Q., Wang, X.L., et al., 1999.Cretaceous age of the feathered dinosaurs of Liaoning, China.Nature, 400: 58-61. doi: 10.1038/21872 Wang, S.E., 1999.Palaeoecology and palaeoenvironment of the Jehol Biota—A palaeoecological and palaeoenvironment reconstruction of conchostracan palaeocommunities in the northern Hebei-western Liaoning area.Acta Geologica Sinica, 73(4): 289-301(in Chinese with English abstract). Wang, W.L., Zhang, H., Zhang, L.J., et al., 2004b.The standard stratigraphic sections of Tuchengzi stage and Yixian stage and their stratigraphy, palaeontology and tectonic-volcanic actions.Geological Publishing House, Beijing, 429-434(in Chinese). Wang, W.L., Zhang, L.J., Zheng, S.L., et al., 2004a.A new study on the stratotype and biostratigraphy of the Yixian stage in the Yixian-Beipiao region, Liaoning.Acta Geologica Sinica, 78(4): 433-447(in Chinese with English abstract). Wu, F.D., Chen, Y.J., Hou, Y.A., et al., 2004.Characteristics of sedimentary-tectonic evolution and high-resolution sequence stratigraphy in Luanping basin.Earth Science—Journal of China University of Geosciences, 29(5): 625-630(in Chinese with English abstract). Xu, X., Zhou, Z.H., Prum, R., 2001.Branched integumental structures in Sinornithosaurus and the origin of feathers.Nature, 410: 200-204. doi: 10.1038/35065589 Yuan, H.L., Gao, S., Liu, X.M., et al., 2004.Accurate UPb age and trace element determinations of zircon by laser ablation-inductively coupled plasma mass spectrometry.Geoanalytical and Geostandard Newsletters, 28 (3): 353-370. doi: 10.1111/j.1751-908X.2004.tb00755.x Zhang, F.C., Zhou, Z.H., 2000.A primitive enantiornithine bird and the origin of feathers.Science, 290: 1955-1959. doi: 10.1126/science.290.5498.1955 Zhang, H., Liu, X.M., Gao, S., et al.2005.Redefination of the Zhangjiakou Formation in Lingyuan, western Liaoning and its significance———Constraints from laser ICP-MS zircon U-Pb ages.GeologicalBulletin of China, 24(2): 110-117(in Chinese with English abstract). Zhang, H., Wang, W.L., Li, Z.T., et al., 2004.Comprehensive correlation of the Yixian Formation in the Beipiao and Yixian area, western Liaoning.Geological Bulletin of China, 23(8): 766-777(in Chinese with English abstract). Zhou, Z., Barrett, P.M., Hilton, J., 2003.An exceptionally preserved Lower Cretaceous ecosystem.Nature, 421: 807-814. doi: 10.1038/nature01420 Zhou, Z.Y., Zheng, S.L., 2003.The missing link in Ginkgo evolution.Nature, 423: 821-822. doi: 10.1038/423821a 陈丕基, 王启飞, 张海春, 等, 2004.论义县组尖山沟层.中国科学(D辑), 34(10): 883-895. https://www.cnki.com.cn/Article/CJFDTOTAL-JDXK200410001.htm 河北省地质局, 1996.全国地层多重划分对比研究(13)-河北省岩石地层.武汉: 中国地质大学出版社, 80-82. 胡光华, 胡世玲, 王松山, 等, 1982.根据同位素年龄讨论侏罗、白垩纪火山岩地层时代.地质学报, 56(4): 315-323. https://www.cnki.com.cn/Article/CJFDTOTAL-DZXE198204002.htm 季强, 姬书安, 袁崇喜, 等, 2002.辽西凌源全身长有羽毛奔龙化石的再研究.地学前缘, 9(3): 57-63. doi: 10.3321/j.issn:1005-2321.2002.03.009 季强, 2004.中国辽西中生代热河生物群.北京: 地质出版社, 79-203. 柳永清, 李佩贤, 田树刚, 2003.冀北滦平晚中生代火山碎屑(熔)岩中锆石SHRIMP U-Pb年龄及其地质意义.岩石矿物学杂志, 22(3): 238-244. https://www.cnki.com.cn/Article/CJFDTOTAL-YSKW200303006.htm 罗修泉, 李佩贤, 1997.侏罗系-白垩系界线年代研究.地球学报, 18(3): 242-247. https://www.cnki.com.cn/Article/CJFDTOTAL-DQXB703.002.htm 牛宝贵, 和政军, 宋彪, 等, 2002.张家口组火山岩SHRIMP定年及其重大意义.地质通报, 22(2): 140-141. https://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD200302009.htm 牛绍武, 李佩贤, 田树刚, 等, 2002.冀北滦平盆地大北沟组叶肢介化石研究新进展.地质通报, 21(6): 322-328. doi: 10.3969/j.issn.1671-2552.2002.06.008 任纪舜, 2002.中国及邻区大地构造图(1∶ 5 000 000)及说明书.北京: 地质出版社, 3-10. 邵济安, 张履桥, 储著银, 2003.冀北早白垩世火山-沉积作用及构造背景.地质通报, 22(6): 384-390. doi: 10.3969/j.issn.1671-2552.2003.06.002 孙革, 郑少林, 2000.中国东北中生代地层划分对比之新见.地层学杂志, 24(1): 60-64. doi: 10.3969/j.issn.0253-4959.2000.01.009 王思恩, 1999.热河动物群的古生态与古环境———冀北、辽西叶肢介群落古生态与古环境重建.地质学报, 73(4): 289-301. 王五力, 张立君, 郑少林, 等, 2004a.义县-北票地区义县阶标准地层剖面及其生物地层学新研究.地质学报, 78(4): 433-447. https://www.cnki.com.cn/Article/CJFDTOTAL-DZXE200404000.htm 王五力, 张宏, 张立君, 等, 2004b.土城子阶、义县阶标准地层剖面及其地层古生物、构造-火山作用.北京: 地质出版社, 429-434. 武法东, 陈永进, 侯宇安, 等, 2004.滦平盆地沉积-构造演化及高精度层序地层特征.地球科学———中国地质大学学报, 29(5): 625-630. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX200405019.htm 张宏, 柳小明, 高山, 等, 2005.辽西凌源地区张家口组的重新厘定及其意义———来自激光ICP-MS锆石U-Pb年龄的制约.地质通报, 24(2): 110-117. doi: 10.3969/j.issn.1671-2552.2005.02.003 张宏, 王五力, 李之彤, 等, 2004.辽西北票和义县地区义县组的综合对比研究.地质通报, 23(8): 766-777. doi: 10.3969/j.issn.1671-2552.2004.08.007 -
