Fission Track Geochronology of Xiaonanchuan Pluton and the Morphotectonic Evolution of Eastern Kunlun since Late Miocene
-
摘要: 对昆仑垭口地区小南川岩体7件样品进行磷灰石裂变径迹年代学测试, 分析了岩体的冷却过程及岩体的剥露与构造地貌演化的关系.结果表明东昆仑山区中新世晚期视剥蚀速率极为缓慢, 为0.020~0.035mm/a, 反映的是构造隆升作用微弱、地貌缓和的地质环境, 因而构造隆升速率与低的视剥蚀速率相当.上新世以来小南川岩体突发性快速隆升冷却, 造成超过3km的物质揭顶, 这不是由单纯的剥蚀过程导致, 而是反映了昆仑山上新世以来的强烈构造隆升驱动下的成山作用过程.岩体上新世的裂变径迹年龄与近东西向的昆仑河-野牛沟谷地断裂断陷、昆仑垭口盆地断陷以及后期西大滩谷地断陷的综合构造地貌演化有密切的成因联系.此外裂变径迹年龄的空间分布格局反映了区域性的差异隆升作用, 由南向北、由西向东, 隆升和剥蚀作用逐渐衰减, 这与东昆仑山南北向以及东、西昆仑山之间地貌发育的差异性以及新生代火山作用分布是吻合的.Abstract: Apatite fission track (AFT) thermochronology of seven samples from the Xiaonanchuan pluton in the Kunlun pass area was carried out to determine the timing of cooling and the relation between the exhumation and the morphotectonic processes. The AFT ages yield low denudation rates of 0.020-0.035 mm/a during the Late Miocene, which correspond to a stable geomorphic and weak tectonic uplifting environment. The low denudation rates can be considered as the approximate tectonic uplifting rates. The AFT geochronology shows paroxysmally rapid cooling since the Pliocene and an apparent material unroofing of more than 3 km in the Xiaonanchuan area. This was not the result of simple denudation. The rapid cooling was coupled with the intensive mountain building processes since the Pliocene, which were driven by tectonic uplifting. The accelerated relief building was accompanied by a series of faulting, which caused the basin and the valley formation and sinking. The space pattern of the AFT ages also shows differential uplifting, which decreases northwardly. This trend is supported by the regional AFT data, which indicate that the exhumation decreases northwardly in eastern Kunlun. This trend also exists in east-west orientation from the western Kunlun range to the eastern. The uplifting trend is also supported by geomorphic characteristics including the elevation and the relief differences as well as the distribution of the Late Cenozoic volcanism.
-
Key words:
- eastern Kunlun /
- Tibet /
- Xiaonanchuan /
- apatite fission track /
- morphotectonic /
- Pliocene
-

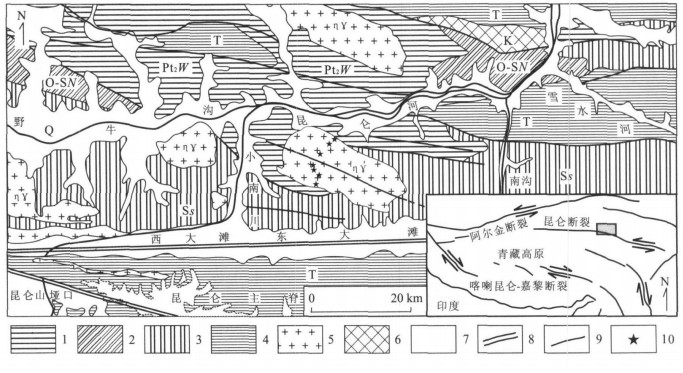

图 1 研究区构造位置及小南川地区地质、地貌简图(据1∶25万不冻泉幅, 1∶20万纳赤台幅地质图修改)
1.中元古界万保沟群; 2.下古生界纳赤台群; 3.志留系赛什腾组; 4.三叠系; 5.花岗岩; 6.上白垩统海相碎屑岩; 7.第四系; 8.活动断裂; 9.一般断裂; 10.样品点
Fig. 1. Geological and geomorphology sketch map of Xiaonanchuan and tectonic position of study area
图 2 小南川岩体遥感影像及样品点分布
星号代表样品点位; 箭头指示性线影像走向及位置
Fig. 2. Sample positions in Xiaonanchuan pluton in the remote image

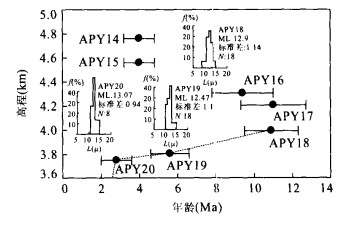

图 3 小南川岩体年龄高程分布及封闭径迹长度分布
Fig. 3. AFT age-elevation plot and fission track length distribution of Xiaonanchuan pluton
表 1 小南川岩体磷灰石裂变径迹年龄测试结果
Table 1. Apatite fission track dating results of Xiaonanchuan pluton
表 2 小南川岩体中新世晚期以来阶段性视剥蚀速率
Table 2. Apparent denudation rates of the Xiaonanchuan pluton at different stages since Late Miocene
-
Arne, D., Worley, B., Wilson, C., et al., 1997. Differential exhumationin response to episodic thrusting along the eastern margin of Tibetan Plateau. Tectonophysics, 280 (3-4): 239-256. doi: 10.1016/S0040-1951(97)00040-1 Bai, D. Y., Meng, D. B., Liu, Y. R., et al., 2003. Apatite fission-track records of the tectonic uplift of the central segment of the Kunlun Mountains on the north margin of Qinghai-Tibet Plateau. Geology in China, 30 (3): 240-246 (in Chinese with English abstract). Chen, S. Y., Wang, S. M., Jin, Z. D., et al., 2004. Lake sedimentary records of environmental evolution in the last 2.8 Ma from the Co Ngoin basin, central Qinghai-Xizang Plateau. Geochimica, 33 (2): 159-164 (in Chinese with English abstract). Chen, Z. L., Wan, J. L., Wang, X. F., et al., 2002. Rapid strike-slip of the Altyn Tagh fault at8Ma and its geological implications. Acta Geoscientia Sinica, 23 (4): 295-300 (in Chinese with English abstract). Claire, M., Nicolas, O. A., Jean-Marie, C., 1999. An early unroofing in northeastern Tibet?Constraints from 40Ar/39Ar thermochronology on granitoids from the eastern Kunlun range (Qinghai, NWChina). Earth and Planetary Science Letters, 171 (1): 107-122. doi: 10.1016/S0012-821X(99)00133-8 Cui, Z. J., Wu, Y. Q., Liu, G. N., et al., 1998. On KunlunYellow River tectonic movement. Sciencein China (Series D), 28 (1): 53-59 (in Chinese). Gleadow, A. J. W., Belton, D. X., Kohn, B. P., et al., 2002. Fission track dating of phosphate minerals and the thermochronology of apatite. In: Hughes, J., Kohn, M., Rakovan, J., eds., Phosphates-reviews in mineralogy and geochemistry. Mineralogical Society of America and Geochemical Society, Washington, DC, United States, 48: 579-643. Gleadow, A. J. W., Duddy, I. R., 1981. A natural long-term annealing experiment for apatite. Nuclear Tracks and Radiation Measurements, 5 (1-2): 169-174. Jolivet, M., Brunel, M., Seward, D., et al., 2001. Mesozoic and Cenozoic tectonics of the northern edge of the Tibetan Plateau: Fission-track constraints. Tectonophysics, 343 (1-2): 111-134. doi: 10.1016/S0040-1951(01)00196-2 Lai, D., Harris, N. B. W., Sharma, K. K., et al., 2004. Erosion history of the Tibetan Plateau since the last interglacial: Constraints from the first studies of cosmogenic 10Be from Tibetan bedrock. Earth and Planetary Sci-ence Letters, 217 (1-2): 33-42. doi: 10.1016/S0012-821X(03)00600-9 Li, B. Y., 1996. Natural environment of Hohxil region in Qinghai. Science Press, Beijing, 24-28 (in Chinese). Li, B. Y., Pan, B. T., Gao, H. S., 2002. A planation surface and ages of volcanic rocks in eastern Hohxil, QinghaiTibetan Plateau. Quaternary Sciences, 22 (5): 397-405 (in Chinese with English abstract). Li, J. J., Fang, X. M., Pan, B. T., et al., 2001. Late Cenozoic intensive uplift of Qinghai-Xizang Plateau and its impacts on environments in surrounding area. Quaternary Sciences, 21 (5): 381-391 (in Chinese with English abstract). Naeser, C. W., Dodge, F. C. W., 1969. Fission track ages of accessory minerals fromgranitic rocks of the central Sierra Nevada Batholoth, California. Geological Society of America Bulletin, 80 (11): 2201-2211. doi: 10.1130/0016-7606(1969)80[2201:FAOAMF]2.0.CO;2 Pan, B. T., Gao, H. S., Li, J. J., 2002. On problems of planation surface—A discussion on the planation surface in Qinghai-Xizang Plateau. Scientia Geographica Sinica, 22 (5): 520-526 (in Chinese with English abstract). Wan, J. L., Wang, E. Q., 2002. FT evidence of West Kunlun uplift in Pulu. Nuclear Techniques, 25 (7): 565-567 (in Chinese with English abstract). Wang, F., Lo, C. H., Li, Q., et al., 2004. Onset timing of significant unroofing around Qaidambasin, northern Tibet, China: Constraints from 40Ar/39Ar and FT the rmochronology on granitoids. Journal of Asian Earth Sciences, 24 (1): 59-69. doi: 10.1016/j.jseaes.2003.07.004 Wang, G. C., Xiang, S. Y., Garver, J. I., et al., 2003. Upliftand exhumation during Mesozoic in Halaguole-Hatu area, east segment of eastern Kunlun Mountains: Evidence from zircon and apatite fission-track ages. Earth Science—Journal of China University of Geosciences, 28 (6): 645-652 (in Chinese with English abstract). Wang, G. C., Yang, W. R., Ma, H. D., et al., 2005. Comparing of the tectonic uplift since Late Cenozoic between the East and West Kunlun Mountains. Earth Science Frontiers, 12 (3): 157-166 (in Chinese with Englishabstract). Wang, J., 1998. Uplift of the Karibasheng and Kuzigan grainte in the west Kunlun Mountains—Evidence from apatite fission track analysis. Geological Review, 44 (4): 435-442 (in Chinese with English abstract). Wang, Q. L., Wang, J. H., Zhu, G. Z., et al., 2004. Vertical deformations of the eastern Kunlun fault zone and west of Kunlun Mountain passMs8.1earthquake. Seismology and Geology, 26 (2): 273-280 (in Chinese with English abstract). Wang, Y., Wan, J. L., Li, Q., et al., 2002. Fission-track evidence for the Cenozoic uplift and erosion of the northern segment of the Altyn Tagh fault zone at the AksayDangjin Pass. Acta Geologica Sinica, 76 (2): 191-198 (in Chinese with English abstract). Wang, Y. B., Wang, J., Wang, S. C., 1998. Fission track evidence for rapid uplift of the Nyalam, Higher Himalaya, Tibet, China. Geological Review, 44 (4): 430-434 (in Chinese with English abstract). Wu, Y. Q., Cui, Z. J., Liu, G. N., et al., 2001. Quaternary geomorphological evolution of the Kunlun Pass area and uplift of the Qinghai-Xizang (Tibet) Plateau. Geomorphology, 36 (3-4): 203-216. doi: 10.1016/S0169-555X(00)00057-X Yuan, W. M., Wang, S. C., Li, S. R., et al., 2001. The fission track evidence of conformation activity in Gangdise belt, Tibet. Chinese Science Bulletin, 46 (20): 1739-1742 (in Chinese). doi: 10.1360/csb2001-46-20-1739 Yuan, W. M., Zhang, X. T., Dong, J. Q., et al., 2004. Apatite fission track evidence on the uplifting of eastern Kunlun Mountains. Atomic Energy Science and Technology, 38 (2): 166-168 (in Chinese with English abstract). Zhao, Z. D., Mo, X. X., Guo, T. Y., et al., 2003. Fission track ages of pluton in South Tibet and plateau uplift. Advance in Natural Sciences, 13 (8): 877-880 (in Chinese). Zhong, D. L., Ding, L., 1996. A discussion on uplift procession and its dynamics of the Qinghai-Xizang (Tibetan) Plateau. Science in China (Series D), 26 (4): 290-295 (in Chinese). 柏道远, 孟德保, 刘耀荣, 等, 2003. 青藏高原北缘昆仑山中段构造隆升的磷灰石裂变径迹记录. 中国地质, 30 (3): 240-246. https://www.cnki.com.cn/Article/CJFDTOTAL-DIZI200303002.htm 陈诗越, 王苏民, 金章东, 等, 2004. 湖泊沉积物记录的藏中地区2.8Ma以来的环境演变历史. 地球化学, 33 (2): 159-164. https://www.cnki.com.cn/Article/CJFDTOTAL-DQHX200402006.htm 陈正乐, 万景林, 王小凤, 等, 2002. 阿尔金断裂带8Ma左右的快速走滑及其地质意义. 地球学报, 23 (4): 295-300. https://www.cnki.com.cn/Article/CJFDTOTAL-DQXB200204001.htm 崔之久, 伍永秋, 刘耕年, 等, 1998. 关于"昆仑-黄河运动". 中国科学(D辑), 28 (1): 53-59. https://www.cnki.com.cn/Article/CJFDTOTAL-JDXK199801009.htm 李炳元, 1996. 青海可可西里地区自然环境. 北京: 科学出版社, 24-28. 李炳元, 潘保田, 高红山, 2002. 可可西里东部地区的夷平面与火山年代. 第四纪研究, 22 (5): 397-405. https://www.cnki.com.cn/Article/CJFDTOTAL-DSJJ200205000.htm 李吉均, 方小敏, 潘保田, 等, 2001. 新生代晚期青藏高原强烈隆起及其对周边环境的影响. 第四纪研究, 21 (5): 381-391. https://www.cnki.com.cn/Article/CJFDTOTAL-DSJJ200105000.htm 潘保田, 高红山, 李吉均, 2002. 关于夷平面的科学问题———兼论青藏高原夷平面. 地理科学, 22 (5): 520-526. https://www.cnki.com.cn/Article/CJFDTOTAL-DLKX200205001.htm 万景林, 王二七, 2002. 西昆仑北部山前普鲁地区山体抬升的裂变径迹研究. 核技术, 25 (7): 565-567. https://www.cnki.com.cn/Article/CJFDTOTAL-HJSU200207018.htm 王国灿, 向树元, GARVER, J. I., 等, 2003. 东昆仑东段哈拉郭勒-哈图一带中生代的岩石隆升剥露———锆石和磷灰石裂变径迹年代学证据. 地球科学———中国地质大学学报, 28 (6): 645-652. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX200306010.htm 王国灿, 杨巍然, 马华东, 等, 2005. 东、西昆仑山晚新生代以来构造隆升作用对比. 地学前缘, 12 (3): 157-166. https://www.cnki.com.cn/Article/CJFDTOTAL-DXQY200503023.htm 王军, 1998. 西昆仑卡日巴生岩体和苦子干岩体的隆升———来自磷灰石裂变径迹分析的证据. 地质论评, 44 (4) 435-442. https://www.cnki.com.cn/Article/CJFDTOTAL-DZLP199804013.htm 王庆良, 王建华, 朱桂芝, 等, 2004. 东昆仑山断裂带及昆仑山口西8.1级地震垂直形变研究. 地震地质, 26 (2): 273-280. https://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ200402008.htm 王瑜, 万景林, 李奇, 等, 2002. 阿尔金山北段阿克塞-当金山口一带新生代山体抬升和剥蚀的裂变径迹证据. 地质学报, 76 (2): 191-198. https://www.cnki.com.cn/Article/CJFDTOTAL-DZXE200202006.htm 王彦斌, 王军, 王世成, 1998. 高喜马拉雅地区聂拉木花岗岩快速抬升的裂变径迹证据. 地质论评, 44 (4): 430-434. https://www.cnki.com.cn/Article/CJFDTOTAL-DZLP199804012.htm 袁万明, 王世成, 李胜荣, 等, 2001. 西藏冈底斯带构造活动的裂变径迹证据. 科学通报, 46 (20): 1739-1742. https://www.cnki.com.cn/Article/CJFDTOTAL-KXTB200120016.htm 袁万明, 张雪亭, 董金泉, 等, 2004. 东昆仑隆升作用的裂变径迹研究. 原子能科学技术, 38 (2): 166-168. https://www.cnki.com.cn/Article/CJFDTOTAL-YZJS200402016.htm 赵志丹, 莫宣学, 郭铁鹰, 等, 2003. 西藏南部岩体裂变径迹年龄与高原隆升. 自然科学进展, 13 (8): 877-880. https://www.cnki.com.cn/Article/CJFDTOTAL-ZKJZ200308019.htm 钟大赉, 丁林, 1996. 青藏高原的隆起过程及其机制探讨. 中国科学(D辑), 26 (4): 290-295. https://www.cnki.com.cn/Article/CJFDTOTAL-JDXK199604000.htm -
