Preparation and Its Performance of Rectorite/Poly(Sodium Acrylate-Co-Acrylamide) Superabsorbent Composite
-
摘要: 采用焙烧-磁选法、酸洗提纯法、煅烧法均能有效减少湖北钟祥累托石粘土中的黄铁矿.实验用累托石粘土中黄铁矿含量为4.37%, 硫含量为2.32%.采用焙烧磁选法, 温度300℃、时间2.0h、二次磁选后, 累托石粘土中硫含量降为0.52%;酸洗法, 酸液浓度60%、时间1.0h、温度60℃时, 硫含量为0.57%;煅烧法, 当温度550℃、时间为0.5h时, 硫含量为0.78%.研究发现所得粘土矿物对聚合复合法制备累托石/聚丙稀酰胺-丙烯酸(钠) 吸水保水复合材料的阻聚作用不明显, 且不影响后续聚合反应最高硫含量约为0.78%.在65~70℃反应条件下, 含煅烧累托石粘土20%、丙烯酰胺15%、引发剂0.25%、交联剂0.08%, 丙烯酸中和度为80%的吸水保水复合材料的吸去离子水倍率为870, 吸自来水倍率为250, 吸生理盐水倍率为68.累托石粘土添加量在0%~30%之间时, 吸水保水复合材料的吸液倍率比不含累托石的吸水树脂高.吸水保水复合材料吸液倍率从870g/g降到84g/g时, 凝胶强度从49g/cm2上升到235g/cm2.Abstract: The effect of three different types of purification processes (roasting-magnetic dressing, acid pickling and calcining) on the sulfur content of rectorite clay (pyrite content 4.37%, sulfur content 2.32%) was investigated. By roasting-magnetic dressing, the sulfur content was reduced to 0.52% when roasting at 300 ℃ for 2 h and magnetic dressing twice; By acid pickling, the sulfur content remained 0.57% under the condition of 60 ℃ and acid pickling for 1 h with 60% nitric acid solution; By calcining, 0.78% of sulfur was left if calcined for 0.5 h at 550 ℃. The experimental results indicate there is no obvious inhibition effect (corresponding maximal sulfur content 0.78%) when rectorite/poly (sodium acrylate-Co-acrylamide) is synthesized by in-situ aqueous solution polymerization with the purified rectorite clay as material. At 65-70 ℃, the water absorbencies (WA) of superabsorbent composite (containing 20% purified rectorite clay, 15% acrylamide, 0.25% initiator and 0.08% cross linker, with the neutralization degree of acrylic acid being 80%) in distilled water, tap water and 0.9% NaCl (aq) are 870, 250 and 68 respectively. When the content of rectorite is between 0%-30%, WA of superabsorbent composite is higher than that of superabsorbent resin that contains no rectorite. When WA of superabsorbent composite in distilled water is reduced from 870 g/g to 84 g/g, its gel strength rises from 49 g/cm2 to 235 g/cm2.
-
Key words:
- rectorite /
- pyrite /
- purification /
- superabsorbent composite /
- preparation /
- performance
-

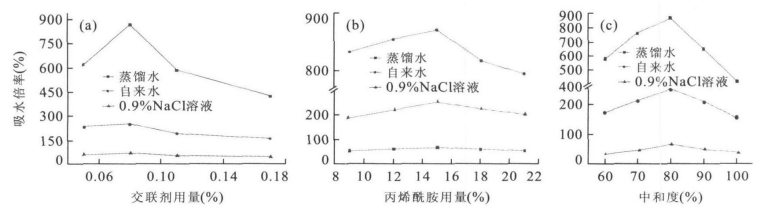

图 1 交联剂用量(a)、丙烯酰胺用量(b)和中和度(c)对吸液倍率的影响
Fig. 1. Effect of cross linking agent (a), acrylamide (b) and neutralization degree of monomer (c) on water absorbency

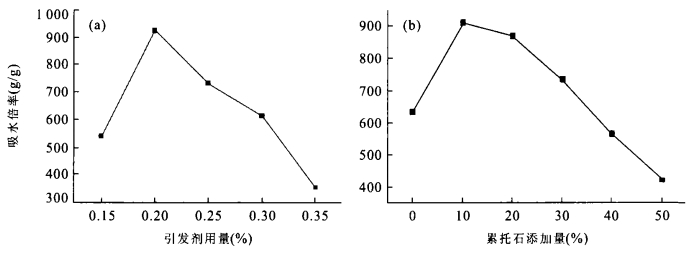

图 2 引发剂用量(a)和累托石添加量(b)对吸液倍率的影响
Fig. 2. Effect of concentration of initiator (a) and concentration of rectorite (b) on water absorbency
表 1 先焙烧后磁选除黄铁矿的效果
Table 1. Effect of sulfur removed by roasting-magnetic dressing
表 2 酸洗法去黄铁矿实验结果
Table 2. Effects of sulfur removed by nitric acid pickling
表 3 不同锻烧条件下累托石粘土中硫含量
Table 3. Sulfur contents under different burned conditions
表 4 累托石粘土中硫含量对生成凝胶的影响
Table 4. Effect of sulfur content in rectorite on gel formation
-
Fan, L. R., Xu, Z. L., Shen, S. Y., 2005. Research progress in mineral/polymer superabsorbent composites. Journal of Functional Materials, 36 (12): 1827-1830 (in Chinese). Guo, B. W., Xiao, Y., 1990. Method of mineral separationand technology. China University of Geosciences Press, Wuhan, 251-253 (in Chinese). Jiang, T., Liu, Y. J., 1989. Rectorite. Hubei Sci. Tech. Press, Wuhan, 116-136 (in Chinese). Wang, C. L., Fan, L. R., Shen, S. Y., et al., 2005. Preparation of mineral/acrylate superabsorbent resin by rectorite. J. Wuhan Inst. Chem Tech. , 27 (1): 46-48 (in Chinese with English abstract). Xu, Z. L., Fan, L. R., Shen, S. Y., et al., 2004. Influence of Ca2+ surface crosslinking on properties of mont morillonite/polyacrylate superabsorbent composite. Functional Material, 35 (9): 2596-2598 (in Chinese with English abstract). Ye, H., Zhao, J. Q., Zhang, Y. H., 2004. Novel degradable superabsorbent materials of silicate/acrylic-based polymer hybrids. Journal of Applied Polymer Science, 91: 936-940. doi: 10.1002/app.13274 Yuan, J. Z., Yan, Q. X., Zhang, L. Y., et al., 2004. Purification of rectorite. Nonmetallic Mines, 27 (2): 33-35 (in Chinese with English abstract). Zhang, F. S., Gao, C. D., Zhang, W., et al., 2004. Studied on the liquid absorption rate of super water absorption polymer and its measurement method. Polymer Materials Science and Engineering, 20 (1): 179-183 (in Chinese with English abstract). Zou, X. X., 1991. Superabsorbent. Chemical Industry Press, Beijing, 385-386 (in Chinese). 范力仁, 徐志良, 沈上越, 2005. 非金属矿物/高分子吸水保水复合材料研究进展. 功能材料, 36 (12): 1827-1830. doi: 10.3321/j.issn:1001-9731.2005.12.004 郭秉文, 肖云, 1990. 选矿方法与工艺实践. 武汉: 中国地质大学出版社, 251-253. 江涛, 刘源骏, 1989. 累托石. 湖北科学技术出版社, 116-136. 王春龙, 范力仁, 沈上越, 等, 2005. 用累托石制备矿物/聚丙烯酸盐高吸水树脂. 武汉化工学院学报, 27 (1): 46-48. doi: 10.3969/j.issn.1674-2869.2005.01.014 徐志良, 范力仁, 沈上越, 等, 2004. 表面Ca2+交联对蒙托石-聚丙烯酸钠性能的影响. 功能材料, 35 (9): 2596-2598. https://cpfd.cnki.com.cn/Article/CPFDTOTAL-GNCL200409002136.htm 袁继祖, 晏全香, 张凌燕, 等, 2004. 高纯累托石提纯试验研究. 非金属矿, 27 (2): 33-35. doi: 10.3969/j.issn.1000-8098.2004.02.012 张付舜, 高程达, 张伟, 等, 2004. 高吸水树脂吸液率及其测定方法的研究. 高分子材料科学与工程, 20 (1): 179-183. doi: 10.3321/j.issn:1000-7555.2004.01.047 邹新禧, 1991. 超强吸水剂. 北京: 化学工业出版社, 385-386. -
