    内蒙古固阳地区埃达克质花岗岩的发现及其地质意义

    曾俊杰 郑有业 齐建宏 代芳华 张刚阳 庞迎春 武彬

    曾俊杰, 郑有业, 齐建宏, 代芳华, 张刚阳, 庞迎春, 武彬, 2008. 内蒙古固阳地区埃达克质花岗岩的发现及其地质意义. 地球科学, 33(6): 755-763.
    引用本文: 曾俊杰, 郑有业, 齐建宏, 代芳华, 张刚阳, 庞迎春, 武彬, 2008. 内蒙古固阳地区埃达克质花岗岩的发现及其地质意义. 地球科学, 33(6): 755-763.
    CENG Jun-jie, ZHENG You-ye, QI Jian-hong, DAI Fang-hua, ZHANG Gang-yang, PANG Ying-chun, WU Bin, 2008. Foundation and Geological Significance of Adakitic Granite at Guyang of Inner Mongolia. Earth Science, 33(6): 755-763.
    Citation: CENG Jun-jie, ZHENG You-ye, QI Jian-hong, DAI Fang-hua, ZHANG Gang-yang, PANG Ying-chun, WU Bin, 2008. Foundation and Geological Significance of Adakitic Granite at Guyang of Inner Mongolia. Earth Science, 33(6): 755-763.

    内蒙古固阳地区埃达克质花岗岩的发现及其地质意义

    基金项目:

    中国地质调查局大调查项目 1212010610414

    详细信息
      作者简介:

      曾俊杰(1970-), 男,在读硕士,工程师,主要从事区域地质调查与矿产勘查.E-mail: zjunjie1970@sina.com

    • 中图分类号: P588.12

    Foundation and Geological Significance of Adakitic Granite at Guyang of Inner Mongolia

    • 摘要: 内蒙古固阳地区西营子花岗岩体属于钙碱性系列, 具有岛弧花岗岩的特征.其岩石地球化学具有与adakite岩相似的特征.这些岩石的SiO2含量均大于56 (57.28~66.63), Al2O3含量均大于15 (15.93~18.04), MgO含量为1.14~3.47, 富钠、贫钾, Na2O/K2O在1.16~1.97之间, Sr含量高(446~582μg/g), 均大于400μg/g, Sr/Y比值为31.32~103.74, 大于20~40, 低Y (5.61~17.4μg/g, 小于18μg/g)和Yb (0.42~2.06μg/g, 仅1个样品大于1.9μg/g), 具弱Eu正异常, 无明显的Eu负异常; 稀土元素分异强烈, 属轻稀土元素富集型; Sr具明显的正异常而Nb的负异常亦较为明显.利用激光等离子体质谱仪(LA-ICP-MS) 对固阳地区埃达克质花岗岩中的锆石进行了U-Pb定年, 其同位素年龄为281.9±3.1Ma (MSWD=3.3), 形成于早二叠世.该地区埃达克岩的发现, 为古亚洲洋的闭合时限提供了新的线索, 对研究中亚造山带晚古生代构造演化、地球动力学特征具有十分重要的意义, 为解决内蒙古及古亚洲洋研究中长期争论的地质问题提供了年代学和地球化学制约.

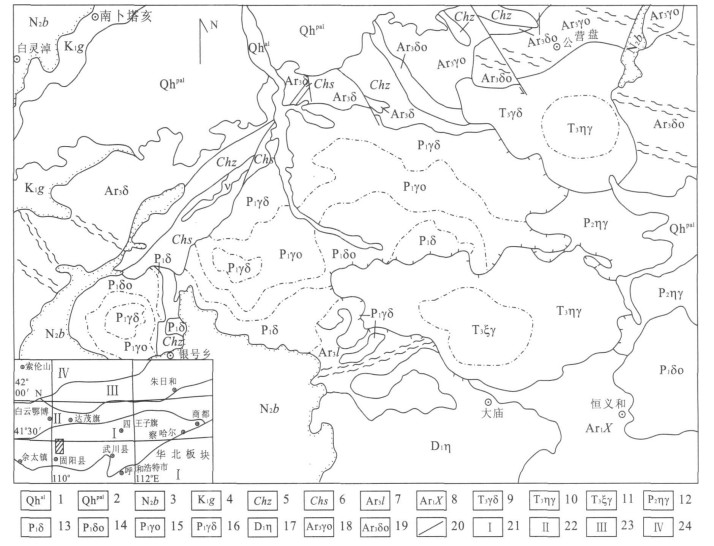

    • 图  1  内蒙古固阳地区地质简图

      1.第四系冲积物; 2.第四系洪积物; 3.新近系宝格达乌拉组; 4.白垩系固阳组; 5.渣尔泰山群增隆昌组; 6.渣尔泰山群书记沟组; 7.新太古界色尔腾山岩群柳树沟岩组; 8.古太古界兴和岩群; 9.晚三叠世花岗闪长岩; 10.晚三叠世二长花岗岩; 11.晚三叠世二长花岗岩; 12.晚二叠世二长花岗岩; 13.早二叠世闪长岩; 14.早二叠世石英闪长岩; 15.早二叠世英云闪长岩; 16.早二叠世花岗闪长岩; 17.早泥盆世角闪二长岩; 18.新太古界片麻状英云闪长岩; 19.新太古代片麻状石英闪长岩; 20.区域性断裂; 21.华北板块北缘; 22.白云鄂博凹陷带; 23.包尔汗-温都尔庙褶皱带; 24.索伦山-西拉木伦河褶皱带断裂

      Fig.  1.  Sketch map showing the geological characteristics of Guyang area in Inner Mongolia

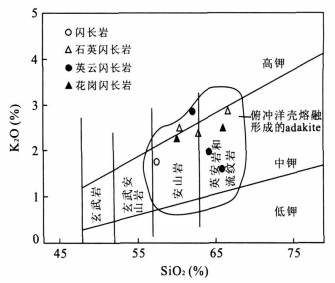

      图  2  SiO2-K2O图解

      Fig.  2.  Diagram of SiO2-K2O

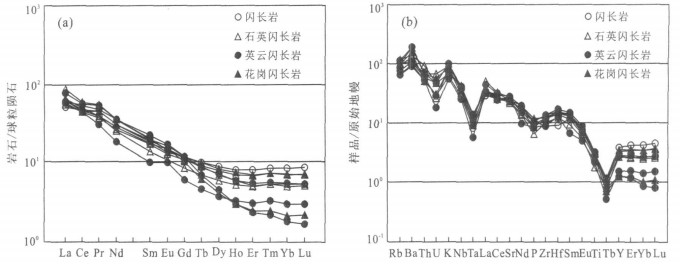

      图  3  花岗岩类稀土元素的配分曲线(a)和微量元素比值蛛网图(b)

      Fig.  3.  Diagrams showing the chondrite-normalized REE patterns(a) and trace elements spidergram (b) of granites

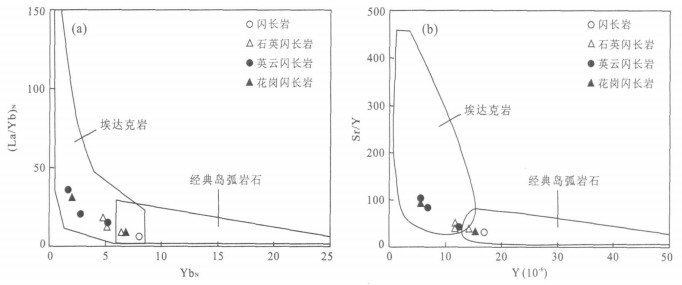

      图  4  固阳地区花岗岩类的(La/Yb)v-Yb、和Sr/Y-Y图解(肖庆辉等, 2002)

      Fig.  4.  (La/Yb)y-Yby and Sr/Y-Y diagrams of granites in Guyang area

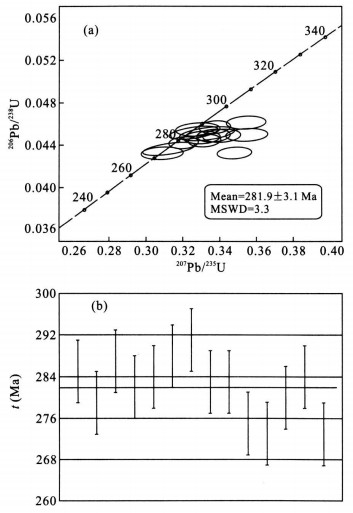

      图  5  固阳地区埃达克质花岗岩锆石U-Pb谐和图(a) 及年龄分布图(b)

      Fig.  5.  U-Pb concordia diagram for zircons from the adakitic granites in Guyang area (a) and weighted average diagram of U-Pb isotopic age (b)

      表  1  固阳地区埃达克质花岗岩的主量元素(%)、微量和稀土元素(10-6) 分析及有关参数

      Table  1.   Bulk (%), trace and rare earth element (10-6) compositions of adakitic granites in Guyang area

      表  2  固阳地区埃达克质花岗岩错石LA-ICP-MS同位素分析结果

      Table  2.   LA-ICP-MS U-Th-Pb analytical data of zircon from the adakitic granites in Guyang area

    • Andersen, T., 2002. Correction of commonleadin U-Pb analyses that do not report204Pb. Chem. Geol., 192: 59-79. doi: 10.1016/S0009-2541(02)00195-X
      Ballard, J. R., Palin, J. M., Williams, I. S., et al., 2001. Two ages of porphyry intrusion resolved for the super-giant Chuquicamata copper deposit of northern Chile by ELA-ICP-MS and SHRI MP. Geology, 29: 383-386.
      Castillo, P. R., Janney, P. E., Solidum, R. U., 1999. Petrology and geochemistry of Camiguin Island, southern Philippines: Insights to the source of adakites and other lavas in a complex arc setting. Contributions to Mineralogy and Petrology, 134: 33-51. doi: 10.1007/s004100050467
      Chen, B., Jahn, B. M., Wilde, S., et al., 2000. Two contrasting Paleozoic magmatic belts in northern Inner Mongolia, China: Petrogenesis and tectonic implications. Tectonophysics, 328: 157-182. doi: 10.1016/S0040-1951(00)00182-7
      Chen, B., Zhao, G. C., Si mon, W., 2001. Isotopic ages and tectonic significance of subduction and collision related granitoids fromsouthern Suzuoqi, Inner Mongolia. Geological Review, 47 (4): 361-367 (in Chinese with English abstract).
      Defant, M. J., Drummond, M. S., 1990. Derivation of some modern arc magmas by melting of young subducted lithosphere. Nature, 347: 662-665. doi: 10.1038/347662a0
      Defant, M. J., Drummond, M. S., 1993. Mount St. Helens: Potential example of the partial melting of the subducted lithosphere in a volcanic arc. Geology, 21: 547-550.
      Drummond, M. S., Defant, M. J., Kepezhinskas, P. K., 1996. Petro-genesis of slab-derived trondhjemite-tonalite-dacite adakite magmas. Trans. R. Soc. Edinb. Earth. Sci., 87: 205-215.
      Horn, I., Rudnick, R. L., McDonough, W. E., 2000. Precise elemental and isotope ratio determination by simultaneous solution nebulization and laser ablation ICP-MS: Application to U-Pb geochronology. Chemical Geology, 164: 81-301. doi: 10.1016/S0009-2541(99)00143-6
      Hsu, K. J., Wang, Q. C., Li, L., 1991. Geological evolution of the Nei monides: A working hypothesis. Eclogae. Geol. Helv., 84: 1-31.
      Kay, R. W., Kay, S. M., 2002. Andean adakites: Three ways to make them. Acta Petrologica Sinica, 18: 303-311.
      Martin, H., 1999. Adakitic magmas: Modern analogues of Archean granitoids. Lithos, 46: 411-429. doi: 10.1016/S0024-4937(98)00076-0
      Ren, S. M., Huang, B. C., 2002. Preli minary study on post-Late Paleozoic kinematics of the main blocks of the Paleo-Asian ocean. Progress in Geophysics, 17 (1): 113-120 (in Chi-nese with English abstract).
      Sengor, A. M. C., Natalìn, B. A., 1996. Paleotectonics of Asia: Fragments of a synthesis. In: Yin, A., Harrison, T. M., Eds. The tectonic evolution of Asia. CambridgeUniversity Press, Cambridge, 486-641.
      Sengor, A. M. C., Natal尙n, B. A., Burt man, V. S., 1993. Evo-lution of the Altaid tectonic collage and Paleozoic crus-tal growthin Eurasis. Nature, 364: 299-307. https://www.cnki.com.cn/Article/CJFDTOTAL-ZRBT202103013.htm
      Tang, K. D., Zhang, Y. P., 1991. Tectonic evolution of suture belt in Inner Mongolia. In: Xiao, X. C., Tang, Y. Q., eds., Tectonic evolution of huge complex suture belt in the southern Central-Asian orogenic belts. Scientific and Technical Press of Beijing, Beijing, 30-54 (in Chinese).
      Tao, J. X., Bai, L. B., Bao, Y. W. L. J., et al., 2003. Rock Record of Permian subducting orogenic process in Mandula, Inner mongolia. Geological Survey and Research, 26 (4): 241-249 (in Chinese with English abstract).
      Tao, J. X., Xu, L. Q., He, F., et al., 2005. Petrological evidence for subduction of the Early Paleozoic oceanic crust in BartObo, Inner Mongolia. Geological Survey and Research, 28 (1): 1-8 (in Chinese with English abstract).
      Wang, Q., Liu, X. Y., Li, J. Y., 1991. Plate Tectonics Between Cathaysia and Angaralandin China. Peking Univ. Publ. House, Beijing, 1-151 (in Chinese).
      Wang, Y., Zhang, Q., Qian, Q., 2000. Adakite: Geochemical characteristics and tectonic significances. Scientia Geo-logica Sinica, 35 (2): 251-256 (in Chinese with Eng-lish abstract).
      Xiao, Q. H., Deng, J. F., Ma, D. S., et al., 2002. The ways of investigation on granitoids. Geological Publishing House, Beijing (in Chinese).
      Xu, J. F., Shinjo, R., Defant, M. J., et al., 2002. Origin of Mesozoic adakitic intrusive rocks in the Ningzhen area of east China: Partial melting of delaminated lower continental crust. Geology, 30: 1111-1114.
      Xu, L. Q., Deng, J. F., Chen, Z. Y., et al., 2003. The identification of Ordovician adakites and its signification in northern Damao, Inner Mongolia. Geoscience, 17 (4): 428-434 (in Chinese with English abstract).
      Zhang, Q., Wang, Y., Liu, W., et al., 2002. Adakite: Its characteristics and implications. Geological Bulletin of China, 21 (7): 431-435 (in Chinese with English abstract).
      Zhang, Q., Wang, Y., Qian. Q., et al., 2001a. The characteristics andtectonic-metallogenics ignificances of the adakites in Yanshan periodfromeastern China. Acta Petrologica Sinica, 17 (2): 236-244 (in Chinese with English abstract).
      Zhang, Q., Qian, Q., Wang, E. Q., et al., 2001b. An east China plateau in Mid-Late Yanshanian period: Implication from adakites. Scientia Geologica Sinica, 36 (2): 248-255 (in Chinese with English abstract).
      Zhang, Q., Wang, Y., Wang, Y. L., et al., 2003. On the relationship between adakite and its tectonic setting. Geotectonicaet Metallogenia, 27 (2): 101-108 (in Chinese with English abstract).
      Zhang, Q., Xu, J. F., Wang, Y., et al., 2004. Diversity of adakite. Geological Bulletin of China, 23 (9-10): 959-965 (in Chinese with English abstract).
      Zheng, Y. Y., Xue, Y. X., Cheng, L. J., et al., 2004. Finding, characteristics and significances of Qulong superlarge porphyry copper (Molybdenum) deposit, Tibet. Earth Science—Journal of China University of Geosciences, 29 (1): 103-108 (in Chinese with English abstract).
      陈斌, 赵国春, Si mon, W., 2001. 内蒙古苏尼特左旗南两类花岗岩同位素年代学及其构造意义. 地质论评, 47 (4): 361-367. doi: 10.3321/j.issn:0371-5736.2001.04.005
      任收麦, 黄宝春, 2002. 晚古生代以来古亚洲洋构造域主要块体运动学特征初探. 地球物理学进展, 17 (1): 113-120. doi: 10.3969/j.issn.1004-2903.2002.01.015
      唐克东, 张允平, 1991. 内蒙古缝合带的构造演化. 见: 肖序常, 汤耀庆主编. 古中亚复合巨型缝合带南缘构造演化. 北京: 北京科学技术出版社, 30-54.
      陶继雄, 白立兵, 宝音乌力吉, 等, 2003. 内蒙古满都拉地区二叠纪俯冲造山过程的岩石记录. 地质调查与研究, 26 (4): 241-249. doi: 10.3969/j.issn.1672-4135.2003.04.008
      陶继雄, 许立权, 贺锋, 等, 2005. 内蒙古巴特敖包地区早古生代洋壳消减的岩石证据. 地质调查与研究, 28 (1): 1-8. doi: 10.3969/j.issn.1672-4135.2005.01.001
      王荃, 刘雪亚, 李锦轶, 1991. 中国华夏与安加拉古陆间的板块构造. 北京: 北京大学出版社, 1-151.
      王焰, 张旗, 钱青, 2000. 埃达克岩(adakite) 的地球化学特征及其构造意义. 地质科学, 35 (2): 251-256. doi: 10.3321/j.issn:0563-5020.2000.02.016
      肖庆辉, 邓晋福, 马大铨, 等, 2002. 花岗岩研究思维与方法. 北京: 地质出版社.
      许立权, 邓晋福, 陈志勇, 等, 2003. 内蒙古达茂旗北部奥陶纪埃达克岩类的识别及其意义. 现代地质, 17 (4): 428-434. doi: 10.3969/j.issn.1000-8527.2003.04.011
      张旗, 王焰, 刘伟, 等, 2002. 埃达克岩的特征及其意义. 地质通报, 21 (7): 431-435. doi: 10.3969/j.issn.1671-2552.2002.07.012
      张旗, 王焰, 钱青, 等, 2001a. 中国东部燕山期埃达克岩的特及其构造-成矿意义. 岩石学报, 17 (2): 236-244. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200102007.htm
      张旗, 钱青, 王二七, 等, 2001b. 燕山中晚期的中国东部高原: 埃达克岩的启示. 地质科学, 36 (2): 248-255. https://www.cnki.com.cn/Article/CJFDTOTAL-DZKX200102015.htm
      张旗, 王焰, 王元龙, 等, 2003. 埃达克岩与构造环境. 大地构造与成矿学, 27 (2): 101-108. doi: 10.3969/j.issn.1001-1552.2003.02.001
      张旗, 许继峰, 王焰, 等, 2004. 埃达克岩的多样性. 地质通报, 23 (9-10): 959-965. https://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD2004Z2019.htm
      郑有业, 薛迎喜, 程力军, 等, 2004. 西藏驱龙超大型斑岩铜(钼) 矿床: 发现、特征及意义. 地球科学——中国地质大学学报, 29 (1): 103-108. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX200401018.htm
