Geochemical Characteristics and Geological Implications for the Neoproterozoic Meta-Sedimentary Rocks of the Cathaysia Block in Zhejiang and Fujian Provinces
-
摘要: 浙闽地区华夏地块前寒武纪基底上部主要由新元古代龙泉群、马面山群和万全群组成.上述3个岩群的变沉积岩具有相似的岩石组合及主、微量元素地球化学特征, 它们是华夏地块统一基底的重要组成部分.它们主要由片岩类、变粒岩类、石英岩类和大理岩类组成, 其中片岩类和变粒岩类的SiO2变化于52.89~75.03, TiO2为0.48~1.05, Al2O3为9.19~20.3, ∑REE为(149~323)×10-6, δEu为0.34~0.80, (La/Yb)N为7.96~15.6, 具中等-强烈铕负异常, 轻、重稀土分异明显; 石英岩类的SiO2变化于95.49~97.44, ∑REE很低, 在(8.89~15.1)×10-6, δEu=0.63~0.81.原岩性质及构造环境分析表明, 片岩类和变粒岩类的原岩主要是杂砂岩和粘土岩等, 石英岩的原岩为硅铁质沉积岩.所有变沉积岩的原岩均以长英质成分为主, 具有上地壳岩石的地球化学特征, 部分样品显示有古老沉积物的加入; 它们形成于岛弧-活动陆缘环境, 成熟度不高, 属于近源沉积, 与本地区华夏地块基底下部变质岩系岩石(古元古代的天井坪组、八都群、陈蔡群、麻源群)具有相似的物源.Abstract: The upper basement of the Cathaysia block in Zhejiang and Fujian provinces consists mainly of the Neoproterozoic Longquan Group, Mamiansban Group, and Wanquan Group. These three groups exhibit similarity in rock assemblage as well as major and trace elements geochemistry. They are the main components of the uniform upper basement of the Cathaysia block, consisting mainly of schists, leptynites, quaterizes and marbles. Schists and the leptynites have variable composi-tions, with SiO2 contents ranging from 52.89% to 75.03%, TiO2 from 0.48% to 1.05%, Al2O3 from 9.19% to 20.3%, ∑REE between 149×10-6 and 323×10-6, δEu values between 0.34 and 0.80, and (La/Yb)N values between 7.96 and 15.6. The REE patterns display medium to high negative Eu anomaly with obvious fractionation between LREE and HREE. The quartzites have different compositions, with SiO2 contents varying from 95.49% to 97.44%, and relatively low ∑REE contents (8.89× 10-6 to 15.1 × 10-6). It is proposed that protoliths of the schists and the leptynites are wackes and clay rocks, whereas protoliths of the quartzites are ferruginous silica rocks, mainly quartz-feldspathic; and some protoliths show geochemical characteristics of ancient allochthonous sediments. The meta-sedimentary rocks of the Longquan Group, Mamianshan Group, and Wanquan Group were probably formed in an environment of arc-active continental margin. The lower maturity implies that they are near field sediments, similar to the metamorphic rock system of the lower basement in this area (Paleoproterozoic Tianjingping Formation, Badu Group, Chencai Group and Mayuan Group), analogous to the upper crustal rocks.
-

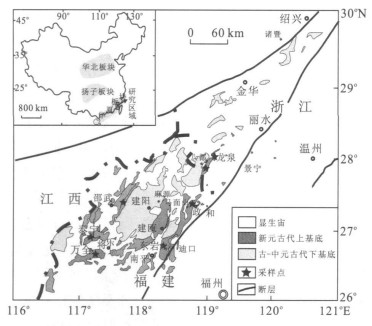

图 1 夏地块前寒武纪基底变质岩系分布(据Li et al., 2005修改)
Fig. 1. Sketch map showing the distribution of Precambrian metamorphic basement of the Cathaysia block

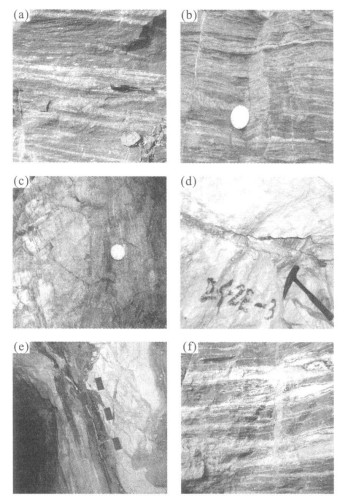

图 2 西南、闽西北地区上部变质岩系变沉积岩照片
a.片岩, N26°55’11.5”, E117°00’01.6”; b.变粒岩。N27°27’11.6”, Ell8°21’48.2”; c大理岩, N26°50’23.6”E118°23’42.3”; d.条带状含磁铁石英岩, N27°51’02.1”, E118°58’38.6”, 己大理岩与变粒岩呈互层状产出, N26°50’23.6”, Ell8°23’42.3”; L片岩夹石英脉和伟晶岩脉, 沿裂隙发生绿帘石化现象。N26°55’11.5”, E117°00’01.6, ,
Fig. 2. Representative geologieal images of upper metamorphic basement from southwestern Zhejiang and northwestern Fujian areas

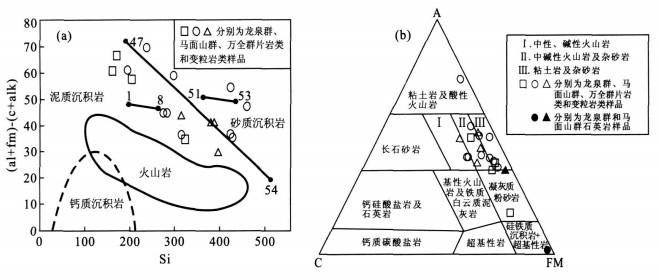

图 3 )龙泉群、马面山群和万全群变沉积岩西蒙南图解(Simonen, 1953), 其中坐标值为Niggli值; (b)A-C-FM判别图解(谢缅年科, 1966, 转引自王仁民等, 1987)
Fig. 3. The Simonen diagram(a) and the A-C-FM diagram(b)for schists and leptynites of the Longquan, Mamianshan, and Wanquan groups

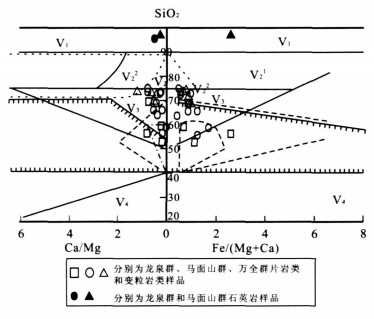

图 4 泉群、马面山群和万全群变沉积岩SiO2-Ca/Mg和SiO2-Fe/(Ca+Mg)图解(CaO≤5%)(据米什金, 1981, 转王仁民等, 1987)
Ⅰ.蒙脱石粘土; Ⅱ.水云母粘土; Ⅲ.高岭石粘土; Ⅳ.长石砂岩和石英长石质砂岩。左图包括斜长石长石砂岩, Ⅴ.其他岩石(Ⅴ1.石英岩, 硅质岩; Ⅴ21.亚杂砂岩, 右图包括斜长石长石砂岩; Ⅴ22.亚杂砂岩、复矿物砂岩, 长石砂岩; Ⅴ3.杂砂岩; Ⅴ4.铝土矿, 红土)
Fig. 4. Diagrams of SiO2 vs Ca/Mg and SiO2 vs Fe/(Ca+Mg)for meta-sedimentary rocks of the Longquan, Mamianshan, and Wanquan groups

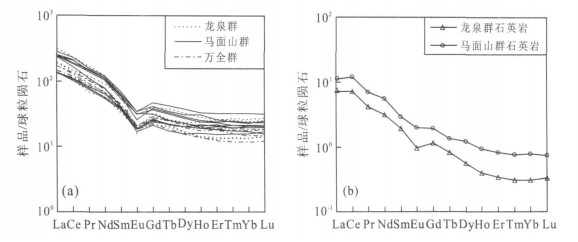

图 5 龙泉群、马面山群和万全群变沉积岩稀土元素球粒陨石标准化曲线(球粒陨石REE含量引自Sun and McDonough, 1989)
Fig. 5. hondrite-norrmlized REE patterrm for meta-sedinmatary rocks of the Longquan, Mamiamhan, and Wanquan groups

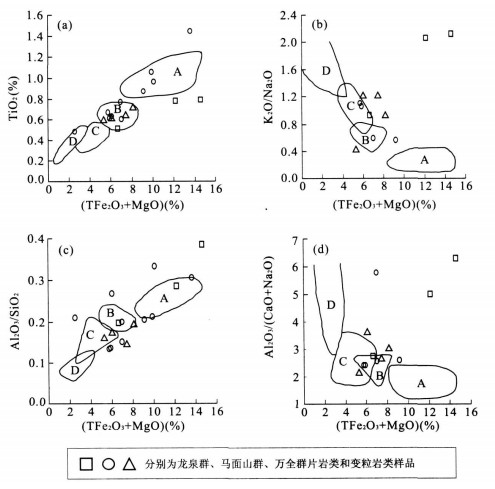

图 6 龙泉群、马面山群、万全群片岩类和变粒岩类主量元素相关性图解(Bhatia, 1983)
A. 大洋岛弧杂砂岩; B. 大陆岛弧杂砂岩; C. 活动大陆边缘杂砂岩I D. 被动大陆边缘杂砂岩
Fig. 6. Corelation diagram of bulk composition of schists and leptynites for the Longquan, Mamianshan, and Wanquan groups
图 7 龙泉群、马面山群和万全群片岩类和变粒岩类La/Se-Ti/Zr图解(A、B、C、D图例同图 6)
Fig. 7. La/Sc vs Ti/Zr diagram for schists and leptynites of the Longquan, Mamianshan, and Wanquan groups

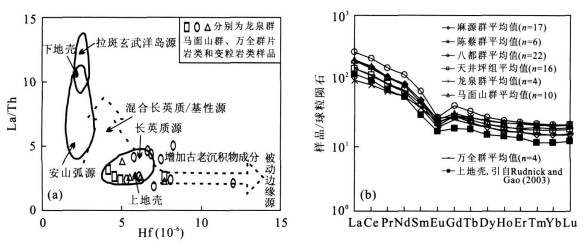

图 8 (a) 龙泉群、马面山群、万全群片岩类和变粒岩类Hf-La/Th图解(Floyd and Leveridge, 1987; Gu et al., 2002); (b)浙闽地区华夏地块前寒武纪变质基底岩石稀土元素球粒陨石标准化曲线对比图解
球粒陨石REE含量引自Sun and McDonough, 1989; 其中龙泉群、马面山群、万全群样品为片岩类和变粒岩类; 天井坪组、八都群、陈蔡群、麻源群样品为斜长角闪岩类、片麻岩类和变粒岩类等, 数据为作者未发表资料, n为样品数
Fig. 8. (a)Diagram of Hf-La/Th for schists and leptynites of the Longquan, Mamianshan, and Wanquan groups; (b)Comparative diagrams of chondrite-normalized REE patterns for Precarnbrian metamorphic basement rocks of the Cathaysia block in Zhejiang and Fujian Provinces
表 1 浙闽地区华夏地块新元古代变沉积岩样品主量元素(%)和微量元素(10-6)分析结果
Table 1. Maior and trace element compositions for Noproterozoic netasedimentary rocks of the Cathaysia block in Zhejiang and Fujian provinces
-
Bhatia, M. R., 1983. Plate tectonics and geochemical composition of sandstones. Journal of Geology, 91(6): 611-627. doi: 10.1086/628815 Bhatia, M. R., 1985. Rare earth element geochemistry of Australian Paleozoic graywackes and mudrocks: Provenance and tectonic control. Sedimentary Geology, 45(1-2): 97-113. doi: 10.1016/0037-0738(85)90025-9 Bhatia, M. R., Taylor, S.R., 1981. Trace-element geochemistry and sedimentary provinces: A study from the Tasman geosyncline, Australia. Chemical Geology, 33(1-4): 115-125. doi: 10.1016/0009-2541(81)90089-9 Chen, N.S., Liu, R., Sun, M., et al., 2006. LA-ICPMS U-Pb zircon dating for felsic granulite, Huangtuling area。North Dabieshan: Constraints on timing of its protolith and granulite-facies metamorphism, and thermal events in its provenance. Earth Science-Journal of China University of Geosciences, 31(3): 294-300(in Chinese with English abstract). DePaolo, D.J., Wasserburg, G.J., 1979. Petrogenetic mixing models and Nd-Sr isotopic patterns. Geochimica et Cosmochim Acta, 43(4): 615-627. doi: 10.1016/0016-7037(79)90169-8 Floyd, P.A., Leveridge, B. E., 1987. Tectonic environment of the Devonian Gramscatho basin, South Cornwall: Framework mode and geochemical evidence from turbiditic sandstones. Journal of the Geological Society, 144(4): 531-542. doi: 10.1144/gsjgs.144.4.0531 Gao, S., Ling, W.L., Qiu, Y.M., et al., 1999. Contrasting geochemical and Sm-Nd isotopic compositions of Archean metasediments from the Kongling high-grade terrain of the Yangtze craton: Evidence for cratonic evolution and redistribution of REE during crustal anatexis. Geochimica et Cosmochimica Acta, 63(13-14): 2071-2088. doi: 10.1016/S0016-7037(99)00153-2 Garver, J.L., Scott, T.J., 1995. Trace elements in shales as indicators of crustal provenance and terrane accretion in the southern Canadian Cordillera. Geological Society of America Bulletin, 107(4): 440-453. doi: 10.1130/0016-7606(1995)107<0440:TEISAI>2.3.CO;2 Girty, G. H., Hanson, A.D., Knaack, C., et al., 1994. Provenance determined by REE, Th, and Sc analyses of metasedimentary rocks, Boyden Cave Pendant, central Sierra Nevada, California. Journal of Sedimentary Research, B64(1): 68-73. Gu, X.X., Liu, J.M., Zheng, M. H., et al., 2002. Provenance and tectonic setting of the Proterozoic turbidites in Hunan, South China: Geoehemical evidence. Journal of Sedimentary Research, 72(3): 393-407. doi: 10.1306/081601720393 Hu, X. J., 1994. Geochronology of lower Proterozoic Badu Group, southwestern Zhejiang Province. Geochimica, 23 (Suppl. ): 18-24(in Chinese with English abstract). Hu, X. J., Xu, J.K., Tong, C. X., et al., 1991. The Precambrian geology of southwestern Zhejiang Province. Geological Publishing House, Beijing, 1-278(in Chinese). Hu, X.J., Xu, J.K., Tong, C. X., et al., 1992. Geochronology of the middle Proterozoic Longquan Group in southwestern Zhejiang. Geological Review, 38(3): 271-278 (in Chinese with English abstract). Jin, S., Zhang, L., Zhong, Z.Q., et al., 2008. Geochemical characteristics of the Neoproterozoic metavolcanic rocks in Zhejiang and Fujian provinces and its geological significance. Journal of Mineralogy and Petrology, 28 (1): 97-105(in Chinese with English abstract). Jin, W.S., Sun, D.Z., Zhao, F.Q., et al., 1997. Deep crustal structure and its evolution of South China. Geological Publishing House, Beijing, 1-175(in Chinese). Jin, W.S., Zhuang, J.M., Yang, C. X., et al., 1992. Characteristics of petrology, geochemistry and metamorphism of the Precaledonian regional metamorphic rocks in Fujian Province. Geology of Fujian, 11(4): 241-262 (in Chinese with English abstract). Li, S. J., Wang, Q. C., 2006. Geochemical characteristics of Tertiary mudstones in Kuqa depression and their implications to tectonic setting and provenance attribute. Acta Petrologica et Mineralogica, 25(3): 219-229(in Chinese with English abstract). Li, S. Y., Li, R. W., Yue, S.C., et al., 2004. Geochemistry of Mesozoic detrital roeks and its constraints on provenance in Feixi area, Anhui Province. Acta Petrologica Sinica, 20(3): 667-676(in Chinese with English abstract). Li, X. H., 1997. Timing of the Cathaysia block formation: Constraints from SHRIMP U-Pb zircon geochronology. Episodes, 20(3): 188-192. doi: 10.18814/epiiugs/1997/v20i3/008 Li, X.H., Wang, Y.X., Zbao, Z.H., et al., 1998. SHRIMP U-Pb zircon geochronology for arnphibolite from the Precambfian basement in SW Zhejiang and NW Fujian provinces. Geochimica, 27(4): 328-334(in Chinese with English abstract). Li, Z.M., Liu, J.J., Hu, R.Z., et al., 2003. Tectonic setting and provenance of source rock for sedimentary rocks in Lanping Mesozoic-Cenozoic basin: Evidences from geochemistry of sandstones. Acta Sedimentologica Sinica, 21(4): 547-552(in Chinese with English abstract). Li, W.X., Li, X. H., Li, Z.X., 2005. Neoproterozoic bimodal magrnatism in the Cathaysia block of South China and its tectonic significance. Precambrian Research, 136(1): 51-66. doi: 10.1016/j.precamres.2004.09.008 MacLean, W.H., Barrett, T.J., 1993. Lithogeochemical techniques using immobile elements. Journal of Geochemical Exploration, 48(2): 109-133. doi: 10.1016/0375-6742(93)90002-4 Mclennan, S. M., Taylor, S.R., 1980. Th and U in sedimetary rocks: Crustal evolution and sedimentary recycling. Nature, 285: 621-624. doi: 10.1038/285621a0 Nesbitt, H.W., 1979. Mobility and fractionation of rare earth elements during weathering of a granodiorite. Nature, 279: 206-210. doi: 10.1038/279206a0 Rudnick, R. L., Gao, S., 2003. Composition of the eontinental crusL In: Rudnick, R L., ed., Treatise on geochemistry, VoL 3. The Crust, Elsevier, 1-64. Shaw, D.M., 1972. The origin of Apsley gneiss, Ontario. Canadian Journal of Earth Science, 9(1): 18-35. doi: 10.1139/e72-002 Simonen, A., 1953. Stratigraphy and sedimentation of the Svecofennidic, Early Arehean supracrustal rocks in southweatern Finland. Bulletin de la Commission Geologique de Finlande, 160: 1-64. Sun, S.S., McDonough, W.F., 1989. Chemical and isotopic systematics of oceanic basahs: Implications for mantle composition and processes. In: Saunders, A.D., Nonrry, M. J., eds., Magmatism in the oceanic basins. Geology Society Special Publication, 42: 313-345. Taylor, S. R., McLennan, S.M., 1985. The continental crust: Its composition and evolution. Blackwell Sciemifie Publieations, Oxford, 312. Wan, Y.S., Liu, D.Y., Xu, M. H., et al., 2007. SHRIMP U-Pb zircon geochronology and geochemistry of metavolcanic and metasedimentary rocks in northwestern Fujian, Catbaysia block, China: Tectonic implications and the need to redefine lithostratigraphic units. Gondwana Research, 12(1-2): 166-183. doi: 10.1016/j.gr.2006.10.016 Wang, H.N., Ling, H.F., Zhou, L. Y., et al., 2003. Sm-Nd isotope dating and geological implications for the Mesoproterozoic Mamiansban Group in Fujian Province. Geological Journal of China Universities, 9(4): 566-572 (in Chinese with English abstract). Wang, H.N., Sun, C. Y., 1998. Trace element geochemistry and tectonic setting of greenschists in the central part of Fujian Province. Geological Journal of China Universities, 4(4): 383-392(in Chinese with English abstract). Wang, R. M., He, G.P., Chen, Z.Z., et al., 1987. The distinguishing diagram for the original rocks of metamorphic rocks. Geological Publishing House, Bering, 1-199(in Chinese). Yang, S.Y., Li, C. X., 1999. Research progress in REE tracer for sediment source. Advance in Earth Sciences, 14(2): 164-167(in Chinese with English abstract). Yu, J.H., Wang, L. J., Zhou, X. M., et al., 2006. Compositions and formation history of the basement metamorphic rocks in northeastern Guangdong Province. Earth Science-Journal of China University of Geosciences, 31(1): 38-48(in Chinese with English abstract). Yuan, Z. X., Wu, L.S., Zhang, Z.Q., et al., 1991. The Sm-Nd, Rb-Sr isotopic age dating of Mayuan Group in northern Fujian. Acta Petrologica et Mineralogica, 10(2): 127-132(in Chinese with English abstract). Zhang, D., Wu, G. G., Peng, R. M., et al., 2005. Paleotectonic setting of the Dongyan Formation of the Mamianshan Group in central Fujian Province, Southeast China. Earth Science Frontiers, 12(1): 310-320(in Chinese with English abstract). Zhang, H.F., Gao, S., Zhong, Z.Q., et al., 2002. Geochemical and Sr-Nd-Pb isotopic compositions of Cretaceous granitoids: Constraints on tectonic framework and crustal structure of the Dabieshan ultrahigh pressure metamorphic belt, China. Chemical Geology, 186(3-4): 281-299. doi: 10.1016/S0009-2541(02)00006-2 Zhang, K. B., Li, X. X., Li, J.H., 2002. Classification and comparison of Mesoproterozie-Neoproterozoic Mamianshah terrain in northwestern Fujian. Geology of Fujian, 21(3): 176-186(in Chinese with English abstract). Zhang, X. X., 2006. Study of formation of the Neoproterzoic Mamianshan Group and its evolution of deformation in central Fujian Province, SE China[Dissertation]. China University of Geoscienees, Beijing(in Chinese with English abstract). Zhou, I.Y., Wang, H.N., Sun, C. Y., 2001. Trace element geochemistry and tectonic setting for Proterozoic metavolcanics of the Mamianshan Group in the central part of Fujian Province. Geological Journal of China Universities, 7(2): 164-174(in Chinese with English abstract). Zhu, D.C., Liao, Z.L., Pan, G.T., 2001. Some suggestions of how to correctly use the tectonic discrimination diagrams and geochemical data. Geology-Geochemistry, 29(3): 152-157(in Chinese with English abstract). 陈能松, 刘嵘, 孙敏, 等, 2006. 北大别黄土岭长英质麻粒岩的原岩、变质作用及源区热事件年龄的锆石IA-ICPMS U-Pb测年约束. 地球科学-中国地质大学学报, 31(3): 294-300. doi: 10.3321/j.issn:1000-2383.2006.03.002 胡雄健, 1994. 浙西南下元古界八都群的地质年代学. 地球化学, 23(增刊): 18-24. https://www.cnki.com.cn/Article/CJFDTOTAL-DQHX4S1.002.htm 胡雄健, 许金坤, 童朝旭, 等, 1991. 浙西南前寒武纪地质. 北京: 地质出版社, l-278. 胡雄健, 许金坤, 童朝旭, 等, 1992. 浙西南中元古界龙泉群的地质年代学. 地质论评, 38(3): 271-278. doi: 10.3321/j.issn:0371-5736.1992.03.009 靳松, 张利, 钟增球, 等, 2008. 浙闽地区新元古代变火山岩系岩石地球化学特征及其地质意义. 矿物岩石, 28(1): 97-105. doi: 10.3969/j.issn.1001-6872.2008.01.014 金文山, 孙大中, 赵风清, 等, 1997. 华南大陆深部地壳结构及其演化. 北京: 地质出版社, 1-175. 金文山, 庄建民, 杨传夏, 等, 1992. 福建前加里东区域变质岩系的岩石学、地球化学和变质作用特征. 福建地质, 11(4): 241-262. https://www.cnki.com.cn/Article/CJFDTOTAL-FJDZ199204001.htm 李双建, 王清晨, 2006. 库车坳陷第三系泥岩地球化学特征及其对构造背景和物源属性的指示. 岩石矿物学杂志, 25(3): 219-229. doi: 10.3969/j.issn.1000-6524.2006.03.007 李双应, 李任伟, 岳书仓, 等, 2004. 安徽肥西中生代碎屑岩地球化学特征及其对物源制约. 岩石学报, 20(3): 667-676. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200403030.htm 李献华, 王一先, 赵振华, 等, 1998. 闽浙古元古代斜长角闪岩的离子探针铬石U-Pb年代学. 地球化学, 27(4): 328-334. https://www.cnki.com.cn/Article/CJFDTOTAL-DQHX199804002.htm 李志明, 刘家军, 胡瑞忠, 等, 2003. 兰坪中新生代盆地沉积岩源区构造背景和物源属性研究-砂岩地球化学证据. 沉积学报, 21(4): 547-552. doi: 10.3969/j.issn.1000-0550.2003.04.002 王鹤年, 凌洪飞, 周丽娅, 等, 2003. 福建马面山群Sm-Nd同位素年龄及其地质意义. 高校地质学报, 9(4): 566-572. doi: 10.3969/j.issn.1006-7493.2003.04.010 王鹤年, 孙承辕, 1998. 闽中地区绿片岩的微量元素地球化学及其形成的构造背景. 高校地质学报, 4(4): 383-392. https://www.cnki.com.cn/Article/CJFDTOTAL-GXDX804.002.htm 王仁民, 贺高品, 陈珍珍, 等, 1987. 变质岩原岩图解判别法. 北京: 地质出版社, 1-199. 杨守业, 李从先, 1999. REE示踪沉积物物源研究进展. 地球科学进展, 14(2): 164-167. doi: 10.3321/j.issn:1001-8166.1999.02.010 于津海, 王丽娟, 周新民, 等, 2006. 粤东北基底变质岩的组成和形成时代. 地球科学-中国地质大学学报, 31(1): 38-48. doi: 10.3321/j.issn:1000-2383.2006.01.006 袁忠信, 吴良士, 张宗清, 等, 1991. 闽北麻源群Sm-Nd、Rb-Sr同位素年龄研究. 岩石矿物学杂志, 10(2): 127-132. https://www.cnki.com.cn/Article/CJFDTOTAL-YSKW199102003.htm 张达, 吴淦国, 彭润民, 等, 2005. 闽中地区马面山群东岩组变质岩形成的古构造环境研究, 地学前缘, 12(1): 310-320. doi: 10.3321/j.issn:1005-2321.2005.01.041 张开毕, 李学燮, 李兼海, 2002. 闽西北中新元古代马面山岩群的划分与对比. 福建地质, 21(3): 176-186. doi: 10.3969/j.issn.1001-3970.2002.03.011 张祥信, 2006. 闽中地区新元古代马面山群的形成及构造变形演化研究[博士学位论文]. 北京: 中国地质大学. 周丽娅, 王鹤年, 孙承辕, 2001. 闽中马面山群变质火山岩微量元素地球化学特征及其构造意义. 高校地质学报, 7(2): 164-174. doi: 10.3969/j.issn.1006-7493.2001.02.005 朱弟成, 廖忠礼, 潘桂棠, 等, 2001. 正确使用构造判别图解和地球化学数据的一些建议. 地质地球化学, 29(3): 152-157. doi: 10.3969/j.issn.1672-9250.2001.03.027 -
