The Adjustment and Re-Accumulation Rules of Oil/Gas Reservoirs in the Hinterland of Junggar Basin
-
摘要: 我国叠合盆地具多期构造叠加、油气多期充注、晚期定位的石油地质特征.为了客观认识准噶尔盆地中部原生油气藏在喜山期构造运动控制下的调整改造样式与再聚集规律,通过有机包裹体颗粒指数分析、测井/试油成果对比、储层物性相关性研究及数值模拟实验分析,认识到现今油气藏储层物性与含油性关系复杂,古今油水界面不一致,识别出调整保存、调整残留/余、调整散失3种油气藏调整类型,模拟了油气优势调整路径,总结出准噶尔盆地中部调整型油气藏的再聚集机理与分布规律.Abstract: Superimposed basins in China are characterized by multiple-stage superposition of tectonic,multiple-stage charging and late-stage orientation.The formerly accumulated native reservoirs usually have undergone adjustment to a certain extent due to the neotectonics movements at Xishan epoch in the hinterland of Junggar basin.For being impersonally cognizant of the adjustment models and re-accumulation rules of oil/gas reservoirs,data analyzing,logging/testing outcome contrasting,reservoir physical property relationship studying and numerical experiment simulating are applied.Resultsshow the adjustment of formerly accumulated subtle reservoirs would lead to the occurrence of a series of genetically-related oil layers with complicated oil/water or gas/water contacts and physical property relationship.Three models of adjusted preservation,adjusted residue/remnant and adjusted dissipation subtle oil/gas reservoirs have been identified.The main adjusting track are simulated.The re-accumulation mechanism and distribution rules of adjusted reservoirs in the hinterland of Junggar basin are discussed.
-

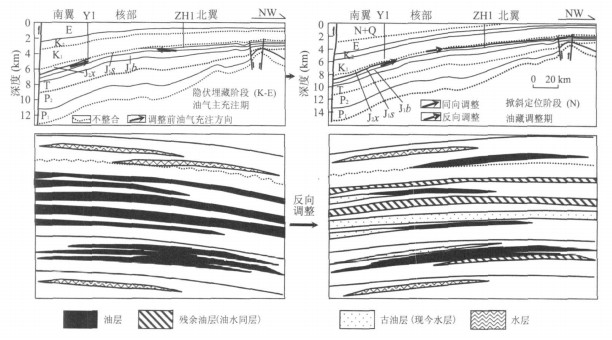

图 1 车-莫古隆起演化与油气藏调整模型(据郝芳等, 2005, 略有修改)
Fig. 1. Evolving of Che-Mo ancient uplift and adjusting models of ancient reservoirs

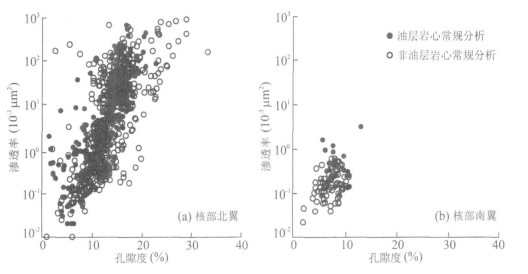

图 2 车一莫古隆起三工河组二段储层物性与含油性关系
Fig. 2. The relationship of petrophysical properties and petroliferous properties in J1s2 Che-Mo ancient uplift

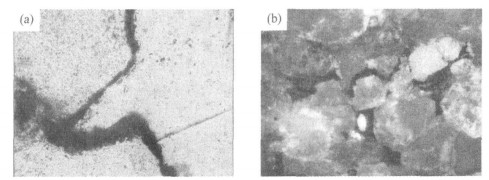

图 3 侏罗系三工河组二段二亚段(a)和一亚段(b)沥青充填的砂岩
a.ZHl01，侏罗系三工河组二段二亚段，4 360.66m，浅灰色细砂岩，裂缝中沥青充填(透射光，×100)；b.ZH2，侏罗系三工河组二段一亚段，4 341.30 m，浅灰色中砂岩，粒间不发荧光沥青(荧光，×100)
Fig. 3. Photographs showing sandstones filled in bitumen in J1 s22 and J1 s21

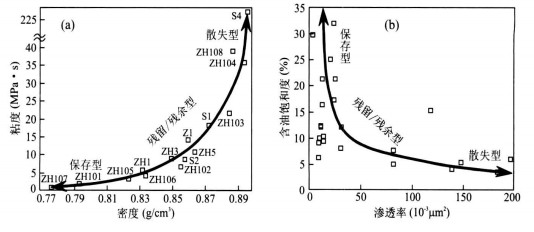

图 4 准噶尔盆地中部侏罗系三工河组二段原油物性(a) 及储层性质(b) 与油气藏调整类型划分
Fig. 4. The relationship of oil physical properties (a), reservoir qualities (b) and adjusted models in J1s2 of Hinterland, Junggar basin
-
Bekele, E. B., Person, M. A., Marsily, G. D., 1999. Petrole-um migration pathways and charge concentration: Athree-di mensional model discussion. AAPG Bulletin, 83 (6): 1015-1019. Bekele, E. B., Person, M. A., Rostron, B. J., et al., 2002. Modeling secondary oil migration with core-scale data: Viking Formation, Alberta basin. AAPG Bulletin, 86 (1): 55-74. Cai, Z. X., Chen, F. J., Jia, Z. Y., 2000. Types and tectonicevolution of Junggar basin. Earth Science Frontiers, 7 (4): 431-440 (in Chinese with English abstract). George, S. C., Greenwood, P. F., Logan, G. A., et al., 1997. Comparison of palaeo oil charges with currently reser-voir hydrocarbons using molecular andisotopic analysesof oil-bearing fluid inclusions: Jabiru oil field, Ti morSea. APPEAJournal, 37: 490-503. Gong, Z. S., Wang, G. C., 2001. Neotectectonism and latehydrocarbon accumulation in Bohai Sea. Acta PetroleiSinica, 22 (2): 1-7 (in Chinese with English abstract). Hao, F., Zou, H. Y., Fang, Y., 2005. The difficulties andfrontiers of subtle oil/gas reservoir research. Earth Sci-ence Frontiers, 12 (4): 481-488 (in Chinese with Eng-lish abstract). Hao, F., Zou, H. Y., Gong, Z. S., et al., 2006. The materialand energy effects of neotectonics/late-stage tectonicsand petroleumaccumulation. Acta Geological Sinica, 80 (3): 424-431 (in Chinese with English abstract). Hao, F., Zou, H. Y., Jiang, J. Q., 2000. Dynamics of petrole-umaccumulation and its advances. Earth Science Fron-tiers, 7 (3): 11-21 (in Chinese with English abstract). Hindle, A. D., 1997. Petroleum migration pathways andcharge concentration: A three-di mensional model. AAPG Bulletin, 81 (9): 1451-1481. Jia, C. Z., 2006. Formation-evolution of superi mposed basinsand exploration potential of middle-below petroleumcombinations in China. China Petroleum Exploration, 11 (1): 1-4 (in Chinese). Jiang, Z. X., Wang, X. D., Pang, X. Q., et al., 2006. Paleohydro-carbon water contact restoration of typical Silurian oil andgas reservoirsinthe northern Tarim basin. Earth Science—Journal of China University of Geosciences, 31 (2): 201-208 (in Chinese with English abstract). Jin, Z. J., 2005. Newadvancement in research of China s typ-ical superi mposed basins and reservoiring (Part I): Clas-sification and research methods of superi mposed basins. Oil & Gas Geology, 26 (5): 553-562 (in Chinese withEnglish abstract). Kuang, J., He, D. F., Zhang, N. F., et al., 2005. Oil and gasmigration and accumulation pattern of Mosuowan upliftin Junggar basin. China Petroleum Exploration, 10 (1): 40-45 (in Chinese with English abstract). [14] Larter, S. R., Aplin, A. C., 1995. Reservoir geochemistry: Meth-ods, applications and opportunities. In: Cubitt, J. M., Eng-land, W. A., eds., The geochemistry of reservoirs. Geolog-ical Society Special Publication, 86: 5-32. Levorsen, A. I., 1966. The obscure and subtle trap. AAPG Bulletin, 50 (10): 2058-2067. Li, H. Y., Jiang, Z. X., Pang, X. Q., et al., 2006. Dominantmigration pathway and its control on oil-gas migrationin the northern edge of Qaidam basin. Earth Science—Journal of China University of Geosciences, 31 (2): 214-220 (in Chinese with English abstract). Peters, K. E., Fowler, M. G., 2002. Applications of petrole-um geochemistry to exploration and reservoir manage-ment. Organic Geochemistry, 33 (1): 5-36. doi: 10.1016/S0146-6380(01)00125-5 Qiu, N. S., Wang, X. L., Yang, H. B., et al., 2001. The char-acteristics of temperature distribution in the Junggarbasin. Scientia Geologica Sinica, 36 (3): 350-358 (inChinese with English abstract). Shi, J. N., Hao, F., Zou, H. Y., et al., 2006. Model experi mentstudy of formation and distribution of adjusted subtle oil-gas reservoirs—Taking the Hinterland in Junggar basin asan example. Petroleum Geology & Experiment, 28 (6): 590-594 (in Chinese with English abstract). Song, Y., Wang, X. S., Fang, D. Q., 2000. The formation and development of petroleum systems in Junggar basin. Acta Petrolei Sinica, 21 (4): 20-25 (in Chinese withEnglish abstract). Tang, L. J., Jin, Z. J., 2000. Hydrocarbon migration and accumu-lation models of superi mposed basins. Journal of ChinaUniversity of Petroleum (Natural Science Edition), 24 (4): 67-70 (in Chinese with English abstract). Wu, X. Z., Zhang, N. F., Shi, X., et al., 2006. Characteristicsand accumulation mode of Chepaizi-Mosuowan paleo-uplift in Junggar basin. China Petroleum Exploration, 11 (1): 65-68 (in Chinese with English abstract). Zhang, C. J., He, D. F., Wu, X. Z., et al., 2006. Formationand evolution of multicycle superi mposed basins inJunggar basin. China Petroleum Exploration, 11 (1): 47-58 (in Chinese with English abstract). Zhang, Y. J., Liu, G. D., 2002. Characteristics and evolutionof composite petroleum systems and the explorationstrategy in Junggar basin, northwest China. Petroleum Exploration and Development, 29 (1): 36-39 (in Chi-nese with English abstract). Zhang, Y. Q., Zhang, N. F., Yao, X. Y., 2000. Review andprospect for petroleum exploration in Hinteriand ofJunggar basin. Xinjiang Petroleum Geology, 21 (2): 105-109 (in Chinese with English abstract). Zhao, W. Z., Zhang, G. Y., Wang, H. J., et al., 2003. Basicfeatures of petroleum geology in the superi mposed pet-roliferous basins of China and their research methodolo-gies. Petroleum Exploration and Development, 30 (2): 1-8 (in Chinese with English abstract). Zhou, X. X., 2000. The petroleum reservoir-forming charac-teristics of the composite superi mposed basin—An ex-ample from Tari mbasin. Earth Science Frontiers, 7 (3): 39-47 (in Chinese with English abstract). Zou, H. Y., Hao, F., Zhang, B. Q., et al., 2005a. Fluid-con-duit framework and its control on petroleumaccumula-tion in the Junggar basin. Earth Science—Journal ofChina University of Geosciences, 30 (3): 609-616 (inChinese with English abstract). Zou, H. Y., Hao, F., Zhang, B. Q., et al., 2005b. History ofhydrocarbon-filling and remigratingin Hinterland of theJunggar basin. Scientia Geologica Sinica, 40 (4): 499-509 (in Chinese with English abstract). 蔡忠贤, 陈发景, 贾振远, 2000. 准噶尔盆地的类型和构造演化. 地学前缘, 7 (4): 431-440. https://www.cnki.com.cn/Article/CJFDTOTAL-DXQY200004018.htm 龚再升, 王国纯, 2001. 渤海新构造运动控制晚期油气成藏. 石油学报, 22 (2): 1-7. https://www.cnki.com.cn/Article/CJFDTOTAL-SYXB200102000.htm 郝芳, 邹华耀, 姜建群, 2000. 油气成藏动力学及其研究进展. 地学前缘, 7 (3): 11-21. https://www.cnki.com.cn/Article/CJFDTOTAL-DXQY200003001.htm 郝芳, 邹华耀, 方勇, 2005. 隐蔽油气藏研究的难点和前沿. 地学前缘, 12 (4): 481-488. https://www.cnki.com.cn/Article/CJFDTOTAL-DXQY200504023.htm 郝芳, 邹华耀, 龚再升, 等, 2006. 新(晚期) 构造运动的物质、能量效应与油气成藏. 地质学报, 80 (3): 424-431. https://www.cnki.com.cn/Article/CJFDTOTAL-DZXE200603015.htm 贾承造, 2006. 中国叠合盆地形成演化与中下组合含油气勘探潜力. 中国石油勘探, 11 (1): 1-4. https://www.cnki.com.cn/Article/CJFDTOTAL-KTSY200601000.htm 姜振学, 王显东, 庞雄奇, 等, 2006. 塔北地区志留系典型油气藏古油水界面恢复. 地球科学——中国地质大学学报, 31 (2): 201-208. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX200602008.htm 金之钧, 2005. 中国典型叠合盆地及其油气成藏研究新进展(之一)——叠合盆地划分与研究方法. 石油与天然气地质, 26 (5): 553-562. https://www.cnki.com.cn/Article/CJFDTOTAL-SYYT200505001.htm 况军, 何登发, 张年富, 等, 2005. 准噶尔盆地莫索湾凸起油气成藏模式. 中国石油勘探, 10 (1): 40-45. https://www.cnki.com.cn/Article/CJFDTOTAL-KTSY200501005.htm 李宏义, 姜振学, 庞雄奇, 等, 2006. 柴北缘油气运移优势通道特征及其控油气作用. 地球科学——中国地质大学学报, 31 (2): 214-220. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX200602010.htm 邱楠生, 王绪龙, 杨海波, 等, 2001. 准噶尔盆地地温分布特征. 地质科学, 36 (3): 350-358. https://www.cnki.com.cn/Article/CJFDTOTAL-DZKX200103010.htm 史建南, 郝芳, 邹华耀, 等, 2006. 调整改造型隐蔽油气藏形成与分布模拟实验研究——以准噶尔盆地腹部为例. 石油实验地质, 28 (6): 590-594. https://www.cnki.com.cn/Article/CJFDTOTAL-SYSD200606015.htm 宋岩, 王喜双, 房德权, 2000. 准噶尔盆地含油气系统的形成与演化. 石油学报, 21 (4): 20-25. https://www.cnki.com.cn/Article/CJFDTOTAL-SYXB200004004.htm 汤良杰, 金之钧, 2000. 多期叠合盆地油气运聚模式. 石油大学学报(自然科学版), 24 (4): 67-70. https://www.cnki.com.cn/Article/CJFDTOTAL-SYDX200004015.htm 吴晓智, 张年富, 石昕, 等, 2006. 准噶尔盆地车莫古隆起构造特征与成藏模式. 中国石油勘探, 11 (1): 65-68. https://www.cnki.com.cn/Article/CJFDTOTAL-KTSY200601009.htm 张朝军, 何登发, 吴晓智, 等, 2006. 准噶尔多旋回叠合盆地的形成与演化. 中国石油勘探, 11 (1): 47-58. https://www.cnki.com.cn/Article/CJFDTOTAL-KTSY200601007.htm 张义杰, 柳广弟, 2002. 准噶尔盆地复合油气系统特征演化与油气勘探方向. 石油勘探与开发, 29 (1): 36-39. https://www.cnki.com.cn/Article/CJFDTOTAL-SKYK200201008.htm 张越迁, 张年富, 姚新玉, 2000. 准噶尔盆地中部油气勘探回顾与展望. 新疆石油地质, 21 (2): 105-109. https://www.cnki.com.cn/Article/CJFDTOTAL-XJSD200002004.htm 赵文智, 张光亚, 王红军, 等, 2003. 中国叠合含油气盆地石油地质基本特征与研究方法. 石油勘探与开发, 30 (2): 1-8. https://www.cnki.com.cn/Article/CJFDTOTAL-SKYK200302000.htm 周兴熙, 2000. 复合叠合盆地油气成藏特征——以塔里木盆地为例. 地学前缘, 7 (3): 39-47. https://www.cnki.com.cn/Article/CJFDTOTAL-DXQY200003005.htm 邹华耀, 郝芳, 张柏桥, 等, 2005a. 准噶尔盆地流体输导格架及其对油气成藏与分布的控制. 地球科学——中国地质大学学报, 30 (3): 609-616. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX200505013.htm 邹华耀, 郝芳, 张柏桥, 等, 2005b. 准噶尔盆地中部油气充注与再运移研究. 地质科学, 40 (4): 499-509. -
