岩浆过程对玄武岩铁氧化状态和氧逸度的影响: 以雷琼地区晚新生代玄武岩为例

韩江伟; 熊小林; 朱照宇; 王强

岩浆过程对玄武岩铁氧化状态和氧逸度的影响: 以雷琼地区晚新生代玄武岩为例

韩江伟^{1, 2,},
熊小林^1, ,,
朱照宇¹,
王强¹

1.
中国科学院广州地球化学研究所, 广东广州 510640
2.
中国科学院研究生院, 北京 100049

基金项目:

中国科学院创新工程 GIGCX-04-03

中国科学院创新工程 KZCX3-SW-152

国家自然科学基金 40825010

国家自然科学基金 0602191001

详细信息

作者简介:
韩江伟(1978一)，男, 博士研究生, 地球化学专业.E-mail: bgphan@163.com

通讯作者:
熊小林，E-mail: xiongxl@gig.ac.cn

中图分类号: P588.2
计量
- 文章访问数: 4096
- HTML全文浏览量: 485
- PDF下载量: 83
- 被引次数: 0
出版历程
- 收稿日期: 2008-10-11
- 刊出日期: 2009-01-25

Effect of Magmatic Processes on Fe Oxidation State and of Basaltic Melts: A Case Study for Late Cenozoic Basalts from the Leiqiong Area, South China

1.
Guang zhou Institute of Geochemistry, Chinese Academy of Sciences, Guangzhou 510640, China
2.
Graduate University of Chinese Academy of Sciences, Beijing 100049, China

摘要

摘要: 使用幔源岩浆的铁氧化状态估算岩浆fO₂是获得地幔氧逸度及岩浆过程对氧逸度影响的有效途径.使用湿化学法对雷琼地区晚新生代玄武岩的主量元素成分进行了分析,并结合一些前人的工作,发现雷琼地区玄武岩的Fe³⁺/∑Fe比值可分为两组: 一组比值为0.20~0.35,称之正常样品; 另一组比值为0.45~0.66,称之异常样品.采用氧逸度与Fe₂O₃/FeO之间关系的经验公式对这些玄武岩岩浆的氧逸度进行了估算,正常样品的氧逸度为FMQ+1.1~FMQ+2.4,略高于前人由地幔捕虏体获得的本区地幔氧逸度(FMQ-0.943~FMQ+1.235),这种差异可能是由于计算方法引起的; 而异常样品形成时的氧逸度范围为FMQ+3.3~FMQ+4.8,比地幔源区氧逸度高出2.0log单位以上,不能用计算方法的差异来解释.通过岩浆过程对fO₂影响的讨论,认为分离结晶、岩浆脱气以及熔体上升过程中与岩浆通道物质之间的氧交换都不能解释异常样品的高Fe³⁺/∑Fe比值和氧逸度.许多异常样品采自近火山口,岩浆冷却速度可以引起fO₂的重要变化,因为缓慢淬火过程中离子的局部结构调整可以使Fe²⁺氧化为更小的Fe³⁺.由此可知,缓慢冷却会使喷出地表的岩浆铁的氧化状态明显提高,所以使用玄武质熔岩估计其源区氧化状态时,应选择远离火山口的熔岩.
- 岩浆过程 /
- 玄武岩 /
- 铁氧化状态 /
- 氧逸度 /
- 雷琼地区
Abstract: The major element composition of late Cenozoic basalts from Leiqiong area,South China is analyzed by wet chemical method. Coupled with some previous data,Fe³⁺/∑Fe ratios of these basalts can be divided into two groups,0.20-0.35 (named as normal samples) and 0.45-0.66 (named as abnormal samples). The oxygen fugacity in the basalt formation is calculated by the empirical equation which linked fO₂ to Fe₂O₃/FeO. The relative fO₂ of normal samples are about FMQ+1.1 to FMQ+2.4,slight higher than that of the mantle xenoliths found by previous researchers (FMQ-0.943 to FMQ+ 1.235). The difference may be attributed to the calculation methods,but the relative fO₂ of abnormal samples are around FMQ+3.3 to FMQ+4.8,2log units higher than that of their source region,and that difference can not be explained in the same way as above. Through discussing the effect of magmatic processes on fO₂,it indicates fractional crystallization,degassing and oxygen exchange between ascending melts and crust material and lithospheric material can not result in so large fO₂ and high Fe³⁺/∑Fe ratio in abnormal samples. Many abnormal samples collected from craters and the vicinity of craters are always related to unusual high Fe³⁺/∑Fe ratios. Thus we believe that the local structure resetting in lavas due to slowly cooling rate,which will oxidize Fe^2+ to a smaller Fe³⁺ ion for size consideration during the densification process,has led to elevated Fe³⁺/∑Fe ratios of the basaltic melts. One important conclusion is: to estimate the intrinsic fO₂ of the source region from which the basalts derived by Fe oxidation state of these basalts,sampling should be cautious and samples far away from the craters should be selected.
- magmatic process /
- basalts /
- Fe oxidation state /
- oxygen fugacity /
- Leiqiong area

HTML全文

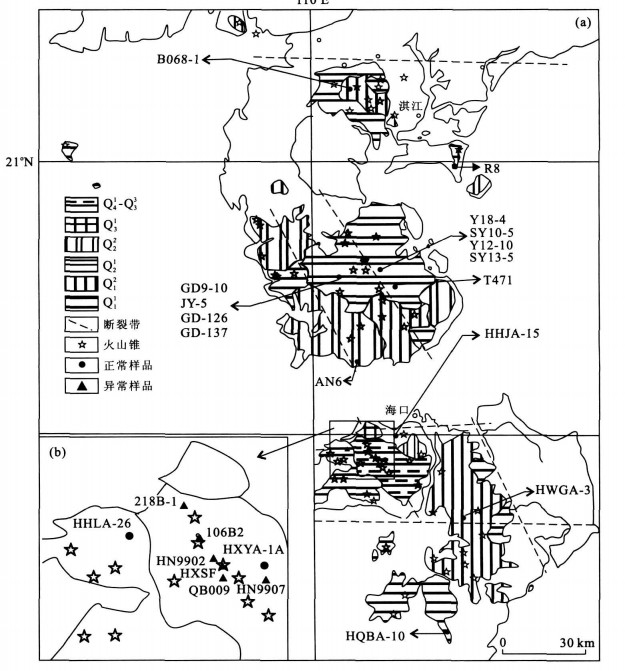

图 1 雷琼新生代火山分布图(a)(据黄镇国和蔡福祥, 1994)和异常样品与火山锥的相对位置(b)

Fig. 1. Sketch map showing distribution of Cenozoic volcanic rocks in Leiqiong area (a) and distribution of the unusual samples and volcanic craters (b)

下载: 全尺寸图片幻灯片

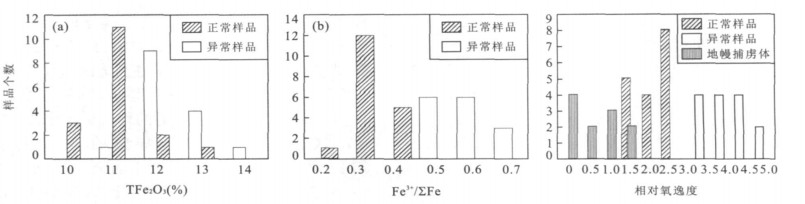

图 2 雷琼地区新生代玄武岩全铁含量TFe₂O₃(%)的分布(a), 雷琼新生代玄武岩Fe³⁺/ ∑Fe摩尔比的分布(b)以及雷琼地区玄武岩形成时的相对氧逸度和地幔捕虏体估计( Liand Wang, 2002)的地幔源区相对氧逸度的分布(c)

Fig. 2. Distribution of TFe₂O₃ content (a), Fe³⁺/∑Fe ratio (b) and ΔFMQ of Leiqiong basalts and the oxygen fugacity (c)of mantle source region beneath Leiqiong area

下载: 全尺寸图片幻灯片

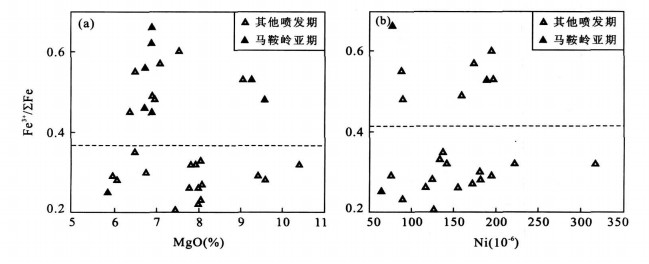

图 3 雷琼地区新生代玄武岩Fe³⁺/ ∑Fe(a)与MgO含量(%)和N i含量相关图(b)

Fig. 3. Fe³⁺/ ∑Fe ra tio (a)vs MgO contents and Fe³⁺/∑Fe ratio vs Ni concenfration of Leiqiong basalts (b)

下载: 全尺寸图片幻灯片

表 1 雷琼地区新生代玄武岩化学成分及相对氧逸度

Table 1. Composition and oxidation state of Leiqiong basalt

参考文献(45)

Ballhaus, C., 1993. Redox states of lithosphe ric and asthenospheric upper mantle. Contributions to Mineralogy and Petrology, 114(3): 331 -348. doi: 10.1007/BF01046536
Bézos, A., Humler, E., 2005. The Fe³⁺/∑Fe ratio s o f M O RB g lasses and their im plicatio ns fo r mantle melting. Geochimica et Cosmochimica Acta, 69 (3): 711-725. doi: 10.1016/j.gca.2004.07.026
Birnie, D.P., Dyar, M.D., 1986. Coo ling rate calcula tions for silica te glasses. Journal o f Geophy sical Research, 91 (4): D509-D513.
Borisov, A.A., Shapkin, A.I., 1990. A new em pirical equation relating the Fe³⁺/Fe²⁺ ra tio in na tural melts to co mpositio n, o xyg en fug acity and temperature. Geochemistry International, 27 : 111 -116.
Bryndzia, L.T., Wood, B.J., Dick, H.J.B., 1989. T he o xidation state o f the earth's sub-o ceanic mantle from o xy gen the rmobaro metry of aby ssal spinel peridotites. Nature, 341: 526 -527. doi: 10.1038/341526a0
Burgisser, A., Scaillet, B., 2007. Redox evo lution o f a degassing mag ma rising to the surface. Nature, 4451: 194-197.
Carmichael, I.S.E., 1991. The redox states o f basic and silicic mag mas : A reflec tion of their source reg io ns? Contributions to Mineralogy and Petrology, 106 (2): 129-141. doi: 10.1007/BF00306429
Carmichael, I.S.E., Ghiorso, M.S., 1986. Oxidation-reduction relatio ns in basic mag ma: Acase for homogeneous equilibria. Contributions to Minera logy and Petrology, 78(2): 200 -210.
Dyar, M.D., Naney, M.T., Swanson, S.E., 1987. Effects of quench me tho ds o n Fe³⁺/ Fe²⁺ ra tios : A Mö ssbauer and wet-chemical study. American Mineralogist, 72(7 -8): 792-800.
Fan, Q.C., Sun, Q., Li, N., et al., 2004. Periods of vo lcanic activity and magma ev olution o f H olocene in N o rth Hainan Island. Acta Petroiogica Sinica, 20(3): 533 - 544 (in Chinese with Eng lish abstract).
Flower, M.F.J., Zhang, M., Chen, C.Y., et al., 1992. Magmatism in the So uth China basin : 2. Po st-spreading Q uaternary basalts fro m H ainan Island, South China. Chemical Geology, 97(1): 65-87
Fudali, R.F., 1965. Oxygen fug acitie s of basaltic and a ndesitic mag mas. Geochim. et Cosmochim. Acta, 29 (9): 1063 -1075. doi: 10.1016/0016-7037(65)90103-1
Ge, T.M., Chen, W.J., Xu, X., et al., 1989. The geomag ne tic pola rity time scale of Q ua te rnary fo r Leiqio ng region : T he K-A r dating and palaeomag ne tic evidences fr om igneo us rocks. Acta Geophysica S inica, 32(5): 550 -557 (in Chinese with Eng lish abstract).
Ghiorso, M.S., 1997. The rmodynamic mo dels of ig neo us pro ce sses. Annal Reviews of Earth and Planetary Sciences, 25 : 221 -241 doi: 10.1146/annurev.earth.25.1.221
Herd, C.D.K., 2008. Basalts as pro bes o f pla netary inte rio r r edo x state. Reviews in Mineralogy and Geochemistry, 68(1): 527-553 doi: 10.2138/rmg.2008.68.19
Ho, K.S., Chen, J.C., Juang, W.S., 2000. Geo chronolog y and geo chemistry of Late Ceno zo ic basa lts from the Leiqiong a rea, southern China. Journal of Asian Earth Sciences, 18(3): 307-324. doi: 10.1016/S1367-9120(99)00059-0
Huang, Z.G., Cai, F.X., 1994. A new approach to the Q uaternary vo lcanicity in the Leiqiong ar ea. Tropical Geography, 14 (1): 1 -10 (in Chinese with Eng lish abstract)
Kennedy, G.C., 1948. Equilibrium be tw een volatiles and iro n o xides in ig neo us rocks. American Journal of Science, 246 : 529-549. doi: 10.2475/ajs.246.9.529
Kilinc, A., Carmichael, I.S.O., Rivers, M.L., et al., 1983. The fer ric-fer rous ra tio of natural silicate liquids equilibrated in air. Contributions to Mineralog y and Petrology, 83(1): 136 -140.
Kress, V.C., Carmichael, I.S.E., 1991. The co mpressibility o f silica te liquids containing Fe₂O₃ and the effect of compo sition, tempera ture, o xy gen fug acity and pr essure o n their redo x sta te s. Contributions to Mineralogy and Petrology, 108(1 -2): 82-92 doi: 10.1007/BF00307328
Li, J.P., Wang, J., 2002. Mantleredox state evolution in eastern China and its implicatio ns. Acta Geologica Sinica, 76(2): 238 -248
Lin, C.Y., Huang, X.L., Xu, Y.G., et al., 2003. Ther mal str ucture and r heo log y o f upper mantle benea th Leizhou P eninsula, G uangdong Pr ovince, China. Journal of Tropical Oceanography, 22(2): 49 -62 (in Chinese w ith Eng lish abstrac t)
Liu, C.Q., Li, H.P., Huang, Z.L., et al., 2001. A review of studies on ox yg en fug acity o f the ear th mantle. Earth Science Frontiers, 8(3): 73 -82 (in Chinese w ith English abstract).
Liu, Y., Liu, H.C., Li, X.H., 1996. Simultaneo us and precise determination of 40 trace elements in rock samples using ICP-M S. Geochimica, 25(6): 552 -558 (in Chinese with Eng lish abstract)
Mathez, E.A., 1984. Influence of deg assing on o xidation states o f ba saltic magma s. Nature, 310 : 371 -375. doi: 10.1038/310371a0
Mattioli, G.S., Wood, B. J, 1986. Upper mantle o xygen fugacity recorded by spinel lherzolites. Nature, 322: 626 -628 doi: 10.1038/322626a0
Middlemost, E.A.K., 1989. I ronoxi dation ratios, norms and the classification of volcanic rocks. Chemical Geology, 77(1): 19-26. doi: 10.1016/0009-2541(89)90011-9
Mysen, B.O., Carmichael, I.S.E., Virgo, D., 1985. A comparison of iron ⁵⁷Fe Mössbauer redo x ra tios in silicate glasses determined by w et-chemical and resonant abso rptio n methods. Contributions to Mineralog y and Petrology, 90(2 -3): 101 -106.
Rhodes, J.M., Vollinger, M.J., 2005. Fe rric/ fer rous ratios in 1984 M auna Loa lavas : A co ntribution to understanding the o xidatio n state o f Haw aiian mag mas. Contributions to Mineralogy and Petrology, 149(6): 666-674. doi: 10.1007/s00410-005-0662-y
Sack, R.O., Carmichael, I.S.E., Rivers, M., et al., 1981. Fer ric-fer rous equilibria in natural silicate liquids at 1 ba r. Contributions to Mineralogy and Petrology, 75 (4): 369 -376. doi: 10.1007/BF00374720
Sato, M., Wright, T.L., 1966. Oxyg en fugacities directly measured in magma tic gases. Science, 153: 1103 -1105. doi: 10.1126/science.153.3740.1103
Sun, J.S., 1991. Cenozoic volcanic activity in the no rthern South China Sea and G uang do ng coastal area. Marine Geology & Quaternary Geology, 11(3): 45 -67 (in Chinese with Eng lish abstract)
Tu, K., Flower, M.F.J., Carlson, R.W., 1991. Sr, Nd and Pb iso to pic compositio ns of Hainan basalts(South China): Implica tions for a subcontinental lithospher e Dupal so urce. Geology, 19(6): 567 -569. doi: 10.1130/0091-7613(1991)019<0567:SNAPIC>2.3.CO;2
Xiong, X.L., Cai, Z.Y., Niu, H.C., et al., 2005. The L ate Paleozo ic adakites in ea ste rn T ianshan ar ea and their metallog enetic sig nificance. Acta Petrologica Sinica, 21 (3): 967 -976 (in Chinese with Eng lish abstract)
Yu, J.H., O'Reilly, S.Y.O., Griffin, W.L., et al., 2003. T he thermal state and co mpo sitio n o f the lithospheric mantle beneath the L eizho u P eninsula, South China. Journal of Volcanology and Geothermal Research, 122 (3 -4): 165-189.
Zhu, B.Q., Wang, H.F., 1989. Nd-Sr-Pb isotopic and chemical evidence fo r the vo lcanism w ith M O RB-O IB so urce cha racte ristics in the Leiqiong area, China. Geochimica, 18(3): 193 -201 (in Chinese with Eng lish abstract).
樊祺诚, 孙谦, 李霓, 等, 2004. 琼北火山活动分期与全新世岩浆演化. 岩石学报, 20(3): 533 -544. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200403017.htm
葛同明, 陈文寄, 徐行, 等, 1989. 雷琼地区第四纪地磁极性年表———火山岩钾-氩年龄及古地磁学证据. 地球物理学报, 32(5): 550-558. doi: 10.3321/j.issn:0001-5733.1989.05.007
黄镇国, 蔡福祥, 1994. 雷琼第四纪火山活动的新认识. 热带地理, 14(1): 1-10. https://www.cnki.com.cn/Article/CJFDTOTAL-RDDD401.000.htm
林传勇, 黄小龙, 徐义刚, 等, 2003. 广东省雷州半岛上地幔热结构和流变学特征. 热带海洋学报, 22(2): 49 -62. doi: 10.3969/j.issn.1009-5470.2003.02.006
刘丛强, 李和平, 黄智龙, 等, 2001. 地幔氧逸度的研究进展. 地学前缘, 8(3): 73 -82. doi: 10.3321/j.issn:1005-2321.2001.03.009
刘颖, 刘海臣, 李献华, 1996. 用ICP-M S准确测定岩石样品中的40余种微量元素. 地球化学, 25(6): 552 -558. doi: 10.3321/j.issn:0379-1726.1996.06.004
孙嘉诗, 1991. 南海北部及广东沿海新生代火山活动. 海洋地质与第四纪地质, 11(3): 45-67. https://www.cnki.com.cn/Article/CJFDTOTAL-HYDZ199103007.htm
熊小林, 蔡志勇, 牛贺才, 等, 2005. 东天山晚古生代埃达克岩成因及铜金成矿意义. 岩石学报, 21(3): 967-976. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200503035.htm
朱炳泉, 王惠芬, 1989. 雷琼地区M O RB-O IB过渡型地幔源火山作用的N d-S r-Pb同位素证据. 地球化学, 18(3): 193-201. doi: 10.3321/j.issn:0379-1726.1989.03.001
