Multi-Stage Tectonic Exhumation Processes of Ultrahigh-Pressure (UHP) Metamorphic Rocks in the Dabie-Sulu Area, East-Central China
-
摘要: 追溯和重塑超高压变质岩由100多千米地幔深度折返至上地壳及地表的过程，对理解会聚板块边缘及大陆碰撞带的运动学和动力学是极为重要的.主要依据构造学、岩石学、地球化学和可利用的地质年代学资料，结合区域多期变形分析，大别-苏鲁区超高压变质岩的折返过程至少可分解出4个大的阶段.块状榴辉岩记录了三叠纪(约250~230 Ma)大陆壳岩石的深俯冲/碰撞作用.超高压变质岩早期迅速折返发生于超高压峰期变质作用(P＞3.1~4.0 GPa，T≈800±50 ℃)之后，处于地幔深度和柯石英稳定域，相当于区域D2变形期阶段.分别与区域变形期D3、D4和D5对应的折返过程，以及后成合晶、冠状体等卸载不平衡结构发育和减压部分熔融作用2个中间性构造热事件，均发生在地壳层次. 网络状剪切带在折返过程的不同阶段和不同层次均有发育，标志着在超高压变质带内的变质和变形分解作用曾重复进行.着重指出，超高压变质岩的折返，主要是由大陆壳的深俯冲/碰撞和伸展作用控制的构造过程，且受到俯冲带内、带外诸多因素的约束，其中水流体就起关键作用.Abstract: Exhumation processes of ultrahigh-pressure (UHP) metamorphic rocks, by which these deep-seated rocks were rapidly returned from mantle depths of more than 100 km within deep subduction zones into the upper crust and to the surface, are of paramount importance for the understanding of the kinematics and dynamics of convergent plate margins and continental collision belts. At least four large successive stages of the exhumation process of UHP metamorphic rocks in the Dabie-Sulu area, east-central China, mainly based on structural, petrological, geochemical data and available geochronological data, combined with previously regional polyphased deformation analyses, can be distinguished. Massive eclogites recorded the deep continental subduction/collision between the Sino-Korean and Yangtze cratons during the Triassic (~250-230 Ma).The early exhumation occurred after the peak of UHP metamorphism at conditions of up to > 3.1-4.0 GPa and 800±50 ℃, which may correspond to the D2 regional deformation phase and took place at mantle depths, displaying the model of vertical ductile extrusion, within the coesite stability field. The subsequent exhumation stages, corresponding with D3, D4 and D5 regional deformation phase, respectively, and two intermediate tectono-thermal events, i.e., the formation of the granulite/amphibolite facies symplectite or corona and the generation of extensive partial melting, occurred in crustal levels. Shear zones of an anastomosing rheological type were developed at diffterent stages and depths, indicating that the partitioning of deformation and metamorphism within the UHP metamorphic belt repeated. These imply that the exhumation of the UHP rocks is a complex tectonic process, in response to subduction/collision or extension of the continental crust, and is strongly constrained by a number of internal and external factors of the belt. In particular, fluids play important roles in the exhumation process of UHP rocks in the Dabie-Sulu area, east-central China.
-

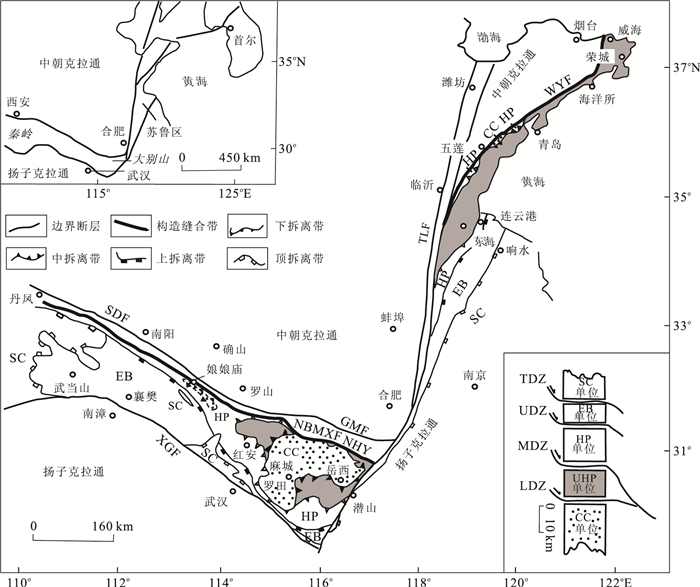

图 1 大别-苏鲁区构造略图(据Suo et al., 2005修改)
CC.核杂岩单位；UHP.超高压单位；HP.高压单位；EB.绿帘-蓝片岩单位；SC.沉积盖层单位；LDZ.下拆离带；MDZ.中拆离带；UDZ.上拆离带；TDZ.顶拆离带；SDF.商丹断裂带；GMF.龟梅断裂带；NBMXF.娘娘庙-八里畈-磨子潭-晓天剪切(断裂)带；NHY.北淮阳构造带；XGF.襄樊-广济断裂带；WYF.五莲-烟台剪切(断裂)带；TLF.郯庐断裂带.右下方插图表示大别-苏鲁造山带核部地壳构造柱
Fig. 1. Simplified tectonic map of the Dabie-Sulu area showing major petrotectonic units, structural framework and detachment zones formed by extensional thinning, as well as tectonic pile of the UHP-HP metamorphic belt
图 2 大别-苏鲁区代表性的超高压变质岩显微及露头尺度照片
a.块状榴辉岩(标本号r-2-11-7-2)，单偏光，视域宽约4 mm，大别山碧溪岭；b.块状榴辉岩中绿辉石晶体内具放射状结构的多晶柯石英假像(标本号Ⅰ-2-2)，正交偏光，视域宽约1.3 mm，江苏省东海县碱场；c.面理化榴辉岩(r-205)，正交偏光，视域宽约4 mm，大别山碧溪岭；d.面理化榴辉岩形成的鞘状褶皱，地质锤把长约35 cm；e.发育麻粒岩-角闪岩相卸载不平衡后成合晶及冠状体结构的退变质面理化榴辉岩(标本号S-r-19-3)，单偏光，视域宽约5 mm，山东省荣城大疃，其中S2表示面理化榴辉岩的主面理；f.层状糜棱岩化斜长角闪岩(样品号S-r-17-4)，单偏光，视域宽约5 mm，山东省文登泽库，其中S、C分别为糜棱岩的片理面和剪切面；g.围岩片麻岩及面理化含榴花岗岩形成的平卧褶皱，地质锤把长约35 cm，安徽省潜山三祖寺；h.近水平对称面理布丁构造，布丁间隙由含石英的绿泥石物质充填，铁锤把长约35 cm，湖北省麻城何家湾.Grt.石榴子石；Omp.绿辉石；Rt.金红石；Coe.柯石英(假象)；Qtz.石英；Phe.多硅白云母；Ky.蓝晶石；Zo.黝帘石；Sym.后成合晶；Bt.黑云母；Hbe.角闪石
Fig. 2. Representative photomicrographs and outcrop-scale photographs of ultrahigh-pressure metamorphic rocks in the Dabie-Sulu area

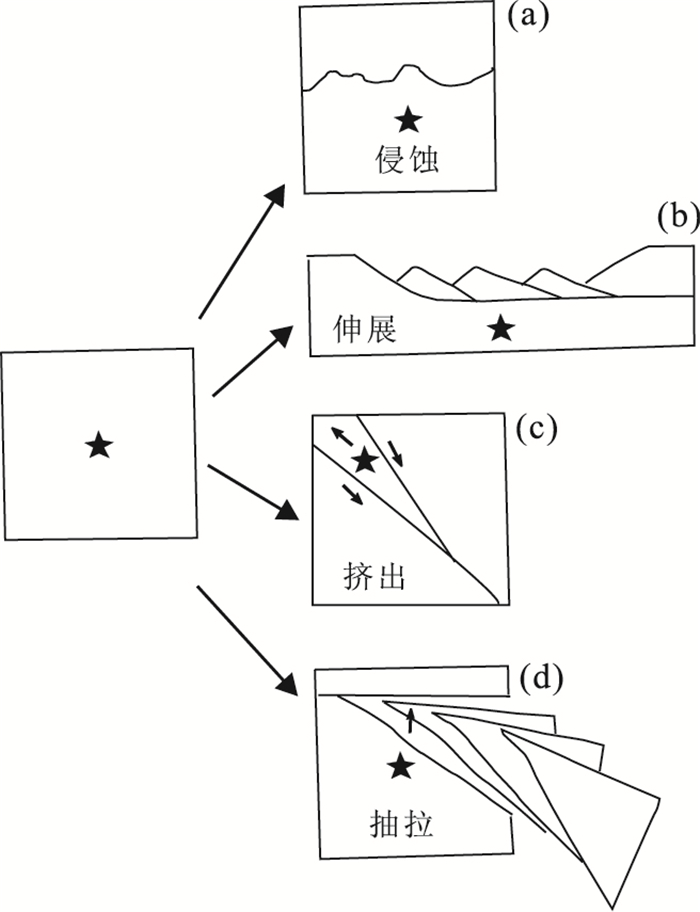

图 3 碰撞造山带内高压-超高压变质岩可能的折返运动学模式(据Froitzheim et al., 2003)
a.侵蚀作用；b.伸展作用；c.挤出作用；d.上覆地幔楔向下抽拉作用.星号代表高压-超高压变质地体
Fig. 3. Possible kinematic models of exhumation of high- and ultrafigh-pressure metamorphic rocks

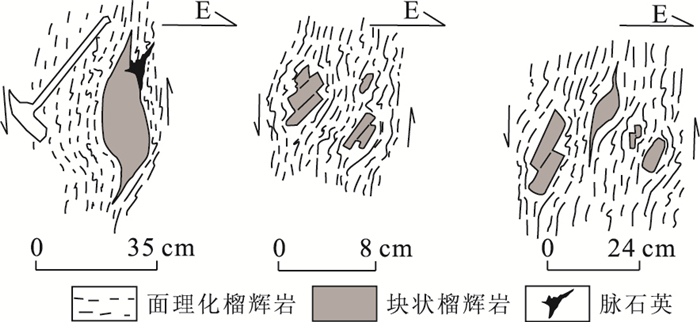

图 4 露头尺度块状榴辉岩透镜体与面理化榴辉岩间几何学和运动学关系
Fig. 4. Outcrop sketches showing the local geometric and kinematic relationships between lenses of massive eclogite and foliated eclogite

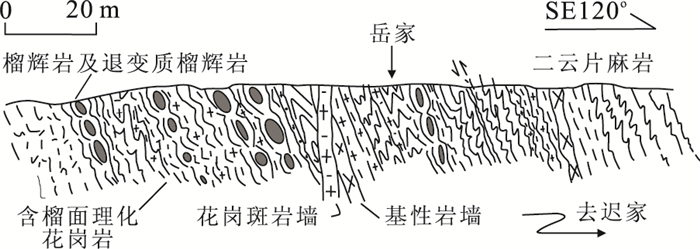

图 5 山东省荣城岳家陡立构造带剖面简图
Fig. 5. Simplified cross-section showing a steep structural belt in Yuejia, Rongcheng, northeastern Shandong

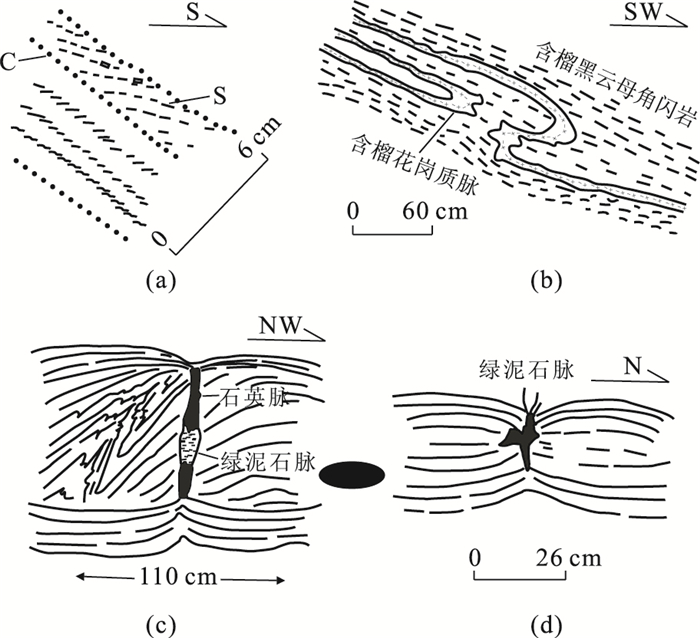

图 6 韧性伸展薄化作用的应变和运动学标志
a, b.非共轴剪切变形且沿着向南或南西缓倾斜面理正向剪切滑动(四道河)；c, d.共轴纯剪切变形和近水平方向伸展流动(分别位于麻城大河背及何家湾)
Fig. 6. Field sketches showing strain and kinematic indicaters for the structures acquired by ductile extensional thinning

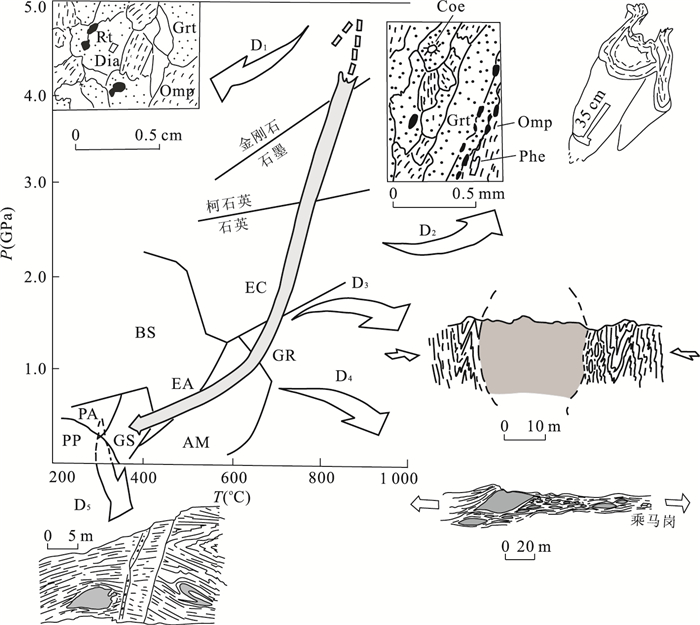

图 7 大别-苏鲁区超高压变质岩的减压退变构造折返示意
减压退变P-T轨迹示意据张泽明等(2006)；D1，D2，D3，D4和D5，分别为UHP变质峰期变形及不同折返阶段变形记录示意.变质相代号：PP.葡萄石绿纤石相；PA.绿纤石阳起石相；GS.绿片岩相；BS.蓝片岩相；EA.绿帘角闪岩相；AM.角闪岩相；GR.麻粒岩相；EC.榴辉岩相
Fig. 7. Synoptic illustrations explaining the tectonic exhumation of UHP metamorphic rocks in the Dabie-Sulu area
-
Ames, L., Zhou, G.Z., Xiong, B.C., 1996. Geochronology and isotopic character of ultrahigh-pressure metamorphism with implications for collision of the Sino-Korean and Yangtze cratons, Central China. Tectonics, 15(2): 472-489. doi: 10.1029/95TC02552 Austrheim, H., 1998. Influence of fluid and deformation on metamorphism of the deep crust and consequences for the geodynamics of collision zones. In: Hacker, B.R., Liou, J.G., eds., When continents collide: geodynamics and geochemistry of ultrahigh-pressure rocks. Kluwer Academic Pulishers, Dordrecht, 297-323. Auzanneau, E., Vielzeuf, D., Schmidt, M.W., 2006. Experimental evidence of decompression melting during exhumation of subducted continental crust. Contributions to Mineralogy and Petrology, 152(2): 125-148. doi: 10.1007/s00410-006-0104-5 Bellot, J.P., Roig, J.Y., 2007. Episodic exhumation of HP rocks inferred from structural data and P-T paths from the southwestern Massif Central (Variscan belt, France). Journal of Structural Geology, 29: 1538-1557. doi: 10.1016/j.jsg.2007.04.001 Brown, M., Schulmann, K., White, R.W., 2011. Granulites, partial melting and the rheology of the lower crust. Journal of Metamorphic Geology, 29: 1-6. doi: 10.1111/j.1525-1314.2010.00917.x Burg, J.P., 1999. Ductile structures and instabilities: their implication for Variscan tectonics in the Ardennes. Tectonophysics, 309: 1-25. doi: 10.1016/S0040-1951(99)00129-8 Carswell, D.A., 1986. The metamorphic evolution of Mg-Cr type Norwegian garnet peridotites. Lithos, 19: 279-297. doi: 10.1016/0024-4937(86)90028-9 Carswell, D.A., O'Brien, P.J., Wilson, R.N., et al., 1997. Thermobarometry of phengite-bearing eclogites in the Dabie Mountains of Central China. Journal of Metamorphic Geology, 15: 239-252. doi: 10.1111/j.1525-1314.1997.00014.x Carswell, D.A., Wilson, R.N., Zhai, M.G., 2000. Metamorphic evolution, mineral chemistry and thermobarometry of schists and orthogneisses hosting ultra-high pressure eclogites in the Dabieshan of central China. Lithos, 52: 121-155. doi: 10.1016/S0024-4937(99)00088-2 Chavagnac, V., Jahn, B.M., 1996. Coesite-bearing eclogites from the Bixiling complex, Dabie Mountains, China: Sm-Nd ages, geochemical characteristics and tectonic implications. Chemical Geology, 133: 29-51. doi: 10.1016/S0009-2541(96)00068-X Chemenda, A.I., Mattauer, M., Bokun, A.N., 1996. Continental subduction and a mechanism for exhumation of high-pressure metamorphic rocks: new modeling and field data from Oman. Earth and Planetary Science Letters, 143: 173-182. doi: 10.1016/0012-821X(96)00123-9 Cheng, Y.Q., Zhuang, Y.X., Gao, T.S., et al., 2002. Lithology and protolith of HP-UHP eclogite facies metamorphic rocks and relevant rocks of the Changpu- Bixiling area, Dabie Mountains. Acta Geologica Sinica, 76(1): 1-13 (in Chinese with English abstract). Chopin, C., 1984. Coesite and pure pyrope in high-grade blueschists of the western Alps: a first record and some consequences. Contributions to Mineralogy and Petrology. 86(2): 107-118. doi: 10.1007/BF00381838 Chopin, C., 2003. Ultrahigh-pressure metamorphism: tracing continental crust into the mantle. Earth and Planetary Science Letters, 212: 1-14. doi: 10.1016/S0012-821X(03)00261-9 Cong, B.L., Wang, Q.C., Zhai, M.G., et al., 1994. Ultra-high pressure metamorphic rocks in the Dabie-Su-Lu region, China: their formation and exhumation. Island Arc, 3: 135-150. doi: 10.1111/j.1440-1738.1994.tb00103.x Cong, B.L., Zhai, M.G., Carswell, D.A., et al., 1995. Petrogenesis of the ultrahigh-pressure rocks and their country rocks at Shuanghe in Dabieshan, Central China. European Journal of Mineralogy, 7(1): 119-138. doi: 10.1127/ejm/7/1/0119 Davis, G.H., 1983. Shear-zone model for the origin of metamorphic core complexes. Geology, 11(6): 342-347. doi: 10.1130/0091-7613(1983)11<342:SMFTOO>2.0.CO;2 de Sigoyer, J., Guillot, S., Dick, P., 2004. Exhumation of the ultrahigh-pressure Tso Morari unit in eastern Ladakh (NW Himalaya): a case study. Tectonics, 23(3), TC3003. doi: 10.1029/2002TC001492 Dewey, J.F., Ryan, P.D., Andersen, T.B., 1993. Orogenic uplift and collapse, crustal thickness, fabrics and metamorphic phase changes: the role of eclogites. Geological Society, London, Special Publications, 76: 325-343. doi: 10.1144/GSL.SP.1993.076.01.16 England, P., Molnar, P., 1990. Surface uplift, uplift of rocks, and exhumation of rocks. Geology, 18(12): 1173-1177. doi: 10.1130/0091-7613(1990)018<1173:SUUORA>2.3.CO;2 Faure, M., Lin, W., Monié, P., et al., 2003. Exhumation tectonics of the ultrahigh-pressure metamorphic rocks in the Qinling orogen in East China: new petrological-structural-radiometric insights from the Shandong Peninsula. Tectonics, 22(3): 1018. doi: 10.1029/2002TC001450 Froitzheim, N., Pleuger, J., Roller, S., et al., 2003. Exhumation of high- and ultrahigh-pressure metamorphic rocks by slab extraction. Geology, 31(10): 925-928. doi: 10.1130/G19748.1 Hacker, B.R., Anderson, T.B., Johnston, S., et al., 2010. High-temperature deformation during continental margin subduction & exhumation: the ultrahigh-pressure western Gneiss region of Norway. Tectonophysics, 480(1-4): 149-171. doi: 10.1016/j.tecto.2009.08.012 Hacker, B.R., Ratschbacher, L., Webb, L.E., et al., 2000. Exhumation of ultrahigh-pressure continental crust in east central China: Late Triassic-Early Jurassic tectonic unroofing. Journal of Geophysical Research, 105(B6): 13339-13364. doi: 10.1029/2000JB900039 Hacker, B.R., Wallis, M.O., Mcwilliams, M.O., et al., 2009. 40Ar/39Ar constraints on the tectonic history and architecture of the ultrahigh-pressure Sulu orogen. Journal of Metamorphic Geology, 27: 827-844. doi: 10.1111/j.1525-1314.2009.00840.x Handy, M.R., 1990. The solid-state flow of polymineralic rocks. Journal of Geophysical Research, 95(B6): 8647-8661. doi: 10.1029/JB095iB06p08647 Jahn, B.M., Cornichet, J., Henin, O., et al., 1994. Geochemical and isotopic investigation of ultrahigh pressure (UHP) metamorphic terranes in China: Su-Lu and Dabie complexes. Stanford Workshop on Ultrahigh-P metamorphism and tectonics, A71-A74. http://www.researchgate.net/publication/313349919_Geochemical_and_isotopic_investigation_of_ultrahigh_pressure_UHP_metamorphic_terranes_in_China_Su-Lu_and_Dabie_complexes Jin, Z.M., Zhang, J.F., Green, H.W. Ⅱ., et al., 2001. Eclogite rheology: implications for subducted lithosphere. Geology, 29(8): 667-670. doi: 10.1130/0091-7613(2001)029<0667:ERIFSL>2.0.CO;2 Jolivet, L., Raimbourg, H., Labrousse, L., et al., 2005. Softening trigerred by eclogitization, the first step toward exhumation during continental subduction. Earth and Planetary Science Letters, 237: 532-547. doi: 10.1016/j.epsl.2005.06.047 Katayama, I., Nakashima, S., Yurimoto, H., 2006. Water content in natural eclogite and implication for water transport into the deep upper mantle. Lithos, 86: 245-259. doi: 10.1016/j.lithos.2005.06.006. Kurz, W., Froitzheim, N., 2002. The exhumation of eclogite-facies metamorphic rocks: a review of models confronted with examples from the Alps. International Geology Review, 44(8): 702-743. doi: 10.2747/0020-6814.44.8.702 Li, S.G., Jagoutz, E., Chen, Y.Z., et al., 2000. Sm-Nd and Rb-Sr isotopic chronology and cooling history of ultrahigh pressure metamorphic rocks and their country rocks at Shuanghe in the Dabie Mountains, Central China. Geochimica et Cosmochimica Acta, 64(6): 1077-1093. doi: 10.1016/S0016-7037(99)00319-1 Li, S.G., Xiao, Y.L., Liu, D.Y., et al., 1993. Collision of the North China and Yangtse blocks and formation of coesite-bearing eclogites: timing and processes. Chemical Geology, 109: 89-111. doi: 10.1016/0009-2541(93)90063-O Li, S.G., Xiao, Y.L., Liu, D.Y., et al., 1993. Collision of the North China and Yangtse blocks and formation of coesite-bearing eclogites: timing and processes. Chemical Geology, 109: 89-111. doi: 10.1016/0009-2541(93)90063-O Liou, J.G., Maruyama, S.M., Cong, B.L., 1998. Introduction to geodynamics for high- and ultrahigh-pressure metamorphism. Island Arc, 7: 1-5. doi: 10.1046/j.1440-1738.1998.00182.x Liou, J.G., Tsujimori, T., Zhang, R.Y., et al., 2004. Global UHP metamorphism and continental subduction/collision: the Himalayan model. International Geology Review, 46: 1-27. doi: 10.2747/0020-6814.46.1.1 Liou, J.G., Zhang, R.Y., Ernst, W.G., 1994. An introduction to ultrahigh-pressure metamorphism. Island Arc, 3: 1-24. doi: 10.1111/j.1440-1738.1994.tb00001.x Liou, J.G., Zhang, R.Y., Jahn, B.M., 1997. Petrology, geochemitry and isotope data on a ultrahigh-pressure jadeite quartzite from Shuanghe, Dabie Mountains, East- Central China. Lithos, 41: 59-78. doi: 10.1016/S0024-4937(97)82005-1 Liou, J.G., Zhang, R.Y., Wang, X.M., et al., 1996. Metamorphism and tectonics of high-pressure and ultra-high-pressure bells in the Dabie-Sulu region, China. In: Yin, A., Harrison, M.T., eds., The tectonic development of Asia. Cambridge Univ. Press, UK, 300-344. Lister, G.S., Williams, P.F., 1983. The partitioning of deformation in flowing rock masses. Tectonophysics, 92: 1-33. doi: 10.1016/0040-1951(83)90083-5 Liu, D.Y., Jian, P., 2004.243 Ma UHP and 228 Ma retrograde events of the Shuanghe jadeite quartzite, eastern Dabie Mountains—SHRIMP dating, mineral inclusions and zircon REE patterns. Acta Geologica Sinica, 78(2): 211-217 (in Chinese with English abstract). http://www.zhangqiaokeyan.com/academic-journal-cn_acta-geologica-sinica_thesis/0201252711493.html Liu, F.L., Gerdes, A., Xue, H.M., 2009. Differential subduction and exhumation of crustal slices in the Sulu HP-UHP metamorphic terrane: insights from mineral inclusions, trace elements, U-Pb and Lu-Hf isotope analyses of zircon in orthogneiss. Journal of Metamorphic Geology, 27: 805-825. doi: 10.1111/j.1525-1314.2009.00833.x Liu, X., Wei, C., Li, S., et al., 2004. Thermobaric structure of a traverse across western Dabieshan: implications for collision tectonics between the Sino-Korean and Yangtze cratons. Journal of Metamorphic Geology, 22: 361-799. doi: 10.1111/j.1525-1314.2004.00519.x Liu, X.W., Jin, Z.M., Jin, S.Y., et al., 2005. Defference of deformation characteristics of garnets from two types of eclogites: evidence from TEM study. Acta Petrologica Sinica, 21(2): 411-420 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-YSXB200502015.htm Ma, X.Y., 2004. Analytical tectonics. Geological Publishing House, Beijing (in Chinese). Maruyama, S.M., Liou, J.G., Terabayashi, M., 1996. Blueschists and eclogites of the world and their exhumation. International Geology Review, 38: 490-596. doi: 10.1080/00206819709465347 Masago, H., Omori, S., Maruyama, S., 2010. Significance of retrograde hydration in collisional metamorphism: a case study of water infiltration in the Kokchetav ultrahigh-pressure metamorphic rocks, northern Kazakhstan. Gondwana Research, 18: 205-212. doi: 10.1016/j.gr.2010.02.004 Mosenfelder, J.L., Bohlen, S.R., 1994. Kinetics of the quartz to coesite transformation. EOS Transactions, American Geophysical Union, 76: 531-532. Nakamura, D., Hirajima, T., 2000. Granulite-facies overprinting of ultrahigh-pressure metamorphic rocks, northeastern Su-Lu region, eastern China. Journal of Petrology, 41(4): 563-582. doi: 10.1093/petrology/41.4.563 Oh, C.W., Kim, S.W., Choi, S.G., et al., 2005. First finding of eclogite facies metamorphic event in South Korea and its correlation with the Dabie-Sulu collision bell in China. The Journal of Geology, 113(2): 226-232. doi: 10.1086/427671 Okay, A.I., 1993. Petrology of a diamond and coesite-bearing metamorphic terrain, Dabie Shan, China. European Journal of Mineralogy, 5: 659-675. doi: 10.1127/ejm/5/4/0659 Platt, J.P., 1993. Exhumation of high-pressure rocks: a review of concepts and processes. Terra Nova, 5: 119-133. doi: 10.1111/j.1365-3121.1993.tb00237.x Qiu, H.N., Wijbrans, J.R., Brouwer, F.M., et al., 2010. Amphibolite facies retrograde metamorphism of the Zhujiachong eclogite, SE Dabieshan: 40Ar/39Ar age constrains from argon extraction using UV-laser microprobe, in vacuo crushing and stepwise beating. Journal of Metamorphic Geology, 28: 477-487. doi: 10.1111/j.1525-1314.2010.00875.x Ranalli, G., 1997. Rheology of the lithosphere in space and time. Geological Society, London, Special Publications, 121: 19-37. doi: 10.1144/GSL.SP.1997.121.01.02 Ratschbacher, L., Hacker, B.R., Calvert, A., et al., 2003. Tectonics of the Qinling (Central China): tectonostratigraphy, geochronology, and deformation history. Tectonophysics, 366: 1-53. doi: 10.1016/S0040-1951(03)00053-2 Ratschbacher, L., Hacker, B.R., Webb, L.E., et al., 2000. Exhumation of the ultrahigh-pressure continental crust in East Central China: Cretaceous and Cenozoic unroofing and the Tan-Lu fault. Journal of Geophysical Research, 105(B6): 13303-13338. doi: 10.1029/2000JB900040 Ree, J.H., Cho, M., Kwon, S.T., 1996. Possible eastward extension of Chinese collision belt in South Korea: the Imjingang belt. Geology, 24(12): 1071-1074. doi: 10.1130/0091-7613(1996)024<1071:PEEOCC>2.3.CO;2 Regard, V., Faccenna, C., Bellier, O., et al., 2008. Laboratory experiments of slab break-off and slab dip reversal: insight into the Alpine Oligocene reorganization. Terra Nova, 20: 267-273. doi: 10.1111/j.1365-3121.2008.00815.x Rubatto, D., Hermann, J., 2001. Exhumation as fast as subduction?Geology, 29(1): 3-6. doi: 10.1130/0091-7613(2001)029<0003:EAFAS>2.0.CO;2 Schreyer, W., 1988. Experimental studies on metamorphism of crustal rocks under mantle pressure. Mineralogical Magazine, 52(1): 1-26. http://adsabs.harvard.edu/abs/1988MinM...52....1S Shen, K., Zhang, Z.M., Huang, D.L., et al., 2006. Study of fluid inclusions in zircons of UHP metamorphic rocks from the main drillhole of the Chinese Continental Scientific Drilling Project (CCSD). Acta Petrologica Sinica, 22(7): 1975-1984 (in Chinese with English abstract). Shi, Y.H., Wang, Q.C., 2006. Precise P-T path and multi-stage exhumation of the Jinheqiao eclogite, Dabie Mountains, China. Acta Petrologica Sinica, 22(12): 2850-2860 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-YSXB200612003.htm Smith, D.C., 1984. Coesite in clinopyroxene in the Caledonides and its implications for geodynamics. Nature, 310: 641-644. doi: 10.1038/310641a0 Štípská, P., Schulmann, K., Powell, R., 2008. Contrasting metamorphic histories of lenses of high-pressure rocks and host migmatites with a flat orogenic fabric (Bohemian Massif, Czech Republic): a result of tectonic mixing within horizontal crustal flow?Journal of Metamorphic Geology, 26: 623-646. doi: 10.1111/j.1525-1314.2008.00781.x Su, W., Ji, Z.P., Ye, K., et al., 2004. Distribution of hydrous components in jadeite of the Dabie Mountains. Earth and Planetary Science Letters, 222: 85-100. doi: 10.1016/j.epsl.2004.02.028 Su, W., You, Z.D., Cong, B.L., et al., 2002. Cluster of water molecules in garnet from ultrahigh-pressure eclogite. Geology, 30(7): 611-614. doi: 10.1130/0091-7613(2002)030<0611:COWMIG>2.0.CO;2 Su, W., You, Z.D., Zhong, Z.Q., et al., 2001. Cluster of water molecules in garnet of eclogite: an evidence of the existence of fluid during ultra-high pressure metamorphic process. Acta Petrologica Sinica, 17(4): 643-647 (in Chinese with English abstract). http://www.researchgate.net/publication/290538590_Cluster_of_water_molecules_in_garnet_of_eclogite_Evidence_of_the_existence_of_fluid_during_ultra-high_pressure_metamorphism Suo, S.T., Sang, L.K., Han, Y.J., et al., 1993. The petrology and tectonics in Dabie precambrian metamorphic terranes, Central China. China University of Geoscience Press, Wuhan (in Chinese). Suo, S.T., Zhong, Z.Q., You, Z.D., 2000. Extensional deformation of post ultrahigh-pressure metamorphism and exhumation process of ultrahigh-pressure metamorphic rocks in the Dabie massif, China. Science in China (Series D), 43(3): 225-236. doi: 10.1007/BF02906818 Suo, S.T., Zhong, Z.Q., You, Z.D., et al., 2001. Post- collisional ductile extensional tectonic framework in the UHP and HP metamorphic belts in the Dabie-Sulu region, China. Acta Geologica Sinica, 75: 151-160. doi: 10.1111/j.1755-6724.2001.tb00517.x Suo, S.T., Zhong, Z.Q., Zhang, H.F., et al., 2001. High-pressure metamorphic belt and its tectonic pattern in Tongbai Mountains, Central China. Earth Science—Journal of China University of Geoscience, 26(6): 551-559 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DQKX200106000.htm Suo, S.T., Zhong, Z.Q., Zhou, H.W., et al., 2005. Tectonic evolution of the Dabie-Sulu UHP and HP metamorphic belts, East-Central China: structural record in UHP rocks. International Geology Review, 47(11): 1207-1221. doi: 10.2747/0020-6814.47.11.1207 Suo, S.T., Zhong, Z.Q., Zhou, H.W., et al., 2007. Polyphase deformation of the Weihai-Rongcheng UHP unit rocks, NE Sulu: insights into the tectonic evolution of the Dabie-Sulu UHP and HP belts, China. Acta Geologica Sinica, 81(1): 42-54. Suo, S.T., Zhong, Z.Q., Zhou, H.W., et al., 2009. Meso- and micro-structures of foliated eclogites in Dabie-Sulu UHP belt and implications for the earliest stages of exhumation of UHP metamorphic rocks: an example from Taohang, southeastern Shandong, China. Journal of Earth Science, 20(4): 649-658. doi: 10.1007/s12583-009-0057-5 Tang, Q., Liu, X.M., Xu, L., et al., 2006. Discovery of iron oxide, monazite and barite exsolutions in apatite veins in eclogite from the Chinese continental scientific drilling (CCSD) project. Acta Petrologica Sinica, 22(7): 1915-1920 (in Chinese with English abstract). Thompson, A.B., Schulmann, K., Jezek, J., 1997. Extrusion tectonics and elevation of lower crustal metamorphic rocks in convergent orogens. Geology, 25(6): 491-494. doi: 10.1130/0091-7613(1997)025<0491:ETAEOL>2.3.CO;2 van der Klauw, S.N.G.C., Reinecke, T., Stöckhert, B., 1997. Exhumation of ultrahigh-pressure metamorphic oceanic crust from Lago di Cignana, Piemontese zone, western Alps: the structural record in metabasites. Lithos, 41: 79-102. doi: 10.1016/S0024-4937(97)82006-3 Wallis, S., Enami, M., Banno, S., 1999. The Sulu UHP terrane: a review of the petrology and structural geology. International Geology Review, 41(10): 906-920. doi: 10.1080/00206819909465178 Wallis, S., Tsuboi, M., Suzuki, K., et al., 2005. Role of partial melting in the evolution of the Sulu (eastern China) ultrahigh-pressure terrane. Geology, 33(2): 129-132. doi: 10.1130/G20991.1 Wang, L., Kusky, T.M., Li, S.Z., 2010. Structural geometry of an exhumed UHP terrane in the eastern Sulu orogeny, China: implications for continental collisional processes. Journal of Structural Geology, 32(4): 423-440. doi: 10.1016/j.jsg.2010.01.012 Wang, Q., Ishiwatari, A., Zhao, Z., et al., 1993. Coesite-bearing granulite retrograded from eclogite in Weihai Eeastern China. European Journal of Mineralogy, 5: 141-152. doi: 10.1127/ejm/5/1/0141 Wang, Q., Liu, X., Maruyama, S., et al., 1995. Top boun dary of the Dabie UHPM rocks, Central China. Journal of Southeast Asian Earth Science, 11(4): 295-300. doi: 10.1016/0743-9547(94)00035-D Wang, Q.C., Cong, B.L., 1999. Exhumation of UHP terranes: a case study from the Dabie Mountains, eastern China. International Geology Review, 41: 994-1004. doi: 10.1080/00206819909465185 Wang, S.M., Ma, C.Q., Wang, L.Y., et al., 2010. SHRIMP zircon U-Pb dating, geochemistry and genesis of Early Cretaceous basic dykes from the Dabie orogen. Earth Science—Journal of China University of Geoscience, 35(4): 572-584 (in Chinese with English abstract). doi: 10.3799/dqkx.2010.073 Wawrzenitz, N., Romer, R.L., Oberhönsli, R., et al., 2006. Dating of subduction and differential exhumation of UHP rocks from the central Dabie complex (E-China): constraints from microfabrics, Rb-Sr and U-Pb isotope systems. Lithos, 89: 174-201. doi: 10.1016/j.lithos.2005.12.001 Webb, L.E., Hacker, B.R., Ratschbacher, L., et al., 1999. Thermochronologic constraints on deformation and cooling history of high- and ultrahigh-pressure rocks in the Qinling-Dabie orogen, eastern China. Tectonics, 18(4): 621-638. doi: 10.1029/1999TC900012 Wei, C.J., Wang, S.G., Zhang, L.F., et al., 1996. Some insights on the P-T path and exhumation of the ultrahigh-pressure elogites in central China. Acta Petrologica Sinica, 12(1): 70-77 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-YSXB601.005.htm Xiao, Y.L., Li, S.G., Jagoutz, E., et al., 1995. P-T-t path for coesite-bearing peridotite-eclogite association in the Bixiling, Dabie Mountains. Chinese Science Bulletin, 40: 156-158. Xu, J., Chen, Y.C., Wang, D.H., et al., 2004. Titanium mineralization in the ultrahigh-pressure metamorphic rocks from Chinese continental scientific drilling 100-2 000 m main hole. Acta Petrologica Sinica, 20(1): 119-126 (in Chinese with English abstract). http://www.researchgate.net/publication/279673549_Titanium_mineralization_in_the_ultrahigh-pressure_metamorphic_rocks_from_Chinese_Continental_Scientific_Drilling_100_2000m_main_hole Xu, S.T., Liu, Y.C., Su, W., et al., 1999. Geometry, kinematics and tectonic implication of the deformed garnets in the foliated eclogite from the ultra-high pressure metamorphic belt in the Dabie Mountains, eastern China. Acta Petrologica Sinica, 15(3): 321-337 (in Chinese with English abstract). http://www.researchgate.net/publication/288168813_Geometry_kinematics_and_tectonic_implication_of_the_deformed_garnets_in_the_foliated_eclogite_from_the_ultra-high_pressure_metamorphic_belt_in_the_Dabie_Mountains_eastern_China Xu, S.T., Su, W., Liu, Y.C., et al., 1992. Diamond from the Dabie Shan metamorphic rocks and its implication for the tectonic setting. Science, 256(5053): 80-82. doi: 10.1126/science.256.5053.80 Xu, Z.Q., 1987. Etude tectoniqtie et miorotonique de la China Paleozoique et Triasique des Qinlings (Dissertation). Univ. Sci. Tech. Languedoc, Montpellier, 327. http://www.theses.fr/1987TOU30045 Xu, Z.Q., Zhang, Z.M., Liu, F.L., et al., 2003. Exhumation structure and mechanism of the Sulu ultrahigh-pressure metamorphic belt, Central China. Acta Geologica Sinica, 77(4): 433-450 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DZXE200304000.htm Xu, Z.Q., Zhang, Z.M., Liu, F.L., et al., 2004. The structure profile of 0-1 200 m in the main borehole, Chinese continental scientific drilling and its preliminary deformation analysis. Acta Petrologica Sinica, 20(1): 53-72 (in Chinese with English abstract). http://www.researchgate.net/publication/279692186_The_structure_profile_of_0_1200m_in_the_main_borehole_Chinese_Continental_Scientific_Drilling_and_its_preliminary_deformation_analysis Yang, J.S., Xu, Z.Q., Dobrzhinetskaya, L.F., et al., 2003. Discovery of metamorphic diamonds in Central China: an indication of a > 4 000 km-long-zone of deep subduction resulting from multiple continental collisions. Terra Nova, 15: 370-379. doi: 10.1046/j.1365-3121.2003.00511.x Yang, Q.J., Zhong, Z.Q., Zhou, H.W., 2003. Geochemistry constrains on rock association of UHP terrane during exhumation. Earth Science-Journal of China University of Geosciences, 28(3): 241-249 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DQKX200303001.htm Ye, K., Yao, Y.P., Katayama, I., et al., 2000. Large areal extent of ultrahigh-pressure metamorphism in the Sulu ultrahigh-pressure terrane of East China: new implications from coesite and omphacite inclusion in zircon of granitic gneiss. Lithos, 52: 157-164. doi: 10.1016/S0024-4937(99)00089-4 You, Z.D., Han, Y.J., Yang, W.R., et al., 1998. The high-pressure and ultrahigh-pressure metamorphic belt in the east Qinling and Dabie Mountains, China. China University of Geosciences Press, Wuhan (in Chinese). You, Z.D., Su, S.G., Liang, F.H., et al., 2004. Petrography and metamorphic deformational history of the ultrahigh-pressure metamorphic rocks from the 100-2 000 m core of Chinese continental scientific drilling, China. Acta Petrologica Sinica, 20(1): 43-52 (in Chinese with English abstract). http://www.researchgate.net/publication/286988297_Petrography_and_metamorphic_deformational_history_of_the_ultrahigh-pressure_metamorphic_rocks_from_the_100_2000m_core_of_Chinese_Continental_Scientific_Drilling_China You, Z.D., Su, S.G., Liang, F.H., et al., 2005. The metamorphic evolution of the eclogitic rocks in the main hole of the Chinese continental scientific drilling project: an elucidation on the uplift processes of the ultrahigh-pressure metamorphic terrane. Acta Petrologica Sinica, 21(2): 381-388 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-YSXB200502011.htm You, Z.D., Suo, S.T., Zhong, Z.Q., 2000. Retrogressive microstructures in high-pressure and ultrahigh-pressure metamorphic rocks in the Dabie Mountains: enlightment to the exhumation process. Acta Geologica Sinica, 74(3): 224-233 (in Chinese with English abstract). http://ci.nii.ac.jp/naid/10013465332 You, Z.D., Zhong, Z.Q., Zhou, H.W., 2001. The role of the fluid flow during regional metamorphism. Earth Science Frontiers, 8(3): 157-164 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DXQY200103026.htm Yuan, X.C., Klemperer, S.L., Teng, W.B., et al., 2003. Crustal structure and exhumation of the Dabie Shan ultrahigh- pressure orogen, eastern China, from seismic reflection profiling. Geology, 31(5): 435-438. doi: 10.1130/0091-7613(2003)031<0435:CSAEOT>2.0.CO;2 Zhang, H.F., Zhong, Z.Q., Gao, S., et al., 2001. U-Pb zircon age of the foliated garnet-bearing granites in western Dabie Mountains, Central China. Chinese Science Bulletin, 46(19): 1659-1660. doi: 10.1007/BF02900630 Zhang, L., Zhong, Z.Q., Zhang, H.F., et al., 2009. The formation of foliated (garnet-bearing) granites in the Tongbai-Dabie orogenic belt: partial melting of subducted continental crust during exhumation. Journal of Metamorphic Geology, 27: 789-803. doi: 10.1111/j.1525-1314.2009.00850.x Zhang, R.Y., Liou, J.G., 1997. Partial transformation of gabbro to coesite-bearing eclogite from Yangkou, the Sulu terrane, eastern China. Journal of Metamorphic Geology, 15: 183-202. doi: 10.1111/j.1525-1314.1997.00012.x Zhang, R.Y., Liou, J.G., 1998. Ultrahigh-pressure metamorphism of the Sulu terrane, eastern China: a prospective view. Gontinental Dynamics, 3(1/2): 32-53. doi: 10.1029/2001GL014128 Zhang, R.Y., Liou, J.G., Cong, B.L., 1995a. Talc-magnesite and Ti-clinohumite bearing ultrahigh-pressure meta-mafic and ultramafic complex in the Dabie Mountains, China. Journal of Pethology, 36(4): 1011-1037. doi: 10.1093/petrology/36.4.1011 Zhang, R.Y., Liou, J.G., Ernst, W.G., 1995b. Ultrahigh-pressure metamorphism and decompressional P-T paths of eclogites and country rocks from Weihai, eastern China. Island Arc, 4(4): 293-309. doi: 10.1111/j.1440-1738.1995.tb00151.x Zhang, Z.M., Shen, K., Zhao, X.D., 2006. Fluid during the UHP metamorphism: constrains from the petrology, oxygen and fluid inclusion studies of the Sulu UHP metamorphic rocks. Acta Petrologica Sinica, 22(7): 1985-1988 (in Chinese with English abstract). Zhao, Z.Y., Wei, C.J., Fang, A.M., 2005. Plastic flow of coesite eclogite in a deep continent subduction regime: microstructures, deformation mechanisms and rheologic implications. Earth and Planetary Science Letters, 237: 209-222. doi: 10.1016/j.epsl.2005.06.021 Zhong, Z.Q., Suo, S, T., You, Z.D., 1999. Regional-scale extensional tectonic pattern of ultrahigh-pressure and high-pressure metamorphic bells from the Dabie massif, China. International Geology Review, 41(11): 1033-1041. doi: 10.1080/00206819909465188 Zhong, Z.Q., Suo, S.T., You, Z.D., et al., 2001. Major constituents of the Dabie collisional orogenic belt and partial melting in the ultrahigh-pressure unit. International Geology Review, 43(3): 226-236. doi: 10.1016/j.scriptamat.2008.04.042 Zhong, Z.Q., Suo, S.T., Zhang, L., et al., 2007. Plastic rheology of rocks—a structural study on the Dabie-Sulu UHP and HP metamorphic belts. China University of Geosciences Press, Wuhan (in Chinese). 程裕淇, 庄育勋, 高天山, 等, 2002. 大别山菖蒲-碧溪岭地区高压-超高压榴辉岩相变质岩和有关岩石类型及其原岩性质. 地质学报, 76(1): 1-13. https://www.cnki.com.cn/Article/CJFDTOTAL-DZXE200201001.htm 刘敦一, 简平, 2004. 大别山双河硬玉石英岩的超高压变质和退变质事件——SHRIMP测年的证据. 地质学报, 78(2): 211-217. doi: 10.3321/j.issn:0001-5717.2004.02.010 刘祥文, 金振民, 金淑燕, 等, 2005. 两类榴辉岩的石榴石变形特征差异——来自TEM研究的证据. 岩石学报, 21(2): 411-420. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200502015.htm 马杏垣, 2004. 解析构造学. 北京: 地质出版社. 沈昆, 张泽明, 黄大岭, 等, 2006. 中国大陆科学钻探(CCSD)主孔超高压变质岩副矿物锆石中的流体包裹体研究. 岩石学报, 22(7): 1975-1984. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200607025.htm 石永红, 王清晨, 2006. 大别山金河桥榴辉岩的精细P-T轨迹与多阶段折返. 岩石学报, 22(12): 2850-2860. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200612003.htm 苏文, 游振东, 钟增球, 等, 2001. 榴辉岩石榴石中的水分子团: 超高压变质过程中流体的证据. 岩石学报, 17(4): 643-647. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200104014.htm 索书田, 桑隆康, 韩郁菁, 等, 1993. 大别山前寒武纪地体岩石学与构造学. 武汉: 中国地质大学出版社. 索书田, 钟增球, 张宏飞, 等, 2001. 桐柏山高压变质带及其区域构造型式. 地球科学——中国地质大学学报, 26(6): 551-559. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX200106000.htm 汤倩, 刘晓明, 徐莉, 等, 2006. 中国大陆科学钻探(CCSD)榴辉岩磷灰石脉体中铁的氧化物、重晶石和独居石出溶物的发现及其意义. 岩石学报, 22(7): 1915-1920. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200607017.htm 王世明, 马昌前, 王琳燕, 等, 2010. 大别山早白垩世基性脉岩SHRIMP锆石U-Pb定年、地球化学特征及成因. 地球科学——中国地质大学学报, 35(4): 572-584. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX201004011.htm 魏春景, 王式洸, 张立飞, 等, 1996. 对中国中部超高压榴辉岩的P-T轨迹及回返机制的新认识. 岩石学报, 12(1): 70-77. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB601.005.htm 徐珏, 陈毓川, 王登红, 等, 2004. 中国大陆科学钻探主孔100~2 000米超高压变质岩中的钛矿化. 岩石学报, 20(1): 119-126. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200401009.htm 徐树桐, 刘贻灿, 苏文, 等, 1999. 大别山超高压变质带面理化榴辉岩中变形石榴石的几何学和运动学特征及其大地构造意义. 岩石学报, 15(3): 321-337. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB199903000.htm 许志琴, 张泽明, 刘福来, 等, 2003. 苏鲁高压-超高压变质带的折返构造及折返机制. 地质学报, 77(4): 433-450. doi: 10.3321/j.issn:0001-5717.2003.04.001 许志琴, 张泽明, 刘福来, 等, 2004. 中国大陆科学钻探主孔1 200米构造柱及变形构造初步解析. 岩石学报, 20(1): 53-72. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200401004.htm 杨启军, 钟增球, 周汉文, 2003. 大别-苏鲁超高压地体折返过程中岩石组合演化的地球化学约束. 地球科学——中国地质大学学报, 28(3): 241-249. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX200303001.htm 游振东, 韩郁菁, 杨巍然, 等, 1998. 东秦岭大别山高压超高压变质带. 武汉: 中国地质大学出版社. 游振东, 苏尚国, 梁凤华, 等, 2004. 中国大陆科学钻探主孔100~2 000米超高压变质岩相学特征与变质变形史. 岩石学报, 20(1): 43-52. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200401003.htm 游振东, 苏尚国, 梁凤华, 等, 2005. 中国大陆科学钻主孔榴辉岩类岩石退变质过程——对超高压变质地体隆升的启示. 岩石学报, 21(2): 381-388. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200502011.htm 游振东, 索书田, 钟增球, 等, 2000. 大别山超高压变质岩的退变质显微构造: 折返过程的启示. 地质学报, 74(3): 224-233. https://www.cnki.com.cn/Article/CJFDTOTAL-DZXE200003003.htm 游振东, 钟增球, 周汉文, 2001. 区域变质作用中的流体. 地学前缘, 8(3): 157-164. https://www.cnki.com.cn/Article/CJFDTOTAL-DXQY200103026.htm 张泽明, 沈昆, 赵旭东, 等, 2006. 超高压变质作用过程中的流体——来自苏鲁超高压变质岩岩石学、氧同位素和流体包裹体研究的限定. 岩石学报, 22(7): 1985-1998. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200607026.htm 钟增球, 索书田, 张利, 等, 2007. 岩石塑性流变学——大别-苏鲁高压超高压变质带的构造学. 武汉: 中国地质大学出版社. -
