基于知识图谱检索增强生成的滑坡监测预警系统

吴润泽; 李浩; 梅红波; 王成彬; 朱敏毅; 王红群; 张亮; 胡光鸿; 马明杰; 望致文; 张隆隆; 黄旻; 李振华

doi:10.3799/dqkx.2025.127

Volume 50 Issue 10

Oct. 2025

Turn off MathJax

Article Contents

Article Navigation > Earth Science > 2025 > 50(10): 4125-4136

Wu Runze, Li Hao, Mei Hongbo, Wang Chengbin, Zhu Minyi, Wang Hongqun, Zhang Liang, Hu Guanghong, Ma Mingjie, Wang Zhiwen, Zhang Longlong, Huang Min, Li Zhenhua, 2025. A Landslide Monitoring and Early Warning System with Retrieval-Augmented Generation Enhanced by Knowledge Graph. Earth Science, 50(10): 4125-4136. doi: 10.3799/dqkx.2025.127

Citation:

Wu Runze, Li Hao, Mei Hongbo, Wang Chengbin, Zhu Minyi, Wang Hongqun, Zhang Liang, Hu Guanghong, Ma Mingjie, Wang Zhiwen, Zhang Longlong, Huang Min, Li Zhenhua, 2025. A Landslide Monitoring and Early Warning System with Retrieval-Augmented Generation Enhanced by Knowledge Graph. Earth Science, 50(10): 4125-4136. doi: 10.3799/dqkx.2025.127

Citation:

Wu Runze, Li Hao, Mei Hongbo, Wang Chengbin, Zhu Minyi, Wang Hongqun, Zhang Liang, Hu Guanghong, Ma Mingjie, Wang Zhiwen, Zhang Longlong, Huang Min, Li Zhenhua, 2025. A Landslide Monitoring and Early Warning System with Retrieval-Augmented Generation Enhanced by Knowledge Graph. Earth Science, 50(10): 4125-4136. doi: 10.3799/dqkx.2025.127

PDF( 8719 KB)

A Landslide Monitoring and Early Warning System with Retrieval-Augmented Generation Enhanced by Knowledge Graph

doi: 10.3799/dqkx.2025.127

1.
Wuhan Center of China Geological Survey, Wuhan 430205, China
2.
Hubei Key Laboratory of Operation Safety of High Dam and Large Reservoir (China Three Gorges Corporation), Yichang 443133, China
3.
School of Earth Resources, China University of Geosciences, Wuhan 430074, China
4.
School of Computer, China University of Geosciences, Wuhan 430078, China
5.
School of Information Engineering, Xinjiang Institute of Technology, Akesu 843100, China

Received Date: 2025-03-04
Publish Date: 2025-10-25

Abstract

Abstract

Aiming at the current problem of knowledge extraction and utilization from text reports in landslide prevention and control work, this study explores a set of methods for constructing and applying a knowledge graph based on geological disaster data and materials, promoting the transformation of geological disaster prevention from data management to knowledge management. Knowledge extraction and knowledge graph construction were conducted on basic data from 182 reports, 22 specifications, 5 literatures, 4 668 landslide points, and 313 governance projects, as well as three years of historical disaster data, current landslide monitoring data, and forecasted weather data. Retrieval-augmented generation (RAG) technology was adopted to integrate and output multi-source knowledge. A knowledge graph system with 12 797 entities, 34 873 relationships, and 9 658 chunks was established, enabling 10-day early warning for 4 518 landslides. Knowledge graph technology effectively extracts knowledge from text reports, and RAG technology efficiently integrates multiple knowledge sources, improving the accuracy of knowledge question-answering.
- Three Gorges reservoir area,
- landslide monitoring and early warning,
- knowledge graph,
- large language model,
- retrieval-augmented generation,
- engineering geology

FullText(HTML)

References(45)

References

Abu-Salih, B., 2021. Domain-Specific Knowledge Graphs: A Survey. Journal of Network and Computer Applications, 185: 103076. https://doi.org/10.1016/j.jnca.2021.103076

Cao, X. G., Zhang, M. Y., Lei, Z., et al., 2021. Construction and Application of Knowledge Graph for Coal Mine Equipment Maintenance. Industry and Mine Automation, 47(3): 41-45 (in Chinese with English abstract).

Cheatham, M., Krisnadhi, A., Amini, R., et al., 2018. The GeoLink Knowledge Graph. Big Earth Data, 2(2): 131-143. https://doi.org/10.1080/20964471.2018.1469291

Chen, L. J., Peng, L., & Yang, L. N., 2024. Improving Landslide Prediction: Innovative Modeling and Evaluation of Landslide Scenario with Knowledge Graph Embedding. Remote Sensing, 16(1): 145. https://doi.org/10.3390/rs16010145

Du, Z. Q., Li, Y., Zhang, Y. T., et al., 2020. Knowledge Graph Construction Method on Natural Disaster Emergency. Geomatics and Information Science of Wuhan University, 45(9): 1344-1355 (in Chinese with English abstract).

Fan, R. Y., Wang, L. Z., Yan, J. N., et al., 2020. Deep Learning-Based Named Entity Recognition and Knowledge Graph Construction for Geological Hazards. ISPRS International Journal of Geo-Information, 9(1): 15. https://doi.org/10.3390/ijgi9010015

Feng, J., Xu, X., Lu, J. M., 2019. Construction and Application of Water Conservancy Information Knowledge Graph. Computer and Modernization, (9): 35-40 (in Chinese with English abstract).

Gui, H., L. Yuan, L., Ye, H., et al., 2024. Iepile: Unearthing Large-Scale Schema-Based Information Extraction Corpus. https://arxiv.org/pdf/2402.14710

Han, T., Huang, H. S., Yao, L. G., 2021. Entity Extraction for Aero-Engine Fault Knowledge Graph. Modular Machine Tool & Automatic Manufacturing Technique, (10): 69-73, 78 (in Chinese with English abstract).

Hogan, A., Blomqvist, E., Cochez, M., et al., 2021. Knowledge Graphs. ACM Computing Surveys, 54(4): 1-37. https://doi.org/10.1145/3447772

Li, X. P., Xu, J. H., Guo, Z. M., et al., 2019. Construction and Application of Knowledge Graph of Power Dispatching Automation System. Electric Power, 52(2): 70-77, 157 (in Chinese with English abstract).

Liu, W. C., 2022. Construction and Application of Landslide Knowledge Graph (Dissertation). Hefei University of Technology, Hefei (in Chinese with English abstract).

Lyu, H. K., Hong, L., Ma, F. C., 2020. Constructing Knowledge Graph for Financial Equities. Data Analysis and Knowledge Discovery, 4(5): 27-37 (in Chinese with English abstract).

Ma, X. G., Ma, C., Wang, C. B., 2020. A New Structure for Representing and Tracking Version Information in a Deep Time Knowledge Graph. Computers & Geosciences, 145: 104620. https://doi.org/10.1016/j.cageo.2020.104620

Pu, T. J., Tan, Y. P., Peng, G. Z., et al., 2021. Construction and Application of Knowledge Graph in the Electric Power Field. Power System Technology, 45(6): 2080-2091 (in Chinese with English abstract).

Qi, G. L., Gao, H., Wu, T. X., 2017. The Research Advances of Knowledge Graph. Technology Intelligence Engineering, 3(1): 4-25 (in Chinese with English abstract).

Qiu, Q. J., Wu, L., Ma, K., et al., 2023. A Knowledge Graph Construction Method for Geohazard Chain for Disaster Emergency Response. Earth Science, 48(5): 1875-1891 (in Chinese with English abstract).

Raskin, R. G., Pan, M. J., 2005. Knowledge Representation in the Semantic Web for Earth and Environmental Terminology (SWEET). Computers & Geosciences, 31(9): 1119-1125. https://doi.org/10.1016/j.cageo.2004.12.004

Ruan, T., Sun, C. L., Wang, H. F., et al., 2016. Construction of Traditional Chinese Medicine Knowledge Graph and Its Application. Journal of Medical Informatics, 37(4): 8-13 (in Chinese with English abstract).

Singhal, 2012. Official Google Blog: Introducing the Knowledge Graph: Things, not Strings. http://googleblog.blogspot.pt/2012/05/introducing-knowledge-graph-things-not.html

Wang, C. B., Ma, X. G., Chen, J. G., et al., 2018. Information Extraction and Knowledge Graph Construction from Geoscience Literature. Computers & Geosciences, 112: 112-120. https://doi.org/10.1016/j.cageo.2017.12.007

Xu, Q., Cui, S. H., Huang, W., et al., 2023. Construction of a Landslide Knowledge Graph in the Field of Engineering Geology. Geomatics and Information Science of Wuhan University, 48(10): 1601-1615 (in Chinese with English abstract).

Xu, Z. L., Sheng, Y. P., He, L. R., et al., 2016. Review on Knowledge Graph Techniques. Journal of University of Electronic Science and Technology of China, 45(4): 589-606 (in Chinese with English abstract).

Zhang, X. Y., Huang, Y., Zhang, C. J., et al., 2022. Geoscience Knowledge Graph (GeoKG): Development, Construction and Challenges. Transactions in GIS, 26(6): 2480-2494. https://doi.org/10.1111/tgis.12985

Zhang, Z. X., 2023. Stability Evaluation of High Slopes under Earthquake and Rainfall Based on Transfer Coefficient Method. Shaanxi Water Resources, (4): 14-15, 18 (in Chinese with English abstract).

Zhou, C. H., Wang, H., Wang, C. S., et al., 2021. Research on Geo-Knowledge Map in the Age of Big Data. Scientia Sinica (Terrae), 51(7): 1070-1079 (in Chinese). doi: 10.1360/SSTe-2020-0337

Zhou, Y. F., Duan, H., Zhao, H. L., et al., 2024. Hydrological Modeling Knowledge Graph Construction and Application. Journal of Hydraulic Engineering, 55(1): 80-91 (in Chinese with English abstract).

Zhu, Y. Q., Sun, K., Wang, S., et al., 2023. An Adaptive Representation Model for Geoscience Knowledge Graphs Considering Complex Spatiotemporal Features and Relationships. Science China Earth Sciences, 66(11): 2563-2578. https://doi.org/10.1007/s11430-022-1169-9

Zou, X. H., 2020. A Survey on Application of Knowledge Graph. Journal of Physics: Conference Series, 1487(1): 012016. https://doi.org/10.1088/1742-6596/1487/1/012016

曹现刚, 张梦园, 雷卓, 等, 2021. 煤矿装备维护知识图谱构建及应用. 工矿自动化, 47(3): 41-45.

杜志强, 李钰, 张叶廷, 等, 2020. 自然灾害应急知识图谱构建方法研究. 武汉大学学报(信息科学版), 45(9): 1344-1355.

冯钧, 徐新, 陆佳民, 2019. 水利信息知识图谱的构建与应用. 计算机与现代化, (9): 35-40.

韩涛, 黄海松, 姚立国, 2021. 面向航空发动机故障知识图谱构建的实体抽取. 组合机床与自动化加工技术, (10): 69-73, 78.

李新鹏, 徐建航, 郭子明, 等, 2019. 调度自动化系统知识图谱的构建与应用. 中国电力, 52(2): 70-77, 157.

刘文聪, 2022. 滑坡知识图谱构建及应用(硕士学位论文). 合肥: 合肥工业大学.

吕华揆, 洪亮, 马费成, 2020. 金融股权知识图谱构建与应用. 数据分析与知识发现, 4(5): 27-37.

蒲天骄, 谈元鹏, 彭国政, 等, 2021. 电力领域知识图谱的构建与应用. 电网技术, 45(6): 2080-2091.

漆桂林, 高桓, 吴天星, 2017. 知识图谱研究进展. 情报工程, 3(1): 4-25.

邱芹军, 吴亮, 马凯, 等, 2023. 面向灾害应急响应的地质灾害链知识图谱构建方法. 地球科学, 48(5): 1875-1891. doi: 10.3799/dqkx.2022.313

阮彤, 孙程琳, 王昊奋, 等, 2016. 中医药知识图谱构建与应用. 医学信息学杂志, 37(4): 8-13.

许强, 崔圣华, 黄维, 等, 2023. 面向工程地质领域的滑坡知识图谱构建方法研究. 武汉大学学报(信息科学版), 48(10): 1601-1615.

徐增林, 盛泳潘, 贺丽荣, 等, 2016. 知识图谱技术综述. 电子科技大学学报, 45(4): 589-606.

张忠孝, 2023. 基于传递系数法地震及降雨作用下库岸高边坡稳定性评价. 陕西水利, (4): 14-15, 18.

周成虎, 王华, 王成善, 等, 2021. 大数据时代的地学知识图谱研究. 中国科学: 地球科学, 51(7): 1070-1079.

周逸凡, 段浩, 赵红莉, 等, 2024. 水文模型知识图谱构建与应用. 水利学报, 55(1): 80-91.

Relative Articles

Supplements(9)

Supplements

附图5 数据查询型问答示例.jpg

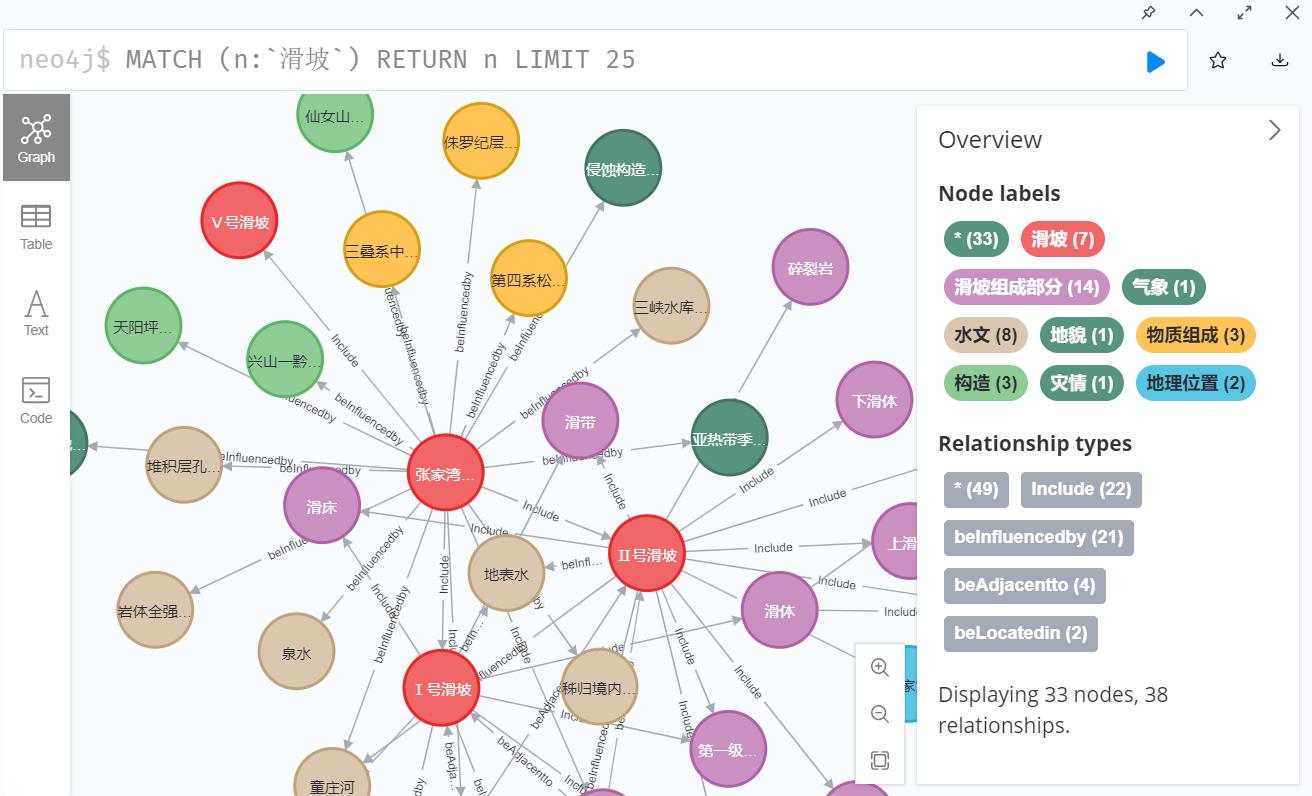

附图1 三峡库区滑坡知识图谱示意图.jpg

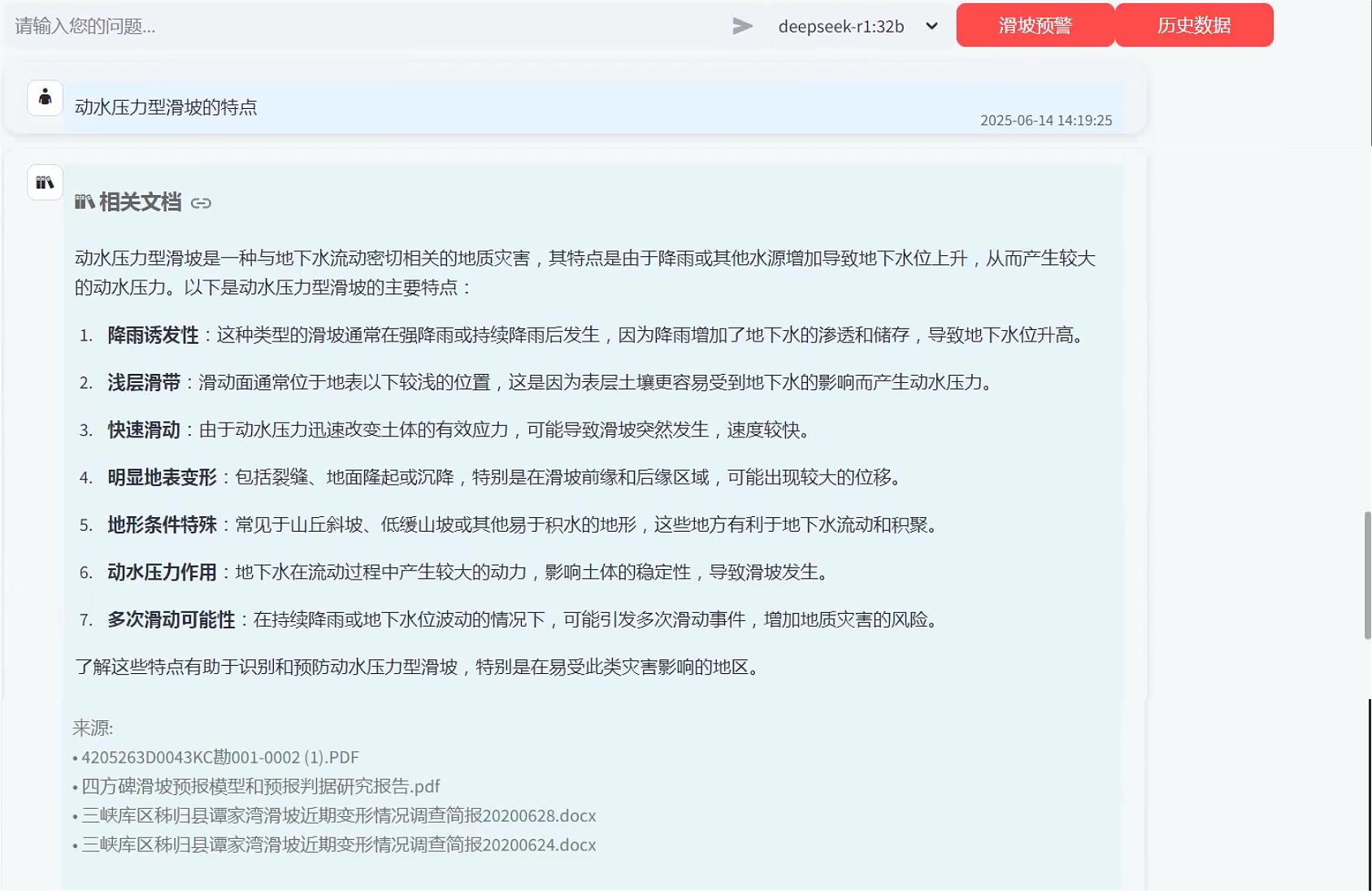

附图6 知识查询型问答示例.jpg

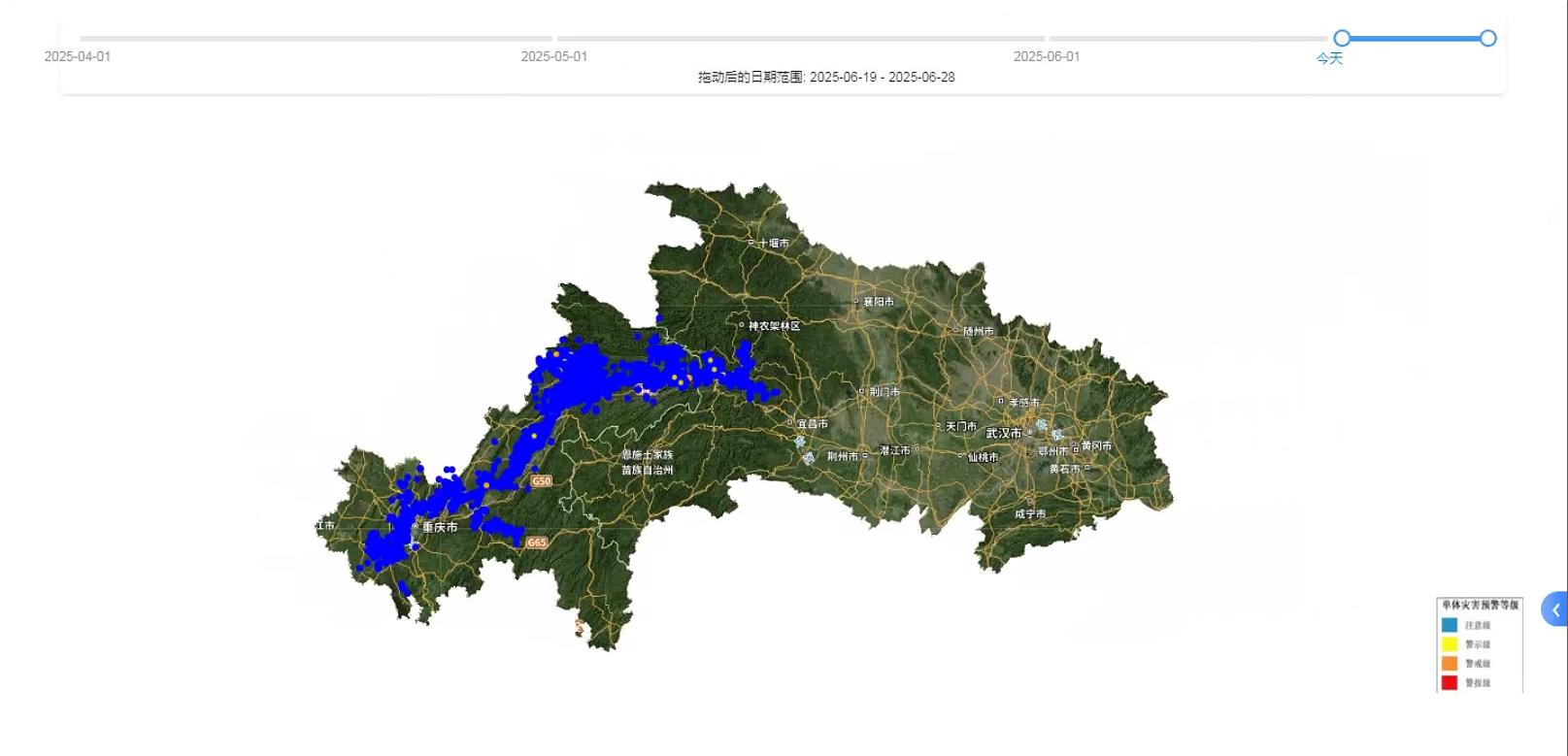

附图4 三峡库区滑坡预警结果图.jpg

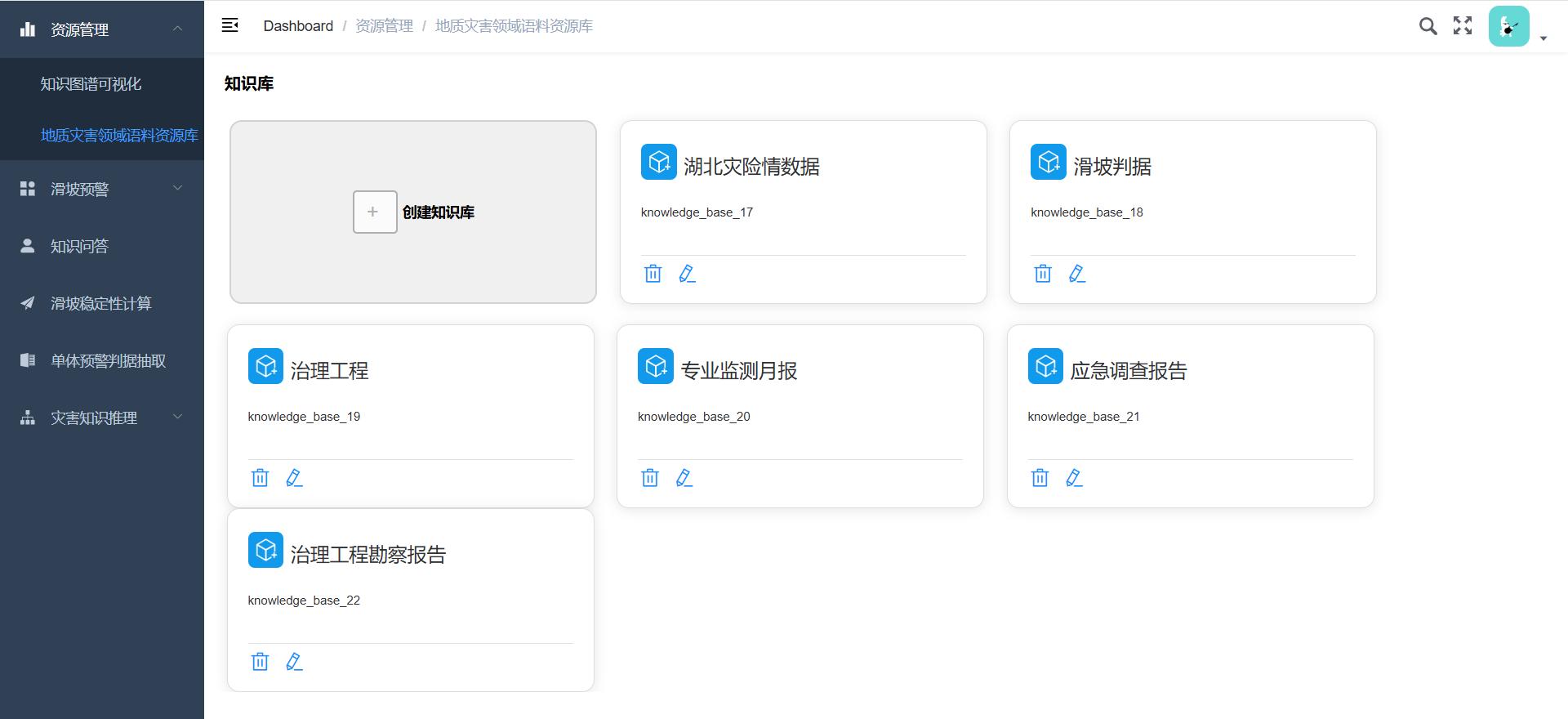

附图2 三峡库区滑坡监测预警知识管理界面.jpg

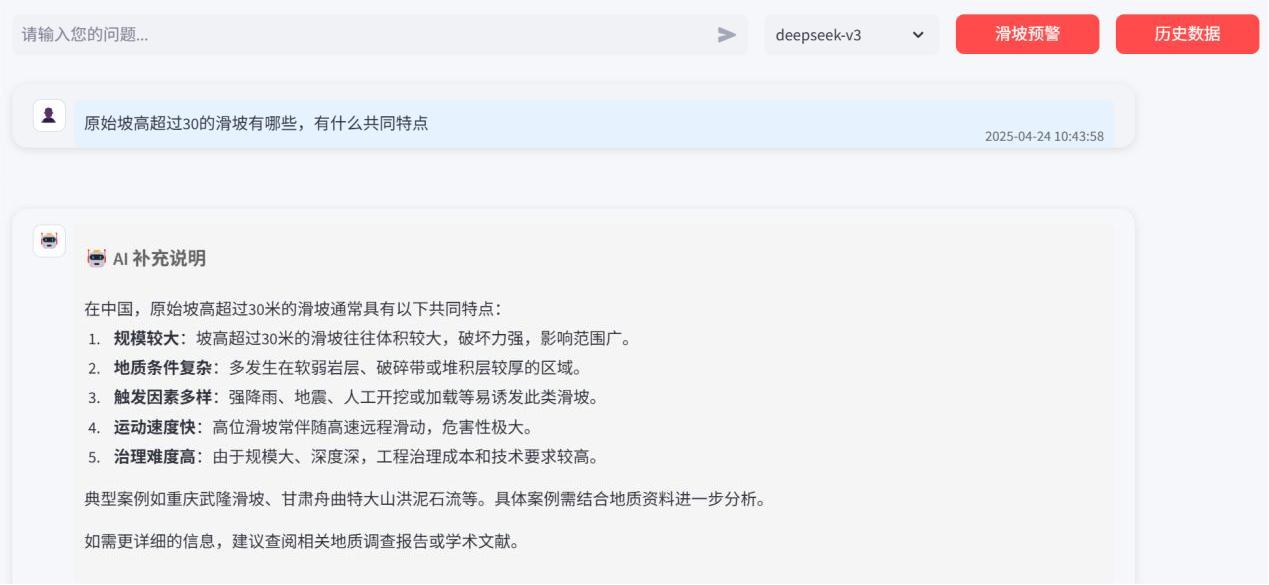

附图7 统计分析型问答示例.jpg
附图8 统计推理型问答示例.jpg

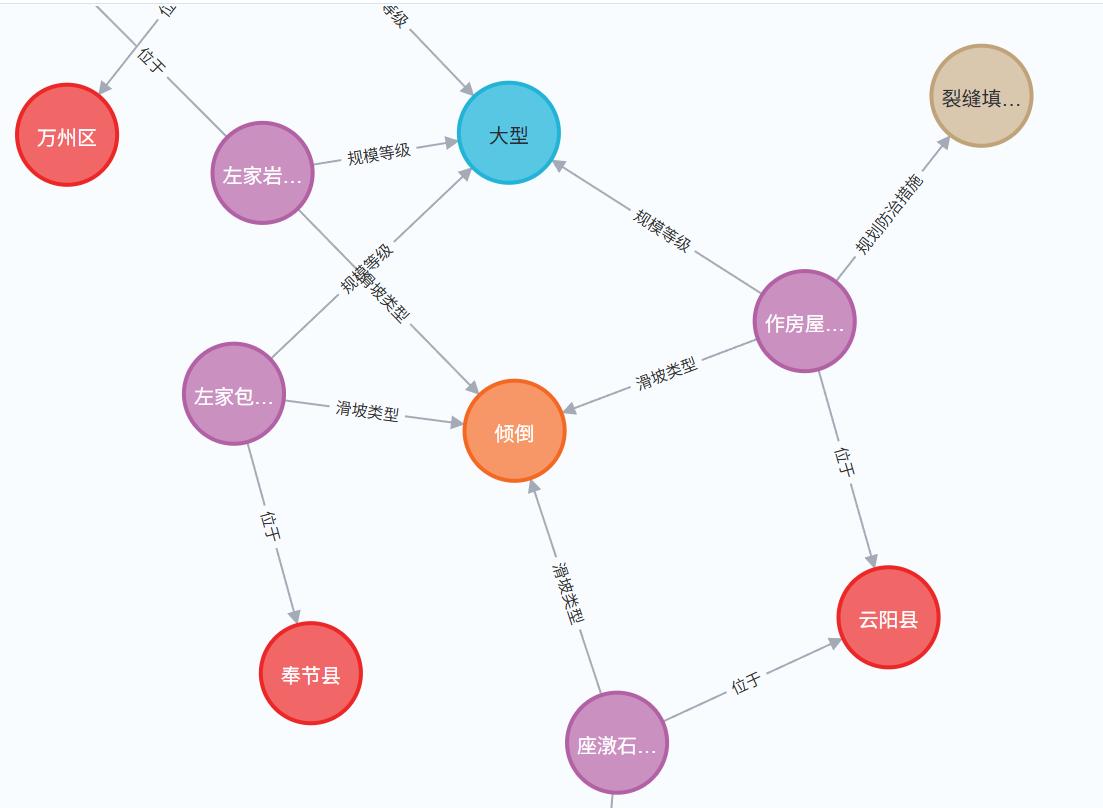

附图3 张家湾滑坡的知识图谱画像.jpg

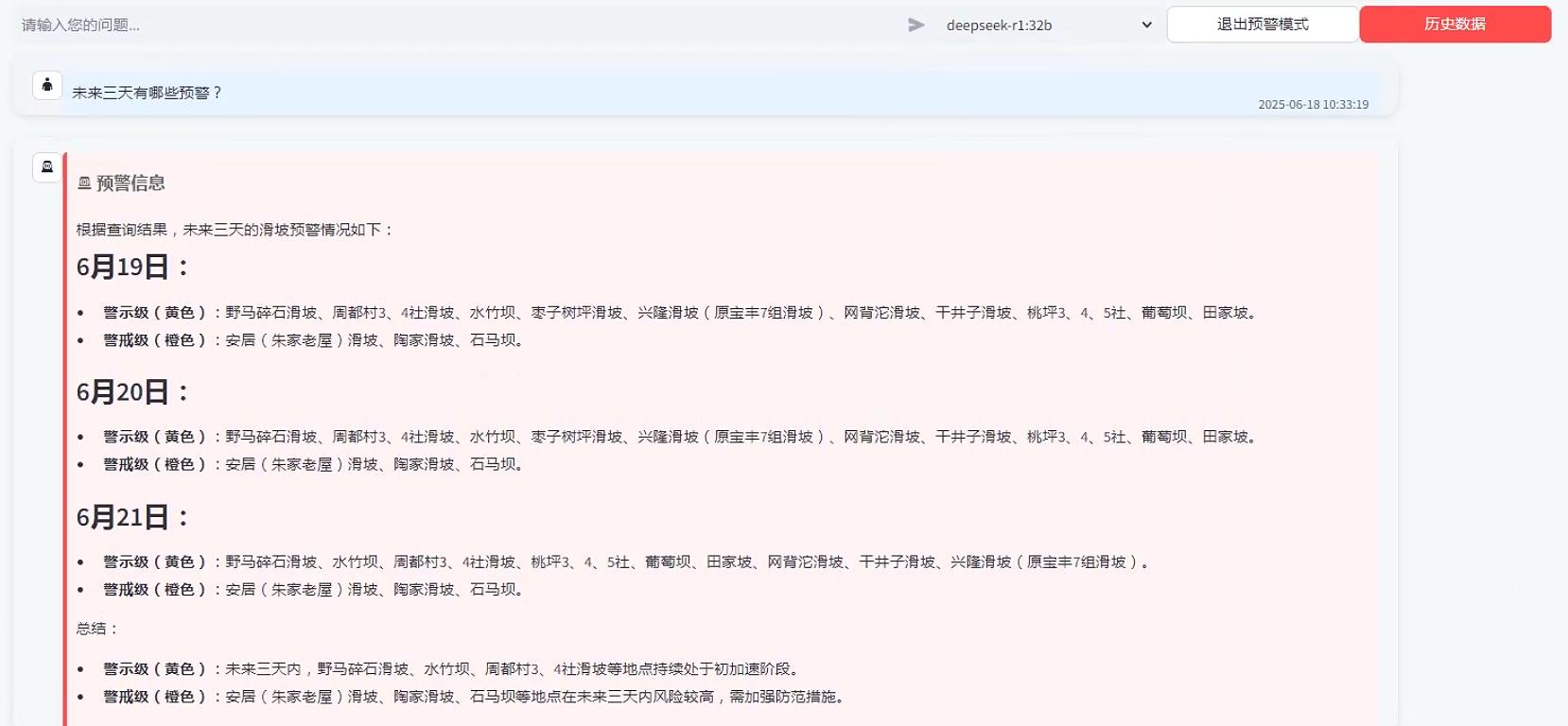

附图9 预测预报型问答示例.jpg
