    三肇凹陷扶杨油层断裂密集带样式及有利成藏部位

    陈方文 卢双舫 薛海涛 李吉君 王民

    陈方文, 卢双舫, 薛海涛, 李吉君, 王民, 2013. 三肇凹陷扶杨油层断裂密集带样式及有利成藏部位. 地球科学, 38(6): 1281-1288. doi: 10.3799/dqkx.2013.000
    引用本文: 陈方文, 卢双舫, 薛海涛, 李吉君, 王民, 2013. 三肇凹陷扶杨油层断裂密集带样式及有利成藏部位. 地球科学, 38(6): 1281-1288. doi: 10.3799/dqkx.2013.000
    CHEN Fang-wen, LU Shuang-fang, XUE Hai-tao, LI Ji-jun, WANG Min, 2013. Types and Favorable Oil Accumulation Parts of Fault Dense Belts in Fuyang Formation of Sanzhao Depression, Songliao Basin. Earth Science, 38(6): 1281-1288. doi: 10.3799/dqkx.2013.000
    Citation: CHEN Fang-wen, LU Shuang-fang, XUE Hai-tao, LI Ji-jun, WANG Min, 2013. Types and Favorable Oil Accumulation Parts of Fault Dense Belts in Fuyang Formation of Sanzhao Depression, Songliao Basin. Earth Science, 38(6): 1281-1288. doi: 10.3799/dqkx.2013.000

    三肇凹陷扶杨油层断裂密集带样式及有利成藏部位

    doi: 10.3799/dqkx.2013.000
    基金项目:

    国家“973”计划前期专项 2011CB211701

    中央高校基本科研业务费专项资金资助 2472014CX02089A

    详细信息
      作者简介:

      陈方文(1984-),男,博士,主要从事油气藏形成与资源评价研究.E-mail: cfwdqpi@163.com

    • 中图分类号: TE122

    Types and Favorable Oil Accumulation Parts of Fault Dense Belts in Fuyang Formation of Sanzhao Depression, Songliao Basin

    • 摘要: 从三肇凹陷扶杨油层断裂密集带组合特征入手,结合油气分布规律,分析断裂密集带对油气优势运移方向控制作用,分源内和源外探讨断裂密集带中有利成藏部位.研究表明:三肇凹陷扶杨油层主要发育4种断裂密集带样式,即反向-地堑-反向断阶、地垒-地堑-反向断阶、反向-地堑-顺向断阶和地垒-地堑-顺向断阶等;当断裂密集带走向与地层倾向呈小角度相交时,其走向指示油气平面优势运移方向;源内断裂密集带中地垒和反向断阶是油气聚集优势部位;源外断裂密集带走向与地层倾向呈小角度相交时,地堑两侧反向断阶和地垒是油气优先聚集部位,其次为断裂密集带中部地堑,若呈大角度相交则断裂密集带靠近生烃凹陷一侧的反向断阶和地垒优先聚集油气.

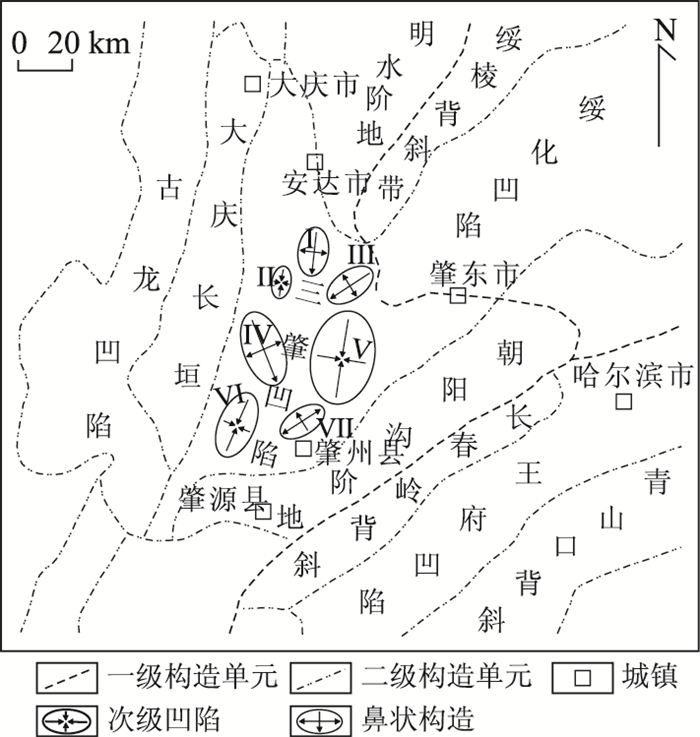

    • 图  1  三肇凹陷构造位置

      Ⅰ.升平鼻状构造;Ⅱ.升西次凹;Ⅲ.尚家鼻状构造;Ⅳ.宋芳屯北鼻状构造;Ⅴ.徐家围子次凹;Ⅵ.永乐次凹;Ⅶ.宋芳屯南-肇州鼻状构造

      Fig.  1.  Structural location of Sanzhao depression

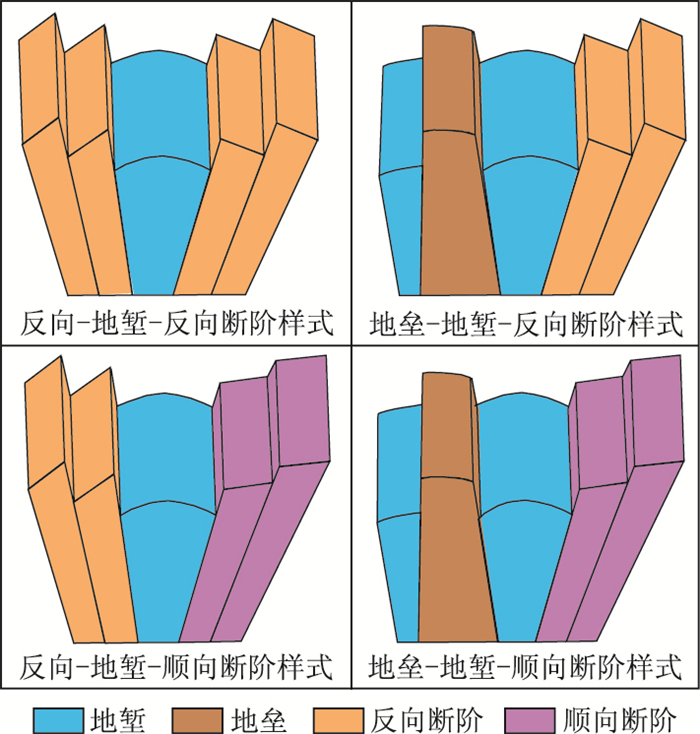

      图  2  三肇凹陷扶杨油层断裂密集带样式

      Fig.  2.  Types of faults dense belt in Fuyang Formation of Sanzhao depression

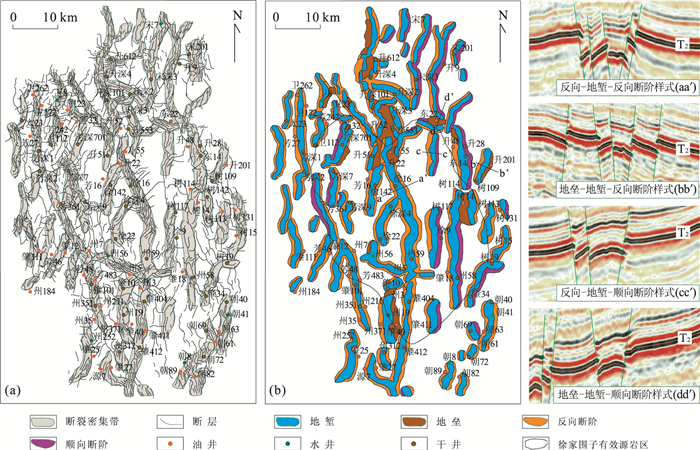

      图  3  三肇凹陷扶杨油层顶面断裂密集带平面分布及样式

      a.断裂密集带分布;b.断裂密集带样式

      Fig.  3.  Distribution and types of faults dense belt in Fuyang Formation of Sanzhao depression

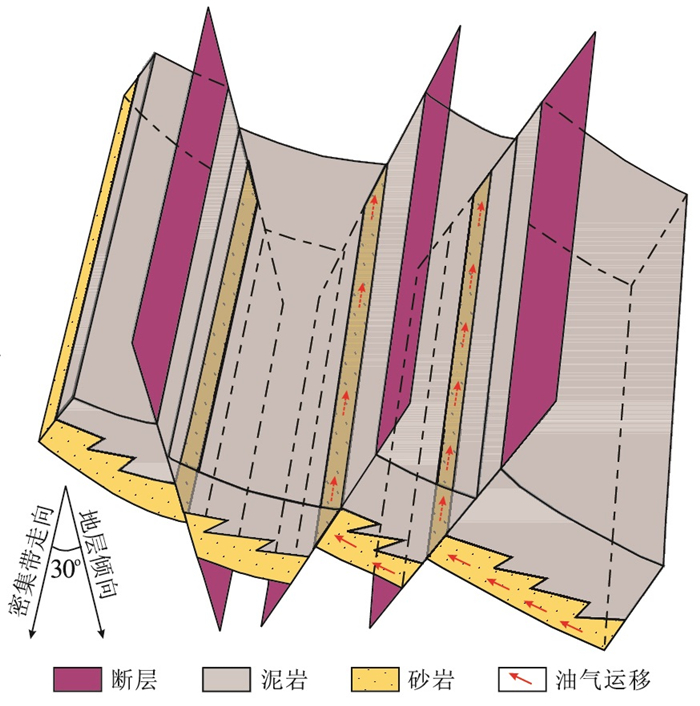

      图  4  断裂密集带对油气运移横向遮挡和侧向输导模式

      Fig.  4.  Model of transverse sealing and lateral fluid conduction of fault dense belts in hydrocarbon migration

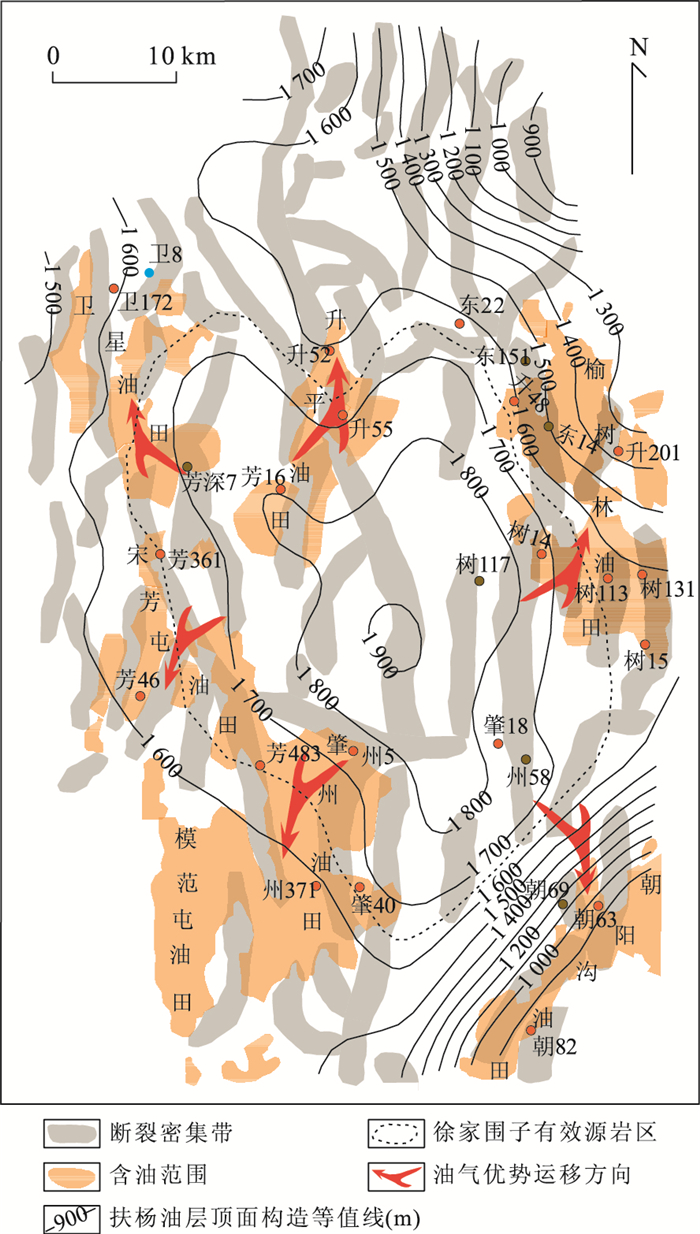

      图  5  三肇凹陷扶杨油层断裂密集带指示油气优势运移方向

      Fig.  5.  Effect of fault dense belts on the preferred direction of oil migration in Fuyang Formation of Sanzhao depression

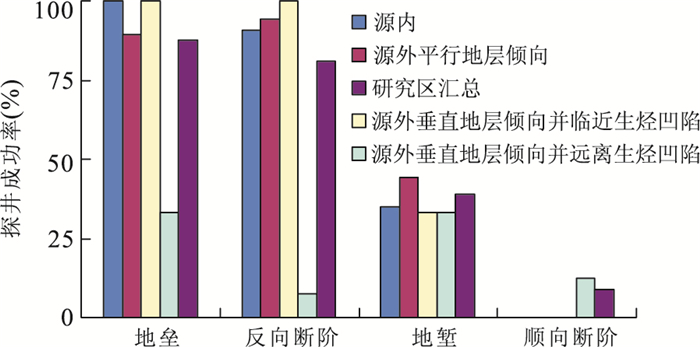

      图  6  三肇凹陷扶杨油层钻井成功率

      Fig.  6.  The success rate statistics of test wells in Fuyang Formation of Sanzhao depression

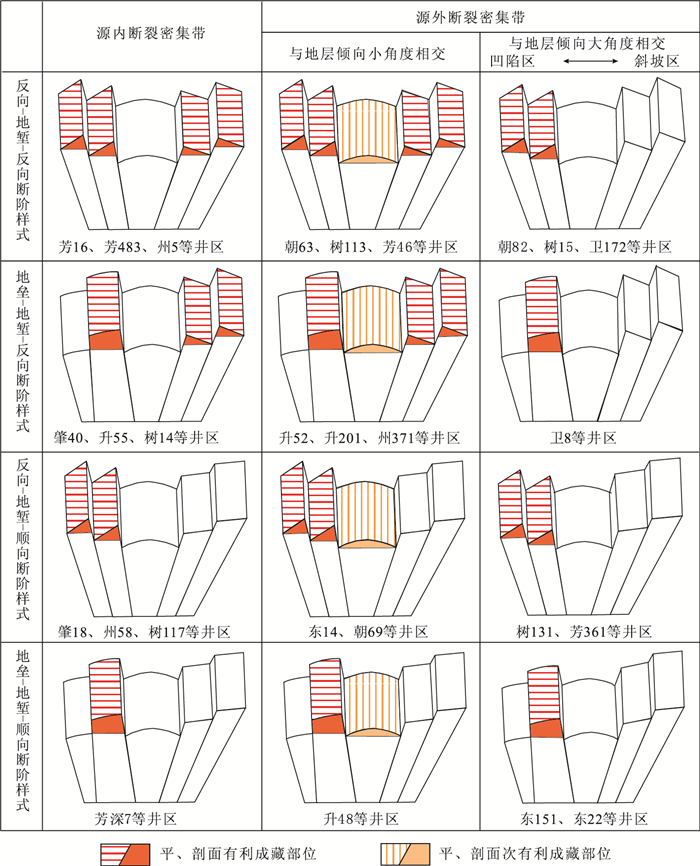

      图  7  三肇凹陷扶杨油层断裂密集带控藏模式

      Fig.  7.  Controlling oil reservoir model of fault dense belts in Fuyang Formation of Sanzhao depression

      表  1  三肇凹陷扶杨油层探井成功率统计

      Table  1.   The success rate statistics of test wells in Fuyang Formation of Sanzhao depression

      断裂密集带部位 源内断裂密集带 源外断裂密集带 总计
      与地层倾向平行 与地层倾向垂直
      临近生烃凹陷 远离生烃凹陷
      地堑 13/37(35.1%) 20/45(44.4%) 4/12(33.3%) 2/6(33.3%) 39/100(39%)
      地垒 3/3(100%) 17/19(89.5%) / 1/3(33.3%) 21/25(84.0%)
      反向断阶 20/22(90.9%) 33/35(94.3%) 14/14(100%) 1/13(7.7%) 68/84(81.0%)
      顺向断阶 0/4(0%) 0/2(0%) 0/1(0%) 2/16(12.5%) 2/23(8.7%)
      注:表中数据格式为成功井数/总井数(钻探成功率).
      下载: 导出CSV
    • [1] Catalan, L., Fu, X.W., Chatzis, L., 1992. An Experimental Study of Secondary Oil Migration. AAPG Bulletin, 76(5): 638-650. http://www.researchgate.net/publication/239878776_An_experimental_study_of_secondary_oil_migration
      [2] Chen, F.W., Lu, S.F., Xu, Y.T., et al., 2011. Intensively Faulted Zones and Their Controlling on the Hydrocarbon Migration and Accumulation—A Case Study on the Wangfu Depression, Songliao Basin. Journal of China University of Mining & Technology, 40(2): 240-245 (in Chinese with English abstract). http://www.researchgate.net/publication/282178526_Intensively_faulted_zones_and_their_controlling_on_the_hydrocarbon_migration_and_accumulation_a_case_study_of_the_Wangfu_depression_Songliao_basin
      [3] Chen, W., Wu, Z.P., Hou, F., et al., 2010. Study on Hydrocarbon Migration along Fault Strike. Journal of China University of Petroleum, 34(6): 25-30 (in Chinese with English abstract). http://www.researchgate.net/publication/288416866_Study_on_hydrocarbon_migration_along_fault_strike
      [4] Chi, Y.L., Xiao, D.M., Yin, J.Y., 2000. The Injection Pattern of Oil and Gas Migration and Accumulation in the Sanzhao Area of Songliao Basin. Acta Geologica Sinica, 74(4): 371-377 (in Chinese with English abstract). http://www.cnki.com.cn/Article/CJFDTotal-DZXE200004010.htm
      [5] Fu, G., Liu, M.W., 2010. Migration Pathways of Fuyu Oil Layer in Chang 10 Block in Songliao Basin and Its Control on Oil Accumulation. Acta Sedimentologica Sinica, 28(1): 201-207 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-CJXB201001025.htm
      [6] Fu, G., Wang, Y.G., Yuan, D.W., 2010. Source Faults of F, Y Oil Layer in Sanzhao Depression and Its Control to Oil Accumulation. Acta Petrolei Sinica, 31(5): 762-766 (in Chinese with English abstract).
      [7] Fu, X.F., Ping, G.D., Fan, R.D., et al., 2009. Research on Migration and Accumulation Mechanism of Hydrocarbon "Reversed Migration" in Fuyu and Yangdachengzi Formation in Sanzhao Depression. Acta Sedimentologica Sinica, 27(3): 558-566 (in Chinese with English abstract). http://qikan.cqvip.com/Qikan/Article/Detail?id=30531099
      [8] Guo, Z.Q., Xiao, D.M., Tang, J.S., 1996. Function of Discordogenic Faults during Forming of Dydrocarbon Pools. Acta Petrolei Sinica, 17(3): 27-32 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-SYXB603.003.htm
      [9] He, D.F., 2007. Features of Oil-Gas Reservoir Generated by Fault-Lithologic Body. Acta Petrolei Sinica, 28(2): 22-28 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-SYXB200702003.htm
      [10] Hindle, A.D., 1997. Petroleum Migration Pathways and Charge Concentration; A Three-Dimensional Model. AAPG Bulletin, 81(9): 1451-1481.
      [11] Hu, W.S., Lü, B.Q., Zhang, W.J., et al., 2005. An Approach to Tectonic Evolution and Dynamics of the Songliao Basin. Chinese Journal of Geology, 40(1): 16-31 (in Chinese with English abstract). http://d.wanfangdata.com.cn/Periodical/dzkx200501002
      [12] Li, K., Zhao, X.K., Zhang, X.B., et al., 2007. Hydrocarbon Migration Pathway System Types and Evolution in the Akekule Rese, Tarim Basin. Chinese Journal of Geology, 42(4): 766-778 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DZKX200704012.htm
      [13] Lin, T.F., Xiang, C.F., Feng, Z.H., et al., 2009. Pathway Systems for Hydrocarbon Migration to Binbei District, Songliao Basin, Northeast China. Geological Science and Technology Information, 28(1): 63-68 (in Chinese with English abstract). http://en.cnki.com.cn/article_en/cjfdtotal-dzkq200901011.htm
      [14] Liu, Z.B., Fu, X.F., Lü, Y.F., et al., 2009. Hydrocarbon Reversed Accumulation Model of Big Depression Syncline Area—A Case of the Fuyang Reservoir in the Sanzhao Depression. Geological Review, 55(5): 685-892 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DZLP200905011.htm
      [15] Liu, Z.B., Ma, S.Z., Sun, Y., et al., 2008. High-Resolution Sequence Stratigraphy Division and Depositional Characteristics of Putaohua Reservoir, Sanzhao Depression. Acta Sedmentologica Sinica, 26(3): 399-406 (in Chinese with English abstract).
      [16] Lu, S.F., Li, J.N., Liu, S.J., et al., 2009. Oil Generation Threshold Depth of Songliao Basin: Revision and Its Significance. Petroleum Exploration and Development, 36(2): 166-173 (in Chinese with English abstract). doi: 10.1016/S1876-3804(09)60117-8
      [17] Shen, Y., Jia, D., Song, G.Q., et al., 2010. Reservoir-Forming Characters, Key Control Factors and Geological Evaluation in the Area outside Oil Source—Take the Chunguang Oilfield in Chepaizi Uplift in Western Junggar Basin as an Example. Geological Review, 56(1): 51-59 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DZLP201001009.htm
      [18] Sun, Y., Ma, S.Z., Liu, Y.Y., et al., 2009. An Approach to Oil-Controlled Model of Local Structure of Putaohua Oil Layer in the Sanzhao Sag, Songliao Basin. Geological Review, 55(5): 693-700 (in Chinese with English abstract).
      [19] Zhang, L., Lu, S.F., Zhang, X.J., et al., 2010. Controlling Factors and Accumulation Model of Hydrocarbon Accumulation of the Fuyang Oil Units in Sanzhao Region of the Songliao Basin. Journal of Jilin University (Earth Science Edition), 40(3): 491-502 (in Chinese with English abstract). http://www.zhangqiaokeyan.com/academic-journal-cn_journal-jilin-university-earth-science-edition_thesis/0201247972118.html
      [20] Zhao, W.Z., Chi, Y.L., 2000. Regional Distribution Regularity and Its Controlling Factors of Oil and Gas Bearing Series in Bohai Bay Basin. Acta Petrolei Sinica, 21(1): 10-15 (in Chinese with English abstract). http://www.researchgate.net/publication/294689986_Regional_distribution_regularity_and_its_controlling_factors_of_oil_and_gas_bearing_series_in_Bohai_Bay_Basin
      [21] 陈方文, 卢双舫, 徐运亭, 等, 2011. 断裂密集带对油气运移和聚集的制约研究——以王府凹陷为例. 中国矿业大学学报, 40(2): 240-245. https://www.cnki.com.cn/Article/CJFDTOTAL-ZGKD201102013.htm
      [22] 陈伟, 吴智平, 侯峰, 等, 2010. 油气沿断裂走向运移研究. 中国石油大学学报(自然科学版), 34(6): 25-30. doi: 10.3969/j.issn.1673-5005.2010.06.005
      [23] 迟元林, 萧德铭, 殷进垠, 2000. 松辽盆地三肇地区上生下储"注入式"成藏机制. 地质学报, 74(4): 371-377. https://www.cnki.com.cn/Article/CJFDTOTAL-DZXE200004010.htm
      [24] 付广, 刘美薇, 2010. 松辽盆地长10区块扶余油层运移输导通道及对油成藏的控制. 沉积学报, 28(1): 201-207. https://www.cnki.com.cn/Article/CJFDTOTAL-CJXB201001025.htm
      [25] 付广, 王有功, 袁大伟, 2010. 三肇凹陷扶杨油层源断裂的再认识及其对成藏的控制作用. 石油学报, 31(5): 762-766. https://www.cnki.com.cn/Article/CJFDTOTAL-SYXB201005012.htm
      [26] 付晓飞, 平贵东, 范瑞东, 等, 2009. 三肇凹陷扶杨油层油气"倒灌"运聚成藏规律研究. 沉积学报, 27(3): 558-566. https://www.cnki.com.cn/Article/CJFDTOTAL-CJXB200903023.htm
      [27] 郭占谦, 萧德铭, 唐金生, 1996. 深大断裂在油气藏形成中的作用. 石油学报, 17(3): 27-32. doi: 10.3321/j.issn:0253-2697.1996.03.004
      [28] 何登发, 2007. 断裂-岩性体油气藏特征. 石油学报, 28(2): 22-28. doi: 10.3321/j.issn:0253-2697.2007.02.004
      [29] 胡望水, 吕炳全, 张文军, 等, 2005. 松辽盆地构造演化及成盆动力学探讨. 地质科学, 40(1): 16-31. https://www.cnki.com.cn/Article/CJFDTOTAL-DZKX200501002.htm
      [30] 李坤, 赵锡奎, 张小兵, 等, 2007. 塔里木盆地阿克库勒凸起油气输导体系类型与演化. 地质科学, 42(4): 766-778. https://www.cnki.com.cn/Article/CJFDTOTAL-DZKX200704012.htm
      [31] 林铁锋, 向才富, 冯子辉, 等, 2009. 松辽盆地滨北地区油气运移输导体系分析. 地质科技情报, 28(1): 63-68. doi: 10.3969/j.issn.1000-7849.2009.01.010
      [32] 刘宗堡, 付晓飞, 吕延舫, 等, 2009. 大型凹陷向斜区油气倒灌式成藏—以松辽盆地三肇凹陷扶杨油层为例. 地质论评, 55(5): 685-892. doi: 10.3321/j.issn:0371-5736.2009.05.010
      [33] 刘宗堡, 马世忠, 孙雨, 等, 2008. 三肇凹陷葡萄花油层高分辨率层序地层划分及沉积特征研究. 沉积学报, 26(3): 399-406. https://www.cnki.com.cn/Article/CJFDTOTAL-CJXB200803006.htm
      [34] 卢双舫, 李娇娜, 刘绍军, 等, 2009. 松辽盆地生油门限重新厘定及其意义. 石油勘探与开发, 36(2): 166-173. doi: 10.3321/j.issn:1000-0747.2009.02.005
      [35] 沈扬, 贾东, 宋国奇, 等, 2010. 源外地区油气成藏特征、主控因素及地质评价——以准噶尔盆地西缘车排子凸起春光油田为例. 地质论评, 56(1): 51-59. https://www.cnki.com.cn/Article/CJFDTOTAL-DZLP201001009.htm
      [36] 孙雨, 马世忠, 刘云燕, 等, 2009. 松辽盆地三肇凹陷葡萄花油层局部构造控油模式探讨. 地质论评, 55(5): 693-700. doi: 10.3321/j.issn:0371-5736.2009.05.011
      [37] 张雷, 卢双舫, 张学娟, 等, 2010. 松辽盆地三肇地区扶杨油层油气成藏过程主控因素及成藏模式. 吉林大学学报(地球科学版), 40(3): 491-502. https://www.cnki.com.cn/Article/CJFDTOTAL-CCDZ201003002.htm
      [38] 赵文智, 池英柳, 2000. 渤海湾盆地含油气层系区域分布规律与主控因素. 石油学报, 21(1): 10-15. doi: 10.3321/j.issn:0253-2697.2000.01.002
