    钱塘江河口涌潮河段滩槽演替与沉积层序

    涂俊彪 范代读 尚帅 陈玲玲 张悦

    涂俊彪, 范代读, 尚帅, 陈玲玲, 张悦, 2014. 钱塘江河口涌潮河段滩槽演替与沉积层序. 地球科学, 39(3): 261-270. doi: 10.3799/dqkx.2014.025
    引用本文: 涂俊彪, 范代读, 尚帅, 陈玲玲, 张悦, 2014. 钱塘江河口涌潮河段滩槽演替与沉积层序. 地球科学, 39(3): 261-270. doi: 10.3799/dqkx.2014.025
    Tu Junbiao, Fan Daidu, Shang Shuai, Chen Lingling, Zhang Yue, 2014. Evolution and Sedimentary Sequence of Tidal Channel-Flat System at Bore-Affected Reach of the Qiantang Estuary. Earth Science, 39(3): 261-270. doi: 10.3799/dqkx.2014.025
    Citation: Tu Junbiao, Fan Daidu, Shang Shuai, Chen Lingling, Zhang Yue, 2014. Evolution and Sedimentary Sequence of Tidal Channel-Flat System at Bore-Affected Reach of the Qiantang Estuary. Earth Science, 39(3): 261-270. doi: 10.3799/dqkx.2014.025

    钱塘江河口涌潮河段滩槽演替与沉积层序

    doi: 10.3799/dqkx.2014.025
    基金项目:

    国家自然科学基金 41076016

    国家自然科学基金 41276045

    中国地质调查局海保工程专项 GZH201100203

    详细信息
      作者简介:

      涂俊彪(1989-), 男, 硕士研究生, 海洋地质学专业.E-mail: jbtu_mail@126.com

      通讯作者:

      范代读, E-mail: ddfan@tongji.edu.cn

    • 中图分类号: P595

    Evolution and Sedimentary Sequence of Tidal Channel-Flat System at Bore-Affected Reach of the Qiantang Estuary

    • 摘要: 通过分析时间序列的卫片资料、4 m高的露头剖面的沉积学和元素地球化学特征, 研究钱塘江涌潮河段的滩槽冲淤变化规律、涌潮沉积特征和沉积层序.涌潮河段河道宽浅, 受径流与潮流相互作用强烈, 冲淤频繁且剧烈, 滩槽演替存在约20 a的周期, 与流域年代际洪、枯期转变有关.在滩槽叠置的垂向层序中, 底部为河槽、低潮滩相的厚层块状砂质沉积, 发育各种变形沉积构造, 为典型的涌潮沉积; 顶部为高潮滩相的潮汐韵律沉积, 发育典型的潮汐成因的双黏土层、大小潮周期; 二者之间的中潮滩相呈渐变过渡.C-M图和概率累计曲线可较好地区分涌潮沉积与潮成砂、泥质沉积.涌潮沉积层Si/Al、Zr/Al、Ti/Al等元素比值较高, 而潮汐韵律层Fe/Al、Mn/Al等元素比值较高, 这与它们的赋存方式和水动力分异有关.Si、Zr和Ti主要见于石英和重矿物中, 因此在强水动力沉积层中富集; 而Fe、Mn易被黏土矿物吸附, 在水动力较弱的中高潮滩富集.

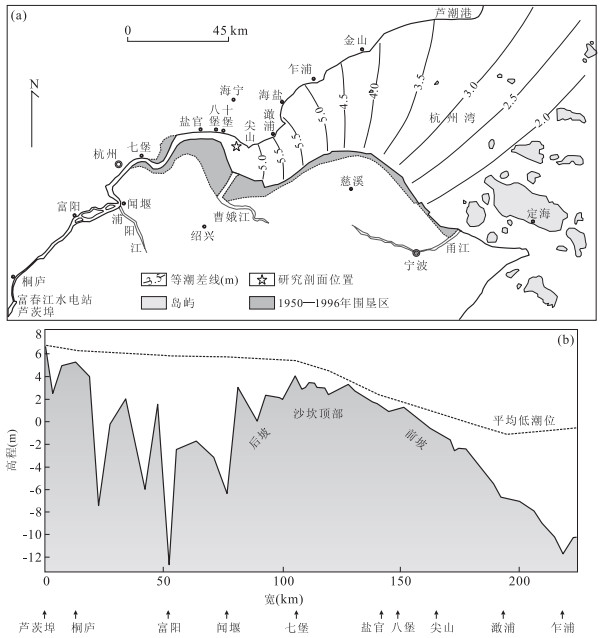

    • 图  1  钱塘江河口-杭州湾概略图和研究剖面位置(a)与钱塘江河口沙坎形态(b)(改自林炳尧,2008)

      Fig.  1.  Map of Qiantangjiang estuary and Hangzhou Bay and sample position for grain size analysis of core JS11 (a) and eroded sediment cliff (b)

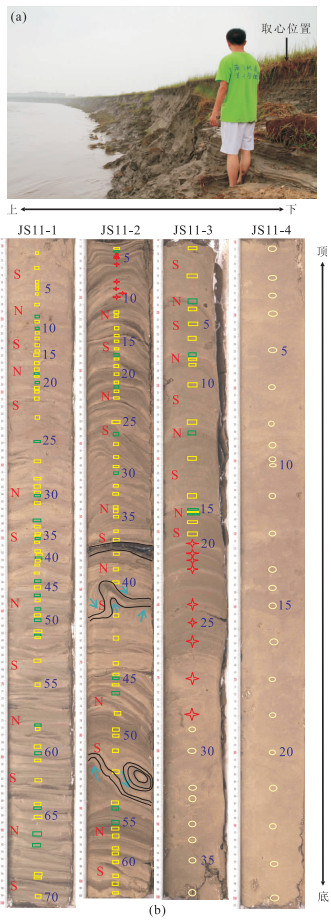

      图  2  研究断面为一侵蚀陡崖(a)和约4 m长的岩心照片(b)

      图中人高约1.7 m,岩心照片上的方框、椭圆等标示取样层位,S、N分别代表大潮(spring tide)和小潮(neap tide)

      Fig.  2.  The study transect of an erosion cliff near Jianshan (a) and core strata with sample positions (b)

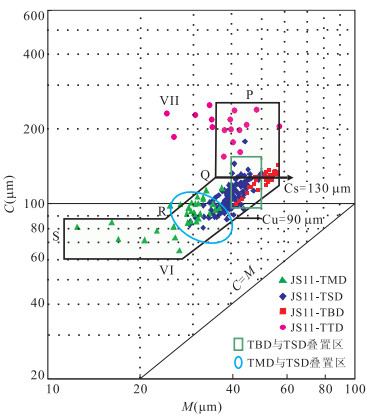

      图  3  JS11剖面沉积物C-M

      Fig.  3.  C-M pattern of sediments in core JS11

      图  4  过渡型潮汐沉积(a)和涌潮沉积(b)中粗颗粒沉积物的矿物组成与形态对比分析

      Fig.  4.  Coarse particle sediment composition and shape analysis for tidal transitional deposits (a) and tidal-bore deposits (b) of core JS11

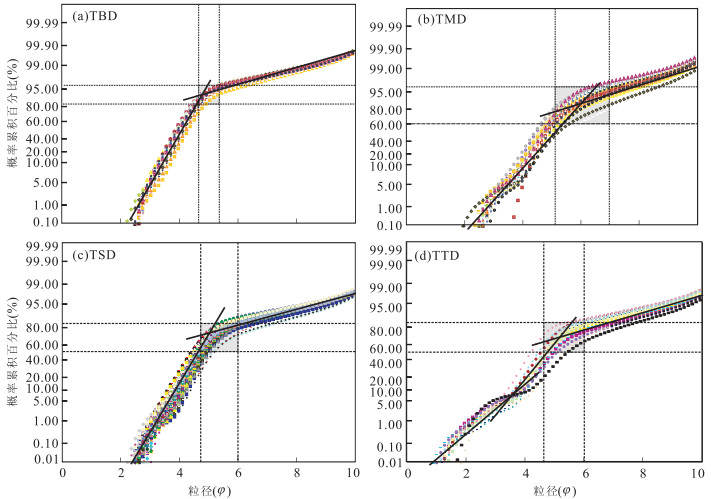

      图  5  JS11剖面沉积物概率累积曲线

      Fig.  5.  Probability cumulative curve of sediments in core JS11

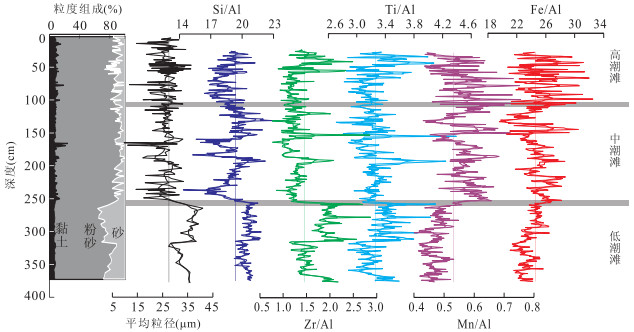

      图  6  JS11钻孔粒度组成及元素比值随深度变化

      细线为原始数据;粗线为5点滑动平均数据;其中平均粒径底部150 cm为3点滑动平均

      Fig.  6.  Downhole variations in grain sizes and element ratios in core JS11

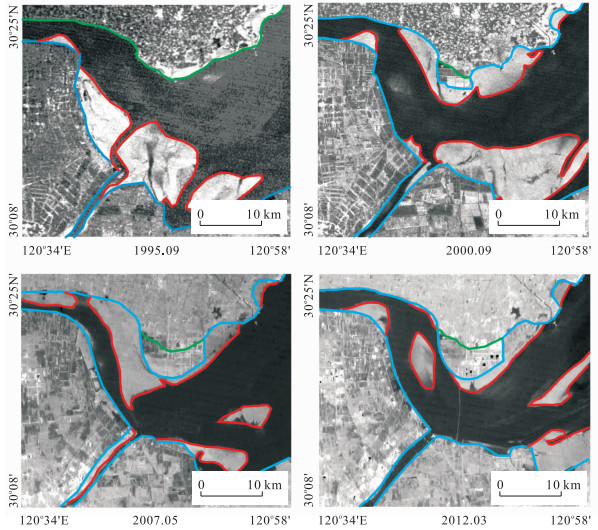

      图  7  尖山河段历年遥感图像对比

      绿色实线;蓝色实线和红色实线分别代表围垦前岸线;围垦后岸线和潮滩水边线

      Fig.  7.  Time-series analysis of satellite photos of Jianshan river section

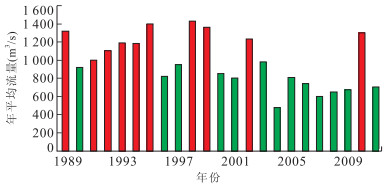

      图  8  钱塘江流域径流年际变化(数据来自http://www.zjsw.cn)

      Fig.  8.  Facies model of tidal channel-flat system in the bore-affected reach of the Qiantang estuary

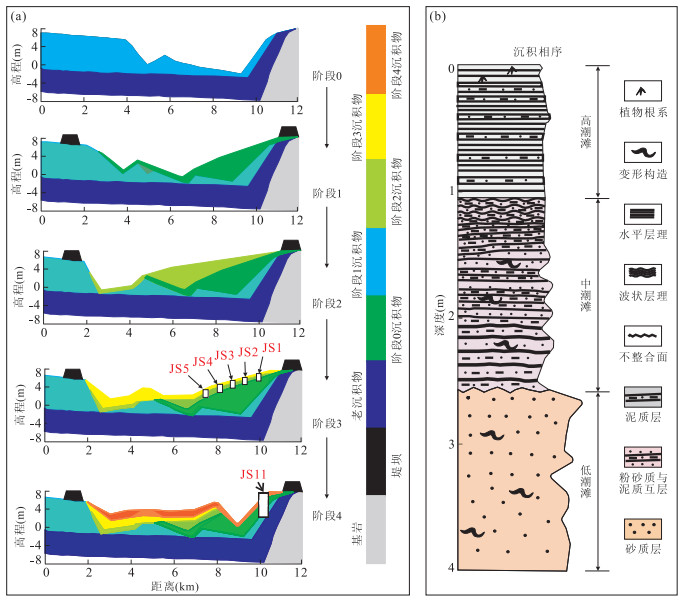

      图  9  钱塘江涌潮河段滩槽演替模式与沉积相序组合

      Fig.  9.  Facies model of tidal channel-flat system in the bore-affected reach of the Qiantang estuary

    • [1] Bertrand, S., Hughen, K.A., Sepulvda, J., et al., 2012. Geochemistry of Surface Sediments from the Fjords of Northern Chilean Patagonia (44-47): Spatial Variability and Implications for Paleoclimate Reconstructions. Geochimica et Cosmochimica Acta, 76: 125-146. doi: 10.1016/j.gca.2011.10.028
      [2] Carrey, E., Taillefert, M., 2005. The Role of Soluble Fe (Ⅲ) in the Cycling of Iron and Sulfur in the Coastal Marine Sediments. Limnology and Oceanography, 50(4): 1129-1141. doi: 10.4319/lo.2005.50.4.1129
      [3] Chanson, H., 2009. Current Knowledge in Hydraulic Jumps and Related Phenomena: A Survey of Experimental Results. European Journal of Mechanics B/Fluids, 28(2): 191-210. doi: 10.1016/j.euromechflu.2008.06.004
      [4] Chanson, H., Lubin, P., Simon, B., et al., 2010. Turbulence and Sediment Processes in the Tidal Bore of the Garonne River: First Observation. School of Civil Engineering, The University of Queensland, Brisbane.
      [5] Chen, J.Y., Luo, Z.D., Chen, D.C., et al., 1964. Formation and Evolution History of the Big Sand Bar within Qiantangjiang Estuary. Acta Geographica Sinica, 30(2): 109-123 (in Chinese with Russian abstract).
      [6] Dalrymple, R.W., Mackay, D.A., Ichaso, A.A., et al., 2012. Processes, Morphodynamics, and Facies of Tide-Dominated Estuaries. In: Davis, R.A.J., Dalrymple, R.W., eds., Principles of Tidal Sedimentology. Springer, London, 79-107.
      [7] Fan, D.D., Cai, G.F., Shang, S., et al., 2012. Sedimentation Processes and Sedimentary Characteristics of Tidal Bores along the North Bank of the Qiantang Estuary. Chinese Science Bulletin, 57(13): 1578-1589. doi: 10.1007/s11434-012-4993-6
      [8] Feng, Y.J., Li, Y., Xie, Q.C., et al., 1990. Activity of Geomorphology and Deposit Interface in Hangzhou Bay. Acta Oceanologica Sinica, 12(2): 213-223 (in Chinese).
      [9] Greb, S.F., Archer, A.W., 2007. Soft-Sediment Deformation Produced by Tides in a Meizoseismic Area, Turnagain Arm, Alaska. Geology, 35(5): 435-438. doi: 10.1130/G23209A.1
      [10] Guo, Y.X., Fan, D.D., Zhao, J., 2004. Grain-Size Characteristics and Their Applications to the Intertidal Subfacies Division: A Case Study from Andong Tidal Flats in the Hangzhou Bay. Marine Geology Letters, 20(5): 9-14 (in Chinese with English abstract). http://www.researchgate.net/publication/290992475_Grain-size_characteristics_and_their_applications_to_the_intertidal_subfacies_division_A_case_study_from_Andong_tidal_flat_in_the_Hangzhou_Bay
      [11] Kolditz, K., Dellwig, O., Barkowski, J., et al., 2012. Geochemistry of Holocene Salt Marsh and Tidal Flat Sediments on a Barrier Island in the Southern North Sea (Langeoog, North-West Germany). Sedimentology, 59(2): 337-355. doi: 10.1111/j.1365-3091.2011.01252.x
      [12] Lin, B.Y., 2008. Characteristics of the Tidal Bore in Qiantangjiang Estuary. Chinese Ocean Press, Beijing (in Chinese).
      [13] Martinez, N.C., Murray, R.W., Dickens, G.R., et al., 2009. Discrimination of Sources of Terrigenous Sediments Deposited in the Central Arctic Ocean during the Cenozoic. Paleoceanography, 24(1): PA1210. doi: 10.1029/2007PA001567
      [14] Martinius, A.W., Gowland, S., 2011. Tide-Influenced Fluvial Bedforms and Tidal Bore Deposits (Late Jurassic Lourinhâ Formation, Lusitanian Basin, Western Portugal). Sedimentology, 58(1): 285-324. doi: 10.1111/j.1365-3091.2010.01185.x
      [15] Millwarda, G.E., Rowleya, C., Sandsa, T.K., et al., 1999. Metals in the Sediments and Mussels of the Chupa Estuary (White Sea) Russia. Estuarine, Coastal and Shelf Science, 48(1): 13-25. doi: 10.1006/ecss.1999.0400
      [16] Murray, N.J., Phinn, S.R., Clemens, R.S., et al., 2012. Continental Scale Mapping of Tidal Flats across East Asia Using the Landsat Archive. Remote Sensing, 4(11): 3417-3426. doi: 10.3390/rs4113417
      [17] Pan, F., Lin, C.M., Li, Y.L., et al., 2011. Sediments Grain-Size Characteristics and Environmental Evolution of Core SE2 in Southern Bank of Qiantang River since the Late Quaternary. Journal of Palaeogeography, 13(2): 236-244 (in Chinese with English abstract). http://www.researchgate.net/publication/309456859_Sediments_grain-size_characteristics_and_environmental_evolution_of_core_SE2_in_southern_bank_of_Qiantang_River_since_the_late_quaternary
      [18] Passega, R., 1964. Grain Size Representation by CM Patterns as a Geologic Tool. Journal of Sedimentary Research, 34(4): 830-847. doi: 10.1306/74D711A4-2B21-11D7-8648000102C1865D
      [19] Phinn, S.R., Menges, C., Hill, G.J.E., et al., 2000. Optimizing Remotely Sensed Solutions for Monitoring, Modeling, and Managing Coastal Environments. Remote Sens. Environ., 73(2): 117-132. doi: org/ 10.1016/S0034-4257(00)00087-0
      [20] Qian, N., Xie, H.X., Zhou, Z.D., et al., 1964. The Fluvial Processes of the Big Sand Bar inside the Chien Tary Chiry Estuary. Acta Geographica Sinica, 30(2): 124-142 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DLXB196402003.htm
      [21] Ryu, J., Won, J., Min, K.D., 2002. Waterline Extraction from Landsat TM Data in a Tidal Flat: A Case Study in Gomso Bay, Korea. Remote Sensing of Environment, 83(3): 442-456. doi: org/ 10.1016/S0034-4257(02)00059-7
      [22] Schnetger, B., Brumsack, H.J., Schale, H., et al., 2000. Geochemical Characteristics of Deep-Sea Sediments from the Arabian Sea: A High-Resolution Study. Deep-Sea Research Part Ⅱ—Topical Studies in Oceanography, 47(14): 2735-2768. doi: org/ 10.1016/S0967-0645(00)00047-3
      [23] Sun, Y.B., Wu, F., Clemens, S.C., et al., 2008. Processes Controlling the Geochemical Composition of the South China Sea Sediments during the Last Climatic Cycle. Chemical Geology, 257(3-4): 240-246. doi: org/ 10.1016/j.chemgeo.2008.10.002
      [24] Tessier, B., Terwindt, J.H.H., 1994. An Example of Soft-Sediment Deformations in an Intertidal Environment: The Effect of Tidal Bore. C. R. Acad. Sci. Paris, 319: 217-223 (in French with English abstract). http://www.researchgate.net/publication/279603689_An_example_of_soft_sediment_deformations_in_an_intertidal_environment_the_effect_of_a_tidal_boreUn_exemple_de_deformations_synsedimentaires_en_milieu_intertidal_l'effect_du_mascaret
      [25] Visher, G.S., 1969. Grain Size Distributions and Depositional Processes. Journal of Sedimentary Research, 39(3): 1075-1106. doi: 10.1306/74D71D9D-2B21-11D7-8648000102C1865D
      [26] Wang, A.J., Gao, S., Jia, J.J., 2006. Calibration for Intertidal Flat Sediment Core Shortening: A Case Study from Wanggang, Jiangsu Coast. Acta Sedimentologica Sinica, 24(4): 555-561 (in Chinese with English abstract). http://d.wanfangdata.com.cn/periodical/cjxb200604013
      [27] Yu, Q., Wang, Y.W., Gao, S., et al., 2012. Modeling the Formation of a Sand Bar within a Large Funnel-Shaped, Tide-Dominated Estuary: Qiantangjiang Estuary, China. Marine Geology, 299-302: 63-76. doi: org/ 10.1016/j.margeo.2011.12.008
      [28] Zeng, J., Sun, Z.L., Pan, C.H., et al., 2010. Long-Periodic Feature of Runoff and Its Effect on Riverbed in Qiantang Estuary. Journal of Zhejiang University (Engineering Science), 44(8): 1584-1588 (in Chinese with English abstract). http://www.researchgate.net/publication/286960652_Long-periodic_feature_of_runoff_and_its_effect_on_riverbed_in_Qiantang_estuary
      [29] Zhang, G.J., Li, C.X., 1996. The Fills and Stratigraphic Sequences in the Qiantangjiang Incised Paleovalley, China. Journal of Sedimentary Research, 66(2): 406-414. doi: 10.1306/D426835B-2B26-11D7-8648000102C1865D
      [30] 陈吉余, 罗祖德, 陈德昌, 等, 1964. 钱塘江河口沙坎的形成及其历史演变. 地理学报, 30(2): 109-123. doi: 10.3321/j.issn:0375-5444.1964.02.003
      [31] 冯应俊, 李炎, 谢钦春, 等, 1990. 杭州湾地貌及沉积界面的活动性. 海洋学报(中文版), 12(2): 213-223.
      [32] 郭艳霞, 范代读, 赵娟, 2004. 潮坪层序的粒度特征与沉积相划分——以杭州湾庵东浅滩为例. 海洋地质动态, 20(5): 9-14. doi: 10.3969/j.issn.1009-2722.2004.05.003
      [33] 林炳尧, 2008. 钱塘江涌潮的特性. 北京: 海洋出版社.
      [34] 潘峰, 林春明, 李艳丽, 等, 2011. 钱塘江南岸SE2孔晚第四纪以来沉积物粒度特征及环境演化. 古地理学报, 13(2): 236-244.
      [35] 钱宁, 谢汉祥, 周志德, 等, 1964. 钱塘江河口沙坎的近代过程. 地理学报, 30(2): 124-142. doi: 10.3321/j.issn:0375-5444.1964.02.004
      [36] 王爱军, 高抒, 贾建军, 2006. 江苏王港潮间带柱状样的压缩和校正. 沉积学报, 24(4): 555-561. doi: 10.3969/j.issn.1000-0550.2006.04.013
      [37] 曾剑, 孙志林, 潘存鸿, 等, 2010. 钱塘江河口径流长周期特性及其对河床的影响. 浙江大学报(工学版), 44(8): 1584-1588.
    • 加载中
    图(9)
    计量
    • 文章访问数:  13291
    • HTML全文浏览量:  379
    • PDF下载量:  2648
    • 被引次数: 0
    出版历程
    • 收稿日期:  2013-09-26
    • 刊出日期:  2014-03-15
