Major Issues of Research and Development of Hot Dry Rock Geothermal Energy
-
摘要: 在大陆动力学和地球系统动力学创新思想指导下, 干热岩地热能的开发将对未来的能源革命和工业革命起到关键的作用, 然而目前干热岩地质理论研究十分薄弱.从地质学和经济学的角度讨论干热岩的定义; 以大陆盆山热构造系统为基础, 提出地热能综合分类方案; 根据岩石流变学和构造物理学理论, 探讨在固态、半固态流变环境下干热岩的构造岩石系统; 在活动盆山构造系统地壳四维非均匀流变思想指导下, 探讨干热岩的分布规律和形成机理; 提出将地球系统动力学的思想贯穿到干热岩及其关联的资源、灾害、环境、工程地质的调查研究与应用的各个环节之中, 并建议在华北、青藏高原及其邻区、东南沿海、台湾4种不同类型的热构造活动区进行联合勘查、综合评价与系统开发.Abstract: Development of hot dry rock geothermal energy under the guidance of continental dynamics and earth system dynamics plays a key role in the ongoing energy revolution and industrial revolution. However, theoretical study on the hot dry rock geology is still very weak. In this paper, we discuss the definition of hot dry rock from the perspectives of geology and economics, propose a comprehensive classification of geothermal energy based on basin-orogen thermal tectonic system, and analyze the tectonic and petrological system of hot dry rocks in the solid and semi-solid rheological behavior according to rock rheology and tectonophysics. Under the guidance of four-dimensional non-uniform rheological property of active basin-orogen tectonic system, the spatial distribution and mechanism of hot dry rocks are discussed. It is suggested that the theories of earth system dynamics should be integrated in theoretical and applied studies of hot dry rock within the framework of related earth resources, geohazards, geoenvironments and engineering geology. In addition, an integrated exploration, assessment and development of hot dry rock geothermal energy should be carried out in the North China, the Tibetan plateau and its adjacent areas, the coast regions of Southeast China and Taiwan, which respectively belong to four different types of tectonically active geothermal units.
-
Key words:
- hot dry rock /
- non-uniform rheology /
- joint exploration /
- comprehensive assessment /
- geothermy /
- earth system dynamics.
-

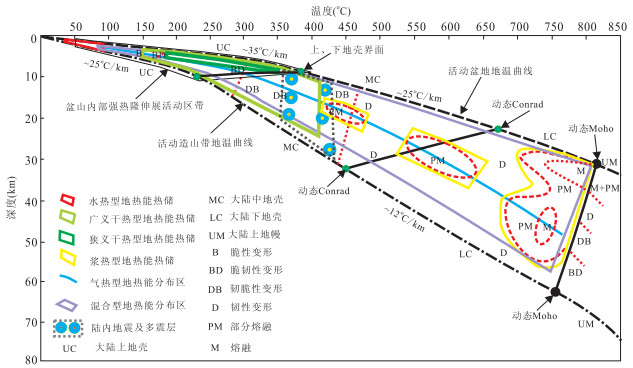

图 1 大陆活动盆山系统地热能综合分类示意
Fig. 1. Schematic comprehensive classification of geothermal energy in active continental basin-orogen system
-
Bertani, R., 2012. Geothermal Power Generation in the World 2005-2010 Update Report. Geothermics, 41: 1-29. doi: 10.1016/j.geothermics.2011.10.001 Brown, D.W., Duchane, D.V., Heiken, G., et al., 2012. Mining the Earth's Heat: Hot Dry Rock Geothermal Energy. Springer-Verlag, Berlin and Heidelberg GmbH & Co. KG, Berlin. Chen, G.F., Hao, H.J., Feng, M.X., et al., 2013. Temporal-Spatial Structure of Thermal Disaster Chain in Southwest China and Its Relation with the Lushan Earthquake. Earth Science Frontiers, 20(6): 141-148 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DXQY201306022.htm Cloetingh, S., van Wees, J.D., Ziegler, P.A., et al., 2010. Lithosphere Tectonics and Thermal-Mechanical Properties: An Integrated Modelling Approach for Enhanced Geothermal Systems Exploration in Europe. Earth-Science Reviews, 102: 159-206. doi: 10.1016/j.earscirev.2010.05.003 Feng, Y., Chen, X., Xu. X.F., 2014. Current Status and Potentials of Enhanced Geothermal System in China: A Review. Renewable and Sustainable Energy Reviews, 33: 214-223. doi: 10.1016/j.rser.2014.01.074 Hinze, W.J., Braile, L.W., von Frese, R.R.B., et al., 1986. Exploration for Hot Dry Rock Geothermal Resources in the Midcontinent USA.U.S. Department of Energy, Los Alamos National Laboratory, Los Alamos, 1-138. Li, D.W., 1993. The Style of Continental Structure and Model of Continental Dynamics. Advance in Earth Sciences, 8(5): 88-93 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DXJZ199305010.htm Li, D.W., 1994. Metallogenic Conditions and Prospect Analysis in Southern Tibet. Journal Guilin College of Geology, 14(2): 131-138 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-GLGX402.003.htm Li, D.W., 1995a. Speculations on Continental Tectonics. Earth Science—Journal of China University of Geosciences, 20(1): 10-18 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DQKX501.001.htm Li, D.W., 1995b. On Continental Tectonics and Its Dynamics. Earth Science—Journal of China University of Geosciences, 20(1): 19-26 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DQKX501.002.htm Li, D.W., 2003. A New Model for Uplifting Mechanis of Qinghai-Tibet Plateau. Earth Science—Journal of China University of Geosciences, 28(6): 593-600 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DQKX200306002.htm Li, D.W., 2005a. Outline of the Earth System Dynamics. Geotectonica et Metallogenia, 29(3): 285-294 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DGYK200503001.htm Li, D.W., 2005b. Theoretical Prediction and Scientific Exploration: The Gangdese Porphyry Copper Deposits in Tibet as an Example. Geological Science and Technology Information, 24(3): 48-54 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-DZKQ200503011.htm Li, D.W., 2008. Continental Lower-Crustal Flow: Channel Flow and Laminar Flow. Earth Science Frontiers, 15(3): 130-139. doi: 10.1016/S1872-5791(08)60065-2 Li, D.W., 2008. Three-Stage Tectonic Evolution and Metallogenic Evolution in the Qinghai-Tibet Plateau and Its Adjacent Area. Earth Science—Journal of China University of Geosciences, 33(6): 723-742 (in Chinese with English abstract). doi: 10.3799/dqkx.2008.089 Li, D.W., 2010. The Regularity and Mechanism of East Kunlun, Wenchuan, and Yushu Earthquakes and Discussion on Genesis and Prediction of Continental Earthquakes. Earth Science Frontiers, 17(5): 179-192 (in Chinese with English abstract). http://www.cqvip.com/QK/98600X/201005/35548983.html Li, D.W., 2010. Temporal-Spatial Structure of Intraplate Uplift in the Qinghai-Tibet Plateau. Acta Geologica Sinica, 84(1): 105-134. doi: 10.1111/j.1755-6724.2010.00174.x Li, D.W., 2011. Earth System Dynamics and Earthquake Genesis and Its Four-Dimensional Prediction. In: Xiangshan Science Conferences, ed., Frontiers and Future of Science (2009-2011). Science Press, Beijing, 184-195 (in Chinese). Li, D.W., 2012. Preliminary Discussion on Earth's Natural Hazard System. Geological Science and Technology Information, 31(5): 69-75 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DZKQ201205011.htm Li, D.W., 2012a. Thoughts and Suggestions on Reducing Disaster and Emission by Development of Geothermal Energy. China Science Daily, 2012-03-10(4)(in Chinese). http://news.sciencenet.cn/sbhtmlnews/2012/3/255374.shtm Li, D.W., 2012b. New Ideas for Prevention and Mitigation of Natural Disaster in New Era. China Science Daily, 2012-06-14(2)(in Chinese). http://news.sciencenet.cn/sbhtmlnews/2012/6/259347.shtm Li, D.W., 2013. Building a Beautiful Earth via Reducing Disaster and Emission by Development of Geothermal Energy. China Science Daily, 2013-03-11(6)(in Chinese). http://paper.sciencenet.cn/sbhtmlnews/2013/3/270421.shtmid=270421 Li, D.W., 2013. Lower Crustal Flow from Ganges Basin into the Tibetan Plateau since the Miocene: Effects and Mechanism. Acta Geologica Sinica, 87(Suppl. ): 362-363. http://www.geojournals.cn/dzxbcn/ch/reader/view_abstract.aspx?file_no=dzxben2003z10204&flag=1 Li, D.W., 2014a. Multistage Cycle of the Earth and Its Resource, Energy, Disaster and Environmental Effect. Geological Science and Technology Information, 33(1): 1-8 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-DZKQ201401002.htm Li, D.W., 2014b. Earth System Dynamics and Reducing Disaster and Emission by Development of Geothermal Energy. Earth Science Frontiers, 21(6): 243-253 (in Chinese with English abstract). Li, D.W., 2015. Principles, Methods and Its Implication of Ludian Earthquake Prediction. Geotectonica et Metallogenia, 39(1): 1-14 (in Chinese with English abstract). Li, D.W., Chen, G.F., Chen, J.L., et al., 2013a. Earthquake Prediction: From Lushan Earthquake to Continental Earthquakes. Earth Science Frontiers, 20(3): 1-10 (in Chinese with English abstract). http://www.researchgate.net/publication/288643813_Earthquake_prediction_From_Lushan_earthquake_to_continental_earthquakes Li, D.W., Chen, J.L., Chen, G.F., et al., 2014. Continental Seismotectonic System: Example from Qinghai-Tibet Plateau and Its Adjacent Areas. Earth Science—Journal of China University of Geosciences, 39(12): 1763-1775 (in Chinese with English abstract). doi: 10.3799/dqkx.2014.160 Li, D.W., Hao, H.J., Liu, J., et al., 2013b. The Structure and Mechanism of Thermal Disaster Chains and the Trend Analysis of Strong Earthquakes in North China. Earth Science Frontiers, 20(6): 102-108 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DXQY201306017.htm Li, D.W., Ji, Y.L., 2000. Laminar Flow in the Lower Continental Crust and Its Significance for Continental Dynamics. Seismology and Geology, 22(1): 89-96 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DZDZ200001011.htm Li, D.W., Xia, Y.P., Xu, L.G., 2009. Coupling and Formation Mechanism of Continental Intraplate Basin and Orogen—Examples from the Qinghai-Tibet Plateau and Adjacent Basins. Earth Science Frontiers, 16(3): 110-119 (in Chinese with English abstract). doi: 10.1016/S1872-5791(08)60097-4 Lin, W.J., Liu, Z.M., Ma, F., et al., 2012. An Estimation of HDR Resources in China's Mainland. Acta Geoscientica Sinica, 33(5): 807-811 (in Chinese with English abstract). http://www.researchgate.net/publication/284690577_An_estimation_of_HDR_resources_in_China's_mainland Majer, E.L., Baria, R., Stark, M., et al., 2007. Induced Seismicity Associated with Enhanced Geothermal Systems. Geothermics, 36: 185-222. doi: 10.1016/j.geothermics.2007.03.003 Moeck, I.S., 2014. Catalog of Geothermal Play Types Based on Geologic Controls. Renewable and Sustainable Energy Reviews, 37: 867-882. doi: 10.1016/j.rser.2014.05.032 Molnar, P., 1988. Continental Tectonics in the Aftermath of Plate Tectonics. Nature, 335: 131-137. doi: 10.1038/335131a0 Ranalli, G., Murphy, D.C., 1987. Rheological Stratification of the Lithosphere. Tectonophysics, 132: 281-295. doi: 10.1016/0040-1951(87)90348-9 Smith, M.C., 1973. Geothermal Energy. Geothermal Engineering Ltd., London, 1-31. Tenzer, H., 2001. Development of Hot Dry Rock Technology. GBC Bulletin, 14-22. Wang, G.L., Li, K.W., Wen, D.G., et al., 2013. Assessment of Geothermal Resources in China. Proceedings World Geothermal Congress, Melbourne. Wang, J.Y., Hu, S.B., Pang, Z.H., et al., 2012. Estimate of Geothermal Resources Potential for Hot Dry Rock in the Continental Area of China. Science & Technology Review, 30(32): 25-31 (in Chinese with English abstract). http://d.wanfangdata.com.cn/periodical/kjdb201232007 Xu, T.F., Zhang, Y.J., Zeng, Z.F., et al., 2012. Technology Progress in an Enhanced Geothermal System (Hot Dry Rock). Science & Technology Review, 30(32): 42-45 (in Chinese with English abstract). http://www.cqvip.com/QK/90455X/201232/43856911.html Yin, X.L., 2008. Unlimited Prospect for Utilization of Hot Dry Rock Geothermal Resources. China Mining Report, 2008-10-14(B4) (in Chinese). http://paper.sciencenet.cn/sbht-mlnews/2008/10/259333 陈桂凡, 郝海健, 冯旻譞, 等, 2013. 西南地区热灾害链的时空结构及其与芦山地震的关系. 地学前缘, 20(6): 141-148. 李德威, 1993. 大陆构造样式及大陆动力学模式初探. 地球科学进展, 8(5): 88-93. https://www.cnki.com.cn/Article/CJFDTOTAL-DXJZ199305010.htm 李德威, 1994. 藏南成矿条件及找矿远景分析. 桂林冶金地质学院报, 14(2): 131-138. https://www.cnki.com.cn/Article/CJFDTOTAL-GLGX402.003.htm 李德威, 1995a. 关于大陆构造的思考. 地球科学——中国地质大学学报, 20(1): 10-18. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX501.001.htm 李德威, 1995b. 再论大陆构造与动力学. 地球科学——中国地质大学学报, 20(1): 19-26. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX501.002.htm 李德威, 2003. 青藏高原隆升机制新模式. 地球科学——中国地质大学学报, 28(6): 593-600. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX200306002.htm 李德威, 2005a. 地球系统动力学纲要. 大地构造与成矿学, 29(3): 285-294. https://www.cnki.com.cn/Article/CJFDTOTAL-DGYK200503001.htm 李德威, 2005b. 理论预测与科学找矿——以西藏冈底斯斑岩铜矿为例. 地质科技情报, 24(3): 48-54. https://www.cnki.com.cn/Article/CJFDTOTAL-DZKQ200503011.htm 李德威, 2008. 青藏高原及邻区三阶段构造演化与成矿演化. 地球科学——中国地质大学学报, 33(6): 723-742. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX200806000.htm 李德威, 2010. 东昆仑、玉树、汶川地震的发生规律和形成机理: 兼论大陆地震成因与预测. 地学前缘, 17(5): 179-192. https://www.cnki.com.cn/Article/CJFDTOTAL-DXQY201005018.htm 李德威, 2011. 地球系统动力学与地震成因及其四维预测. 见: 香山科学会议编, 科学前沿与未来(2009-2011), 北京: 科学出版社, 184-195. 李德威, 2012a. 初论地球自然灾害系统. 地质科技情报, 31(5): 69-75. https://www.cnki.com.cn/Article/CJFDTOTAL-DZKQ201205011.htm 李德威, 2012b. 关于取热减灾减排的思考和建议. 中国科学报, 2012-03-10(B4). http://news.sciencenet.cn/sbhtmlnews/2012/3/255374.shtm 李德威, 2012c. 新时期防灾减灾的新思想. 中国科学报, 2012-06-14(B2). http://news.sciencenet.cn/sbhtmlnews/2012/6/259347.shtm 李德威, 2013. 取热减灾减排, 圆梦美丽地球. 中国科学报, 2013-03-11(6). http://paper.sciencenet.cn/sbhtmlnews/2013/3/270421.shtmid=270421 李德威, 2014a. 地球多级循环及其资源、能源、灾害、环境效应. 地质科技情报, 33(1): 1-8. https://www.cnki.com.cn/Article/CJFDTOTAL-DZKQ201401002.htm 李德威, 2014b. 地球系统动力学与取热减灾减排. 地学前缘, 21(6): 243-253. https://www.cnki.com.cn/Article/CJFDTOTAL-DXQY201406030.htm 李德威, 2015. 鲁甸、景谷、康定地震预测的原理、方法及其意义. 大地构造与成矿学, 39(1): 1-14. doi: 10.3969/j.issn.1001-1552.2015.01.001 李德威, 陈桂凡, 陈继乐, 等, 2013a. 地震预测——从芦山地震到大陆地震. 地学前缘, 20(3): 1-10. https://www.cnki.com.cn/Article/CJFDTOTAL-DXQY201303001.htm 李德威, 陈继乐, 陈桂凡, 等, 2014. 大陆地震构造系统: 以青藏高原及邻区为例. 地球科学——中国地质大学学报, 39(12): 1763-1775. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX201412002.htm 李德威, 郝海健, 刘娇, 等, 2013b. 华北热灾害链的结构、成因及强震趋势分析. 地学前缘, 20(6): 102-108. https://www.cnki.com.cn/Article/CJFDTOTAL-DXQY201306017.htm 李德威, 纪云龙, 2000. 大陆下地壳层流作用及其大陆动力学意义. 地震地质, 22(1): 89-96. doi: 10.3969/j.issn.0253-4967.2000.01.012 李德威, 夏义平, 徐礼贵, 2009. 大陆板内盆山耦合及盆山成因——以青藏高原及周边盆地为例. 地学前缘, 16(3): 110-119. doi: 10.3321/j.issn:1005-2321.2009.03.007 蔺文静, 刘志明, 马峰, 等, 2012. 我国陆区干热岩资源潜力估算. 地球学报, 33(5): 807-811. https://www.cnki.com.cn/Article/CJFDTOTAL-DQXB201205018.htm 汪集旸, 胡圣标, 庞忠和, 等, 2012. 中国大陆干热岩地热资源潜力评估. 科技导报, 30(32): 25-31. doi: 10.3981/j.issn.1000-7857.2012.32.002 许天福, 张延军, 曾昭发, 等, 2012. 增强型地热系统(干热岩)开发技术进展. 科技导报, 30(32): 42-45. doi: 10.3981/j.issn.1000-7857.2012.32.004 殷秀兰, 2008. 干热岩地热资源利用前景无限. 中国矿业报, 2008-10-14(B4). http://paper.sciencenet.cn/sbht-mlnews/2008/10/259333 -
