西沙海槽研究区天然气水合物地球化学勘探

孙春岩; 王宏语; 牛滨华; 黄新武

西沙海槽研究区天然气水合物地球化学勘探

中国地质大学工程技术学院, 北京 100083

基金项目:

国家“863”计划项目 2001AA611020

“973”计划 G2000046705

详细信息

作者简介:
孙春岩(1954-), 女, 教授, 从事以化探和地震为主的综合勘查技术方法和解释研究工作.E-mail: suncy@cugb.edu.cn

中图分类号: P618
计量
- 文章访问数: 4075
- HTML全文浏览量: 885
- PDF下载量: 21
- 被引次数: 0
出版历程
- 收稿日期: 2003-10-20
- 刊出日期: 2004-03-25

Geochemical Prospecting of Gas Hydrate at Xisha Ocean Trough

School ofEngineering and Technology, China University ofGeosciences, Beijing 100083, China

摘要

摘要: 天然气水合物研究涵盖了地球物理、地球化学和地质等多门学科, 其中勘查地球化学方法技术可以从海底介质中获得与天然气水合物有关的痕量地球化学信息, 圈定水合物异常区域.依据2000年和2001年在中国南海西沙海槽工作区天然气水合物地球化学现场快速勘查实测和室内分析测试的多种烃类结果, 获得了海上工作区气态烃地球化学异常分布, 以及与该区水合物地震BSR和BZ的对比分析评价结果.同时根据现场实测同位素数据, 探讨了工作区形成水合物气态烃甲烷的成因.研究成果为工作区天然气水合物勘探提供了地球化学方面的直接证据.
- 天然气水合物 /
- 似海底反射 /
- 地球化学勘探 /
- 西沙海槽 /
- 有利远景区
Abstract: Researches of gas hydrate involve cross-disciplinary data from geophysics, geochemistry and geology. Geochemical technologies can be used to collect the trace amount geochemical data about gas hydrate from seafloor media which will indicate the abnormal region. The original data was collected in the marine science investigation about gas hydrate in 2000 and 2001. After further indoor analysis and testing of multiple hydrocarbons, the abnormal region of marine gas hydrate was indicated, and the evaluation results were also derived from comparative analysis of seismic BSR and BZ about gas hydrate. With the on-site isotope data, the resulting cause about gas hydrate methane was discussed. These achievements will provide direct geochemical evidences for the exploration of gas hydrate at Xisha ocean trough.
- gas hydrate /
- BSR (bottom simulated reflector) /
- geochemical prospecting /
- Xisha ocean trough /
- favorable prospecting area

HTML全文

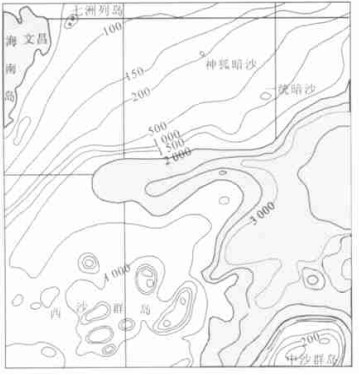

图 1 研究工作区位置

Fig. 1. Location of working area

下载: 全尺寸图片幻灯片

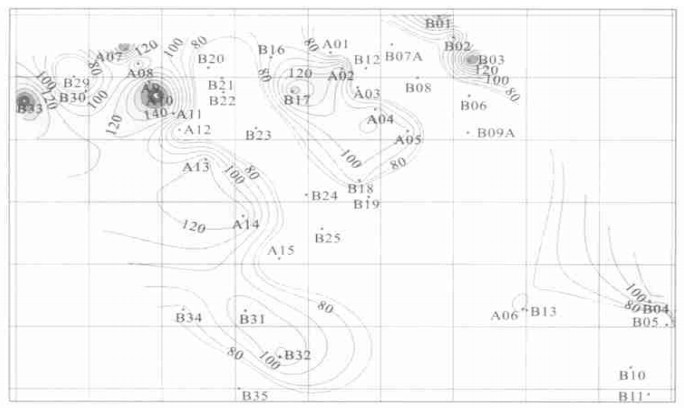

图 2 西沙海槽(距海底1.3~1.5 m) 沉积物甲烷含量等值线

Fig. 2. Concentration contour of methane for sediments at Xisha ocean trough

下载: 全尺寸图片幻灯片

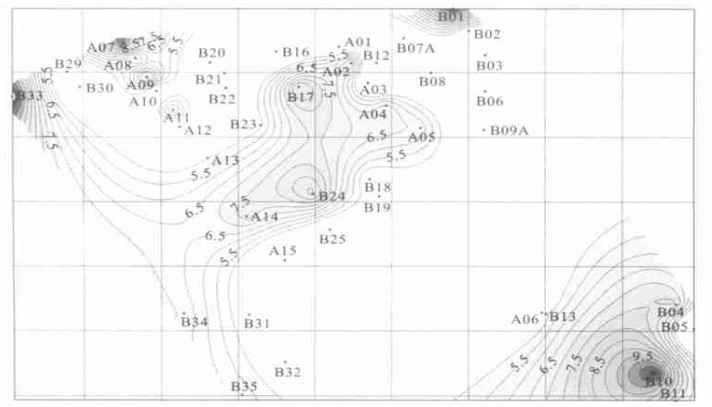

图 3 西沙海槽(距海底1.3~1.5 m) 沉积物乙烷含量等值线

Fig. 3. Concentration contour of ethane for sediments at Xisha ocean trough

下载: 全尺寸图片幻灯片

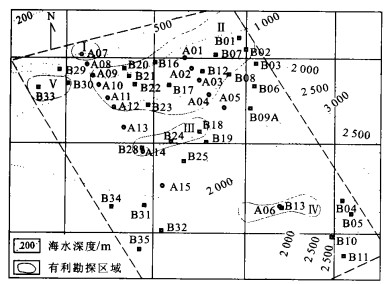

图 4 水合物重点勘探远景区预测

Fig. 4. Favorable prospecting area of marine gas hydrate

下载: 全尺寸图片幻灯片

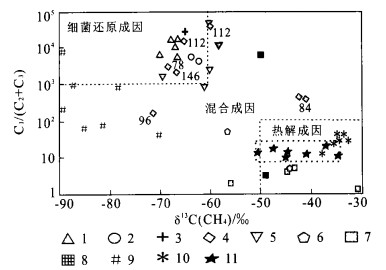

图 5 西沙海槽甲烷碳同位素和烃类气体组成判别气体成因

1.布莱克海台; 2.黑海; 3.鄂霍茨克海; 4.ODP; 5.加利福尼亚; 6.里海; 7.墨西哥湾; 8.Prudhoe海湾; 9.南沙海槽; 10.西沙海槽; 11.西沙海槽(虚线小方框为本次研究的值区域); 其中部分数据来自于Bernard, 1976;Matsumotod等, 2000; Berner, 1992

Fig. 5. Discriminating cause of gas hydrate with methane carbon isotope and hydrocarbon component

下载: 全尺寸图片幻灯片

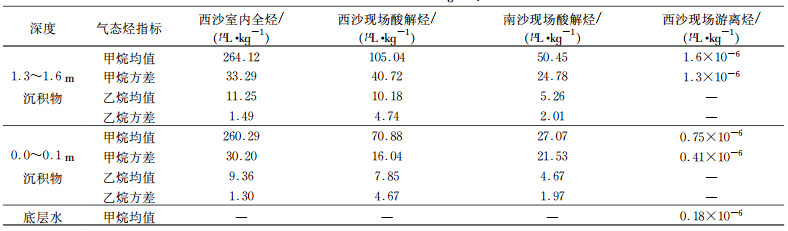

表 1 海上沉积物气态烃指标参数

Table 1. Indicatrix of marine gas hydrate

参考文献(16)

Jiang, G. S., Wang, D., 2002. Exploration and exploitation of gas hydrate. China University of Geosciences Press, Wuhan (in Chinese).
Sun, C. Y., Huang, X. W., Zhang, M. Y., et al., 2003. Gas hydrate and its geophysical recognition studies. Geoscience, 17 (2): 195-201 (in Chinese with English abstract).
Sun, C. Y., Niu, B. H., Li, M., et al., 2001. Petroleum-gas pattern recognition and its application of geochemical exploration in well log and more information of other methods. Geoscience, 15 (4): 445-449 (in Chinese with English abstract).
Sun, C. Y., Zhang, M. Y., Niu, B. H., 2003a. Study of modeling seismic bottom simulating reflector for nature gas hydrate. Geoscience, 17 (3): 337-344 (in Chinese with English abstract).
Sun, C. Y., Zhang, M. Y., Niu, B. H., 2003b. Micromodels of gas hydrate and their velocity estimation methods. Earth Science Frontiers, 10 (1): 191-198 (in Chinese with English abstract).
Wang, H. Y., Sun, C. Y., Huang, Y. Y., et al., 2002. Rapid gaseous hydrocarbon test and prospecting for gas hydrate resources in the Xisha trough, South China Sea. Geoscience, 16 (2): 180-186 (in Chinese with English abstract).
Zhou, D., Chen, H. Z., Sun, C. Y., et al., 2000. A key technology of geochemical exploration for marine oil & amp; amp; gas—On-site multi-parameter collecting. 99th transactions of marine hi-tech forum, 461-465 (in Chinese).
Zhu, Y. H., Wu, B. H., Lu, Z. Q., 2001. The prospecting for gas hydrate offshore, China. Mineral Deposits, 20 (2): 174-180 (in Chinese with English abstract).
蒋国盛, 王达, 2002. 天然气水合物的勘探与开发. 武汉: 中国地质大学出版社.
孙春岩, 黄新武, 章明昱, 等, 2003. 天然气水合物及其地球物理识别方法的研究进展. 现代地质, 17 (2): 195-201. https://www.cnki.com.cn/Article/CJFDTOTAL-XDDZ200302014.htm
孙春岩, 牛滨华, 李明, 等, 2001. 井中油气化探等多元信息模式识别与应用. 现代地质, 15 (4): 445-449. doi: 10.3969/j.issn.1000-8527.2001.04.015
孙春岩, 章明昱, 牛滨华, 2003a. 天然气水合物地震似海底反射现象AVO正演模型研究. 现代地质, 17 (3): 337-344. https://www.cnki.com.cn/Article/CJFDTOTAL-XDDZ200303016.htm
孙春岩, 章明昱, 牛滨华, 2003b. 天然气水合物微观模式及其速度参数估算方法研究. 地学前缘, 10 (1): 191-198. https://www.cnki.com.cn/Article/CJFDTOTAL-DXQY200301035.htm
王宏语, 孙春岩, 黄永样, 等, 2002. 海上气态烃快速测试与西沙海槽天然气水合物资源勘查. 现代地质, 16 (2): 180-186. doi: 10.3969/j.issn.1000-8527.2002.02.011
周蒂, 陈汉宗, 孙春岩, 等, 2000. 发展海洋油气化探的一个关键技术——多参数现场采集. 99届海洋高新技术研讨会论文集, 461-465.
祝有海, 吴必豪, 卢振权, 2001. 中国近海天然气水合物找矿前景. 矿床地质, 20 (2): 174-180. doi: 10.3969/j.issn.0258-7106.2001.02.010
