Structure Defects in Type Ⅰa Brown Diamonds by Polychromatic Synchrotron Radiation Topography
-
摘要: 同步辐射白光形貌术具有射线强度大、准直性好、摄谱时间短、分辨率高等特点, 是无损研究晶体缺陷的有效工具.采用该方法对产自山东蒙阴、辽宁瓦房店和湖南沅江3个矿区的31颗典型金刚石样品进行了研究.白光形貌像揭示, 金刚石中普遍存在晶体结构畸变的特征, 并且变形程度不等, 部分严重变形晶体具有异常劳埃衍射式样; 其衍射斑点的形态、衬度及条纹变化反映了金刚石晶体结构变形的程度和复杂性.晶格的完整性与金刚石的褐色强度无明显相关性.该类结构缺陷与金刚石的复杂形成过程和深部保存条件有关.Abstract: Polychromatic synchrotron radiation (SR) is an effective method for the non-destructive study of diamond crystal defects. Its advantages include the use of intense X-ray, short exposure time, high collimation and high resolution. The SR method was applied to 31 diamond crystals from three major Chinese diamond mine areas: Mengyin in Shandong Province, Wafangdian in Liaoning Province and Yuanjiang area in Hunan Province. The diamond crystals generally showed structure deformation and had different degrees of deformation. Some diamonds with serious deformation demonstrated strong asterism and spot fragmentation in Laue pattern. Factors such as shape, contrast and the interior structure of reflexes in Laue patterns indicate the degree and complexity of crystal deformation.Resultsshow that the crystal imperfections have not obvious relationship to the intensity of the diamonds' brown color. It is likely that crystal defects correlate with the complex crystallization processes and deep environment of diamonds.
-
Key words:
- structure defect /
- diamond /
- synchrotron radiation /
- polychromatic topography
-

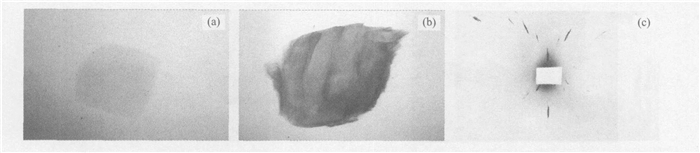

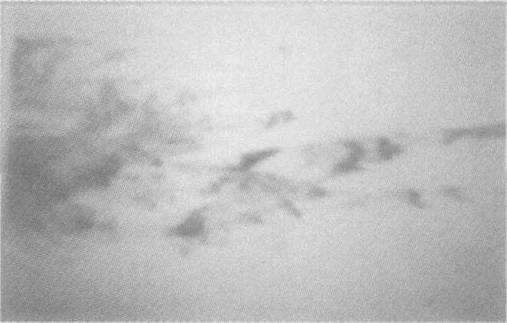

图 1 (a) 样品HD547的衍射斑点衬度均一; (b) 样品LW8的衍射斑点放大像中的位错; (c) 样品HD501的劳埃衍射图
Fig. 1. (a) Even contrast in the spot of Laue pattern in HD547; (b) Dislocations shown in the spot of Laue pattern in LW8; (c) Strong asterism of Laue pattern in HD501

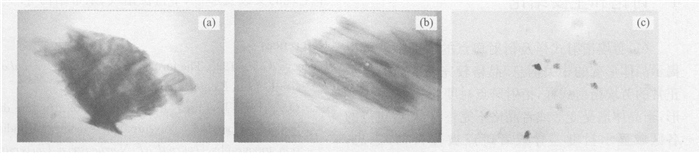

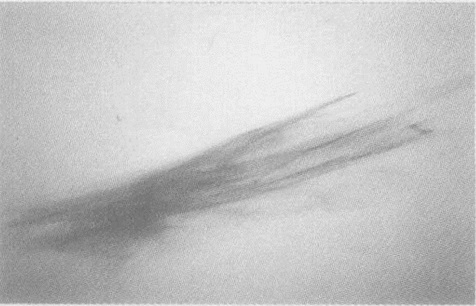

图 2 (a) 样品SM301显示两组交叉变形带; (b) 平行位错的同步辐射白光衍射斑点放大像; (c) 样品SM301的劳埃衍射图
Fig. 2. (a) Cross strip of deformation shown in the spot of Lane pattern in SM301; (b) Parallel dislocations in the spot of Lane pattern in SM301; (c) Laue pattern in SM301

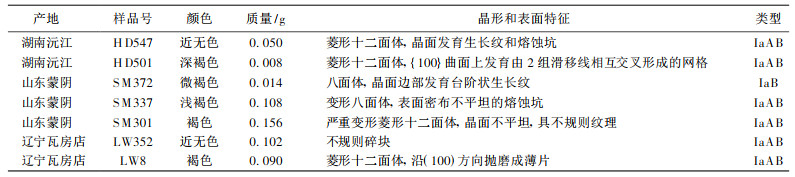

表 1 测试样品的特征和类型
Table 1. Characteristics and types of diamond samples
-
[1] Bulanova, G. P., 1995. The formation of diamond. Journal of Geochemical Exploration, 53: 1-23. doi: 10.1016/0375-6742(94)00016-5 [2] Guo, Q. Z., Li, L. J., Liu, Y. J., 1995. Study of structure defects of diamonds by polychromatic synchrotron radiation topography. Journal of Northeastern University (Nature Science), 16 (4): 410-413 (in Chinese with English abstract). [3] Harris, J. W., 1992. Diamond geology. In: Field, J. E., ed., The properties of nature and synthetic diamond. Academic Press, London, 345-357. [4] Li, L. J., Guo, Q. Z., 1999. Study of natural diamonds by polychromatic synchrotron radiation. Function Material, 30 (6): 655-656. [5] Lu, F. X., Zheng, J. P., Chen, M. H., 1998. Discuss on formation of diamond. Earth Science Frontiers, 5 (3): 125-132 (in Chinese with English abstract). [6] Ma, L. D., Yang, F. J., 2001. The application outline of poly-chromatic synchrotron radiation. Fudan University Press, Shanghai, 110-149 (in Chinese). [7] Olrov, Ю. Π., 1977. Mineralogy of diamond. Translated by Huang, C. E., Chen, S. S., Qi, L. C., et al., Construction Industry Press, Beijing, 35-110 (in Chinese). [8] Peng, Z. Z., 1982. The concise course of X-diffraction analysis. Beijing Graduate School of Wuhan College of Geology, Beijing, 66-71. [9] Rylov, G. M., Yefimova, E. S., Sobolev, N. V., et al., 2001. Study of imperfect natural diamonds with the application of the X-ray synchrotron radiation (the "Laue-SR" method). Nuclear Instruments and Methods in Physics Research (Section A), 470: 182-188. doi: 10.1016/S0168-9002(01)01039-7 [10] Teng, F. E., Wang, Y. M., Jiang, X. L., 1997. The analysis of material surface by X-diffraction. Science Press, Beijing, 4-9 (in Chinese). [11] Wu, X., Wu, Z. Y., Tian, Y. L., 2003. The application of polychromatic synchrotron radiation topography in gemology. Journal of Gems & Gemmology, 5 (3): 1-18 (in Chinese with English abstract). [12] Xu, S. S., Feng, D., 1987. Topography of X-diffraction. Science Press, Beijing, 40-79 (in Chinese). [13] Yu, W. L., Tian, Y. L., 2003. The principle and method of calculation about structure defects of crystal by poly-chromatic synchrotron radiation topography. Nuclea Technique, 26 (3): 179-184 (in Chinese with English abstract). [14] Yu, W. L., Zheng, Q. J., Tian, Y. L., et al., 2002. An approach in determination of the orientation of dislocations with synchrotron radiation. Nuclear Instrument and Methodsin Physics Research (Section A), 491 (1-2): 302-306. doi: 10.1016/S0168-9002(02)01133-6 [15] 郭起志, 李兰杰, 刘雅静, 1995. 金刚石晶体缺陷的同步辐射白光形貌术研究. 东北大学学报(自然科学版), 16 (4): 410-413. https://www.cnki.com.cn/Article/CJFDTOTAL-DBDX504.017.htm [16] 路凤香, 郑建平, 陈美华, 1998. 有关金刚石形成条件的讨论. 地学前缘, 5 (3): 125-132. doi: 10.3321/j.issn:1005-2321.1998.03.012 [17] 马礼敦, 杨福家, 2001. 同步辐射应用概论. 上海: 复旦大学出版社, 110-149. https://www.cnki.com.cn/Article/CJFDTOTAL-HJJZ202112003.htm [18] 奥尔洛夫, Ю. Π., 1977. 金刚石矿物学. 黄朝恩, 陈树森, 戚立昌, 等, 译. 北京: 中国建筑工业出版社, 35-110. [19] 彭志忠, 1982. X射线分析简明教程. 北京: 武汉地质学院北京研究生部, 66-71. [20] 滕凤恩, 王煜明, 姜小龙, 1997. X射线结构分析于材料性能表征. 北京: 科学出版社, 4-9. [21] 巫翔, 吴自玉, 田玉莲, 2003. 同步辐射X射线形貌术在宝石学中的应用. 宝石和宝石学杂志, 5 (3): 15-18. doi: 10.3969/j.issn.1008-214X.2003.03.005 [22] 许顺生, 冯端, 1987. X射线衍衬形貌学. 北京: 科学出版社, 40-79. [23] 于万里, 田玉莲, 2003. 同步辐射白光貌相术计算晶体缺陷三维分布的原理与算法. 核技术, 26 (3): 179-184. https://www.cnki.com.cn/Article/CJFDTOTAL-HJSU200303002.htm -
