Ore-Forming Fluid and Thermochemical Sulfate Reduction in the Wusihe Lead-Zinc Deposit, Sichuan Province, China
-
摘要: 四川乌斯河铅锌矿床是赋存于震旦系灯影组白云岩中的大型铅锌矿床.本次研究结合最新的野外地质现象发现该矿床除存在前人所强调的沉积成矿作用以外，热液成矿作用非常明显.对该矿床流体包裹体进行细致的岩相学、显微测温和激光拉曼研究，揭示成矿流体特征，并探讨成矿机制.研究结果显示该矿床包裹体类型较为单一，以气液两相为主，均一温度主要集中于120~260 ℃，平均盐度为10.0% NaCl eqv，压力为32~68 MPa，成矿流体为中-低温、中等盐度.激光拉曼测试显示包裹体气相成分含有CH4、H2S、C2H6、C2H2、N2和NH3，为多元共存的流体体系.在热驱动力下(120~260 ℃)，流体混合作用提供了物质基础(SO42-)、催化剂(Mg2+)和还原剂(有机质、CH4和H2S)促使硫酸盐热化学还原反应(TSR)启动.TSR反应过程中流体pH发生变化，进一步促进了金属硫化物沉淀.Abstract: The Wusihe lead-zinc deposit, hosted in the Dengying Formation, is a large lead-zinc deposit in the Sichuan Province, China. The previous research noted the Wusihe deposit was classified as a sediment-hosted stratiform lead-zinc deposit. However, our field survey result suggests that hydrothermal ore-forming processes are crucial to lead-zinc mineralization. In this paper, we present a detailed petrographic, microthermometric and laser Raman spectroscopy study of fluid inclusions from the Wusihe deposit reveals the characteristics of ore-forming fluids and mineralization mechanism. Primary fluid inclusions (FIs) in dolomite, quartz, calcite, fluorite and sphalerite are mainly two phases (L+V type). Microthermometric data show the homogenization temperatures range from 120 ℃ to 260 ℃, and the average of salinity is 10.0% NaCl eqv. The estimated trapping pressures are 32 MPa to 68 MPa. The laser Raman spectroscopy shows that the gas components have a certain amount of CH4, H2S, C2H6, C2H2, N2 and NH3. The mixed ore-forming fluids offer heat, SO42-, and Mg2+ to provoke the thermochemical sulfate reduction (TSR). The TSR could be a key factor for sulfur source and H+. The change of pH value leads to the precipitation of metallogenic elements.
-

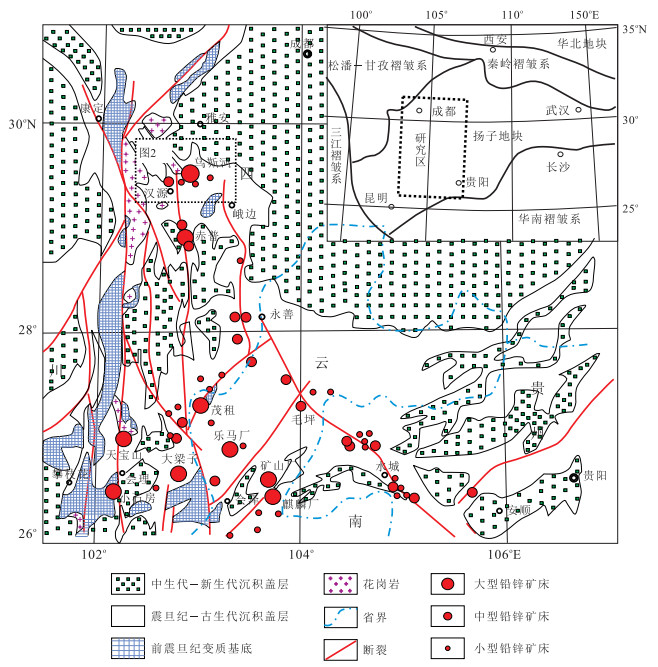

图 1 扬子地块西缘铅锌矿床分布略图
据成都地质矿产研究所(2003).云贵川渝1:250万地质图，略有简化
Fig. 1. Regional geological and distribution map of lead-zinc deposits on western margin of the Yangtze block

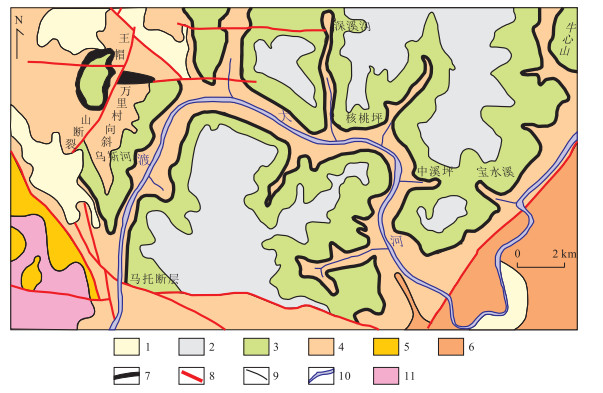

图 2 乌斯河铅锌矿床地质简图
1.第四系；2.奥陶系－二叠系碎屑岩、碳酸盐岩；3.寒武系碎屑岩、碳酸盐岩；4.上震旦统观音崖组碎屑岩－灯影组白云岩；5.南华系苏雄组陆相火山岩、碎屑岩；6.中元古界峨边群变质岩；7.铅锌矿(化)层；8.断层；9.地质界线；10.河流；11.晋宁期花岗岩；据四川地矿局207地质队(2006) 略有修改
Fig. 2. Geological sketch of the Wusihe lead-zinc deposit
图 3 不同成矿期成矿阶段野外照片
a.沉积期形成的纹层-条带状矿石；b.热液期多金属硫化物将沉积期形成的纹层状矿石角砾胶结；c.热液期第Ⅱ阶段形成的矿石被第Ⅲ阶段的方铅矿脉切穿；d.第Ⅲ阶段切层和顺层的方铅矿脉；e.热液期第Ⅱ、Ⅲ阶段形成的矿脉破碎后，呈角砾状，被第Ⅳ阶段沥青+方解石+石英胶结; f.热液期第Ⅳ阶段的沥青粗脉；Bit.沥青；Cc.方解石；Dol.白云石；Gn.方铅矿；Py.黄铁矿；Q.石英；Sp.闪锌矿
Fig. 3. Photographs showing different stages of the Wusihe deposit
图 4 乌斯河矿床流体包裹体特征
a.热液期第Ⅰ阶段的闪锌矿和白云石中包裹体发育；b.热液期第Ⅱ阶段，浅黄-浅黄白相间闪锌矿发育生长环带，L+V型原生流体包裹体沿生长环带发育，次生包裹体呈线状切穿生长环带; c.热液期第Ⅲ阶段，红棕色闪锌矿内部发育有定向排列的L+V型流体包裹体；d.热液期第Ⅲ阶段方解石内两种成分不同的L+V型；e.热液期第Ⅲ阶段，淡紫色萤石内的L+V型流体包裹体，包裹体颜色为无色透明，边缘清晰；f.热液期第Ⅱ阶段石英中的V型流体包裹体
Fig. 4. Photomicrographs of fluid inclusions in the Wusihe deposit

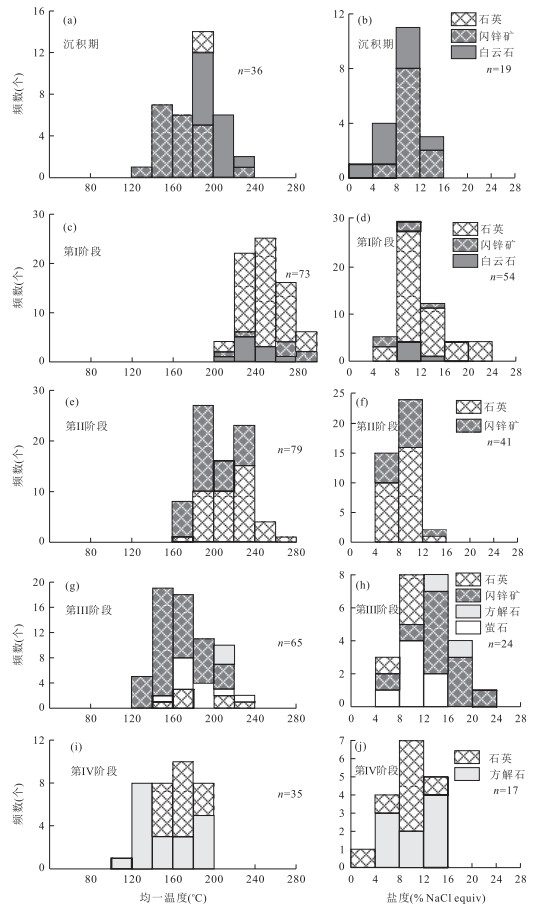

图 5 流体包裹体的均一温度-盐度直方图
a.沉积期，闪锌矿、白云石和石英中流体包裹体均一温度直方图；b.沉积期流体包裹体盐度直方图；c.热液期第Ⅰ成矿阶段，闪锌矿、白云石和石英中流体包裹体均一温度直方图；d.热液期第Ⅰ成矿阶段流体包裹体盐度直方图；e.热液期第Ⅱ成矿阶段，闪锌矿和石英中流体包裹体均一温度直方图；f.热液期第Ⅱ成矿阶段流体包裹体盐度直方图；g.热液期第Ⅲ成矿阶段，闪锌矿、方解石、萤石和石英中流体包裹体均一温度直方图；h.热液期第Ⅲ成矿阶段盐度直方图; i.热液期第Ⅳ成矿阶段，方解石和石英中流体包裹体均一温度直方图；j.热液期第Ⅳ成矿阶段流体包裹体盐度直方图
Fig. 5. Histograms of microthermometric and salinity for each stage

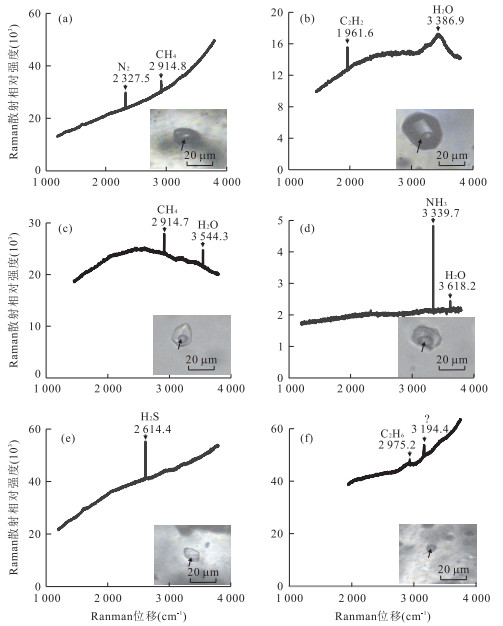

图 6 乌斯河矿床包裹体激光拉曼图谱
a.闪锌矿内包裹体，含有CH4和N2，其中CH4特征峰值为2 914.8 cm-1，N2特征峰值为2 327.5 cm-1；b.闪锌矿内包裹体，含有C2H2和H2O，其中C2H2特征峰值为1 961.6 cm-1，H2O特征峰值为3 386.9 cm-1；c.石英内包裹体，含有CH4和H2O，其中CH4特征峰值为2 914.7 cm-1，H2O特征峰值为3 544.3 cm-1；d.石英内包裹体，含有NH3和H2O，其中NH3特征峰值为3 339.7 cm-1，H2O特征峰值为3 618.2 cm-1；e.闪锌矿内包裹体，含H2S，特征峰值为2 614.4 cm-1；f.白云石内包裹体，含有C2H6，其中C2H6特征峰值为2 975.2 cm-1
Fig. 6. Raman spectra of fluid inclusions from the Wusihe deposit

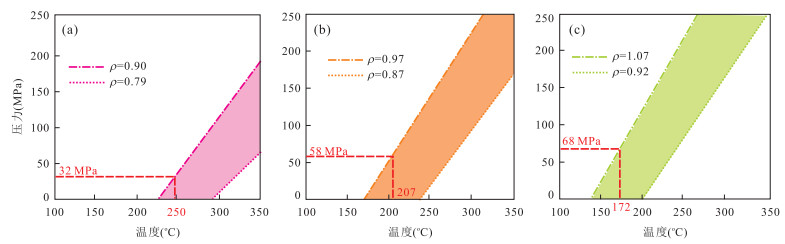

图 7 乌斯河矿床成矿压力估算
a.热液期第Ⅰ成矿阶段，闪锌矿包裹体的等容线分布在ρ=0.90和ρ=0.79之间的红色区域，结合平均温度250 ℃投影，获得的最小捕获压力为32 MPa；b.热液期第Ⅱ成矿阶段，闪锌矿包裹体的等容线分布在ρ=0.97和ρ=0.87之间的红色区域，结合平均温度207 ℃投影，获得的最小捕获压力为58 MPa；c.热液期第Ⅲ成矿阶段，闪锌矿包裹体的等容线分布在ρ=1.07和ρ=0.92之间的红色区域，结合平均温度172 ℃投影，获得的最小捕获压力为68 MPa
Fig. 7. Estimation for the metallogenic pressure of Wusihe deposit
表 1 各成矿阶段流体包裹体显微测温数据
Table 1. Summary of fluid inclusion data from each stage of mineralization
成矿期成矿阶段(测试个数) 寄主矿物 初熔温度(℃) 均一温度(℃) 冰点(℃) 盐度(% NaCl eqv) 密度(g/cm3) 沉积期
n=36白云石 -33.8 181~221 -6.5~-2.9 3.6~9.9 0.90~0.97 闪锌矿 -21.6~-19.1 132~223 -10.8~-4.1 6.5~14.8 0.91~1.02 石英 191~194 / / / 热
液
期Ⅰ
n=73白云石 -41.6 216~266 -8.7~-7.2 10.7~12.5 0.87~0.93 石英 -16.3 203~291 -18.9~-4.2 6.7~21.6 0.84~0.97 闪锌矿 -23.8~-17.8 217~282 -10.3~-3.3 5.4~14.3 0.79~0.90 Ⅱ
n=79石英 178~269 -9.0~-2.5 4.2~12.9 0.85~0.96 闪锌矿 -25.1~-19.7 168~238 -9.1~-4.3 6.9~13.0 0.87~0.98 Ⅲ
n=65萤石 159~227 -9.2~-3.9 6.3~14.0 0.94~1.00 闪锌矿 -25.4~-20.6 133~211 -19.2~-4.8 7.6~21.8 0.92~1.07 方解石 208~218 -14.5~-10.1 14.0~18.2 0.96~0.99 石英 154~229 -8.2~-5.0 7.9~11.9 0.91~0.97 3Ⅳ
n=35石英 -18.1 141~199 -10.4~-1.6 2.7~14.4 0.90~1.01 方解石 -22.4 102~197 -13.5~-3.0 5.0~15.2 0.89~1.02
下载: 导出CSV
表 2 热液期流体包裹体激光拉曼测试结果
Table 2. Raman spectra of fluid inclusions from the hydrothermal stage
序号 成矿阶段 主矿物 包裹体类型 测试对象 成分 拉曼特征峰(cm-1) 采样位置 1 第Ⅰ阶段 石英 L+V型 气相 N2 2 339.4 角砾岩带 2 第Ⅰ阶段 石英 L+V型 气相 C2H6 2 974.0 角砾岩带 3 第Ⅰ阶段 白云石 L+V型 气相 C2H6 2 975.2 麦地坪上矿段 4 第Ⅰ阶段 白云石 L+V型 气相 CH4 2 912.3 麦地坪上矿段 5 第Ⅰ阶段 白云石 L+V型 气相 N2 2 330.5 麦地坪上矿段 6 第Ⅰ阶段 闪锌矿 L+V型 气相 CH4和N2 2 914.8和2 327.5 麦地坪上矿段 7 第Ⅱ阶段 闪锌矿 L+V型 气相 C2H2和H2O 1 961.6和3 386.9 麦地坪上矿段 8 第Ⅱ阶段 闪锌矿 L+V型 液相 H2O 3 443.3 麦地坪上矿段 9 第Ⅱ阶段 闪锌矿 L+V型 气相 N2 2 329.2 麦地坪上矿段 10 第Ⅱ阶段 石英 L+V型 气相 CH4和H2O 2 914.7和3 544.3 麦地坪上矿段 11 第Ⅱ阶段 石英 L+V型 气相 NH3和H2O 3 339.7和3 618.2 麦地坪上矿段 12 第Ⅲ阶段 闪锌矿 L+V型 气相 H2S 2 614.4 麦地坪上矿段 13 第Ⅲ阶段 闪锌矿 L+V型 气相 CH4 2 914.7 麦地坪下矿段 14 第Ⅲ阶段 石英 V型 气相 CH4 2 915.9 麦地坪下矿段
下载: 导出CSV
表 3 乌斯河铅锌矿床金属硫化物硫同位素
Table 3. δ34S values of sulfides in the Wusihe lead-zinc deposit
样品编号 矿物 δ34SCDT(‰) 资料来源 送样号 矿物 δ34SCDT (‰) 资料来源 Hx001 闪锌矿 +14.83 Hx003 方铅矿 +14.41 Hx003 闪锌矿 +14.53 Hx006 方铅矿 +13.99 Hx005 闪锌矿 +12.65 Hx015 方铅矿 +13.92 Hx006 闪锌矿 +14.82 Hx001 方铅矿 +11.78 林方成，2005b Hx052 闪锌矿 +12.82 Hx044 方铅矿 +12.07 Hx044 闪锌矿 +10.48 林方成，2005b Hx052 方铅矿 +8.85 Hx055 闪锌矿 +10.43 Hx055 方铅矿 +11.20 Hx020 闪锌矿 +8.52 Wh-1 闪锌矿 +8.61 Hx021 闪锌矿 +7.48 Wh-2 闪锌矿 +14.05 李同柱等，2007 Hx025 闪锌矿 +13.13 Wh-3 闪锌矿 +13.75 Hx041 黄铁矿 +15.51
下载: 导出CSV
-
Anderson, G.M., 1975.Precipitation of Mississippi Valley-Type Ores.Economic Geology, 70(5):937-942.doi: 10.2113/gsecongeo.70.5.937 Anderson, G.M., 1991.Organic Maturation and Ore Precipitation in Southeast Missouri.Economic Geology, 86(5):909-926.doi: 10.2113/gsecongeo.86.5.909 Bildstein, O., Worden, R.H., Brosse, E., 2001.Assessment of Anhydrite Dissolution as the Rate-Limiting Step during Thermochemical Sulfate Reduction.Chemical Geology, 1176(1-4):173-189.doi: 10.1016/s0009-2541(00)00398-3 Brown, P.E., Lamb, W.M., 1989.P-V-T Properties of Fluids in the System H2O±CO2±NaCl:New Graphic Presentations and Implications for Fluid Inclusion Studies.Geochimica et Cosmochimica Acta, 53(6):1209-1221. doi: 10.1016/0016-7037(89)90057-4 Chen, Y., Zhou, Y.Q., Liu, C.Y., et al., 2005.Quantitatively Analyzing the Homogenization Process of CH4-H2O Fluid Inclusion by Laser Raman Spectroscopy.Earth Science Frontiers, 12(4):592-596(in Chinese with English abstract). http://www.academia.edu/15964319/Methane_CH4_-bearing_fluid_inclusions_in_the_Myanmar_jadeitite Chen, Y., Zhou, Y.Q., Yan, S.Y., et al., 2006.The Application of Laser Raman Spectroscopy to Obtaining Internal Pressure of Fluid Inclusions.Acta Geoscientica Sinica, 27(1):69-73 (in Chinese with English abstract). https://www.researchgate.net/publication/285520689_The_application_of_laser_Raman_spectroscopy_to_obtaining_internal_pressure_of_fluid_inclusion Cloetingh, S., Thybo, H., Faccenna, C., 2009.Topo-Europe:Studying Continental Topography and Deep Earth-Surface Processes in 4D.Techonophysics, 474(1-2):4-32.doi: 10.1016/j.tecto.2009.04.015 Farbre, D., Oksengorn, B., 1992.Pressure and Density Dependence of CH4 and N2 Raman Lines in an Equimolar CH4/N2 Gas Mixture.Applied Spectroscopy, 46(3):468-471 doi: 10.1366/0003702924125348 Ghazban, F., Schwarcz, H.P., Ford, D.C., 1990.Carbon and Sulfur Isotope Evidence for in Situ Reduction of Sulfate, Nanisivik Lead-Zinc Deposits, Northwest Territories, Baffin Island, Canada.Economic Geology, 85(2):360-375.doi: 10.2113/gsecongeo.85.2.360 Goldhaber, M.B., Orr, W.L., 1995.Kinetic Controls on Thermochemical Sulfate Reduction as a Source of Sedimentary H2S.In:Vairavamurthy, M.A., Schoonen, M.A.A., eds., Geochemical Transformations of Sedimentary Sulfur.ACS Symposium Series, (612):412-425. Hall, D.L., Sterner, S.M., Bodnar, R.J., 1988.Freezing Point Depression of NaCl-KCl-H2O Solutions.Economic Geology, 83(1):197-202. doi: 10.2113/gsecongeo.83.1.197 He, M.C., Zhang, Z.J., 2001.The Application of Laser Raman Microspectroscopy to Study of Mineral Deposits.Rock and Mineral Analysis, 20(1):43-47 (in Chinese with English abstract). Jeffery, C.S., Jill, D.P., Ming, I.C., 1993.Raman Spectroscopic Characterization of Gas Mixtures.1.Quantitative Composition and Pressure Determination of CH4, N2, and Their Mixtures.American Journal of Science, 293(4):297-321. https://www.researchgate.net/publication/275801028_Raman_spectroscopic_characterization_of_gas_mixtures_II_Quantitative_composition_and_pressure_determination_of_the_CO_2_-CH_4_system Jeffery, C.S., Jill, D.P., Ming, I.C., 1996.Raman Spectroscopic Characterization of Gas Mixtures.2.Quantitative Composition and Pressure Determination of CO2-CH4 System.American Journal of Science, 296(6):577-600. https://www.researchgate.net/publication/275801028_Raman_spectroscopic_characterization_of_gas_mixtures_II_Quantitative_composition_and_pressure_determination_of_the_CO_2_-CH_4_system Jochum, J., 2000.Variscan and Post-Variscan Lead-Zinc Mineralization, Rhenish Massif, Germany:Evidence for Sulfide Precipitation via Thermochemical Sulfate Reduction.Mineralium Deposita, 35(5):451-464.doi: 10.1007/s001260050255 Leach, D.L., Sangster, D.F., Kelley, K.D., et al., 2005.Sediment-Hosted Lead-Zinc Deposits:A Global Perspective.Economic Geology, 100(Anniversary Volume):561-608. Li, N., Ulrich, T., Chen, Y.J., et al., 2012.Fluid Evolution of the Yuchiling Porphyry Mo Deposit, East Qinling, China.Ore Geology Reviews, (48):442-459.doi: 10.1016/j.oregeorev.2012.06.002 Li, R.X., Dong, S.W., Zhang, S.N., et al., 2012.Features and Formation of Organic Fluids during Dabashan Orogenesis.Journal of Nanjinu University(Natural Sciences), 48(3):295-307(in Chinese with English abstract). https://www.researchgate.net/publication/291036067_Formation_and_evolution_of_Dabashan_Foreland_basin_and_fold-and-thrust_belts_Sichuan_China_Beijing Li, T.Z., 2007.The Genesis and Metallogenic Model of Lead-Zinc Deposits in the Middle Part of Dadu River Valley (Dissertation).Chengdu Institute of Technology, Chengdu (in Chinese with English abstract). Lin, F.C., 2005a.Geological and Geochemical Characteristics and Genesis of Supper-Large-Scale Sedex-Type Stratiform Lead-Zinc Deposits in the Dadu River Valley on the Western Margin of the Yangtze Craton.Acta Geologica Sinica, 79(4):540-556(in Chinese with English abstract). https://www.researchgate.net/publication/289158429_Geological_and_geochemical_characteristics_and_genesis_of_supper-large-scale_sedex-type_stratiform_lead-zinc_deposits_in_the_Dadu_River_Valley_on_the_western_margin_of_the_Yangtze_Craton Lin, F.C., 2005b.Hydrothermal Exhalative Metallogeny of Stratiform Pb-Zn Deposits on Western Margin of the Yangtze Craton (Dissertation).Chengdu Institute of Technology, Chengdu (in Chinese with English abstract). Liu, B., Duan, G.X., 1987.The Density and Isochoric Formulae for NaCl-H2O Fluid Inclusions (Salinity≤25 wt%) and Their Applications.Acta Mieralogica Sinica, 7(4):345-352(in Chinese with English abstract). http://www.sciencedirect.com/science/article/pii/B9780128032411000046 Liu, S.G., Deng, B., Li, Z.W., et al., 2011.The Texture of Sedimentary Basin-Orogenic Belt System and Its Influence on Oil/Gas Distribution:A Case Study from Sichuan Basin.Actor Petrologica Sinica, 27(3):621-635(in Chinese with English abstract). http://www.oalib.com/paper/1473888 Liu, S.G., Luo, Z.L., Zhao, X.K., et al., 2003.Coupling Relationships of Sedimentary Basin-Orogenic Belt Systems and Their Dynamic Models in West China—A Case Study of the Longmenshan Orogenic Belt-West Sichuan Foreland Basin System.Acta Geologica Sinica, 77(2):177-186(in Chinese with English abstract). https://www.researchgate.net/publication/282684750_Coupling_of_sedimentary_basin-orogenic_belt_systems_and_their_dynamic_models_in_West_China_-_A_case_study_of_the_Longmenshan_orogenic_belt_-_West_Sichuan_Foreland_basin_system Liu, W.Z., Wang, J.Z., Li, Z.Q., 2002.Geochemical Characteristics of Lead-Zinc Deposits at Eastern Margin of Kangdian Axis.Mineral Deposits, 21:173-176(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DQKX198606002.htm Lu, H.Z, Fan, H.R., Ni, P., et al., 2004.Fluid Inclusion.Science Press, Beijing(in Chinese). Lu, W.J., Chou, I.M., Burruss, R.C., et al., 2007.A Unified Equation for Calculating Methane Vapor Pressures in the CH4-H2O System with Measured Raman Shifts.Geochimica et Cosmochimica Acta, 71(16):3969-3978.doi: 10.1016/j.gca.2007.06.004 Machel, H.G., 2001.Bacterial and Thermochemical Sulfate Reduction in Diagenetic Settings-Old and New Insights.Sedimentary Geology, 140(1-2):143-175.doi: 10.1016/S0037-0738(00)00176-7 Machel, H.G., Krouse, H.R., Sassen, R., 1995.Products and Distinguishing Criteria of Bacterial and Thermochemical Sulfate Reduction.Applied Geochemistry, 10(4):373-389.doi: 10.1016/0883-2927(95)00008-8 Mougin, P., Lamoureux-Var, V., Bariteau, A., et al., 2007.Thermodynamic of Thermochemical Sulphate Reduction.Journal of Petroleum Science and Engineering, 58(3-4):413-427.doi: 10.1016/j.petrol.2007.01.005 Sangster, D.F., 2002.The Role of Dense Brines in the Formation of Vent-Distal Sedimentary-Exhalative(SEDEX)Lead-Zinc Deposits:Field and Laboratory Evidence.Mineralium Deposita, 37(2):149-157.doi: 10.1007/s00126-001-0216-9 Seewald, J.S., 2003.Organic-Inorgainc Interactions in Petroleum-Producing Sedimentary Basins.Nature, 426:327-333.doi: 10.1038/nature02132 Shen, C.B., Mei, L.F., Xu, Z.P., et al., 2007.Architecture and Tectonic Evolution of Composite Basin-Mountain System in Sichuan Basin and Its Adjacent Ares.Geotectonica et Metallogenia, 31(3):288-299(in Chinese with English abstract). https://www.researchgate.net/publication/292305399_Tectonic_evolution_and_oil_and_gas_accumulation_in_the_east_Micangshan_foreland_Basin_Sichuan Tang, Y.C., Ellis, G.S., Zhang, T.W., et al., 2005.Effect of Aqueous Chemistry on the Thermal Stability of Hydrocarbons in Petroleum Reservoirs.Geochimica et Cosmochimica Acta, 69(10):A559 https://www.researchgate.net/publication/259665139_Effect_of_aqueous_chemistry_on_the_thermal_stability_of_hydrocarbons_in_petroleum_reservoirs Wilkinson, J.J., 2001.Fluid Inclusions in Hydrothermal Ore Deposits.Lithos, 55(1-4):229-272.doi: 10.1016/S0024-4937(00)00047-5 Worden, R.H., Smalley, P.C., Oxtoby, N.H., 1995.Gas Souring by Thermochemical Sulfate Reduction at 140 ℃.AAPG Bulletin, 79(6):854-863. Worden, R.H., Smalley, P.C., Oxtoby, N.H., 1996.The Effects of Thermochemical Sulfate Reduction upon Formation Water Salinity and Oxygen Isotopes in Carbonate Gas Reservoirs.Geochimica et Cosmochimica Acta, 60(20):3925-3931.doi: 10.1016/0016-7037(96)00216-5 Wu, Y., Zhang, C.Q., Mao, J.W., et al., 2013.The Relationship between Oil-Gas Organic Matter and MVT Mineralization:A Case Study of the Chipu Lead-Zinc Deposit, Sichuan.Acta Geoscientia Sinica, 34(4):425-436 (in Chinese with English abstract). https://www.researchgate.net/publication/283856889_The_relationship_between_oil-gas_organic_matter_and_MVT_mineralization_A_case_study_of_the_Chipu_lead-zinc_deposit_Sichuan Xie, S.C., Yin, H.F., Wang, H.M., et al., 1997.A Potential Microbial Method of Mineral Exploration:Study on Bacillus Cereus as an Indicator of Gold Mineralization.Earth Science, 22(4):47-50 (in Chinese with English abstract). https://www.researchgate.net/publication/289323672_Molecular_identification_of_gold-mineralization_indicating_bacteria Xiong, S.F., He, M.C., Yao, S.Z, et al., 2014.Compositions and Microthermometry of Fluid Inclusions of Chalukou Porphyry Mo Deposit from Great Xing'an Range:Implications for Ore Genesis.Earth Science, 39(7):820-836. https://www.researchgate.net/profile/Qingdong_Zeng/citations?sorting=recent&page=3 Xiong, S.F., He, M.C., Yao, S.Z., et al., 2015.Fluid Evolution of the Chalukou Giant Mo Deposit in the Northern Great Xing'an Range, NE China.Geological Journal, 50(6):720-738.doi: 10.1002/gj.2588 Zhang, C.Q., 2008.The Genetie Model of Mississippi Valley-Type Deposits in the Boundary Area of Sichuan, Yunnan and Guzhou Provinces, China (Dissertation).Chinese Academy of Geological Science, Beijing (in Chinese with English abstract). Zhang, S.C., Shuai, Y.H., He, K., et al., 2012.Research on the Initiation Mechanism of Thermochemical Sulfate Reduction(TSR).Actor Petrologica Sinica, 28(3):739-748. doi: 10.1007/BF02547004 Zhang, S.C., Zhu, G.Y., 2006.Gas Accumulation Characteristics and Exploration Potential of Marine Sediments in Sichuan Basin.Acta Petrolei Sinica, 27(5):1-8. https://www.researchgate.net/publication/294235285_Gas_accumulation_characteristics_and_exploration_potential_of_marine_sediments_in_Sichuan_Basin Zhang, T.G., Chu, X.L., Zheng, Q.R., et al., 2004.The Sulfur and Carbon Isotopic Records in Carbonates of the Dengying Formation in the Yangtze Platform, China.Acta Petrologica Sinica, 20(3):717-724. https://www.researchgate.net/publication/292689163_The_sulfur_and_carbon_isotopic_records_in_carbonates_of_the_Dengying_Formation_in_the_Yangtze_Platform_China Zhang, T.W., Amrani, A., Ellis, G.S., et al., 2008.Experimental Investigation on Thermochemical Sulfate Reduction by H2S Initiation.Geochimica et Cosmochimica Acta, 72(14):3518-3530.doi: 10.1016/j.gca.2008.04.036 Zheng, X.Z., 2012.Geological Features and Genesis of WuSiHe Pb-Zn Deposit, Sichuang(Dissertation).Chang'an University, Xi'an (in Chinese with English abstract). Zheng, Y., Zhang, L., Chen, Y.J., et al., 2012.Geology, Fluid Inclusion Geochemistry, and 40Ar/39Ar Geochronology of the Wulasigou Cu Deposit, and Their Implications for Ore Genesis, Altay, Xinjiang, China.Ore Geology Reviews, 49:128-140.doi: 10.1016/j.oregeorev.2012.09.005 Zhu, G.Y., Zhang, S.C., Liang, Y.B., et al., 2005.Isotopic Evidence of TSR Origin for Natural Gas Bearing High H2S Contents within the Feixianguan Formation of the Northeastern Sichuan Basin, Southwestern China.Science in China(Series D), 48(11):1960.doi: 10.1360/082004-147 Zhu, G.Y., Zhang, S.C., Liang, Y.B., et al., 2006.Distribution of High H2S-Bearing Natural Gas and Evidence of TSR Origin in the Sichuan Basin.Acta Geologica Sinica, 80(8):1208-1218. https://www.researchgate.net/publication/297837649_Origins_of_high_H2S-bearing_natural_gas_in_China Zhu, H.D., Luo, Q., Zhou, L., et al., 2013.Application Prospect of Natural Gas Component Analysis Using Laser Raman Spectroscopy.Nature Gas Industry, 33(11):110-114(in Chinese with English abstract). https://www.researchgate.net/publication/288545258_Application_prospect_of_natural_gas_component_analysis_using_Laser_Raman_spectroscopy Zhuang, H.P., Lu, J.L., 1996.The Metal Deposits Related to the Organic Matter.Geology-Geochemistry, 4:6-11(in Chinese). 陈勇, 周瑶琪, 刘超英, 等, 2005.CH4-H2O体系流体包裹体均一过程激光拉曼光谱定量分析.地学前缘, (4):592-596. 陈勇, 周瑶琪, 颜世永, 等, 2006.激光拉曼光谱技术在获取流体包裹体内压中的应用及讨论.地球学报, 27(1):69-73. http://www.cnki.com.cn/Article/CJFDTOTAL-DQXB200601012.htm 何谋惷, 张志坚, 2001.显微激光拉曼光谱在矿床学中的应用.岩矿测试, 20(1):43-47. http://www.cnki.com.cn/Article/CJFDTOTAL-YKCS200101010.htm 李荣西, 董树文, 张少妮, 等, 2012.大巴山造山过程有机流体研究.南京大学学报(自然科学版), 48(3):295-307. http://www.cnki.com.cn/Article/CJFDTOTAL-NJDZ201203007.htm 李同柱, 2007. 大渡河谷中段铅锌矿床成因与成矿模式研究(硕士学位论文). 成都: 成都理工大学. 林方成, 2005a.扬子地台西缘大渡河谷超大型层状铅锌矿床地质地球化学特征及成因.地质学报, 79(4):540-556. http://www.cnki.com.cn/Article/CJFDTOTAL-DZXE200504017.htm 林方成, 2005b. 论扬子地台西缘层状铅锌矿床热水沉积成矿作用(博士学位论文). 成都: 成都理工大学. 刘树根, 邓宾, 李智武, 等, 2011.盆山结构与油气分布——以四川盆地为例.岩石学报, 27(3):621-635. http://cdmd.cnki.com.cn/Article/CDMD-10616-1013263631.htm 刘树根, 罗志立, 赵锡奎, 等, 2003.中国西部盆山系统的耦合关系及其动力学模式——以龙门山造山带—川西前陆盆地系统为例.地质学报, 77(2):177-186. http://www.cnki.com.cn/Article/CJFDTOTAL-DZXE200302007.htm 刘文周, 王奖臻, 李泽琴, 2002.康滇地轴东缘铅锌矿床地球化学特征.矿床地质, 21:173-176. http://www.cnki.com.cn/Article/CJFDTOTAL-KCDZ2002S1051.htm 刘斌, 段光贤, 1987.NaCl-H2O溶液包裹体的密度式和等容式及其应用.矿物学报, 7(4):345-352. 卢焕章, 范宏瑞, 倪培, 等, 2004. 流体包裹体. 北京: 科学出版社. 沈传波, 梅廉夫, 徐振平, 等, 2007.四川盆地复合盆山体系的结构构造和演化.大地构造与成矿学, 31(3):288-299. http://www.cnki.com.cn/Article/CJFDTOTAL-DGYK200703005.htm 吴越, 张长青, 毛景文, 等, 2013.油气有机质与MVT铅锌矿床的成矿——以四川赤普铅锌矿为例.地球学报, 34(4):425-436. doi: 10.3975/cagsb.2013.04.05 谢树成, 殷鸿福, 王红梅, 等, 1997.一种潜在的微生物找矿法——蜡样芽孢杆菌指示金矿化的试验研究.地球科学, 22(4):47-50. http://www.earth-science.net/WebPage/Article.aspx?id=529 熊索菲, 何谋惷, 姚书振, 等, 2014.大兴安岭岔路口斑岩钼矿床流体成分及成矿意义.地球科学, 39(7):820-836. http://www.earth-science.net/WebPage/Article.aspx?id=2893 张长青, 2008. 中国川滇黔交界地区密西西比型(MVT)铅锌矿床成矿模型(博士学位论文). 北京: 中国地质科学院. 张水昌, 帅燕华, 何坤, 等, 2012.硫酸盐热化学还原作用的启动机制研究.岩石学报, 28(3):739-748. http://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201203004.htm 张水昌, 朱光有, 2006.四川盆地海相天然气富集成藏特征与勘探潜力.石油学报, 27(5):1-8. doi: 10.7623/syxb200605001 张同钢, 储雪蕾, 张启锐, 等, 2004.扬子地台灯影组碳酸盐岩中的硫和碳同位素记录.岩石学报, 20(3):717-724. http://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200403036.htm 郑绪忠, 2012. 四川乌斯河铅锌矿床地质特征及矿床成因(硕士学位论文). 西安: 长安大学. 朱光有, 张水昌, 梁英波, 等, 2005.川东北地区飞仙关组高含H2S天然气TSR成因的同位素证据.中国科学(D辑), 35(11):1037-1046. doi: 10.3969/j.issn.1674-7240.2005.11.004 朱光有, 张水昌, 梁英波, 等.2006.四川盆地高含H2S天然气的分布与TSR成因证据.地质学报, 80(8):1208-1218. 朱华东, 罗勤, 周理, 等.2013.激光拉曼光谱及其在天然气分析中的应用展望.天然气工业, 33(11):110-114. doi: 10.3787/j.issn.1000-0976.2013.11.019 庄汉平, 卢家烂, 1996.与有机质有成因联系的金属矿床.地质地球化学, 4:6-11. http://www.cnki.com.cn/Article/CJFDTOTAL-DZDQ199604001.htm -
