    北黄海盆地下白垩统致密砂岩储层特征及成因

    王改云 刘金萍 简晓玲 王后金 杜民 万晓明

    王改云, 刘金萍, 简晓玲, 王后金, 杜民, 万晓明, 2016. 北黄海盆地下白垩统致密砂岩储层特征及成因. 地球科学, 41(3): 523-532. doi: 10.3799/dqkx.2016.043
    引用本文: 王改云, 刘金萍, 简晓玲, 王后金, 杜民, 万晓明, 2016. 北黄海盆地下白垩统致密砂岩储层特征及成因. 地球科学, 41(3): 523-532. doi: 10.3799/dqkx.2016.043
    Wang Gaiyun, Liu Jinping, Jian Xiaoling, Wang Houjin, Du Min, Wan Xiaoming, 2016. Characteristics and Genetic Mechanism of Tight Sandstone Reservoirs of Lower Crataceous in North Yellow Sea Basin. Earth Science, 41(3): 523-532. doi: 10.3799/dqkx.2016.043
    Citation: Wang Gaiyun, Liu Jinping, Jian Xiaoling, Wang Houjin, Du Min, Wan Xiaoming, 2016. Characteristics and Genetic Mechanism of Tight Sandstone Reservoirs of Lower Crataceous in North Yellow Sea Basin. Earth Science, 41(3): 523-532. doi: 10.3799/dqkx.2016.043

    北黄海盆地下白垩统致密砂岩储层特征及成因

    doi: 10.3799/dqkx.2016.043
    基金项目:

    国土资源部海底矿产资源重点实验室开放基金 KLMMR-2014-A-10

    国家自然科学基金项目 41302100

    详细信息
      作者简介:

      王改云(1980-),女,工程师,主要从事层序地层学及储层沉积学研究. E-mail: gaiyun520@163.com

      通讯作者:

      刘金萍, E-mail: 2497246@qq.com

    • 中图分类号: P539.2

    Characteristics and Genetic Mechanism of Tight Sandstone Reservoirs of Lower Crataceous in North Yellow Sea Basin

    • 摘要: 北黄海盆地是我国近海勘探及研究程度均较低的中新生代叠合断陷盆地,下白垩统砂岩储层是主要的勘探目的层段,储层致密是制约该区油气勘探的“瓶颈”之一.通过岩心观察、薄片分析、扫描电镜观测、压汞分析、物性统计等研究,对北黄海盆地东部坳陷下白垩统的储层特征进行了研究,从沉积、成岩、埋藏史等方面对其致密化成因进行了探讨.结果表明,下白垩统储层以扇三角洲沉积为主,物性总体较差,属于特低孔特低渗的致密砂岩储层,储集空间主要有粒间溶孔、粒内溶孔、微裂缝等次生孔隙,属孔隙—裂缝双孔介质储层,孔隙结构复杂.该储层特征主要受沉积相带、成岩作用及埋藏史等因素控制,储层砂体以长石岩屑砂岩、岩屑长石砂岩为主,成分及结构成熟度中等,原始储层物性差,高含量的塑性岩屑不利于原生孔隙的保存,沉积物粒度决定微裂缝的发育程度.成岩作用起主导作用,受早期深埋—中期抬升剥蚀—晚期再次深埋的这一特定埋藏过程影响,早期强烈压实,后期石英自生加大、方解石胶结、自生矿物晶出等胶结作用导致储层整体致密.长石的溶蚀和粘土化促进了次生孔隙的形成,但烃类充注时间晚、酸性流体活动弱,溶蚀作用受到抑制.后期构造作用产生的微裂隙则是改善储层物性的另一重要作用.

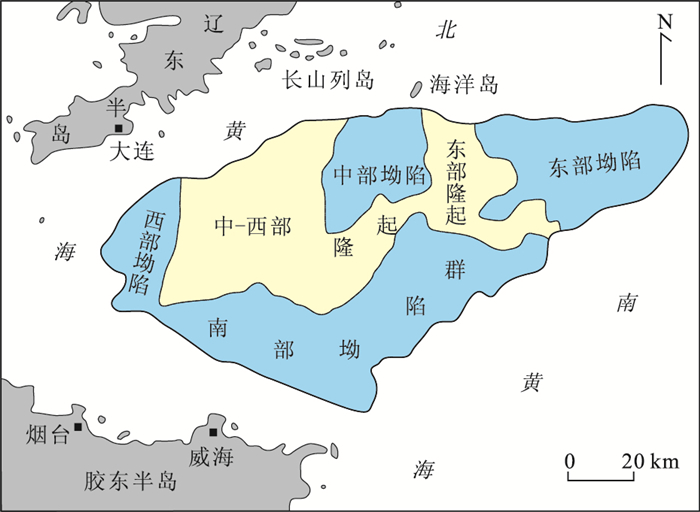

    • 图  1  北黄海盆地地理位置及构造区划分

      刘振湖等(2007),略修改

      Fig.  1.  Geographic location and geotectonic map of North Yellow Sea basin

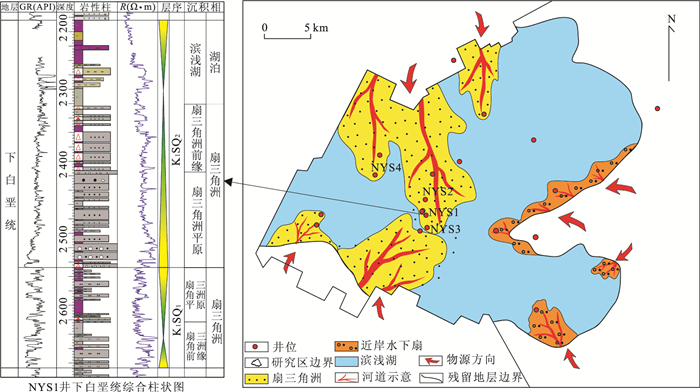

      图  2  北黄海盆地东部坳陷下白垩统沉积相分布(深度单位:m)

      Fig.  2.  Sedimentary facies of Lower Crataceous in the eastern depression of North Yellow Sea basin

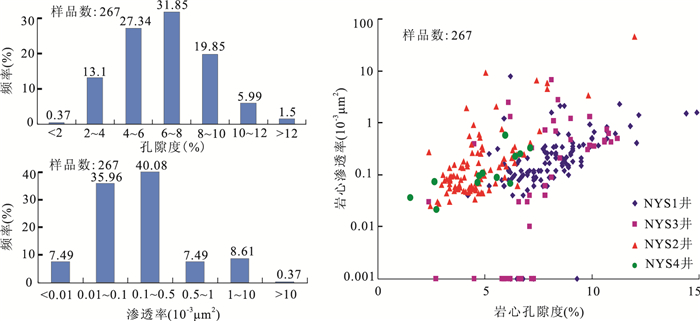

      图  3  下白垩统储层物性分布特征

      Fig.  3.  Reservoir properties of Lower Crataceous

      图  4  下白垩统储层孔隙类型

      a.粒间溶孔,(-),NYS2井,2 292.98 m,含砾长石粗砂岩;b.粒间溶孔,(-),NYS1井,2 420.80 m,含砾粗砂岩;c.粒内溶孔,(-),NYS2井,2 295.10 m,砂质砾岩;d.微裂缝,(-),NYS4井,2 219.80 m,砂质砾岩;e.微裂缝,(-),NYS3井,3 049.75 m,含钙砂质砾岩;f.微裂缝,(-),NYS1井,2 334.65 m,含白云粉砂质泥岩;g.长石沿解理溶蚀形成粒间溶孔及微裂缝,SEM,NYS1井,2 340.95 m,砂质砾岩;h.方解石表面溶蚀形成洞穴状孔隙(直径<5 μm),SEM,NYS4井,2 392.00 μm,钙质细砂岩;i.伊/蒙混层粘土矿物呈弯片状,形成不规则状或蜂窝状微孔隙,SEM,NYS1井,2 552.30 m,砂质泥岩;j.粒间溶孔(约50 μm×200 μm),SEM,NYS2井,2 307.80 m,砂质砾岩;k.碎屑间胶结物存在微孔隙,SEM,NYS3井,2 960.80 m,含砾粗砂岩;l.粒间孔隙,SEM,NYS1井,2 337.40 m,含钙细砂岩

      Fig.  4.  Pore types of Lower Crataceous reservoir

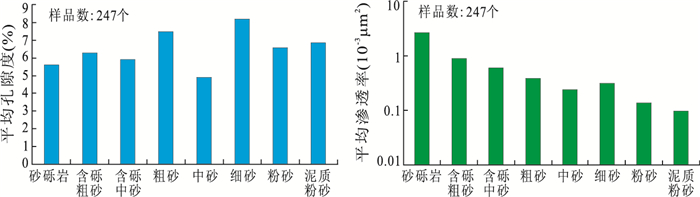

      图  5  下白垩统不同岩性的孔渗分布直方图

      Fig.  5.  Porosity and permeability distribution histogram in different lithology of Lower Crataceous reservoir

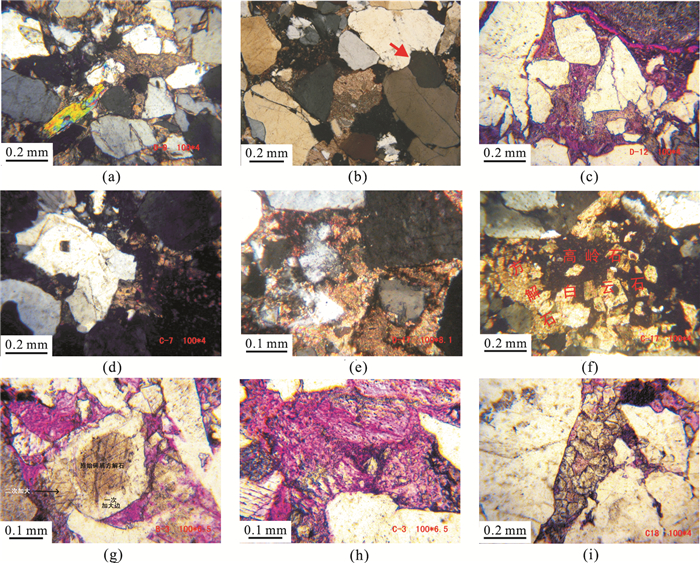

      图  6  下白垩统典型成岩现象

      a.颗粒将云母压断,(+),NYS3井,3 044.80 m,含砾中粗砂岩;b.颗粒凸凹接触,(+),NYS3井,2 961.50 m,含砾粗砂岩;c.刚性颗粒破碎,(-),NYS3井,3 048.50 m,砾岩;d.石英次生加大和长石粘土化,(+),NYS1井,2 340.25 m,长石粗砂岩;e.方解石重结晶,(+),NYS3井,3 081.80 m,砾岩;f.孔隙中自生方解石及白云石晶出,(+),NYS1井,2 544.70 m,含砾中-粗砂岩;g.方解石多次自生加大,(-),NYS2井,2 295.10 m,钙质细-中砂岩;h.长石高岭土化,(-),NYS1井,2 335.80 m,含钙中-粗砂岩;i.孔隙中的自生碳酸盐矿物,(-),NYS1井,2 546.30 m,砂质砾岩

      Fig.  6.  Typical diagenesis of Lower Crataceous reservoir

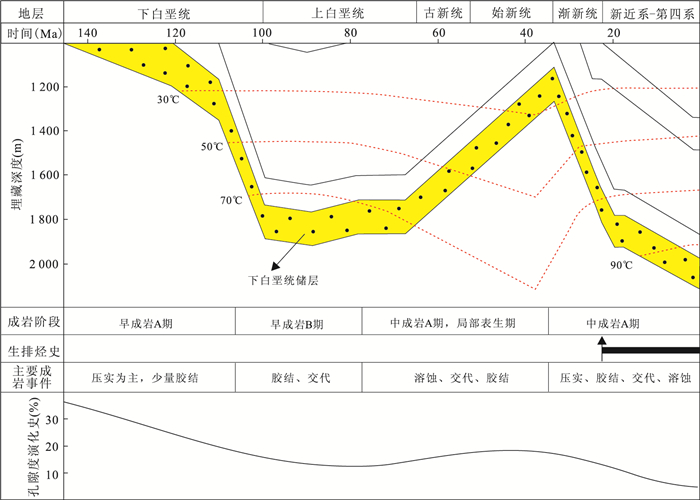

      图  7  NYS2井下白垩统储层埋藏史与孔隙演化

      Fig.  7.  Burial history and pore evolution of Lower Crataceous reservoir of Well NYS2

      表  1  部分井下白垩统储层孔隙结构实测参数统计

      Table  1.   Statistics of measured parameters of pore structure in Lower Crataceous reservoir in partial wells

      井名 孔隙度
      (%)
      渗透率
      (×10-3 μm2)
      中值压力
      (MPa)
      排驱压力
      (MPa)
      最大孔喉半径
      (μm)
      中值孔喉半径
      (μm)
      样品数
      NYS1井 $\frac{{{\rm{4}}{\rm{.2}} \sim {\rm{14}}{\rm{.9}}}}{{{\rm{8}}{\rm{.08}}}}$ $\frac{{{\rm{0}} \sim {\rm{7}}{\rm{.8}}}}{{{\rm{0}}{\rm{.38}}}}$ $\frac{{{\rm{4}}{\rm{.67}} \sim {\rm{28}}{\rm{.48}}}}{{{\rm{13}}{\rm{.63}}}}$ $ \frac{{0.31 \sim 19.64}}{{{\rm{3}}{\rm{.43}}}}$ $\frac{{0.037 \sim 2.363}}{{{\rm{0}}{\rm{.66}}}}$ $ \frac{{0.025 \sim 0.516}}{{{\rm{0}}{\rm{.18}}}}$ 40
      NYS2井 $ \frac{{2.4 \sim 11.2}}{{{\rm{7}}{\rm{.53}}}}$ $ \frac{{0 \sim 6.7}}{{{\rm{0}}{\rm{.54}}}}$ $ \frac{{5.38 \sim 20.85}}{{{\rm{9}}{\rm{.36}}}}$ $ \frac{{0.52 \sim 14.72}}{{{\rm{3}}{\rm{.71}}}}$ $ \frac{{0.05 \sim 1.41}}{{{\rm{0}}{\rm{.59}}}}$ $ \frac{{0.03 \sim 0.41}}{{{\rm{0}}{\rm{.18}}}}$ 11
      NYS3井 $ \frac{{2.4 \sim 12.0}}{{{\rm{4}}{\rm{.7}}}}$ $ \frac{{0.03 \sim 46.15}}{{{\rm{0}}{\rm{.96}}}}$ $ \frac{{3.15 \sim 33.27}}{{{\rm{22}}{\rm{.75}}}}$ $ \frac{{0.54 \sim 5.33}}{{{\rm{1}}{\rm{.57}}}}$ $ \frac{{0.138 \sim 3.847}}{{{\rm{1}}{\rm{.24}}}}$ $ \frac{{0.022 \sim 0.233}}{{{\rm{0}}{\rm{.066}}}}$ 7
      NYS4井 $ \frac{{1.1 \sim 7.5}}{{{\rm{5}}{\rm{.12}}}}$ $ \frac{{0.02 \sim 0.27}}{{{\rm{0}}{\rm{.14}}}}$ $ \frac{{0.21 \sim 11.14}}{{{\rm{10}}{\rm{.28}}}}$ $ \frac{{0.69 \sim 1.40}}{{{\rm{1}}{\rm{.04}}}}$ $ \frac{{0.53 \sim 1.06}}{{{\rm{0}}{\rm{.75}}}}$ $ \frac{{0.21 \sim 0.41}}{{{\rm{0}}{\rm{.29}}}}$ 5
      注:分子为主要区间值,分母为平均值.
      下载: 导出CSV
    • Chen, L., Bai, Z.L., Li, W.Y., 2006.The Character of Mid-Cenozoic Sedimental Depression and Oilgas Explorating Direction in North Yellow Sea.Geophysical Prospecting for Petroleum, 45(3):319-323, 18 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-SYWT200603021.htm
      Gao, S.L., Hou, G.W., Tan, S.Z., et al., 2013.Techniques to Predict Dual Porosity Reservoirs with Pores and Fractures and their Application:A Case of the Extra-Low Porous and Permeable Reservoirs in the Target Area, Eastern Depression, North Yellow Sea Basin.China Offshore Oil and Gas, 25(2):40-45 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-ZHSD201302006.htm
      Hao, M.Q., Liu, X.G., Hu, Y.L., et al., 2007.Reservoir Characteristics of Micro-fractured Ultra-low Permeability Reservoirs.Acta Petrolei Sinica, 28(5):93-98 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-SYXB200705018.htm
      He, X.H., Liu, Z., Liang, Q.S., et al., 2010.The Influence of Burial History on Mudstone Compaction.Earth Science Frontiers, 17(4):167-173 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DXQY201004020.htm
      Huang, S.J., Gong, Y.C., Huang, K.K., et al., 2010.The Influence of Burial History on Carbonate Dissolution and Precipitation—A Case Study from Feixianguan Formation of Triassic, NE Sichuan and Ordovician Carbonate of Northern Tarim Basin.Advances in Earth Science, 25(4):381-390 (in Chinese with English abstract). http://en.cnki.com.cn/article_en/cjfdtotal-dxjz201004008.htm
      Li, W.Y., Zeng, X.H., Wang, X.G., et al., 2009.Analysis of Structural Kinematics of North Yellow Sea Basin.Earth Science Frontiers, 16(4):74-86 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-DXQY200904010.htm
      Li, G.Y., Lai, F.Q., He, J.C., et al., 2013.Reservoir Characteristic and Controlling Factors on Physical Properties of Lower Jurassic Tight Sandstone in the Qiudong Sub-sag, Turpan-Harmi Basin.Natural Gas Geoscience, 24(2):310-319 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-TDKX201302016.htm
      Li, W.G., Zhang, X.P., Zhong, Y.M., 2005.Formation Mechanism of Secondary Dissolved Pores in Arcose.Oil & Gas Geology, 26(2):220-223 (in Chinese with English abstract).
      Liang, J., Wen, Z.H., Xiao, G.L., et al., 2013.Reservoir Characteristics and Influential Factors in the Eastern Depression of the North Yellow Sea Basin.Marine Geology & Quaternary Geology, 33(2):111-119 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-HYDZ201302018.htm
      Liang, S.Y., He, J.Q., Ni, C.H., et al., 2011.Oil-source Correlation and Origin Analysis of Mesozoic, North Yellow Sea Basin.Petroleum Geology and Experiment, 33(4):414-418 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-SYSD201104018.htm
      Liu, Z.H., Gao, H.F., Hu, X.Q., et al., 2007.A Study on the Mesozoic Petroleum System in East Depression, North Yellow Sea Basin.China Offshore Oil and Gas, 19(4):229-233 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-ZHSD200704002.htm
      Liu, Z.H., Wang, F.Y., Liu, J.P., et al., 2014.Time of Hydrocarbon Accumulation in Eastern Depression of North Yellow Sea Basin.Petroleum Geology & Experiment, 36(5):550-554 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-SYSD201405007.htm
      Luo, J.L., Liu, X.S., Fu, X.Y., et al., 2014.Impact of Petrologic Components and their Diagenetic Evolution on Tight Sandstone Reservoir Quality and Gas Yield:A Case Study from He 8 Gas-bearing Reservoir of Upper Paleozoic in Northern Ordos Basin.Earth Science, 39(5):537-545 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DQKX201405004.htm
      Olson, J.E., Laubach, S.E., Lander, R.H., 2009.Natural Fracture Characterization in Tight Gas Sandstones:Integrating Mechanics and Diagenesis.AAPG Bulletin, 93(11):1535-1549.doi: 10.1306/08110909100
      Tang, X.P., Huang, W.H., Li, M., et al., 2013.Diagenetic Environment Evolution of Deep Sandstones in the Upper Es4 of the Palaeogene in Lijin Sag.Earth Science, 38(4):843-852 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-DQKX201304018.htm
      Umar, M., Friis, H., Khan, A.S., et al., 2011.The Effects of Diagenesis on the Reservoir Characters in Sandstones of the Late Cretaceous Pab Formation, Kirthar Fold Belt, Southern Pakistan.Journal of Asian Earth Sciences, 40(2):622-635.doi: 10.1016/j.jseaes.2010.10.014
      Wang W.D., Peng, J., Duan, G.Y., et al., 2012.Development and Tendency of the Research of Tight Sandstone Gas Reservoirs.Petroleum Geophysics, 10(4):33-38 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-YQDL201204010.htm
      Wang, H.J., Wang, L.L., Feng, C.M., 2014.On Dynamic Mechanism of Tectonic Evolution in the North Yellow Sea Basin.Journal of Oil and Gas Technology, 36(5):1-7 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-JHSX201405001.htm
      Wang, Q., Wang, Y.B., Zhang, Y., 2010.Characteristics of the Mesozoic Reservoirs in the Eastern Depression of the Northern Yellow Sea Basin.Sedimentary Geology and Tethyan Geology, 30(4):97-103 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-TTSD201004015.htm
      Wang, G.Y., Liu, J.P., Wang, H.J., et al., 2015.Sedimentary Characteristics and Evolution of Mesozoic in the Eastern Depression, North Yellow Sea Basin.Acta Sedimentologica Sinica, 33(3):561-567 (in Chinese with English abstract). http://www.en.cnki.com.cn/Article_en/CJFDTOTAL-CJXB201503016.htm
      Wang, H.J., Wang, L.L., Wan, X.M., et al., 2014.Fracture Prediction of Low Permeability Reservoirs of the Mesozoic in North Yellow Sea Basin.Xinjiang Petroleum Geology, 35(3):268-272 (in Chinese with English abstract). http://www.en.cnki.com.cn/Article_en/CJFDTOTAL-XJSD201403005.htm
      Xiao, G.L., Sun, C.H., Zheng, J.M., 2005.Pre-Mesozoic Basement Characteristics in the Eastern Depression of the North Yellow Sea Basin.Geoscience, 19(2):261-266 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-XDDZ20050200E.htm
      Zhang, C., Sun, W., Gao, H., et al., 2014.Reservoir Diagenetic Facies and Porosity Evolution Pathways of Chang 8 Formation in HuaChi, Ordos basin.Earth Science, 39(4):411-420 (in Chinese with English abstract).
      Zou, C.N., 2011.Unconventional Oil and Gas Geology.Geological Publishing House, Beijing, 50-52 (in Chinese).
      陈玲, 白志琳, 李文勇, 2006.北黄海盆地中新生代沉积坳陷特征及其油气勘探方向.石油物探, 45(3): 319-323, 18. http://www.cnki.com.cn/Article/CJFDTOTAL-SYWT200603021.htm
      高顺莉, 侯国伟, 谭思哲, 等, 2013.孔隙-裂缝双孔介质储层预测技术及其应用效果——以北黄海盆地东部坳陷目标区特低孔特低渗储层为例.中国海上油气, 25(2): 40-45. http://www.cnki.com.cn/Article/CJFDTOTAL-ZHSD201302006.htm
      郝明强, 刘先贵, 胡永乐, 等, 2007.微裂缝性特低渗透油藏储层特征研究.石油学报, 28(5): 93-98. doi: 10.7623/syxb200705017
      何小胡, 刘震, 梁全胜, 等, 2010.沉积地层埋藏过程对泥岩压实作用的影响.地学前缘(中国地质大学(北京); 北京大学), 17(4): 167-173. http://www.cnki.com.cn/Article/CJFDTOTAL-DXQY201004020.htm
      黄思静, 龚业超, 黄可可, 等, 2010.埋藏历史对碳酸盐溶解-沉淀的影响——以四川盆地东北部三叠系飞仙关组和塔里木盆地北部奥陶系为例.地球科学进展, 25(4): 381-390. http://www.cnki.com.cn/Article/CJFDTOTAL-DXJZ201004008.htm
      李光云, 赖富强, 何加成, 等, 2013.吐哈盆地丘东洼陷下侏罗统致密砂岩储层特征及物性主控因素.天然气地球科学, 24(2): 310-319. http://www.cnki.com.cn/Article/CJFDTOTAL-TDKX201302016.htm
      李文勇, 曾祥辉, 王信国, 等.2009.北黄海盆地构造运动学解析.地学前缘, 16(4): 74-86. http://www.cnki.com.cn/Article/CJFDTOTAL-DXQY200904010.htm
      李汶国, 张晓鹏, 钟玉梅, 2005.长石砂岩次生溶孔的形成机理.石油与天然气地质, 26(2): 220-223. doi: 10.11743/ogg20050214
      梁杰, 温珍河, 肖国林, 等, 2013.北黄海盆地东部坳陷储层特征及影响因素.海洋地质与第四纪地质, 33(2): 111-119. http://www.cnki.com.cn/Article/CJFDTOTAL-HYDZ201302018.htm
      梁世友, 何将启, 倪春华, 等, 2011.北黄海盆地中生界油源对比及成因分析.石油实验地质, 33(4): 414-418. doi: 10.11781/sysydz201104414
      刘振湖, 高红芳, 胡小强, 等, 2007.北黄海盆地东部坳陷中生界含油气系统研究.中国海上油气, 19(4): 229-233. http://www.cnki.com.cn/Article/CJFDTOTAL-ZHSD200704002.htm
      刘振湖, 王飞宇, 刘金萍, 等, 2014.北黄海盆地东部坳陷油气成藏时间研究.石油实验地质, 36(5): 550-554. doi: 10.11781/sysydz201405550
      罗静兰, 刘新社, 付晓燕, 等, 2014.岩石学组成及其成岩演化过程对致密砂岩储集质量与产能的影响:以鄂尔多斯盆地上古生界盒8天然气储层为例.地球科学, 39(5): 537-545. http://earth-science.net/WebPage/Article.aspx?id=2862
      唐鑫萍, 黄文辉, 李敏, 等, 2013.利津洼陷沙四上亚段深部砂岩的成岩环境演化.地球科学, 38(4): 843-852. http://earth-science.net/WebPage/Article.aspx?id=2759
      王改云, 刘金萍, 王后金, 等, 2015.北黄海盆地东部坳陷中生界沉积特征及演化.沉积学报, 33(3): 561-567. http://www.cnki.com.cn/Article/CJFDTOTAL-CJXB201503016.htm
      王后金, 王嘹亮, 冯常茂, 2014.北黄海盆地的成盆动力学机制探讨.石油天然气学报, 36(5): 1-7. http://www.cnki.com.cn/Article/CJFDTOTAL-JHSX201405001.htm
      王后金, 王嘹亮, 万晓明, 等, 2014.北黄海盆地中生界低渗储集层裂缝预测.新疆石油地质, 35(3): 268-272. http://www.cnki.com.cn/Article/CJFDTOTAL-XJSD201403005.htm
      王强, 王应斌, 张友, 2010.北黄海东部坳陷中生界储层特征.沉积与特提斯地质, 30(4): 97-103. http://www.cnki.com.cn/Article/CJFDTOTAL-TTSD201004015.htm
      王伟东, 彭军, 段冠一, 等, 2012.致密砂岩气藏储层研究的进展及趋势.油气地球物理, 10(4): 33-38. http://www.cnki.com.cn/Article/CJFDTOTAL-YQDL201204010.htm
      肖国林, 孙长虹, 郑浚茂, 2005.北黄海盆地东部前中生界基底特征.现代地质, 19(2): 261-266. http://www.cnki.com.cn/Article/CJFDTOTAL-XDDZ20050200E.htm
      张创, 孙卫, 高辉, 等, 2014.鄂尔多斯盆地华池长8储层成岩相与孔隙度演化.地球科学, 39(4): 411-420. http://earth-science.net/WebPage/Article.aspx?id=2850
      邹才能, 2011.非常规油气地质.北京:地质出版社, 50-52.
