Characteristics and Controlling Factors of Source Rocks in Yanchang Formation Sequence Framework, Ordos Basin
-
摘要: 三叠系延长组是鄂尔多斯盆地中生界重要的含油气层位，属典型的岩性油藏，具有含油层位多、成藏关系复杂的特点，其中烃源岩发育特征对岩性油藏分布具有重要的控制作用.基于露头和测井资料，将鄂尔多斯盆地南部延长组自下而上划分为SQ1、SQ2和SQ3三个三级层序，研究了层序地层格架控制下烃源岩的发育特征及其控制因素.研究结果表明：主力烃源岩赋存于湖侵体系域，以长7段为代表，属湖泊扩张至最大湖泛期物源补给欠补偿时半深湖-深湖相沉积，缺乏大量陆源碎屑注入而发育腐泥组占绝对优势的高有机质丰度烃源岩.高位体系域亦发育有烃源岩，如长9段和长6-4+5段，属最大湖泛期后物源补给超过基准面上升而向湖盆推进的滨湖相、浅湖相沉积，陆源碎屑输入致其表现为腐植型占优势且具较高有机质丰度的烃源岩.油源对比显示延长组油源主要来自晚三叠世延长组最大湖泛期形成的长7段湖侵体系域，说明不同体系域烃源岩对延长组油藏的贡献存在差异.层序地层沉积动力背景下体系域可容纳空间垂向与侧向变化，不仅决定体系域内部沉积相类型展布，更直接控制体系域内烃源岩有机质丰度和类型.研究层序地层格架中不同体系域内烃源岩赋存的差异性，有助于在层序沉积背景下预测和评价盆地内烃源岩分布规律.Abstract: The Triassic Yanchang Formation, the most important oil and gas horizon in Ordos Basin, is a typical lithologic reservoir characterized by mass oil-bearing and complex hydrocarbon accumulation, and characteristics of its source rocks are the main controlling factors of lithologic reservoir distribution. Based on outcrops and well log data, this paper divides the Yangchang Formation into three sequences including SQ1, SQ2 and SQ3 upwards to research the characteristics and controlling factors of source rocks within sequence framework. The results show that the primary source rock occurred in expansive system tract, and is characterized by Chang7 source rock belonging to semi-deep lake and deep lake underfilled type deposits during the lake maximum flood period; meanwhile, the sapropel-type kerogen source rocks with a higher organic matter abundance are dominant due to the lack of terrigenous clastic supply. There are also source rocks in highstand system tract such as Chang9 and Chang6 to Chang 4+5 belonging to the deposition of lake-shore, shallow lake facies, in which terrigenous clastic supply makes humic type source rock dominant also with a relative high organic matter abundance. The crude oil of Yanchang Formation in the study area is primarily from Chang7 within expansive systems tract during maximum flooding period of Late Triassic according to crude oil correlation, which implies that contributions of source rocks in different system tracts to Yanchang reservoir vary. The vertical and lateral change of accommodation under sequence stratigraphic sedimentary dynamics setting not only decides the distribution of sedimentary facies types, but also directly controls the abundance and type of organic materials within system tracts. The difference of source rock occurrences between system tracts in sequence framework facilitates prediction and evaluation of distribution laws of source rocks in the sedimentary setting of basin.
-

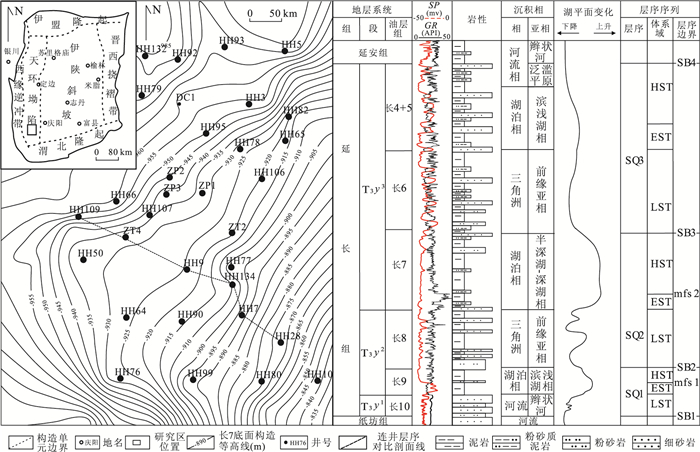

图 1 研究区构造位置和延长组层序划分
Fig. 1. Location of the study area and sequence dividion of Yanchang Formation

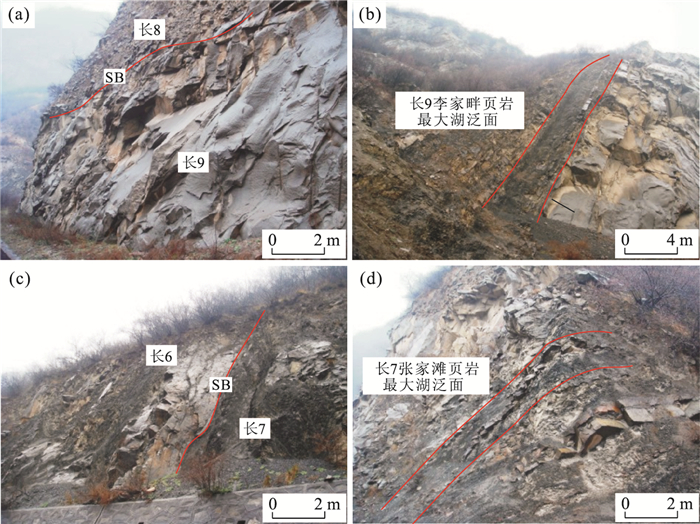

图 2 研究区延长组层序界面类型露头
a.长8油层组底冲刷面；b.长9油层组最大湖泛面；c.长6油层组底冲刷面；d.长7油层组最大湖泛面
Fig. 2. The typical outcrops of sequence boundaries in Yanchang Formation in study area

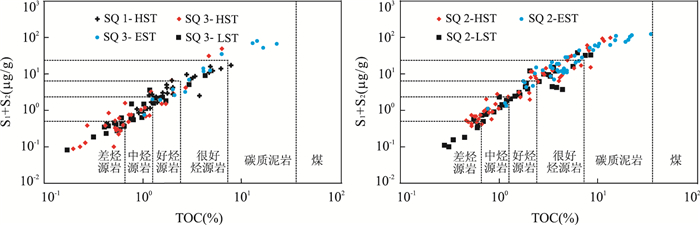

图 4 研究区不同层序内主力烃源岩TOC与S1+S2关系
Fig. 4. Relationships between TOC and S1+S2 in primary source rocks within different sequences in study area

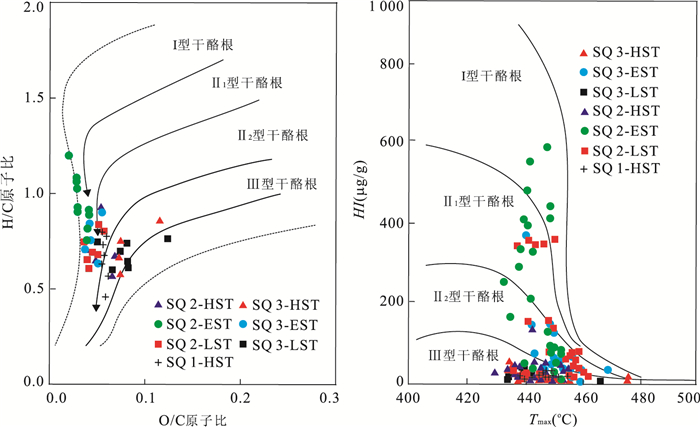

图 5 研究区不同层序主力烃源岩干酪根元素组成及热解参数分类
Fig. 5. Classification of kerogen elementary composition and pyrolysis parameter of primary source rocks within different sequences in study area

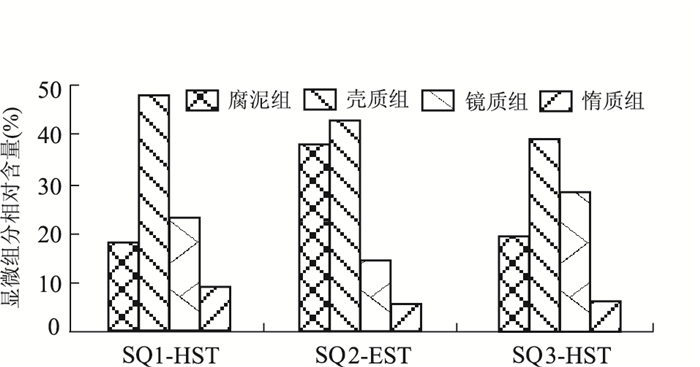

图 6 研究区不同层序主力烃源岩有机显微组分百分含量
Fig. 6. The percent content of organics maceral in primary source rocks within different sequences in study area

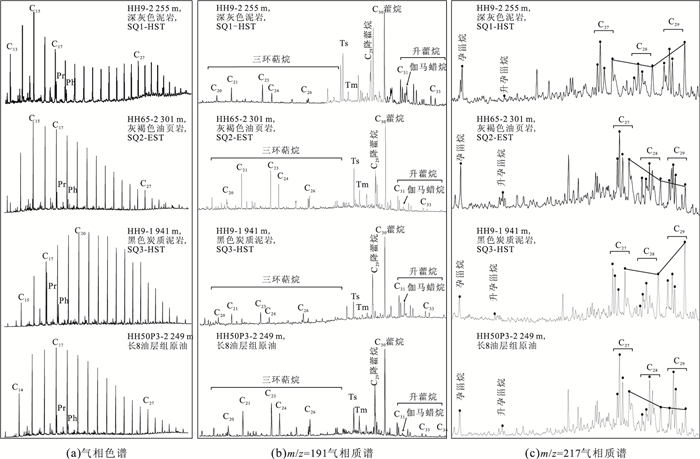

图 7 延长组原油及烃源岩正构烷烃及甾、萜烷特征
Fig. 7. Characteristics of n-alkane steranes and terpanes in crude oil and source rocks of Yanchang Formation

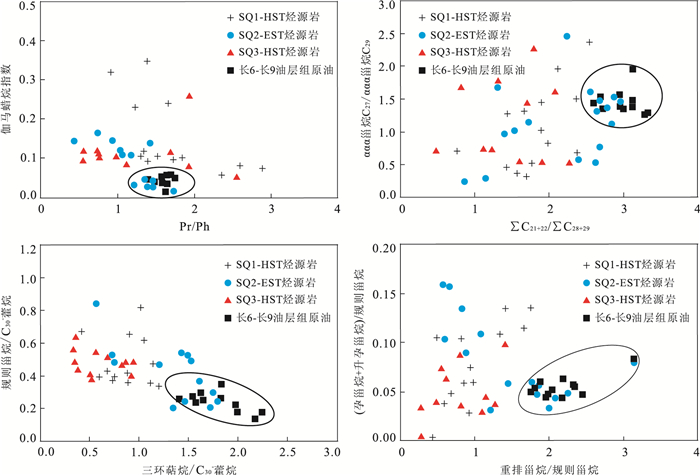

图 8 延长组原油及不同层序烃源岩生物标志化合物参数分布
Fig. 8. Biological marker distribution of crude oil and source rock in Yanchang Formation

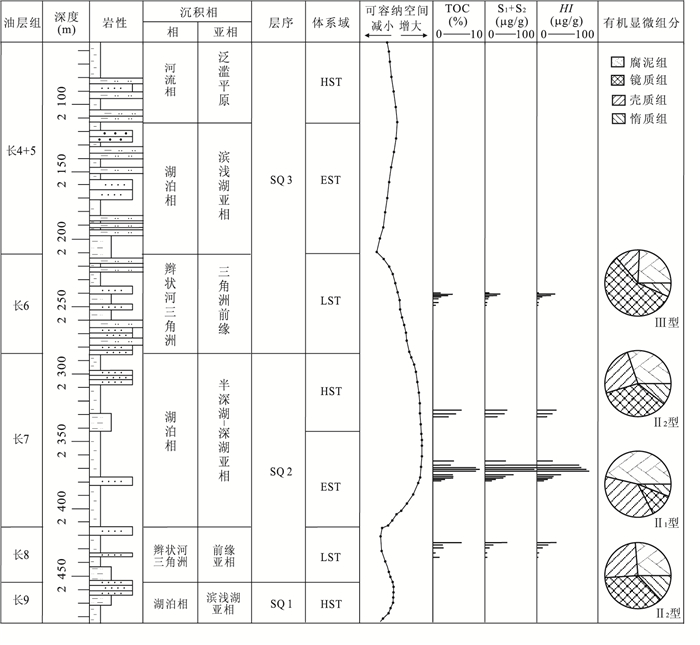

图 9 研究区HH3井层序内烃源岩特征综合柱状图
岩性图例同图 1
Fig. 9. Sequence stratigraphic column of source rock in HH3 well in study area
表 1 研究区不同层序主力烃源岩有机质丰度分布
Table 1. Organic matter abundance distribution of primary source rocks within different sequences in study area
烃源岩类型 TOC(%) S1+S2(mg/g) 沥青“A”(%) 总烃含量(μg/g) 评价结果 范围 平均值 范围 平均值 范围 平均值 范围 平均值 SQ3-HST 0.32~15.10 1.52 0.19~74.83 0.83 0.02~0.72 0.09 4.58~598.81 245.23 中等-好烃源岩 SQ2-HST 0.28~34.91 8.16 0.10~125.04 35.42 0.04~1.28 0.51 35.42~4539.06 1299.36 好烃源岩 SQ1-HST 0.23~21.59 2.98 0.18~66.03 12.36 0.02~0.70 0.23 53.73~3763.99 850.39 中等-好烃源岩 注：SQ3-HST的TOC、S1+S2值和沥青“A”测试样品数均为31个.总炫含品数为14个：SQ2-FST的TOC和S1+S2值测试样品数均为47个.沥青“A”和总烃含量测试样品数均为20个；SQ1-HST的TOC和S1+S2值测试样品数均为27个，沥青“A”和总烃含量测试样品数均为12个.
下载: 导出CSV
表 2 延长组不同沉积环境中烃源岩地球化学特征
Table 2. The geochemical characteristic of source rock in different sediment environment of Yanchang Formation
分析样品 有机质丰度 类型 显微组分(%) 生标参数 井号 层序 沉积相 TOC(%) S1+S2(mg/g) 沥青“A” 腐泥组 壳质组 镜质组 惰质组 C21-/C22+ ααα20RC27/C29 Pr/Ph HH78 SQ3 泛滥平原 6.05 21.19 0.09 Ⅱ2 30 24 35 10 0.72 1.28 1.59 HH3 SQ3 泛滥平原 1.78 6.42 0.40 Ⅱ2 40 27 30 4 0.89 1.38 1.65 HH66 SQ3 泛滥平原 3.74 1.44 0.02 Ⅲ 24 12 57 7 0.52 2.43 2.93 HH66 SQ2 半深湖 6.93 28.12 0.25 Ⅱ1 44 31 19 6 1.11 1.47 1.53 HH65 SQ2 半深湖 10.10 59.26 0.67 Ⅱ1 46 36 11 6 1.24 1.50 1.45 HH9 SQ2 半深湖 7.49 31.45 0.29 Ⅱ2 34 36 25 6 1.14 1.45 1.72 HH3 SQ2 半深湖 9.04 47.35 0.30 Ⅱ1 44 31 21 5 0.84 1.27 1.40 HH5 SQ2 半深湖 34.90 125.00 0.84 Ⅱ1 44 31 18 6 0.88 1.34 1.48 HH28 SQ1 滨浅湖 1.93 7.71 0.01 Ⅱ2 30 19 36 24 0.51 2.62 1.92 HH3 SQ1 滨浅湖 3.90 27.12 0.27 Ⅱ2 33 18 36 13 0.78 1.60 1.63 HH5 SQ1 滨浅湖 5.58 21.11 0.16 Ⅱ2 33 18 36 14 0.72 1.86 1.69 HH9 SQ1 滨浅湖 3.92 17.36 0.43 Ⅱ1 44 11 35 10 0.59 1.96 1.74 HH3 SQ1 三角洲前缘 1.31 2.00 0.02 Ⅱ2 26 25 36 13 0.57 1.93 1.66 HH65 SQ1 三角洲前缘 0.58 0.51 0.01 Ⅱ2 28 31 21 20 0.55 1.93 2.72 HH5 SQ1 三角洲前缘 2.01 3.78 0.03 Ⅱ2 37 15 23 25 0.62 1.95 1.68
下载: 导出CSV
-
Cai, X.Y., 2012.Hydrocarbon Generation-Expulsion Mechanisms and Efficiencies of Lacustrine Source Rocks:A Case Study from the Dongying Sag, Bohai Bay Basin.Oil & Gas Geology, 33(3):329-345 (in Chinese with English abstract). https://www.researchgate.net/publication/286915291_Hydrocarbon_Generation-Expulsion_Mechanisms_and_Efficiencies_of_Lacustrine_Source_Rocks_A_Case_Study_from_the_Dongying_Sag_Bohai_Bay_Basin Carroll, A.R., Bohacs, K.M., 2001.Lake-Type Controls on Petroleum Source Rock Potential in Nonmarine Basins.AAPG Bulletin, 85 (6):1033-1053.doi: 10.1306/8626ca5f-173b-11d7-8645000102c1865d Chang, Y.Y., Lin.C.S., Zhou, X.H., et al., 2014.Depositional Sequences and Prediction of Favorable Reservoir Sand of Shahejie Formation of Liaoxi Depression.Earth Science, 39(10):1471-1480 (in Chinese with English abstract). http://earth-science.net/WebPage/Article.aspx?id=2945 Chen, F., Hu, G.Y., Sun, L.C., et al., 2012.Characteristics of Sedimentary Facies and Evolution in Sequence Stratigraphic Framework of the Upper Triassic Yanchang Formation in Southern Ordos Basin.Journal of Palaeogeography, 14(3):321-330 (in Chinese with English abstract). https://www.researchgate.net/publication/293208181_Characteristics_and_evolution_of_the_sedimentary_system_of_Upper_Triassic_Yanchang_Formation_in_Ordos_Basin_China Creaney, S., Passy, Q.R., 1993.Recurring Patterns of Total Organic Carbon and Source Rock Quality within a Sequence Stratigraphic Framework.AAPG Bulletin, 77(3):386-401.doi: 10.1306/bdff8c18-1718-11d7-8645000102c1865d Gong, L., Zhu, H.T., Shu, Y., et al., 2014.Distribution of Middle-Deep Lacustrine Source Rocks within Sequence Stratigraphic Framework of Wenchang Formation in Enping Depression, the Pearl River Mouth Basin.Earth Science, 39(5):546-556 (in Chinese with English abstract). http://earth-science.net/WebPage/Article.aspx?id=2863 Herbin, J.P., Fernandez-Martinez, J.L., Geyssant, J.R., et al., 1995.Sequence Stratigraphy of Source Rocks Applied to the Study of the Kimmeridgian/Tithonian in the North-West European Shelf.Marine and Petroleum Geology, 12:177-194.doi: 10.1016/0264-8172(95)92838-n Isaksen, G.H., Patience, R., Van, G.G., 2002.Hydrocarbon System Analysis in a Rift Basin with Mixed Marine and Nonmarine Source Rocks:The South Viking Graben, North Sea.AAPG Bulletin, 86(4):557-592. https://www.researchgate.net/publication/279503034_Hydrocarbon_System_Analysis_in_a_Rift_Basin_with_Mixed_Marine_and_Nonmarine_Source_Rocks_The_South_Viking_Graben_North_Sea Jiang, Z.X., 2010.Studies of Depositional Systems and Sequence Stratigraphy:The Present and the Future.Oil & Gas Geology, 31(5):535-541 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-SYYT201005003.htm Katz, B.J., Pratt, L.M., 1993.Source Rocks in a Sequence Stratigraphic Framework.AAPG, Tulsa. http://www.worldcat.org/title/source-rocks-in-a-sequence-stratigraphic-framework/oclc/679325334 Li, H., Lu, J.L., Zuo, Z.X., et al., 2015.Controlling Factors of High-Quality Lacustrine Hydrocarbon Source Rocks in Southern Changling Depression.Oil & Gas Geology, 36(2):209-218 (in Chinese with English abstract). doi: 10.1007/s12182-014-0348-z Li, H.J., Xie, X.N., Huang, J.H., et al., 2012.Main Factors Controlling the Formation of Excellent Marine Source Rocks in Permian Maokou Formation of Northwest Sichuan, China.Earth Science, 37(1):171-180 (in Chinese with English abstract). http://earth-science.net/WebPage/Article.aspx?id=2211 Li, M.J., Li, S.T., Yang, L., et al., 2005.Sequence Stratigraphic Geochemistry and Its Application to Hydrocarbon Exploration.Earth Science Frontiers, 12(3):219-226 (in Chinese with English abstract). Li, M.J., Zhou, D.S., 2003.Sequence Stratigraphic Geochemistry—A New Progress of Geochemistry.Petroleum Geology & Experiment, 25(5):487-497 (in Chinese with English abstract). Li, P.L., 2004.The Organic-Rich Hydrocarbon Source Rocks and Their Resource Potentials in Jiyang Depression.Earth Science Frontiers, 11(1):317-321 (in Chinese with English abstract). https://www.researchgate.net/publication/288517309_The_organic-rich_hydrocarbon_source_rocks_and_their_resource_potentials_in_Jiyang_Depression Liu, L.F., Kang, Y.S., Qi, X.F., et al., 2002.Evolution on Source Rocks in the Jurassic Sequence Strigraphic Frameworks of the Junggar Basin, China.Acta Sedimentologica Sinica, 20(4):687-694 (in Chinese with English abstract). Pang, J.G., Li, S., Yang, Y.Y., et al., 2014.Study Process of Origin of Fine-Grained Sedimentary Rocks in Deep-Water Area of Lacustrine Basin:Taking Yanchang Formation in Ordos Basin as an Example.Petroleum Geology & Experiment, 36 (6):706-724 (in Chinese with English abstract). https://www.researchgate.net/publication/286864214_Sedimentary_characteristics_origin_and_model_of_lacustrine_deep-water_massive_sandstone_An_example_from_Dongying_Formation_in_Nanpu_Depression Pasley, M.A., Gregory, W.A., Hart, G.F., 1991.Organic Matter Variations in Transgressive and Regressive Shales.Organic Geochemistry, 17(4):483-509.doi: 10.1016/0146-6380(91)90114-Y Passey, Q.R., Greaney, S., Kulla, J.B., 1990.A practical Model for Organic Richness from Porosity and Resitivity Logs.AAPG Bulletin, 74(5):1777-1794. http://www.wenkuxiazai.com/doc/c4df9b7b376baf1ffc4fad53.html Peng, J.N., Zhang, M., Liu, G.X., et al., 2014.Sedimentary Environments and Controlling Factors of Permain Source Rocks in Northeastern Sichuan Basin:A Case Study of Muguakou Profile in Chengkou.Petroleum Geology & Experiment, 36(1):95-101 (in Chinese with English abstract). Peters, K.E., Snedden, J.W., Sulaeman, A., et al., 2000.A New Geochemical-Sequence Stratigraphic Model for the Mahakam Delta and Makassar Slope, Kalimantan, Indonesia.AAPG Bulletin, 84(1):12-44. https://www.researchgate.net/profile/Tobi_Payenberg/publication/282629962_A_new_geochemical-sequence_stratigraphic_model_for_the_Mahakam_Delta_and_Makassar_slope_Kalimantan_Indonesia_Discussion/links/5614977208ae983c1b40a0ef.pdf Qu, H.J., Yang, X.C., Cao, J.Z., et al., 2011.Oil Accumulation Rules in Deep Zones of Upper Triassic Yanchang Formation in Ordos Basin.Acta Petrolei Sinica, 32(2):243-248 (in Chinese with English abstract). https://www.researchgate.net/publication/289204567_Oil_accumulation_rules_in_deep_zones_of_Upper_Triassic_Yanchang_Formation_in_Ordos_Basin Tobias, H.D., Payenberg, Mial, A.D., 2001.A New Geochemical-Sequence Stratigraphic Model for the Mahakam Delta and Makassar Slope, Kalimantan, Indonesia:Discuss.AAPG Bulletin, 86(6):1098-1101. https://www.researchgate.net/profile/Tobi_Payenberg/publication/282629962_A_new_geochemical-sequence_stratigraphic_model_for_the_Mahakam_Delta_and_Makassar_slope_Kalimantan_Indonesia_Discussion/links/5614977208ae983c1b40a0ef/A-new-geochemical-sequence-stratigraphic-model-for-the-Mahakam-Delta-and-Makassar-slope-Kalimantan-Indonesia-Discussion.pdf Wang, H., Liao, Y.T., Lu, Y.C., et al., 2010.Sequence Architecture Styles of Cenozoic Continental Rift Basins in East China.Journal of Central South University (Science and Technology), 41(1):277-285 (in Chinese with English abstract). https://www.researchgate.net/publication/285788481_Sequence_architecture_styles_of_Cenozoic_continental_rift_basins_in_East_China Wu, F.L., Li, W.H., Li, Y.H., et al., 2004.Delta Sediments and Evolution of the Yanchang Formation of Upper Triassic in Ordos Basin.Journal of Palaeogeography, 6(3):307-315 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-GDLX200403005.htm Wu, W.X., Zhang, H.X., Li, Z.D., et al., 2015.Sequence Stratigraphic Geochemistry and Its Application in Evaluation of Source Rocks:Taking Beier Sag of Hailar Basin as an example.Oil & Gas Geology, 36(4):701-710 (in Chinese with English abstract). https://www.researchgate.net/publication/283771342_Sequence_stratigraphic_geochemistry_and_its_application_in_evaluation_of_source_rocks_taking_Beier_sag_of_Hailar_Basin_as_an_example Xie, Q.F., Zhou, L.F., Liu, Y., 2014.Geochemistry and Geological Signification of Permian Source Rocks in Yili Basin.Acta Petrolei Sinica, 35(1):50-57 (in Chinese with English abstract). Yang, Y.Y., Zhang, P.B., Zhang, Z.Y., 2005.Sedimentary Features and Sequence Evolution of Braided River Delta of Chang 8 Oil Formation of Xifeng Oil Field in Ordos Basin.Geological Science and Technology Information, 24(1):45-48 (in Chinese with English abstract). Yao, Y.J., Lü, C.P., Kang, S.Y., et al., 2013.Characteristics of Hydrocarbon Source Rocks and Their Main Controlling Factors in Southeast Asia.Earth Science, 38(2):367-378 (in Chinese with English abstract). http://earth-science.net/WebPage/Article.aspx?id=2374 Zhang, W.Z., Yang, H., Li, S.P., 2008.Hydrocarbon Accumulation Significance of Chang91 High-Quality Lacustrine Source Rocks of Yanchang Formation, Ordos Basin.Petroleum Exploration and Development, 35(5):557-568 (in Chinese with English abstract). doi: 10.1016/S1876-3804(09)60088-4 Zhao, Y.D., Liu, L.F., Zhang, Z, H., et al., 2008.Distribution and Hydrocarbon Generation of the Eogene Source Rocks in a Sequence Stratigraphic Framework in the Nanpu Sag Bohai Bay Basin.Acta Sedimentologica Sinica, 26(6):1077-1085 (in Chinese with English abstract). https://www.researchgate.net/publication/279718232_Paleogene_sequence_stratigraphic_framework_and_model_in_the_Huanghua_depression Zhu, W.L., Wang, Z., F., Mi, L.J., et al., 2015.Sequence Stratigraphic Framework and Reef Growth Unit of Well Xike-1 from Xisha Islands.Earth Science, 40(4):677-687 (in Chinese with English abstract). http://earth-science.net/WebPage/Article.aspx?id=3078 蔡希源, 2012.湖相烃源岩生排烃机制及生排烃效率差异性——以渤海湾盆地东营凹陷为例.石油与天然气地质, 33(3): 329-345. doi: 10.11743/ogg20120301 常艳艳, 林畅松, 周心怀, 等, 2014.辽西凹陷北洼沙河街组沉积层序结构与有利砂体分布.地球科学, 39(10): 1471-1480. http://earth-science.net/WebPage/Article.aspx?id=2945 陈飞, 胡光义, 孙立春, 等, 2012.鄂尔多斯盆地南部上三叠统延长组层序地层格架内沉积相特征与演化.古地理学报, 14(3): 321-330. doi: 10.7605/gdlxb.2012.03.006 龚丽, 朱红涛, 舒誉, 等, 2014.珠江口盆地恩平凹陷文昌组层序格架中中-深湖相烃源岩空间展布规律及发育模式.地球科学, 39(5): 546-556. http://earth-science.net/WebPage/Article.aspx?id=2863 姜在兴, 2010.沉积体系及层序地层学研究现状及发展趋势.石油与天然气地质, 31(5): 535-541. doi: 10.11743/ogg20100502 李浩, 陆建林, 左宗鑫, 等, 2015.长岭断陷南部断陷层湖相优质烃源岩发育控制因素.石油与天然气地质, 36(2): 209-218. doi: 10.11743/ogg20150205 李红敬, 解习农, 黄俊华, 等, 2012.川西北二叠系茅口组海相优质烃源岩发育控制因素.地球科学, 37(1): 171-180. http://earth-science.net/WebPage/Article.aspx?id=2211 李美俊, 李思甜, 杨龙, 等, 2005.层序地层地球化学及其在油气勘探中的作用.地学前缘, 12(3): 219-226. http://www.cnki.com.cn/Article/CJFDTOTAL-DXQY200503030.htm 李美俊, 周东升, 2003.层序地层地球地球化学——地球化学研究的新进展.石油实验地质, 25(5): 487-497. doi: 10.11781/sysydz200305487 李丕龙, 2004.济阳坳陷"富集有机质"烃源岩及其资源潜力.地学前缘, 11(1): 317-321. http://www.cnki.com.cn/Article/CJFDTOTAL-DXQY200401045.htm 刘洛夫, 康永尚, 齐雪峰, 等, 2002.准格尔盆地侏罗系层序地层格架中的烃源岩评价.沉积学报, 20(4): 687-694. http://www.cnki.com.cn/Article/CJFDTOTAL-CJXB200204025.htm 庞军刚, 李赛, 杨友运, 等, 2014.湖盆深水区细粒沉积成因研究进展——以鄂尔多斯盆地延长组为例.石油实验地质, 36(6): 706-724. doi: 10.11781/sysydz201406706 彭金宁, 张敏, 刘光祥, 等, 2014.川东北地区二叠系烃源岩沉积环境及控制因素——以城口木瓜口剖面为例.石油实验地质, 36(1): 95-101. doi: 10.11781/sysydz201401095 屈红军, 杨县超, 曹金舟, 等, 2011.鄂尔多斯盆地上三叠统延长组深层油气聚集规律.石油学报, 32(2): 243-248. doi: 10.7623/syxb201102008 王华, 廖远涛, 陆永潮, 等, 2010.中国东部新生代陆相断陷盆地层序的构成样式.中南大学学报(自然科学版), 41(1): 277-285. http://www.cnki.com.cn/Article/CJFDTOTAL-ZNGD201001048.htm 武富礼, 李文厚, 李玉宏, 等, 2004.鄂尔多斯盆地上三叠统延长组三角洲沉积及演化.古地理学报, 6(3): 307-315. http://www.cnki.com.cn/Article/CJFDTOTAL-GDLX200403005.htm 吴文祥, 张海翔, 李占东, 等, 2015.层序地层地球化学方法在烃源岩评价中的应用——以海拉尔盆地贝尔凹陷为例.石油与天然气地质, 36(4): 701-710. doi: 10.11743/ogg20150422 谢其锋, 周立发, 刘羽, 2014.伊犁盆地二叠系烃源岩地球化学特征及其地质意义.石油学报, 35(1): 50-57. doi: 10.7623/syxb201401005 杨友运, 张蓬勃, 张忠义, 2005.鄂尔多斯盆地西峰油田长8油组辫状河三角洲沉积特征与层序演化.地质科技情报, 24(1): 45-48. http://www.cnki.com.cn/Article/CJFDTOTAL-DZKQ200501009.htm 姚永坚, 吕彩萍, 康永尚, 等, 2013.东南亚地区烃源岩特征与主控因素.地球科学, 38(2): 367-378. http://earth-science.net/WebPage/Article.aspx?id=2374 张文正, 杨华, 李善鹏, 2008.鄂尔多斯盆地长91湖相优质烃源岩的成藏意义.石油勘探与开发, 35(5): 557-568. http://www.cnki.com.cn/Article/CJFDTOTAL-SKYK200805007.htm 赵彦德, 刘洛夫, 张枝焕, 等, 2008.南堡凹陷古近系层序地层格架中烃源岩分布与生烃特征研究.沉积学报, 26(6): 1077-1085. http://www.cnki.com.cn/Article/CJFDTOTAL-CJXB200806024.htm 朱伟林, 王振峰, 米立军, 等, 2015.南海西沙西科1井层序地层格架与礁生长单元特征.地球科学, 40(4): 677-687. http://earth-science.net/WebPage/Article.aspx?id=3078 -
