Indigenous Iron-Reducing Bacteria and Their Impacts on Arsenic Release in Arsenic-Affected Aquifer in Jianghan Plain
-

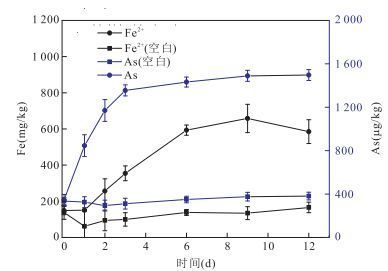

摘要: 微生物参与铁氧化物矿物的还原性溶解是高砷地下水形成的关键过程，其中具有砷还原功能的微生物如何参与含水层砷释放的生物地球化学过程亟待研究.利用从江汉平原典型高砷含水层中厌氧条件下分离出的四株细菌(Citrobacter sp.JH-1、Clostridium sp.JH-6、Exiguobacterium sp.JH-13、Paenibacillus sp.JH-33)，通过室内厌氧模拟培养实验，查明其砷、铁还原能力，并通过分别与铁氧化物矿物及原位沉积物共同培养，探究原位含水层微生物参与的砷释放机理.结果表明：四株细菌均具有厌氧条件下砷、铁还原功能，Citrobacter sp.JH-1砷还原能力最强，96 h内还原的As(Ⅴ)浓度为2.22 μmol/L.其中Citrobacter sp.JH-1不仅可在厌氧和有氧条件下还原溶液中的As(Ⅴ)，还可在厌氧条件下还原溶液中的Fe(Ⅲ)和无定型的水铁矿，在与含水层沉积物共培养12 d后，沉积物中铁与砷的释放量分别为510 mg/kg及1 150 μg/kg.江汉平原含水层中的原位微生物兼具砷/铁还原功能，在厌氧条件下可还原沉积物中的铁氧化物矿物并促进砷的释放，为深入揭示高砷地下水成因机理与地下水砷污染的防控提供重要科学依据.Abstract: Microbial mediated iron-oxide mineral reduction and subsequent arsenic mobilization is the primary cause of arsenic-rich groundwater in south and southeastern Asia, however, the role of iron-reducing and arsenic-reducing microbes isolated from aquifer is not clearly understood. In this study, four strains, Citrobacter sp.JH-1, Clostridium sp.JH-6, Exiguobacterium sp.JH-13 and Paenibacillus sp.JH-33, were isolated from the aquifer in Jianghan plain, which is the typical arsenic-rich aquifer in central China. Each of them was used to identify their ability of arsenate (As(Ⅴ)), ferric iron (Fe(Ⅲ)) and ferrihydrite reduction by batch cultural experiment under aerobic and anaerobic condition. The results indicate that all these four strains can reduce both As(Ⅴ) and Fe(Ⅲ) under anaerobic condition. Among them, the Citrobacter sp.JH-1 possessed the strongest reducing ability for As(Ⅴ), which could reduce 2.22 μmol/L As(Ⅴ) after 96 h, and it could also reduce amorphous iron oxide minerals (ferrihydrite) under aerobic condition. After the cultivation with the sediment sample collected from in situ aquifer, Citrobacter sp.JH-1 could release 510 mg/kg iron and 1 150 μg/kg arsenic into groundwater. These results could provide direct evidence and insights for the cause of arsenic-rich groundwater in Jianghan plain.
-
Key words:
- Jianghan plain /
- function microorganism /
- arsenic reduction /
- iron reduction /
- arsenic release /
- biogeochemistry /
- hydrogeology
-

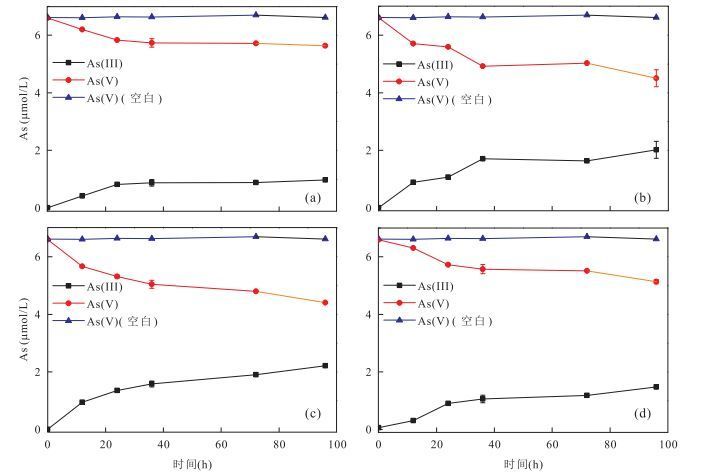

图 1 江汉平原含水层原位分离的四株菌厌氧条件下砷还原能力
Fig. 1. The capacity of arsenic reduction of the four in-situ bacterial strains of Jianghan plain under anaerobic condition
a.Exiguobacterium sp.JH-13;b.Paenibacillus sp.JH-33;c.Citrobacter sp.JH-1;d.Clostridium sp.JH-6

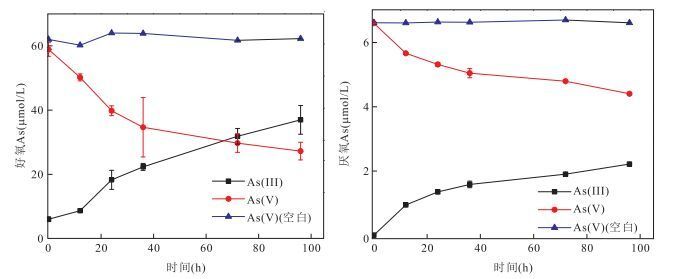

图 2 Citrobacter sp.JH-1好氧条件(a)和厌氧条件(b)下砷还原能力
Fig. 2. The arsenic-reducing ability for Citrobacter sp.JH-1 under underaerobic (a) and anaerobic (b) condition

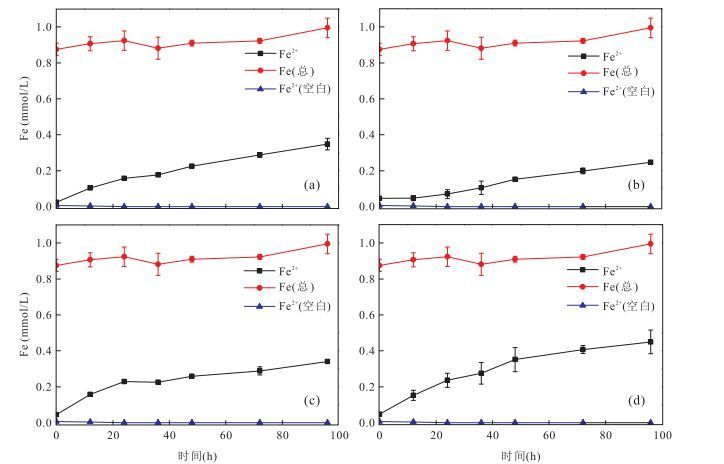

图 3 江汉平原含水层原位分离的四株菌厌氧条件下铁还原能力
Fig. 3. The test about the capacity of iron reduction of the four in-situ bacterial strains of Jianghan plain under anaerobic condition
a.Exiguobacterium sp.JH-13;b.Paenibacillus sp.JH-33;c.Citrobacter sp.JH-1;d.Clostridium sp.JH-6

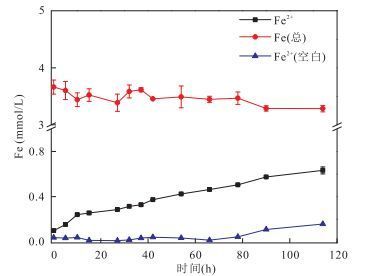

图 4 Citrobacter sp.JH-1厌氧条件下对水铁矿的还原能力
Fig. 4. The test about the the capacity of iron reduction for ferrihydrite of Citrobacter sp.JH-1 under anaerobic condition
-
Ahmann, D., Krumholz, L.R., Hemond, H.F., et al., 1997.Microbial Mobilization of Arsenic from Sediments of the Aberjona Watershed.Environmental Science and Technology, 31(10):2923-2930.doi: 10.1021/es970124k Balch, W.E., Fox, G.E., Magrum, L.J., et al., 1979.Methanogens: Reevaluation of a Unique Biological Group.Microbiological Reviews, 43(2):260-296. http://www.academia.edu/32890096/Methanogens_reevaluation_of_a_unique_biological_group Brammer, H., Ravenscroft, P., 2009.Arsenic in Groundwater:A Threat to Sustainable Agriculture in South and South-East Asia.Environment International, 35(3):647-654.doi: 10.1016/j.envint.2008.10.004 Chang, J.S., Kim, Y.H., Kim, K.W., 2008.The ArsGenotype Characterization of Arsenic-Resistant Bacteria from Arsenic-Contaminated Gold-Silver Mines in the Republic of Korea.Applied Microbiology and Biotechnology, 80(1):155-165.doi: 10.1007/s00253-008-1524-0 Cummings, D.E., Caccavo, F., Fendorf, S., et al., 1999.Arsenic Mobilization by the Dissimilatory Fe (Ⅲ)-Reducing Bacterium Shewanella Alga BrY.Environmental Science and Technology, 33(5):723-729.doi: 10.1021/es980541c Dai, X., Li, P., Tu, J., et al., 2016.Evidence of Arsenic Mobilization Mediated by an Indigenous Iron Reducing Bacterium from High Arsenic Groundwater Aquifer in Hetao Basin of Inner Mongolia, China.International Biodeterioration and Biodegradation(in Press).doi:10.1016/j.ibiod.2016.05.012 Das, S., Liu, C.C., Jean, J.S., et al., 2016.Effects of Microbially Induced Transformations and Shift in Bacterial Community on Arsenic Mobility in Arsenic-Rich Deep Aquifer Sediments.Journal of Hazardous Materials, 310:11-19.doi: 10.1016/j.jhazmat.2016.02.019 Deng, Y.M., Wang, Y.X., Li, H.J., et al., 2015.Seasonal Variation of Arsenic Speciation in Shallow Groundwater from Endemic Arsenicosis Area in Jianghan Plain.Earth Science, 40(11):1876-1886 (in Chinese with English abstract). Dhar, R.K., Zheng, Y., Saltikov, C.W., et al., 2011.Microbes Enhance Mobility of Arsenic in Pleistocene Aquifer Sand from Bangladesh.Environmental Science & Technology, 45(7):2648-2654.doi: 10.1021/es1022015 Duan, Y.H., Gan, Y.Q., Guo, X.X., et al., 2014.Hydrogeochemistry and Arsenic Contamination of Groundwater in the Monitoring Field, Jianghan Plain.Geological Science and Technology Information, 33(2):140-147 (in Chinese with English abstract). Duan, Y.H., Gan, Y.Q., Wang, Y.X., et al., 2015.Temporal Variation of Groundwater Level and Arsenic Concentration at Jianghan Plain, Central China.Journal of Geochemical Exploration, 149:106-119.doi: 10.1016/j.gexplo.2014.12.001 Fendorf, S., Michael, H.A., van Geen, A., 2010.Spatial and Temporal Variations of Groundwater Arsenic in South and Southeast Asia.Science, 328(5982):1123-1127.doi: 10.1126/science.1172974 Gan, Y., Wang, Y., Duan, Y., et al., 2014.Hydrogeochemistry and Arsenic Contamination of Groundwater in the Jianghan Plain, Central China.Journal of Geochemical Exploration, 31(138):81-93.doi: 10.1016/j.gexplo.2013.12.013 Guo, H.M., Tang, X.H., Yang, S.Z., et al., 2008.Effect of Indigenous Bacteria on Geochemical Behavior of Arsenic in Aquifer Sediments from the Hetao Basin, Inner Mongolia:Evidence from Sediment Incubations.Applied Geochemistry, 23(12):3267-3277.doi: 10.1016/j.apgeochem.2008.07.010 Guo, H.M., Tang, X.H., Yang, S.Z., et al., 2009.Indigenous Bacteria-Mediated Release and Transformation of As in Aquifer Sediment from the Hetao Basin, Inner Mongolia.Geoscience, 23(1):86-93(in Chinese with English abstract). Guo, H.M., Yang, S.Z., Shen, Z.L., 2007.High Arsenic Groundwater in the World:Overview and Research Perspectives.Advances in Earth Science, 22(11):1109-1117(in Chinese with English abstract). https://www.researchgate.net/publication/281018109_High_arsenic_groundwater_in_the_world_Overview_and_research_perspectives Guo, X.X., 2014.Arsenic Mobilization and Transport in Shallow Aquifer Systerms of Jianghan Plain, Central China(Dissertation).China University of Geosciences, Wuhan(in Chinese with English abstract). Héry, M., van Dongen, B.E., Gill, F., et al., 2010.Arsenic Release and Attenuation in Low Organic Carbon Aquifer Sediments from West Bengal.Geobiology, 8(2):155-168.doi: 10.1111/j.1472-4669.2010.00233.x Huang, J.H., 2014.Impact of Microorganisms on Arsenic Biogeochemistry:A Review.Water, Air, & Soil Pollution, 225(2):1848.doi: 10.1007/s11270-013-1848-y Huang, J.H., Voegelin, A., Pombo, S.A., et al., 2011.Influence of Arsenate Adsorption to Ferrihydrite, Goethite, and Boehmite on the Kinetics of Arsenate Reduction by Shewanella Putrefaciens Strain CN-32.Environmental Science & Technology, 45(18):7701-7709.doi: 10.1021/es201503g Islam, F.S., Gault, A.G., Boothman, C., et al., 2004.Role of Metal-Reducing Bacteria in Arsenic Release from Bengal Delta Sediments.Nature, 430(6995):68-71.doi: 10.1038/nature02638 Jones, C.A., Langner, H.W., Anderson, K., et al., 2000.Rates of Microbially Mediated Arsenate Reduction and Solubilization.Soil Science Society of America Journal, 64(2):600-608.doi: 10.2136/sssaj2000.642600x Kang, C.G., Li, C.A., Wang, J.T., et al., 2009.Heavy Minerals Characteristics of Sediments in Jianghan Plain and Its Indication to the Forming of the Three Gorges.Earth Science, 34(3):419-427(in Chinese with English abstract). Li, H.M., Deng, Y.M., Luo, L.W., et al., 2015.Geochemistry of High Arsenic Shallow Aquifers Sediment of the Jianghan Plain.Geological Science and Technology Information, 34(3):178-184 (in Chinese with English abstract). Li, Y., 2016.Characterization and Biogeochemical Functions of Indegeneous Microbes in the Hetao Aquifer Systerms, Inner Mongolia(Dissertation).China University of Geosciences, Beijing(in Chinese with English abstract). Liao, V.H.C., Chu, Y.J., Su, Y.C., et al., 2011.Arsenite-Oxidizing and Arsenate-Reducing Bacteria Associated with Arsenic-Rich Groundwater in Taiwan.Journal of Contaminant Hydrology, 123(1-2):20-29.doi: 10.1016/j.jconhyd.2010.12.003 Lu, K.L., Liu, C.W., Liao, V.H.C., et al., 2016a.Distinct Function of Metal-Reducing Bacteria from Sediment and Groundwater in Controlling the Arsenic Mobilization in Sedimentary Aquifer.Journal of Bioremediation and Biodegradation, 7(1):326-335.doi: 10.4172/2155-6199.1000326 Lu, X.L., Wang, N., Wang, H.M., et al., 2016b.Molecular Characterization of the Total Bacteria and Dissimilatory Arsenate-Reducing Bacteria in Core Sediments of the Jianghan Plain, Central China.Geomicrobiology Journal, 14:1-13.doi: 10.1080/01490451.2016.1222468 Luo, Y., Xie, Z.M., Zhou, Y.F., et al., 2013.Bacterial Diversity in High Arsenic Groundwater System of Jianghan Plain by 16S rDNA Clone Library.Asian Journal of Ecotoxicology, 8(2):194-200(in Chinese with English abstract). Mirza, B.S., Muruganandam, S., Meng, X., et al., 2014.Arsenic(Ⅴ) Reduction in Relation to Iron(Ⅲ) Transformation and Molecular Characterization of the Structural and Functional Microbial Community in Sediments of a Basin-Fill Aquifer in Northern Utah.Applied and Environmental Microbiology, 80(10):3198-3208.doi: 10.1128/AEM.00240-14 Ohtsuka, T., Yamaguchi, N., Makino, T., et al., 2013.Arsenic Dissolution from Japanese Paddy Soil by a Dissimilatory Arsenate-Reducing Bacterium Geobacter sp.OR-1.Environmental Science & Technology, 47(12):6263-6271.doi: 10.1021/es400231x Pepi, M., Lobianco, A., Renzi, M., et al., 2009.Two Naphthalene Degrading Bacteria Belonging to the Genera Paenibacillus and Pseudomonas Isolated from a Highly Polluted Lagoon Perform Different Sensitivities to the Organic and Heavy Metal Contaminants.Extremophiles, 13(5):839-848.doi: 10.1007/s00792-009-0271-1 Postma, D., Larsen, F., Hue, N.T.M., et al., 2007.Arsenic in Groundwater of the Red River Floodplain, Vietnam:Controlling Geochemical Processes and Reactive Transport Modeling.Geochimica et Cosmochimica Acta, 71(21):5054-5071.doi: 10.1016/j.gca.2007.08.020 Quan, H.R., Li, J., Wang, Y.E., et al., 2016.Isolation and Characterization of Two Iron-Reducing Bacteria.Guangdong Chemical Industry, 43(18):18-20(in Chinese with English abstract). Radloff, K.A., Cheng, Z.Q., Rahman, M.W., et al., 2007.Mobilization of Arsenic during One-Year Incubations of Grey Aquifer Sands from Araihazar, Bangladesh.Environmental Science & Technology, 41(10):3639-3645.doi: 10.1021/es062903j Ravenscroft, P., Hugh, B., Keith, R., 2011.Arsenic Pollution:A Global Synthesis.Area, 43(1)118-119.doi: 10.1111/j.1475-4762.2010.00983_4.x Rawson, J., Prommer, H., Siade, A., et al., 2016.Numerical Modeling of Arsenic Mobility during Reductive Iron-Mineral Transformations.Environmental Science & Technology, 50(5):2459-2467.doi: 10.1021/acs.est.5b05956 Rodriguez-Lado, L., Sun, G., Berg, M., et al., 2013.Groundwater Arsenic Contamination throughout China.Science, 341(6148):866-868.doi: 10.1126/science.1237484 Saltikov, C.W., Newman, D.K., 2003.Genetic Identification of a Respiratory Arsenate Reductase.Proceedings of the National Academy of Sciences, 100(19):10983-10988.doi: 10.1073/pnas.1834303100 Shamsudduha, M., Uddin, A., Saunders, J.A., et al., 2008.Quaternary Stratigraphy, Sediment Characteristics and Geochemistry of Arsenic-Contaminated Alluvial Aquifers in the Ganges-Brahmaputra Floodplain in Central Bangladesh.Journal of Contaminant Hydrology, 99(1-4):112-136.doi: 10.1016/j.jconhyd.2008.03.010 Smedley, P.L., Kinniburgh, D.G., 2002.A Review of the Source, Behaviour and Distribution of Arsenic in Natural Waters.Applied Geochemistry, 17(5):517-568.doi: 10.1016/s0883-2927(02)00018-5 Sun, Z.Y., Mu, S.B., Ye, X.X., et al., 1995.A Hydroxyl Iron Ore with Microscopic Tubular Structure.Chinese Science Bulletin, 40(23):2196-2198(in Chinese). Tadanier, C.J., Schreiber, M.E., Roller, J.W., 2005.Arsenic Mobilization through Microbially Mediated Deflocculation of Ferrihydrite.Environmental Science & Technology, 39(9):3061-3068.doi: 10.1021/es048206d Tong, L., Li, X.L., Wu, J.N., et al., 2016.Isolation of an Iron-Reducing Bacteria Strain and Its Carbon Source Utilization.Journal of Hefei University of Technology, 39(4):536-542(in Chinese with English abstract). Tufano, K.J., Reyes, C., Saltikov, C.W., et al., 2008.Reductive Processes Controlling Arsenic Retention:Revealing the Relative Importance of Iron and Arsenic Reduction.Environmental Science and Technology, 42(22):8283-8289.doi: 10.1021/es801059s Wang, Y., Liu, X.H., Si, Y.B., et al., 2016.Release and Transformation of Arsenic from As-Bearing Iron Minerals by Fe-Reducing Bacteria.Chemical Engineering Journal, 295:29-38.doi: 10.1016/j.cej.2016.03.027 Weber, K.A., Achenbach, L.A., Coates, J.D., 2006a.Microorganisms Pumping Iron:Anaerobic Microbial Iron Oxidation and Reduction.Nature Reviews Microbiology, 4(10):752-764.doi: 10.1038/nrmicro1490 Weber, K.A., Urrutia, M.M., Churchill, P.F., et al., 2006b.Anaerobic Redox Cycling of Iron by Freshwater Sediment Microorganisms.Environmental Microbiology, 8(1):100-113.doi: 10.1111/j.1462-2920.2005.00873.x Weeger.W., Lievremont, D., Perret, M., et al., 1999.Oxidation of Arsenite to Arsenate by a Bacterium Isolated from an Aquatic Environment.Biometals, 12(2):141-149.doi: 10.1023/A:1009255012328 Xu, S., 2013.Microbial Diversity and Responses of Arsenic Resistance Genes to the Environment of High-Arsenic Groundwater in Datong Basin, Northern China(Dissertation).China University of Geosciences, Wuhan(in Chinese with English abstract). Xu, S., Su, C.L., Feng, L., et al., 2013.Community Structure of Culturable Arsenic-Resistant Microorganisms in High Arsenic Groundwater of Datong Basin.Asian Journal of Ecotoxicology, 8(2):207-214(in Chinese with English abstract). Yamamura, S., Amachi, S., 2014.Microbiology of Inorganic Arsenic:From Metabolism to Bioremediation.Journal of Bioscience and Bioengineering, 118(1):1-9.doi: 10.1016/j.jbiosc.2013.12.011 Yang, H., Wang, Y.X., Xie, X.J., et al., 2011.Reduction of Arsenic in Groundwater from Hetao Plain with the Involvement of Indigenous Microbes.Earth Science, 36(3):594-598(in Chinese with English abstract). Yang, H., Xie, X.J., Duan, M.Y., 2014.Effect of Indigenous Bacteria Activity on the Release of Arsenic from Sediment in Different Anaerobic Environment.Environmental Science & Technology, 37(6):44-48(in Chinese with English abstract). Yang, J., Zhu, Y.G., 2009.Progress in Study of Mechanisms of Microbial Arsenic Transformation in Environment.Asian Journal of Ecotoxicology, 4(6):761-769(in Chinese with English abstract). Zhang, L.P., Xie, X.J., Li, J.X., et al., 2013.Hydrochemical and Geochemical Investigations on High Arsenic Groundwater from Datong Basin, Northern China.Asian Journal of Ecotoxicology, 8(2):215-221(in Chinese with English abstract). Zhang, X.X., Jia, Y.F., Pan, R.R., et al., 2009.Microbial Reduction and Mobilization of Adsorbed Arsenate on Ferric/Aluminum Hydroxides.Environmental Science, 30(3):755-760(in Chinese with English abstract). http://www.oalib.com/paper/1586668 Zheng, T.L., 2015.Isolation and Identification of Arsenate Reducing Bacteria from Arsenic-Affected Aquifer in the Jianghan Plain, China(Dissertation).China University of Geosciences, Wuhan(in Chinese with English abstract). 邓娅敏, 王焰新, 李慧娟, 等, 2015.江汉平原砷中毒病区地下水砷形态季节性变化特征.地球科学, 40(11):1876-1886. http://www.earth-science.net/WebPage/Article.aspx?id=3194 段艳华, 甘义群, 郭欣欣, 等, 2014.江汉平原高砷地下水监测场水化学特征及砷富集影响因素分析.地质科技情报, 33(2):140-147. http://www.cnki.com.cn/Article/CJFDTOTAL-DZKQ201402024.htm 郭华明, 唐小惠, 杨素珍, 等, 2009.土著微生物作用下含水层沉积物砷的释放与转化.现代地质, 23(1):86-93. http://www.cnki.com.cn/Article/CJFDTOTAL-XDDZ200901013.htm 郭华明, 杨素珍, 沈照理, 2007.富砷地下水研究进展.地球科学进展, 22(11):1109-1117. http://www.cnki.com.cn/Article/CJFDTOTAL-DXJZ200711003.htm 郭欣欣, 2014. 江汉平原浅层含水层系统中砷释放与迁移过程研究(博士学位论文). 武汉: 中国地质大学. 康春国, 李长安, 王节涛, 等, 2009.江汉平原沉积物重矿物特征及其对三峡贯通的指示.地球科学, 34(3):419-427. http://www.earth-science.net/WebPage/Article.aspx?id=1845 李红梅, 邓娅敏, 罗莉威, 等.2015.江汉平原高砷含水层沉积物地球化学特征.地质科技情报, 34(3):178-184. http://www.cnki.com.cn/Article/CJFDTOTAL-DZKQ201503025.htm 李媛, 2016. 内蒙古河套盆地高砷含水系统的微生物特征及生物地球化学效应(博士学位论文). 北京: 中国地质大学. 罗艳, 谢作明, 周义芳, 等, 2013.16S rDNA克隆文库解析江汉平原高砷地下水系统中的细菌多样性.生态毒理学报, 8(2):194-200. http://www.cnki.com.cn/Article/CJFDTOTAL-STDL201302010.htm 权海荣, 李杰, 王亚娥, 等, 2016.两株铁还原菌的分离鉴定及特性研究.广东化工, 43(18):18-20. http://www.cnki.com.cn/Article/CJFDTOTAL-GDHG201618009.htm 孙振亚, 牟善彬, 叶先贤, 等, 1995.一种显微管状构造的羟铁矿.科学通报, 40(23):2196-2198. http://www.cnki.com.cn/Article/CJFDTOTAL-KXTB199523023.htm 童磊, 李湘凌, 吴纪南, 等, 2016.一株铁还原菌的分离及其碳源利用特性研究.合肥工业大学学报(自然科学版), 39(4):536-542. http://cdmd.cnki.com.cn/Article/CDMD-10359-1015666371.htm 许珊, 2013. 大同盆地地下水环境中微生物的多样性及抗砷基因对环境的响应(硕士学位论文). 武汉: 中国地质大学. 许珊, 苏春利, 冯亮, 等, 2013.大同盆地高砷地下水中可培养耐砷微生物的群落结构.生态毒理学报, 8(2):207-214. http://www.cnki.com.cn/Article/CJFDTOTAL-STDL201302012.htm 杨会, 王焰新, 谢先军, 等, 2011.土著微生物参与下河套平原地下水中砷的还原作用.地球科学, 36(3):594-598. http://www.earth-science.net/WebPage/Article.aspx?id=2123 杨会, 谢先军, 段萌语, 2014.不同厌氧环境下土著微生物对沉积物砷释放的影响.环境科学与技术, 37(6):44-48. http://www.cnki.com.cn/Article/CJFDTOTAL-FJKS201406008.htm 杨婧, 朱永官, 2009.微生物砷代谢机制的研究进展.生态毒理学报, 4(6):761-769. http://www.cnki.com.cn/Article/CJFDTOTAL-STDL200906001.htm 张丽萍, 谢先军, 李俊霞, 等, 2013.大同盆地富砷地下水的水化学与地球化学研究.生态毒理学报, 8(2):215-221. http://www.cnki.com.cn/Article/CJFDTOTAL-STDL201302013.htm 张雪霞, 贾永锋, 潘蓉蓉, 等, 2009.微生物作用引起的铁铝氢氧化物吸附砷的还原与释放机制研究.环境科学, 30(3):755-760. http://www.cnki.com.cn/Article/CJFDTOTAL-HJKZ200903021.htm 郑天亮, 2015. 江汉平原高砷含水层厌氧砷还原微生物分离鉴定及其功能研究(博士学位论文). 武汉: 中国地质大学. -
