    鄂西丹江口水库区域周边断裂构造解析及特征

    林松 唐启家 李媛 罗登贵 廖武林 王秋良

    林松, 唐启家, 李媛, 罗登贵, 廖武林, 王秋良, 2017. 鄂西丹江口水库区域周边断裂构造解析及特征. 地球科学, 42(10): 1830-1841. doi: 10.3799/dqkx.2017.555
    引用本文: 林松, 唐启家, 李媛, 罗登贵, 廖武林, 王秋良, 2017. 鄂西丹江口水库区域周边断裂构造解析及特征. 地球科学, 42(10): 1830-1841. doi: 10.3799/dqkx.2017.555
    Lin Song, Tang Qijia, Li Yuan, Luo Denggui, Liao Wulin, Wang Qiuliang, 2017. Analysis and Characteristics of Faults around Danjiangkou Reservoir, West Hubei Province. Earth Science, 42(10): 1830-1841. doi: 10.3799/dqkx.2017.555
    Citation: Lin Song, Tang Qijia, Li Yuan, Luo Denggui, Liao Wulin, Wang Qiuliang, 2017. Analysis and Characteristics of Faults around Danjiangkou Reservoir, West Hubei Province. Earth Science, 42(10): 1830-1841. doi: 10.3799/dqkx.2017.555

    鄂西丹江口水库区域周边断裂构造解析及特征

    doi: 10.3799/dqkx.2017.555
    基金项目:

    中国地震局社会公益研究项目 1521401800062

    中央高校基本科研业务费专项资金 G1323531509

    国家自然科学基金青年基金项目 41404039

    详细信息
      作者简介:

      林松(1982-),男,工程师,硕士,主要研究方向为工程地震、工程物探

      通讯作者:

      唐启家

    • 中图分类号: P315

    Analysis and Characteristics of Faults around Danjiangkou Reservoir, West Hubei Province

    • 摘要: 鄂西地区位于中国大陆构造演化的关键节点上,地质构造十分复杂,而其中的丹江口水库区域更是我国南水北调工程的核心区域.在此处开展断裂构造研究对于深化南水北调工程的地震安全系统的建设具有重要意义.利用浅层地震反射波勘探技术对丹江口水库周边的3条主要断裂,即丹江、两郧和白河-谷城断裂进行分析,将各断裂内的断层构造进行地震剖面成像,得到了0~300 m深度范围内的断层结构特征.研究结果显示,3条断裂内的断层多为北东走向,丹江和白河-谷城断裂内的断层型态以正断层为主,但两郧断裂以逆断层为主,此特征可能与水库蓄水后,局部应力分布受到影响有关.研究成果不仅刻画出鄂西丹江口地区的断层形态,同时也对将来深入剖析此区域内背景应力及其周边构造单元之间的关系提供了重要的地震学参考资料.

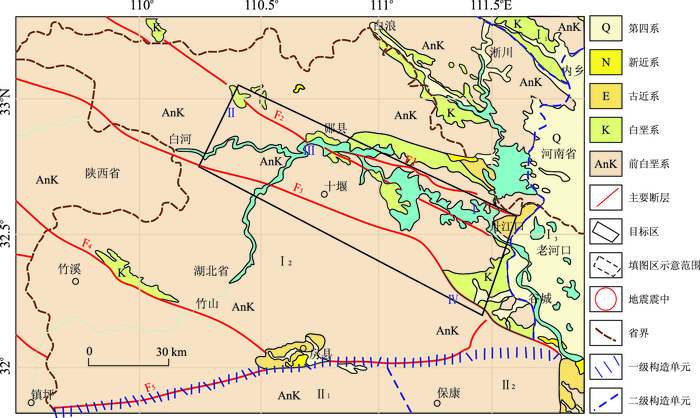

    • 图  1  研究区域地质构造简图

      F1.丹江断裂;F2.两郧断裂;F3.白河-谷城断裂;Ⅰ.赵岗测线;Ⅱ.郧西盆地测线;Ⅲ.郧县盆地测线;Ⅳ.潭口水库测线;Ⅰ1.中秦岭褶皱带;Ⅰ2.南秦岭褶皱带;Ⅰ3.南襄断陷;Ⅱ1.上扬子台褶带;Ⅱ2.鄂中褶断

      Fig.  1.  A diagram of geological structures in the study area

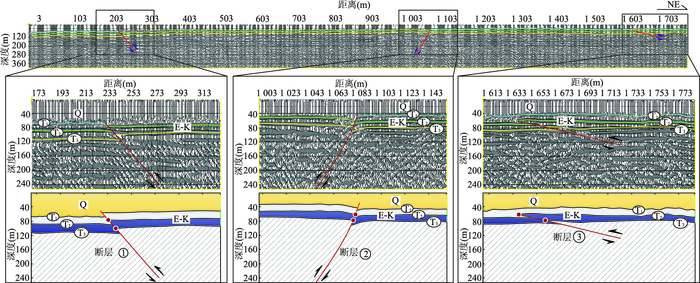

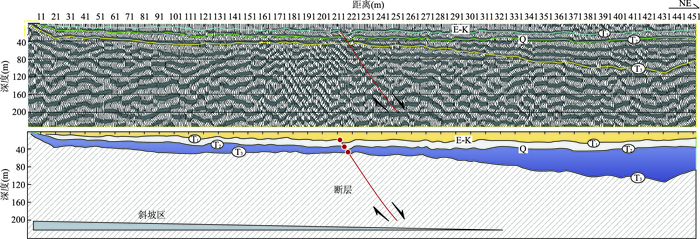

      图  2  丹江断裂浅层地震深度剖面及地质解译图(赵岗测线Ⅰ)

      Fig.  2.  Geological and fault structures in the Danjiang fault zone (Zhaogang arrat Ⅰ)

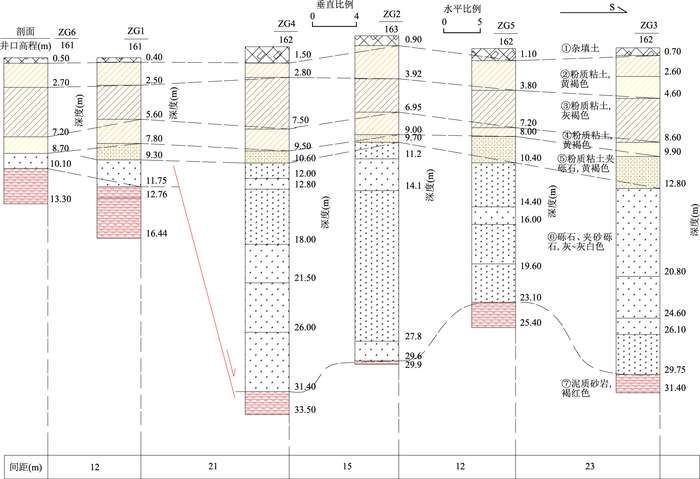

      图  3  丹江断裂赵岗Ⅰ测线钻孔联合剖面

      Fig.  3.  Combined borehole section in the Danjiang rupture zone(Zhaogang array Ⅰ)

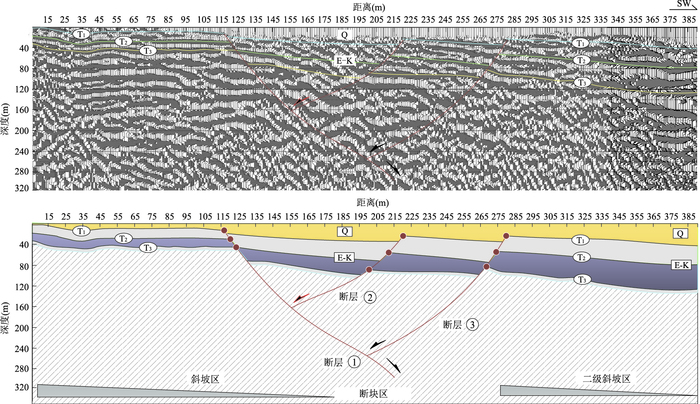

      图  4  丹江断裂浅层地震深度剖面及地质解译图(赵岗测线Ⅱ)

      Fig.  4.  Geological and fault structures in the Danjiang rupture zone (Zhaogang array Ⅱ)

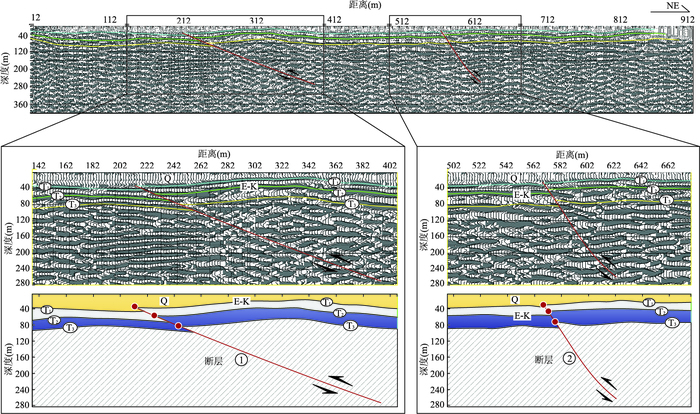

      图  5  两郧断裂浅层地震深度剖面及地质解译图(郧县盆地柳陂测线)

      Fig.  5.  Geological and fault structures in the Liangyun fault zone (Liubei part of Yunxian basin array)

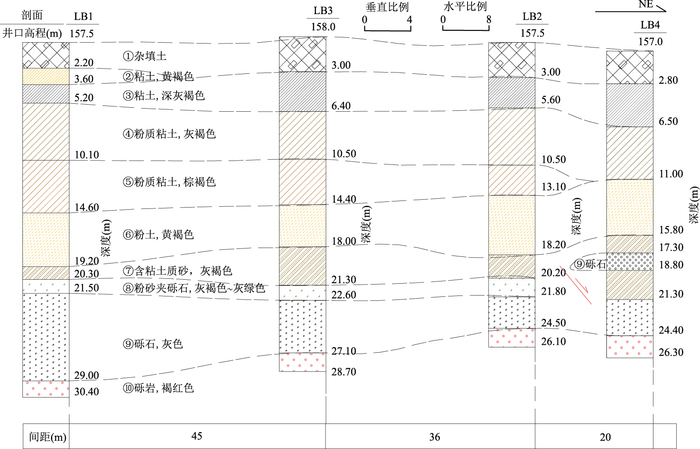

      图  6  两郧断裂柳陂测线钻孔联合剖面

      Fig.  6.  Combined borehole section in the Liangyun fault zone (Liubei array)

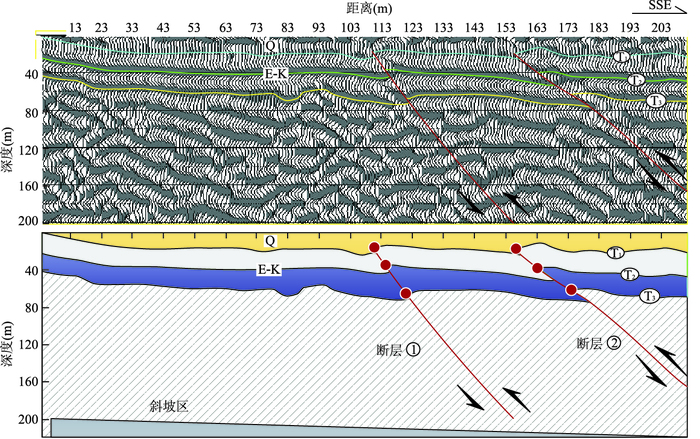

      图  7  两郧断裂浅层地震深度剖面及地质解译图(郧县盆地张家槽测线)

      Fig.  7.  Geological and fault structures in the Liangyun fault zone (Zhangjiacao part of Yunxian basin array)

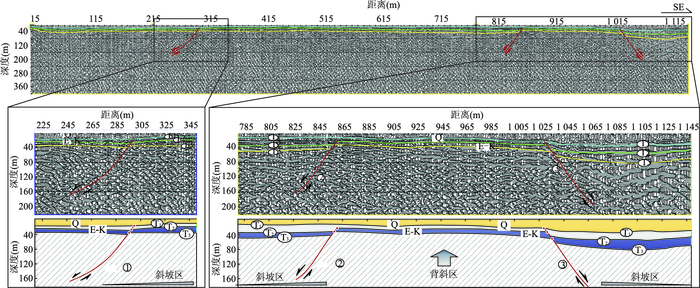

      图  8  两郧断裂-浅层地震深度剖面及地质解译图(郧西盆地四堰坪测线)

      Fig.  8.  Geological and fault structures in the Liangyun fault zone (Siyanping array in Yunxi basin)

      图  9  白河-谷城断裂浅层地震深度剖面及地质解译图(潭口水库测线)

      Fig.  9.  Geological and fault structures in the Baihe-Gucheng zone (Tankou reservoir array)

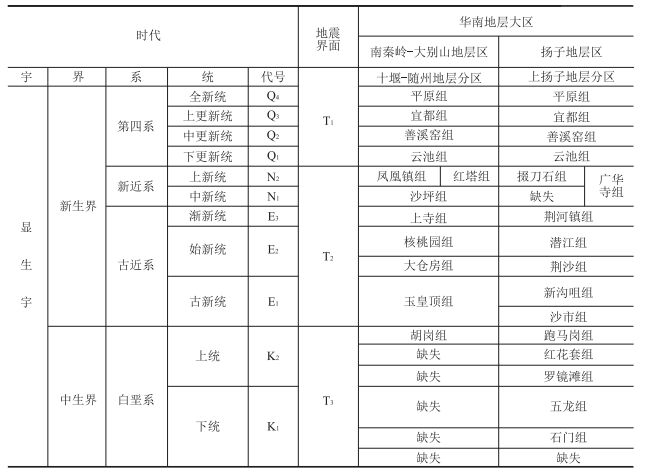

      表  1  研究区域地层系统划分

      Table  1.   The stratigraphic classfication in the study area

      表  2  几种介质的物性参数

      Table  2.   Physical parameters of several media

      介质名称 密度(g/cm3) P波速度(m/s)
      粉质粘土 1.4 450~800
      砂砾石 2.0 500~1500
      砾岩 1.5~2.4 1 500~3 500
      粉砂岩 2.1~3.3 1 500~2 500
      灰岩 2.3~3.3 2 500~6 000
      花岗岩 26~2.75 4 500~6 500
      下载: 导出CSV

      表  3  研究区域内测线信息

      Table  3.   Data of measuring line in the study area

      测线名称测线起点位置坐标 测线终点位置坐标测线长度
      (m)
      纬度(°) 经度(°) 纬度(°) 经度(°)
      赵岗测线Ⅰ 32.54310 111.6624 32.53944 111.6613446
      赵岗测线Ⅱ 32.54064 111.6626 32.53080 111.66591 178
      柳陂测线 32.82233 110.7521 32.82714 110.76071 012
      张家槽测线 32.83897 110.7157 32.85303 110.72631 856
      四堰坪测线 33.01753 110.4371 33.01537 110.4369238
      潭口水库测线 32.25109 111.4151 32.25437 111.4183478
      下载: 导出CSV

      表  4  浅层反射结果统计

      Table  4.   Shallow reflection results

      剖面名称测线名称断点位置(m)推测断距(m)断点埋深(m)倾向错断性质
      丹江断裂赵岗测线Ⅰ1201012南西正断
      2201025北东正断
      2801020北东正断
      赵岗测线Ⅱ295530北东正断
      8651020北东正断
      10301032南西正断
      两郧断裂
      郧县盆地
      柳陂测线210340北东逆断
      565320北东逆断
      张家槽测线2251075北东逆断
      10801050南西逆断
      16201060北东逆断
      两郧断裂
      郧西盆地
      四堰坪测线110520南西逆断
      155518南西逆断
      白河-谷城断裂潭口水库测线210320北东正断
      下载: 导出CSV
    • [1] Chen, S.J., Liu, S.W., Yao, Y.S., et al., 2004.Research on Structural Analysis and Quaternary Slip Rate of Liangyun Fault.Journal of Geodesy and Geodynamics, 24(3):60-66 (in Chinese with English abstract).
      [2] Deng, K., Zhou, S., Wang, R., et al., 2010.Evidence that the 2008 Mw7.9 Wenchuan Earthquake could not have been Induced by the Zipingpu Reservoir.Bulletin of the Seismological Society of America, 100(5B):2805-2814. doi: 10.1785/0120090222
      [3] Dong, Y.P., Zha, X.F., Fu, M.Q., et al., 2008.Characteristics of the Dabashan Fold-Thrust Nappe Structure at the Southern Margin of the Qinling, China.Geological Bulletin of China, 27(9):1493-1508 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-ZQYD200809013.htm
      [4] Feng, X.D., Yue, X.X., Wang, Y.F., et al., 2015.Discussion on Genesis of Induced Earthquake Based on Focal Mechanism in Xiangjiaba Reservoir Region.Seismology and Geology, 37(2):565-575 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-DZDZ201502018.htm
      [5] Ge, S., Liu, M., Lu, N., et al., 2009.Did the Zipingpu Reservoir Trigger the 2008 Wenchuan Earthquake?Geophysical Research Letters, 36(20):146-158. doi: 10.1029/2009GL040349/full?scrollTo=references
      [6] He, Z.L., Wang, X.W., Li, S.J., et al., 2011.Yanshan Movement and Its Influence on Petroleum Preservation in Middle-Upper Yangtze Region.Petroleum Geology & Experiment, 33(1):1-11 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-SYSD201101003.htm
      [7] Hu, R., Li, S.Q., Wang, W., et al., 2016.Source Characteristics of Tillite of the Nantuo Formation in Three Gorges, Northern Yangtze Block:Evidences from Zircon Ages and Geochemical Composition.Earth Science, 41(10):1630-1654 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DQKX201610002.htm
      [8] Huang, J.Q., Ren, J.S., Jiang, C.F., et al., 1977.The Basic Outline of Tectonics in China.Chinese Journal of Geology, (2):117-135 (in Chinese with English abstract).
      [9] Jiang, W.P., Meng, X.M., 2008.Application of Seismic Reflection Method in Shallow Layer Prospecting.Coal Geology of China, 20(9):59-60, 67 (in Chinese with English abstract). doi: 10.1088/1742-2132/1/1/002
      [10] Lei, D.N., Cai, Y.J., Qiao, Y.Q., et al., 2012.Study on Tectonic Deformation and Quatenary Activity of Middle Segment of Baihe-Gucheng Fault Belt.Journal of Geodesy and Geodynamics, 32(5):41-47 (in Chinese with English abstract). http://www.oalib.com/paper/1554047
      [11] Li, Y.H., Cui, D.X., Hao, M., 2015.GPS-Constrained Inversion of Slip Rate on Major Active Faults in the Northeastern Margin of Tibet Plateau.Earth Science, 40(10):1767-1780 (in Chinese with English abstract). doi: 10.1007/s11430-008-0106-4
      [12] Li, Z.W., 1981.A Discussion about the Forming Conditions and Developing Trend of the Earthquake in the Danjiangkou Reservoir Area.Northwestern Seismological Journal, 3(2):78-88 (in Chinese with English abstract).
      [13] Liu, S., Steel, R., Zhang, G., 2005.Mesozoic Sedimentary Basin Development and Tectonic Implication, Northern Yangtze Block, Eastern China, Record of Continent-Continent Collision.Journal of Asian Earth Sciences, (25): 9-27. http://linkinghub.elsevier.com/retrieve/pii/S1367912004000495
      [14] Liu, S.M., Xu, L.H., 2004.Numerical Stimulation of Tectonic Stress Field at Danjiangkou Reservoir Area.Chinese Journal of Rock Mechanics and Engineering, 23(23):4017-4021 (in Chinese with English abstract).
      [15] Liu, S.W., Ding, Z.X., 1990.Earthquake Record of Hubei Province.Seismological Press, Beijing (in Chinese).
      [16] Luo, J.H., Ma, W.T., 2016.A Preliminary Study on Upper Crustal Velocity Structure in the Three Gorges Reservoir Area.Seismology and Geology, 38(2):329-341 (in Chinese with English abstract).
      [17] Mei, B., Xu, T., Zhang, Y., 2013.P-and S-Velocity Structure beneath the Three Gorges Region (Central China) from Local Earthquake Tomography.Geophysical Journal International, 193(2):1035-1049.doi: 10.1093/gji/ggt047
      [18] Qiu, R.Z., Li, T.D., Zhou, S., et al., 2006.Material Composition and Evolution of Lithosphere in Mainland China.Geological Publishing House, Beijing (in Chinese).
      [19] Tian, Y., Xie, G.G., Wang, L.Z., et al., 2015.Provenance and Tectonic Settings of Triassic Xujiahe Formation in Qiyueshan Area, Southwest Hubei:Evidence from Petrology, Geochemistry and Zircon U-Pb Ages of Clastic Rocks.Earth Science, 40(12):2021-2036 (in Chinese with English abstract).
      [20] van der Elst, N.J., Savage, H.M., Keranen, K.M., et al., 2013.Enhanced Remote Earthquake Triggering at Fluid-Injection Sites in the Midwestern United States.Science, 341(341):164-167.doi: 10.1126/science.1238948
      [21] Wang, Q., Zhang, P.Z., Freymueller, J.T., et al., 2001.Present-Day Crustal Deformation in China Constrained by Global Positioning System Measurements.Science, 294(5542):574-577.doi: 10.1126/science.1063647
      [22] Wang, Q.Y., Gao, S.J., 2003.Research of Induced Earthquake at Danjiangkou Reservoir.Journal of Geodesy and Geodynamics, 23(1):103-106 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DZYJ200902001.htm
      [23] Wang, Z.D., 1988.Applied Technology of Shallow Seismic Exploration.Geological Publishing House, Beijing (in Chinese).
      [24] Weingarten, M., Ge, S., Godt, J.W., et al., 2015.High-Rate Injection is Associated with the Increase in U.S.Mid-Continent Seismicity.Science, 348(6241):1336-1340.doi: 10.1126/scienk.aab1345
      [25] Wu, S.R., 1994.Study on the Microstructures and Deformational Environment of Xiannushan Fault Belt, East of Yangtze River Gorges.Scientia Geologica Sinica, 29(3):220-227 (in Chinese with English abstract).
      [26] Xia, J.W., Li, C.A., Zeng, X.P., et al., 2008.Study on Characteristics and Seismic Activity of Gaoqiao Fault in Head Area of Three Gorges Reservoir.Journal of Geodesy and Geodynamics, 28(2):8-15 (in Chinese with English abstract). http://linkinghub.elsevier.com/retrieve/pii/S1674984715300070
      [27] Yuan, X.C., Hua, J.R., 2011.3D Lithospheric Structure of South China.Geology in China, 38(1):1-19 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-DIZI201101002.htm
      [28] Zhang, G.W., Meng, Q.R., Lai, S.C., 1995.Structural Framework of the Qinling Mountains Orogenic Belt.Science in China (Series B), 25 (9):994-1003 (in Chinese).
      [29] Zhang, G.W., Meng, Q.R., Yu, Z.P., et al., 1996.Orogenic Process and Dynamic Characteristics of the Qinling Mountains Orogenic Belt.Science China Earth Sciences, 26(3):193-200 (in Chinese).
      [30] Zhang, Z., Bai, Z., Mooney, W., et al., 2009.Crustal Structure across the Three Gorges Area of the Yangtze Platform, Central China, from Seismic Refraction/Wideangle Reflection Data.Tectonophysics, 475(3-4):423-437.doi: 10.1016/j.tecto.2009.05.022
      [31] Zhang, Z., Yang, L., Teng, J., et al., 2011.An Overview of the Earth Crust under China.Earth-Science Reviews, 104(1-3):143-166.doi: 10.1016/j.tecto.2009.05.022
      [32] Zou, Z., Zhou, H.W., Gurrola, H., 2014.Teleseismic Virtual-Source Imaging of the Basin Structures in the Three Gorges Region, China.Bulletin of the Seismological Society of America, 104(4):2141-2147. doi: 10.1785/0120130110
      [33] Zulifeiya, N., Maimaiti, Y., Wang, A.Q., et al., 2011.Analysis on Heteropical Characteristics of Cross-Fault Vertical Deformation Variation Speed in Kezir Reservoirs Dam.Inland Earthquake, 25(2):152-157 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-LLDZ201102008.htm
      [34] 陈蜀俊, 刘锁旺, 姚运生, 等, 2004.两郧断裂构造解析与第四纪滑动速率研究.大地测量与地球动力学, 24(3): 60-66. http://www.cnki.com.cn/Article/CJFDTOTAL-DKXB200403012.htm
      [35] 董云鹏, 查显峰, 付明庆, 等, 2008.秦岭南缘大巴山褶皱-冲断推覆构造的特征.地质通报, 27(9): 1493-1508. http://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD200809013.htm
      [36] 冯向东, 岳秀霞, 王曰凤, 等, 2015.由向家坝水库震源机制解探讨诱发地震的成因.地震地质, 37(2): 565-575. http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ201502018.htm
      [37] 何治亮, 汪新伟, 李双建, 等, 2011.中上扬子地区燕山运动及其对油气保存的影响.石油实验地质, 33(1): 1-11. doi: 10.11781/sysydz201101001
      [38] 胡蓉, 李双庆, 王伟, 等, 2016.扬子北部三峡地区南沱组冰碛岩的物源特征:锆石年龄和地球化学证据.地球科学, 41(10): 1630-1654. http://www.cnki.com.cn/Article/CJFDTOTAL-DQKX201610002.htm
      [39] 黄汲清, 任纪舜, 姜春发, 等, 1977.中国大地构造基本轮廓.地质学报, (2): 117-135. http://www.cnki.com.cn/Article/CJFDTOTAL-DZXE197702002.htm
      [40] 蒋维平, 孟宪民, 2008.地震反射波法在浅层勘探中的应用.中国煤炭地质, 20(9): 59-60, 67. http://www.cnki.com.cn/Article/CJFDTOTAL-ZGMT200809016.htm
      [41] 雷东宁, 蔡永建, 乔岳强, 等, 2012.白河-谷城断裂带中段构造变形特征与第四纪活动性.大地测量与地球动力学, 32(5): 41-47. http://www.cnki.com.cn/Article/CJFDTOTAL-DKXB201205010.htm
      [42] 李煜航, 崔笃信, 郝明, 2015.利用GPS数据反演青藏高原东北缘主要活动断裂滑动速率.地球科学, 40(10): 1767-1780. http://www.earth-science.net/WebPage/Article.aspx?id=3177
      [43] 李祖武, 1981.丹江口水库区地震的形成条件与发展趋势的讨论.西北地震学报, 3(2): 78-88. http://www.cnki.com.cn/Article/CJFDTOTAL-ZBDZ198102010.htm
      [44] 刘素梅, 徐礼华, 2004.丹江口水库区构造应力场的数值模拟.岩石力学与工程学报, 23(23): 4017-4021. doi: 10.3321/j.issn:1000-6915.2004.23.018
      [45] 刘锁旺, 丁忠孝, 1990.湖北省地震志.北京:地震出版社.
      [46] 罗佳宏, 马文涛, 2016.三峡库区上地壳速度结构初步研究.地震地质, 38(2): 329-341. http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ201602008.htm
      [47] 邱瑞照, 李廷栋, 周肃, 等, 2006.中国大陆岩石圈物质组成及演化.北京:地质出版社.
      [48] 田洋, 谢国刚, 王令占, 等, 2015.鄂西南齐岳山须家河组物源及构造背景:来自岩石学、地球化学和锆石年代学的制约.地球科学, 40(12): 2021-2036. http://www.earth-science.net/WebPage/Article.aspx?id=3206
      [49] 王清云, 高士钧, 2003.丹江口水库诱发地震研究.大地测量与地球动力学, 23(1): 103-106. http://cdmd.cnki.com.cn/Article/CDMD-10497-2002111874.htm
      [50] 王振东, 1988.浅层地震勘探应用技术.北京:地质出版社.
      [51] 吴树仁, 1994.长江三峡仙女山断层带微构造及变形环境探讨.地质科学, 29(3): 220-227. http://www.cnki.com.cn/Article/CJFDTOTAL-DZKX403.001.htm
      [52] 夏金梧, 李长安, 曾新平, 等, 2008.三峡工程库首区高桥断裂特征与地震活动性研究.大地测量与地球动力学, 28(2): 8-15. http://www.cnki.com.cn/Article/CJFDTOTAL-DKXB200802003.htm
      [53] 袁学诚, 华九如, 2011.华南岩石圈三维结构.中国地质, 38(1): 1-19. http://www.cnki.com.cn/Article/CJFDTOTAL-DGYK200304001.htm
      [54] 张国伟, 孟庆任, 赖绍聪, 1995.秦岭造山带的结构构造.中国科学(B辑), 25(9): 994-1003. http://www.cnki.com.cn/Article/CJFDTOTAL-SXDY199702000.htm
      [55] 张国伟, 孟庆任, 于在平, 等, 1996.秦岭造山带的造山过程及其动力学特征.中国科学:地球科学, 26(3): 193-200. http://www.cnki.com.cn/Article/CJFDTOTAL-JDXK199603000.htm
      [56] 祖丽菲亚·尼亚孜, 买买提·伊布拉音, 王爱倩, 等, 2011.克孜尔水库跨断层形变变化速率的非均匀性特征分析.内陆地震, 25(2): 152-157. http://www.cnki.com.cn/Article/CJFDTOTAL-LLDZ201102008.htm
