    双滑脱层强度对博格达山北缘构造变形的影响:基于离散元数值模拟

    屈梦雪 程晓敢 田禾丰 陈汉林 于洪洲 陈昌锦 孙思瑶

    屈梦雪, 程晓敢, 田禾丰, 陈汉林, 于洪洲, 陈昌锦, 孙思瑶, 2023. 双滑脱层强度对博格达山北缘构造变形的影响:基于离散元数值模拟. 地球科学, 48(4): 1366-1378. doi: 10.3799/dqkx.2022.228
    引用本文: 屈梦雪, 程晓敢, 田禾丰, 陈汉林, 于洪洲, 陈昌锦, 孙思瑶, 2023. 双滑脱层强度对博格达山北缘构造变形的影响:基于离散元数值模拟. 地球科学, 48(4): 1366-1378. doi: 10.3799/dqkx.2022.228
    Qu Mengxue, Cheng Xiaogan, Tian Hefeng, Chen Hanlin, Yu Hongzhou, Chen Changjin, Sun Siyao, 2023. Effect of Double-Décollement Strength on Structure Deformation in Northern Bogda Mountain Using Discrete Element Numerical Simulation. Earth Science, 48(4): 1366-1378. doi: 10.3799/dqkx.2022.228
    Citation: Qu Mengxue, Cheng Xiaogan, Tian Hefeng, Chen Hanlin, Yu Hongzhou, Chen Changjin, Sun Siyao, 2023. Effect of Double-Décollement Strength on Structure Deformation in Northern Bogda Mountain Using Discrete Element Numerical Simulation. Earth Science, 48(4): 1366-1378. doi: 10.3799/dqkx.2022.228

    双滑脱层强度对博格达山北缘构造变形的影响:基于离散元数值模拟

    doi: 10.3799/dqkx.2022.228
    基金项目:

    国家重点研发计划 2019YFC0605501

    国家自然科学基金 41720104003

    详细信息
      作者简介:

      屈梦雪(1998-),女,硕士研究生,主要从事褶皱冲断带构造研究.ORCID:0000-0002-0475-4059. E-mail:22038017@zju.edu.cn

      通讯作者:

      程晓敢,ORCID:0000-0002-0295-2158. E-mail: chengxg@zju.edu.cn

    • 中图分类号: P542

    Effect of Double-Décollement Strength on Structure Deformation in Northern Bogda Mountain Using Discrete Element Numerical Simulation

    • 摘要: 博格达山北缘褶皱冲断带以横向分段、纵向分层、多期构造变形叠加、先存构造发育为主要特征,发育有中侏罗统西山窑组和下侏罗统八道湾组两套滑脱层,为探究这两套滑脱层内聚力强度差异及先存构造对冲断带新生代构造变形的影响,研究采用离散元数值模拟方法,在布设先存构造的基础上设计了无滑脱层模型和不同内聚力强度组合的双滑脱层模型共5组数值模拟实验.实验结果表明:双滑脱层内聚力强度相同时,上滑脱层在应力传播中占据优势;双滑脱层内聚力强度不同时,应力会优先沿弱内聚力滑脱层传递,且当下滑脱层内聚力较弱时,上滑脱层可能不发挥作用.通过对比实验结果与实际地质剖面,认为先存构造控制了冲断带构造变形的总体样式,而两套滑脱层共同控制了冲断带纵向上的变形解耦,上部滑脱层内聚力弱于下部滑脱层是影响研究区新生代构造变形的关键性因素.

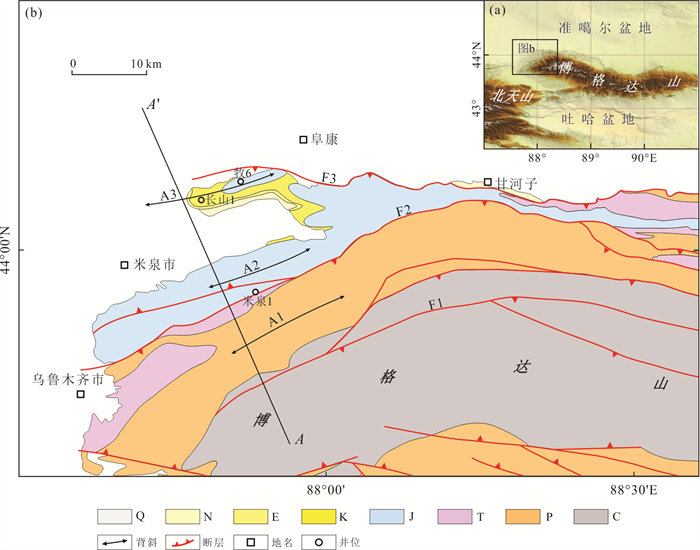

    • 图  1  博格达山西段地质构造简图

      F1.三工河断裂; F2.妖魔山断裂: F3.阜康断裂; A1.苦坝沟背斜; A2.七道湾背斜; A3.古牧地背斜;a.研究区的大地构造位置;b博格达山西段构造纲要简图,修改自Chen et al.(2015)马德龙等(2017)

      Fig.  1.  Simple geological map of west Bogda Mountain

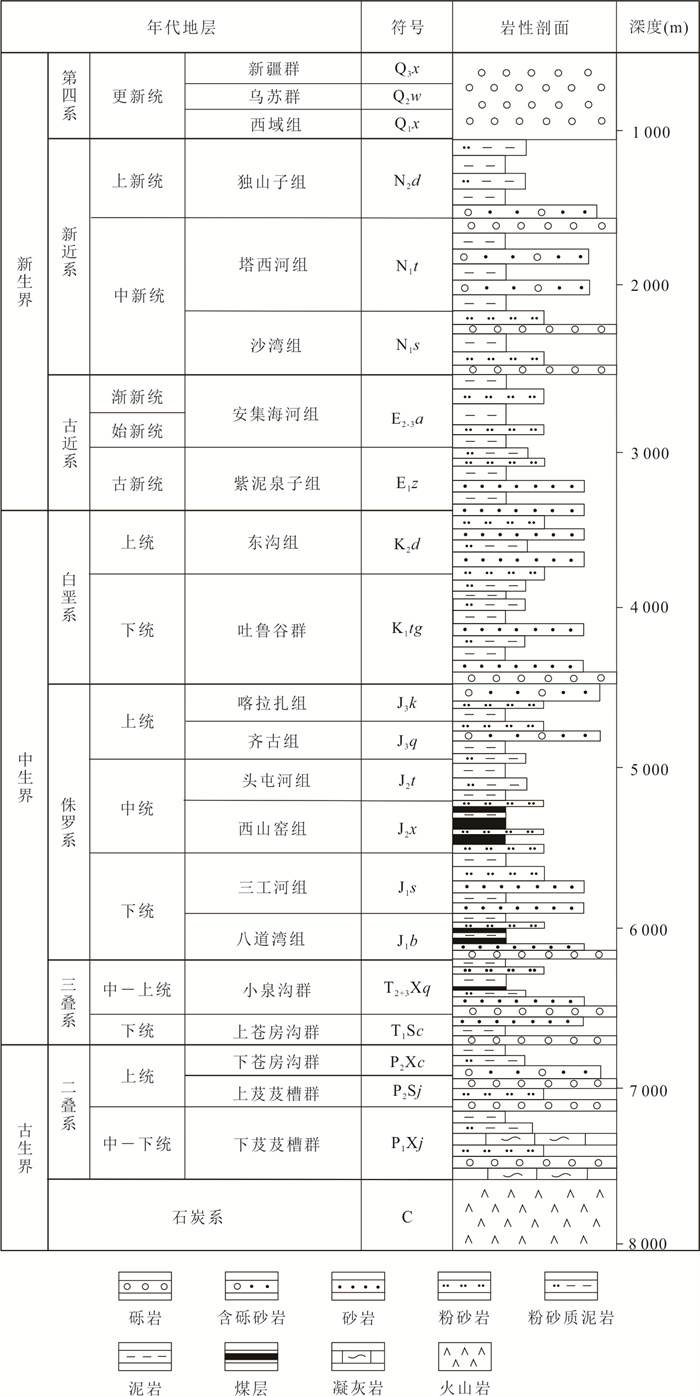

      图  2  博格达山北缘综合地层柱状图

      修改自马德龙等(2017)Zhou et al.(2017)

      Fig.  2.  Comprehensive stratigraphic column of northern Bogda Mountain

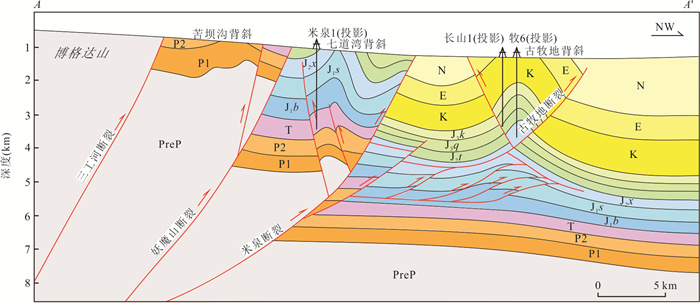

      图  3  研究区典型剖面图

      剖面位置见图 1

      Fig.  3.  Typical geological profile of the study area

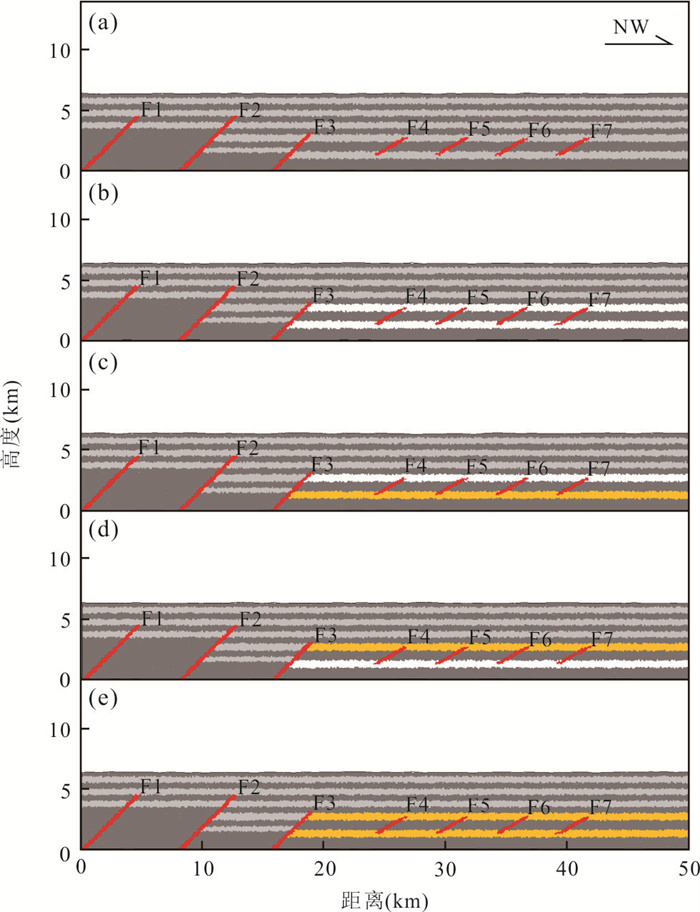

      图  4  实验初始模型设计

      图a~e分别代表实验1~5

      Fig.  4.  Pictures showing initial model design

      图  5  实验1模拟结果与构造解释

      Fig.  5.  Simulation results and structure explanation of Experiment 1

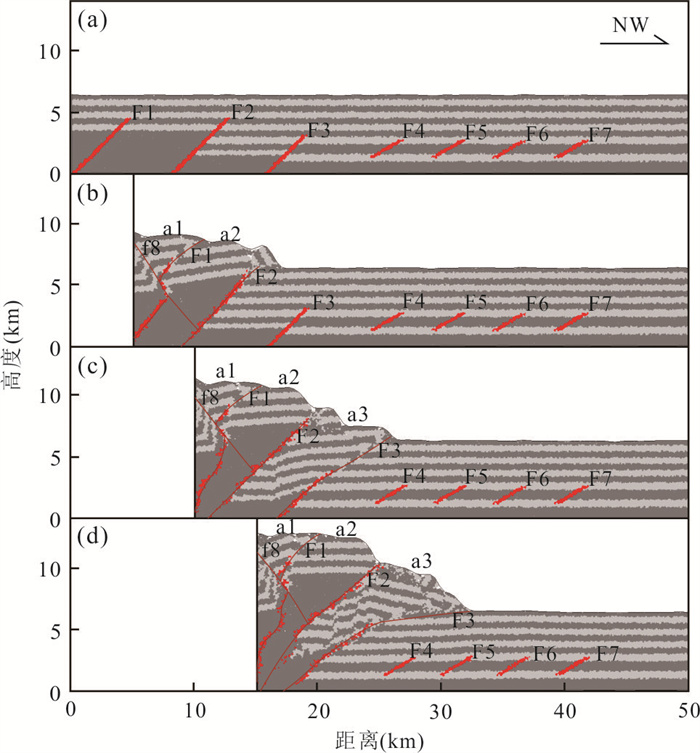

      图  6  实验2模拟结果与构造解释

      Fig.  6.  Simulation results and structure explanation of Experiment 2

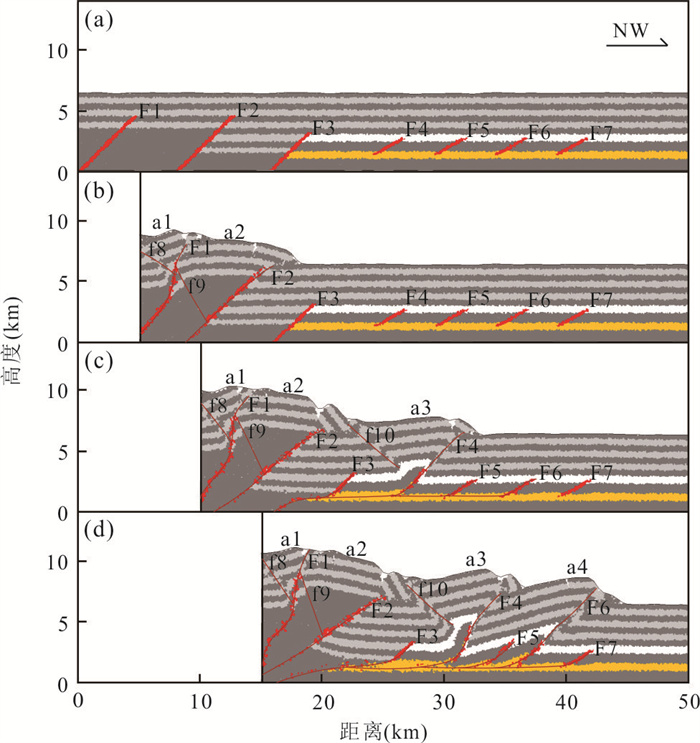

      图  7  实验3模拟结果与构造解释

      Fig.  7.  Simulation results and structure explanation of Experiment 3

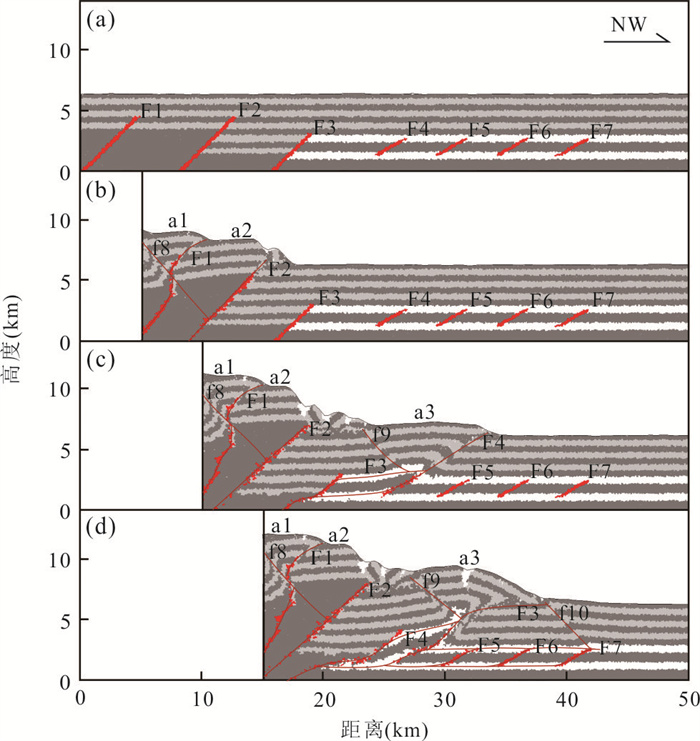

      图  8  实验4模拟结果与构造解释

      Fig.  8.  Simulation results and structure explanation of Experiment 4

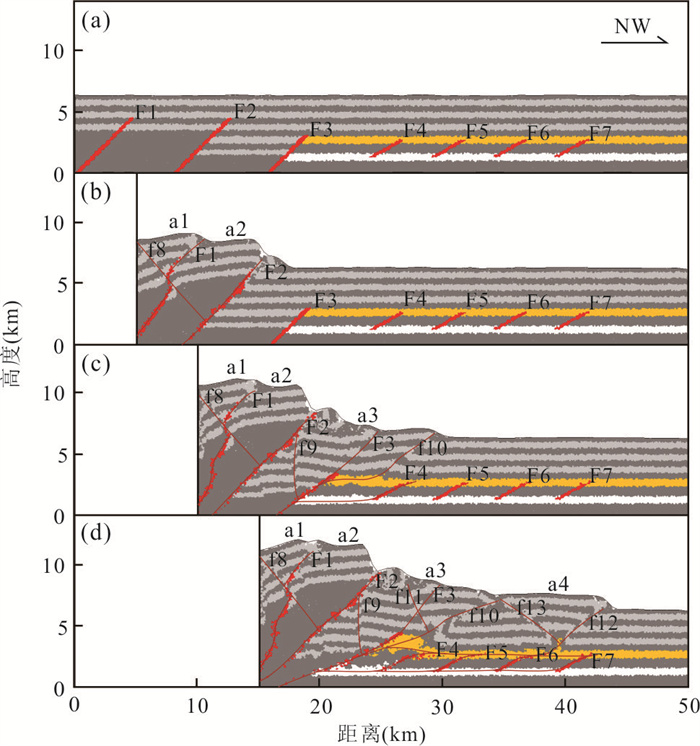

      图  9  实验5模拟结果与构造解释

      Fig.  9.  Simulation results and structure explanation of Experiment 5

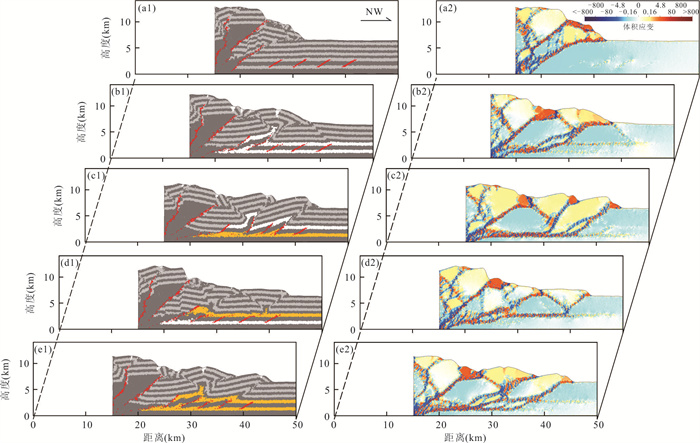

      图  10  模拟结果及体积应变对比

      a1、a2对应实验1;b1、b2对应实验2;c1、c2对应实验3;d1、d2对应实验4;e1、e2对应实验5

      Fig.  10.  Comparison of simulation results and volume strain

      表  1  离散元数值模拟实验参数

      Table  1.   Experimental parameters of discrete element numerical simulation

      地质单元 颗粒的细观参数 颗粒间的粘结参数 色标
      颗粒半径
      (m)
      剪切模量
      (109 Pa)
      泊松比 摩擦系数 密度
      (103 kg/m3
      杨氏模量
      (108 Pa)
      剪切模量
      (108 Pa)
      抗拉强度
      (107 Pa)
      剪切强度
      (107 Pa)
      能干层 60/80 2.9 0.2 0.3 2.5 2.0 2.0 2.0 4.0
      弱滑脱层 60/80 2.9 0.2 0.0 2.2 / / / /
      强滑脱层 60/80 2.9 0.2 0.1 2.2 / / / /
      断层 60/80 2.9 0.2 0.0 2.5 / / / /
      基底 60/80 2.9 0.2 0.4 2.5 2.0 2.0 2.0 4.0
      下载: 导出CSV
    • Avouac, J. P., Tapponnier, P., Bai, M., et al., 1993. Active Thrusting and Folding along the Northern Tien Shan and Late Cenozoic Rotation of the Tarim Relative to Dzungaria and Kazakhstan. Journal of Geophysical Research: Solid Earth, 98(B4): 6755-6804. https://doi.org/10.1029/92jb01963
      Buiter, S. J. H., 2012. A Review of Brittle Compressional Wedge Models. Tectonophysics, 530/531: 1-17. https://doi.org/10.1016/j.tecto.2011.12.018
      Chen, K., Lin, W., Wang, Q. C., 2015. The Bogeda Shan Uplifting: Evidence from Multiple Phases of Deformation. Journal of Asian Earth Sciences, 99: 1-12. https://doi.org/10.1016/j.jseaes.2014.12.006
      Chen, K., Wang, Z. Y., Liu, F., et al., 2012. The Structural Characteristics along the Northern Piedmont of Bogedashan and Its Dynamic Significances. Chinese Journal of Geology (Scientia Geologica Sinica), 47(4): 1041-1051(in Chinese with English abstract).
      Chen, Y. Y., Li, Y. Q., Wei, D. T., et al., 2022. Quantitative Relationship between Tectonic Deformation and Topography in Bogda Piedmont of Eastern Tianshan Mountains: Based on 3D Structural Modeling and Geomorphic Analysis. Earth Science, 47(2): 418-436(in Chinese with English abstract).
      Cundall, P. A., Strack, O. D. L., 1979. A Discrete Numerical Model for Granular Assemblies. Géotechnique, 29(1): 47-65. https://doi.org/10.1680/geot.1979.29.1.47
      Graveleau, F., Malavieille, J., Dominguez, S., 2012. Experimental Modelling of Orogenic Wedges: A Review. Tectonophysics, 538/539/540: 1-66. https://doi.org/10.1016/j.tecto.2012.01.027
      Greene, T. J., Carroll, A. R., Wartes, M., et al., 2005. Integrated Provenance Analysis of a Complex Orogenic Terrane: Mesozoic Uplift of the Bogda Shan and Inception of the Turpan-Hami Basin, NW China. Journal of Sedimentary Research, 75(2): 251-267. https://doi.org/10.2110/jsr.2005.019
      Guo, Z. J., Wu, C. D., Zhang, Z. C., et al., 2011. Tectonic Control on Hydrocarbon Accumulation and Prospect for Large Oil-Gas Field Exploration in the Southern Junggar Basin. Geological Journal of China Universities, 17(2): 185-195(in Chinese with English abstract). doi: 10.3969/j.issn.1006-7493.2011.02.004
      Hardy, S., Finch, E., 2005. Discrete-Element Modelling of Detachment Folding. Basin Research, 17(4): 507-520. https://doi.org/10.1111/j.1365-2117.2005.00280.x
      Jahn, B. M., Windley, B., Natal'in, B., et al., 2004. Phanerozoic Continental Growth in Central Asia. Journal of Asian Earth Sciences, 23(5): 599-603. https://doi.org/10.1016/s1367-9120(03)00124-x
      Kang, Z. L., 1997. Petroleum Prospect in the Southern Margin of Junggar Basin. China Petroleum Exploration, 2(4): 31-34, 6(in Chinese with English abstract).
      Li, C. S., 2019. Quantitative Analysis and Simulation of Structural Deformation in the Fold and Thrust Belt Based on Discrete Element Method(Dissertation). Nanjing University, Nanjing (in Chinese with English abstract).
      Li, C. S., Yin, H. W., Jia, D., et al., 2018. Validation Tests for Discrete Element Codes Using Single-Contact Systems. International Journal of Geomechanics, 18(6): 06018011. https://doi.org/10.1061/(asce)gm.1943-5622.0001133
      Li, C. S., Yin, H. W., Wu, C., et al., 2021. Calibration of the Discrete Element Method and Modeling of Shortening Experiments. Frontiers in Earth Science, 9: 636512. https://doi.org/10.3389/feart.2021.636512
      Li, Z., Peng, S. T., 2013. U-Pb Geochronological Records and Provenance System Analysis of the Mesozoic-Cenozoic Sandstone Detrital Zircons in the Northern and Southern Piedmonts of Tianshan, Northwest China: Responses to Intracontinental Basin-Range Evolution. Acta Petrologica Sinica, 29(3): 739-755(in Chinese with English abstract).
      Liu, H. L., Li, Z. Q., Li, G., et al., 2022. Influences of Pre-Existing Structures on Future Growth and Geometry of Faults: A Case Study of Hongqi Sag, Hailar Basin. Earth Science, 47(7): 2646-2666(in Chinese with English abstract).
      Ma, D. L., He, D. F., Wei, D. T., et al., 2017. Multiple Phase Deformation of Gumudi Anticline at South Margin of Junggar Basin. Journal of Jilin University (Earth Science Edition), 47(6): 1695-1704 (in Chinese with English abstract).
      Morgan, J. K., 2015. Effects of Cohesion on the Structural and Mechanical Evolution of Fold and Thrust Belts and Contractional Wedges: Discrete Element Simulations. Journal of Geophysical Research: Solid Earth, 120(5): 3870-3896. https://doi.org/10.1002/2014jb011455
      Sassi, W., Colletta, B., Balé, P., et al., 1993. Modelling of Structural Complexity in Sedimentary Basins: The Role of Pre-Existing Faults in Thrust Tectonics. Tectonophysics, 226(1/2/3/4): 97-112. https://doi.org/10.1016/0040-1951(93)90113-x
      Şengör, A. M. C., Natal'in, B. A., Burtman, V. S., 1993. Evolution of the Altaid Tectonic Collage and Palaeozoic Crustal Growth in Eurasia. Nature, 364(6435): 299-307. https://doi.org/10.1038/364299a0
      Shang, L., Dai, J. S., Feng, J. W., et al., 2013. Geometric and Kinematic Analyses of Gumudi Anticline in Southern Margin of Junggar Basin. Xinjiang Petroleum Geology, 34(6): 627-631, 617(in Chinese with English abstract).
      Shen, C. B., Mei, L. F., Liu, L., et al., 2006. Evidence from Apatite and Zircon Fission Track Analysis for Mesozoic-Cenozoic Uplift Thermal History of Bogeda Mountain of Xinjiang, Northwest China. Marine Geology & Quaternary Geology, 26(3): 87-92(in Chinese with English abstract).
      Sun, Z. M., Shen, J., 2014. Bogda Nappe Structure and Its Relations to Hydrocarbon in Xinjiang. Petroleum Geology & Experiment, 36(4): 429-434, 458(in Chinese with English abstract).
      Sun, Z. M., Wang, Y., 2014. Structural Analysis and Modeling in Miquan Area of the Western Margin of the Bogda Mountain, Xinjiang. Geoscience, 28(2): 300-307(in Chinese with English abstract). doi: 10.3969/j.issn.1000-8527.2014.02.007
      Tang, W. H., Zhang, Z. C., Li, J. F., et al., 2014. Late Paleozoic to Jurassic Tectonic Evolution of the Bogda Area (Northwest China): Evidence from Detrital Zircon U-Pb Geochronology. Tectonophysics, 626: 144-156. https://doi.org/10.1016/j.tecto.2014.04.005
      Tapponnier, P., Molnar, P., 1979. Active Faulting and Cenozoic Tectonics of the Tien Shan, Mongolia, and Baykal Regions. Journal of Geophysical Research: Solid Earth, 84(B7): 3425-3459. https://doi.org/10.1029/jb084ib07p03425
      Wang, G. C., Shen, T. Y., Chen, C., et al., 2020. Basin-Range Coupling and Tectonic Topography Analysis during Geological Mapping on Covered Area: A Case Study of Turpan-Hami Basin, Eastern Tianshan. Earth Science, 45(12): 4313-4331(in Chinese with English abstract).
      Wang, X. W., Wang, X. W., Ma, Y. S., 2007. Differential Exhumation History of Bogda Mountain, Xinjiang, Northwestern China since the Late Mesozoic. Acta Geologica Sinica, 81(11): 1507-1517(in Chinese with English abstract). doi: 10.3321/j.issn:0001-5717.2007.11.005
      Wang, Z. X., Li, T., 2004. Mechanism of Cenozoic Revival Orogeny in the Bogda Mountain Chain, Xinjiang. Bulletin of Geology of China, 23(3): 286-293(in Chinese with English abstract).
      Wartes, M. A., Carroll, A. R., Greene, T. J., 2002. Permian Sedimentary Record of the Turpan-Hami Basin and Adjacent Regions, Northwest China: Constraints on Post Amalgamation Tectonic Evolution. Geological Society of America Bulletin, 114(2): 131-152. https://doi.org/10.1130/0016-7606(2002)1140131:psrott>2.0.co;2 doi: 10.1130/0016-7606(2002)1140131:psrott>2.0.co;2
      Wen, Z. G., Hou, J. G., Zhang, B. Q., et al., 2005. Analysis on Hydrocarbon Accumulation Conditions and Evaluation of Exploration Potential in Miquan Block in the Southern Margin of Jungar Basin. Journal of Oil and Gas Technology, 27(1): 10-13, 141(in Chinese with English abstract).
      Wu, H., Qiu, N. S., Chang, J., et al., 2019. Physical Simulation on Development of Multilayer Detachment Fold Belt in Eastern Sichuan. Earth Science, 44(3): 784-797(in Chinese with English abstract).
      Wu, J. H., Xiang, S. Z., Wu, X. Z., et al., 2002. Structures in East Part of Southern Margin in Junggar Basin and Their Formation Mechanism. Xinjiang Petroleum Geology, 23(3): 208-210, 178(in Chinese with English abstract).
      Xin, W., Chen, H. L., An, K. X., et al., 2020. Analyzing the Influence of Factors That Control the Structural Deformation of Fold-Thrust Belts in the Southwestern Tianshan Using Discrete Element Simulations. Acta Geologica Sinica, 94(6): 1704-1715(in Chinese with English abstract). doi: 10.3969/j.issn.0001-5717.2020.06.004
      Yin, A., Nie, S., Craig, P., et al., 1998. Late Cenozoic Tectonic Evolution of the Southern Chinese Tian Shan. Tectonics, 17(1): 1-27. https://doi.org/10.1029/97tc03140
      Zhang, Y., Li, Z. S., Nie, F., et al., 2015. Age, Provenance and Tectonic Evolution of Late Paleozoic Strata in Bogda Mountain, Xinjiang: Evidence from Detrital Zircon U-Pb Geochronology. Chinese Journal of Geology (Scientia Geologica Sinica), 50(1): 155-181(in Chinese with English abstract).
      Zhou, Y. X., Wu, C. D., Yuan, B., et al., 2020. Cenozoic Tectonic Patterns and Their Controls on Growth Strata in the Northern Tianshan Fold and Thrust Belt, Northwest China. Journal of Asian Earth Sciences, 198: 104237. https://doi.org/10.1016/j.jseaes.2020.104237
      Zhu, W. B., Shu, L. S., Wan, J. L., et al., 2006. Fission-Track Evidence for the Exhumation History of Bogda-Harlik Mountains, Xinjiang since the Cretaceous. Acta Geologica Sinica, 80(1): 16-22(in Chinese with English abstract).
      Zou, H. M., 2017. Study on the Tectonic Characteristics of the Western Section of the Fukang Fracture Zone in the Junggar Basin and Its Reservoir Control Role(Dissertation). China University of Petroleum, Beijing(in Chinese with English abstract).
      陈科, 王镇远, 刘飞, 等, 2012. 博格达山北缘前陆褶皱冲断带构造特征及其动力学意义. 地质科学, 47(4): 1041-1051. https://www.cnki.com.cn/Article/CJFDTOTAL-DZKX201204010.htm
      陈莹莹, 李一泉, 魏东涛, 等, 2022. 东天山博格达山前构造变形与地形定量关系: 基于三维建模与地貌分析. 地球科学, 47(2): 418-436. doi: 10.3799/dqkx.2021.097
      郭召杰, 吴朝东, 张志诚, 等, 2011. 准噶尔盆地南缘构造控藏作用及大型油气藏勘探方向浅析. 高校地质学报, 17(2): 185-195. https://www.cnki.com.cn/Article/CJFDTOTAL-GXDX201102007.htm
      康竹林, 1997. 准噶尔盆地南缘油气勘探前景. 勘探家, 2(4): 31-34, 6. https://www.cnki.com.cn/Article/CJFDTOTAL-KTSY199704007.htm
      李长圣, 2019. 基于离散元的褶皱冲断带构造变形定量分析与模拟(博士学位论文). 南京: 南京大学.
      李忠, 彭守涛, 2013. 天山南北麓中-新生界碎屑锆石U-Pb年代学记录、物源体系分析与陆内盆山演化. 岩石学报, 29(3): 739-755. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201303002.htm
      刘恒麟, 李忠权, 李根, 等, 2022. 先存构造对断层后期生长及形态的影响: 以海拉尔盆地红旗凹陷为例. 地球科学, 47(7): 2646-2666. doi: 10.3799/dqkx.2021.192
      马德龙, 何登发, 魏东涛, 等, 2017. 准噶尔盆地南缘古牧地背斜多期构造变形特征. 吉林大学学报(地球科学版), 47(6): 1695-1704. https://www.cnki.com.cn/Article/CJFDTOTAL-CCDZ201706009.htm
      商琳, 戴俊生, 冯建伟, 等, 2013. 准噶尔盆地南缘古牧地背斜几何学与运动学分析. 新疆石油地质, 34(6): 627-631, 617. https://www.cnki.com.cn/Article/CJFDTOTAL-XJSD201306004.htm
      沈传波, 梅廉夫, 刘麟, 等, 2006. 新疆博格达山中新生代隆升-热历史的裂变径迹记录. 海洋地质与第四纪地质, 26(3): 87-92. https://www.cnki.com.cn/Article/CJFDTOTAL-HYDZ200603013.htm
      孙自明, 沈杰, 2014. 新疆博格达推覆构造及其与油气的关系. 石油实验地质, 36(4): 429-434, 458. https://www.cnki.com.cn/Article/CJFDTOTAL-SYSD201404008.htm
      孙自明, 王毅, 2014. 新疆博格达山西缘米泉地区构造解析与建模. 现代地质, 28(2): 300-307. https://www.cnki.com.cn/Article/CJFDTOTAL-XDDZ201402007.htm
      王国灿, 申添毅, 陈超, 等, 2020. 覆盖区地质调查中的盆山构造地貌关系研究: 以东天山-吐哈盆地为例. 地球科学, 45(12): 4313-4331. doi: 10.3799/dqkx.2020.300
      汪新伟, 汪新文, 马永生, 2007. 新疆博格达山晚中生代以来的差异剥露史. 地质学报, 81(11): 1507-1517. https://www.cnki.com.cn/Article/CJFDTOTAL-DZXE200711006.htm
      王宗秀, 李涛, 2004. 新疆博格达山链新生代再生造山机理: 岩石圈内切层"开""合"造山带的典型代表. 地质通报, 23(3): 286-293. https://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD200403014.htm
      文志刚, 侯建国, 张柏桥, 等, 2005. 准噶尔盆地南缘米泉区块油气成藏条件分析与勘探潜力评价. 石油天然气学报(江汉石油学院学报), 27(1): 10-13, 141. https://www.cnki.com.cn/Article/CJFDTOTAL-JHSX200501002.htm
      吴航, 邱楠生, 常健, 等, 2019. 川东多套滑脱层褶皱构造带形成物理模拟. 地球科学, 44(3): 784-797. doi: 10.3799/dqkx.2018.109
      吴建华, 向书政, 吴晓智, 等, 2002. 准噶尔盆地南缘东部构造样式与形成机制. 新疆石油地质, 23(3): 208-210, 178. https://www.cnki.com.cn/Article/CJFDTOTAL-XJSD200203008.htm
      辛文, 陈汉林, 安凯旋, 等, 2020. 基于离散元数值模拟的西南天山山前冲断带构造变形控制因素研究. 地质学报, 94(6): 1704-1715. https://www.cnki.com.cn/Article/CJFDTOTAL-DZXE202006004.htm
      张妍, 李振生, 聂峰, 等, 2015. 新疆博格达山晚古生代地层的形成时代、物源及其演化: 碎屑锆石U-Pb年代学证据. 地质科学, 50(1): 155-181. https://www.cnki.com.cn/Article/CJFDTOTAL-DZKX201501010.htm
      朱文斌, 舒良树, 万景林, 等, 2006. 新疆博格达-哈尔里克山白垩纪以来剥露历史的裂变径迹证据. 地质学报, 80(1): 16-22. https://www.cnki.com.cn/Article/CJFDTOTAL-DZXE200601001.htm
      邹会明, 2017. 准噶尔盆地阜康断裂带西段构造特征及其控藏作用研究(硕士学位论文). 北京: 中国石油大学.
