油包裹体荧光颜色及其成熟度关系

赵艳军; 陈红汉

油包裹体荧光颜色及其成熟度关系

赵艳军^1,,
陈红汉^{1, 2}

1.
中国地质大学资源学院石油系, 湖北武汉 430074
2.
湖北省油气勘探开发理论与技术重点实验室, 湖北武汉 430074

基金项目:

国家重点自然科学基金项目 40238060

国家面上自然科学基金项目 40372068

中国地质大学研究生学术探索与创新基金 CUGYJS0702

详细信息

作者简介:
赵艳军(1982-), 男, 硕士, 主要从事沉积盆地含烃流体地质方向研究.E-mail: zhaoyanjun266@163.com

中图分类号: P618
计量
- 文章访问数: 4053
- HTML全文浏览量: 1296
- PDF下载量: 95
- 被引次数: 0
出版历程
- 收稿日期: 2007-04-10
- 刊出日期: 2008-02-25

The Relationship between Fluorescence Colors of Oil Inclusions and Their Maturities

ZHAO Yan-jun^1
,,
CHEN Hong-han^{1, 2}

1.
Dep artment of Petroleum Geology, Faculty of Earth Resources, China University of Geosciences, Wuhan 430074, China
2.
Key Laboratory of Theory and Technology of Petroleum Exploration and Development in Hubei Province, Wuhan 430074, China

摘要

摘要: 近年来有机包裹体在石油地质领域中的广泛应用, 为油气勘探与评价注入了新的活力.有机包裹体特别是油包裹体的荧光颜色是鉴定有机包裹体和指示油气成熟度的有效手段.本文在论述有机包裹体荧光机理的基础上, 依据不同盆地样品的实验观测结果, 从油包裹体荧光的强度、波长、颜色以及与有机包裹体同期的盐水包裹体的均一温度等关系进行分析, 证明可以运用油包裹体荧光颜色和平均均一温度等综合指示油气的成熟度.
- 油包裹体 /
- 荧光颜色 /
- 同期盐水包裹体 /
- 成熟度
Abstract: In recent years, organic inclusion technique has been extensively applied to petroleum exploration. The fluorescence is also a good measurement in identifying oil inclusions and an effective indicator of its maturity, except for some oil inclusions of lower homogenization temperature with white-blue fluorescence color which have been possibly caused by heating decomposition after trapping. In this study, many samples from two basins have been measured to obtain the fluorescence colors and the differences between homogenization temperatures of the coeval aqueous inclusion and oil inclusion, which proves that there is a positive relationship between the fluorescence colors and the averaged homogenization temperature of oil inclusions, and can be reliably used to indicate the hydrocarbon maturity in spite of the fact that some researchers think that it is dangerous to apply visual description of fluorescence colors to determine maturity of hydrocarbon.
- oil inclusions /
- fluorescence colors /
- the coeval aqueous inclusions /
- maturity.

HTML全文

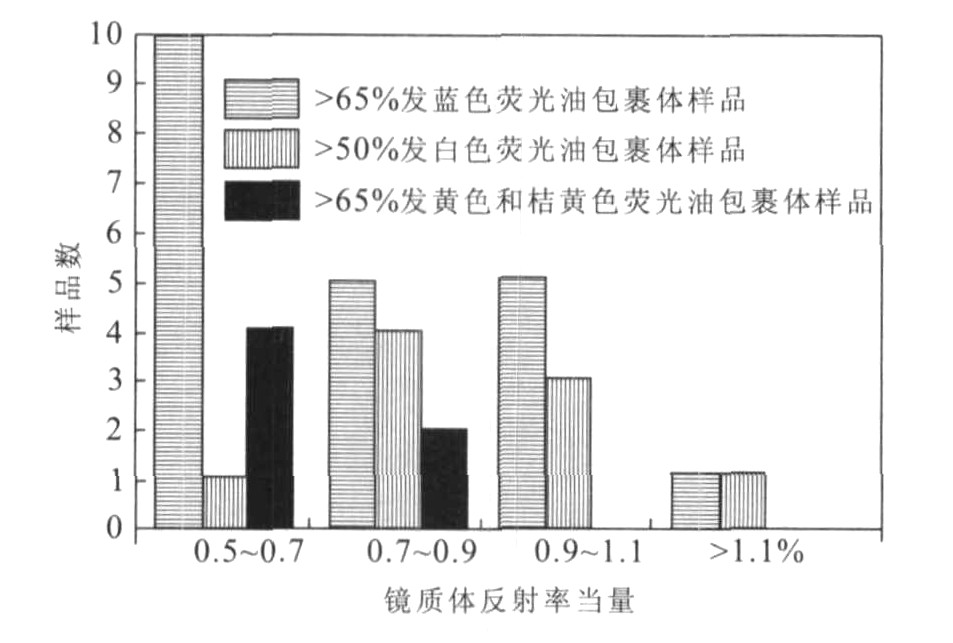

图 1 澳大利亚某地区含不同荧光油包裹体样品数与热成熟度(镜质体反射率) 关系图(据George et al., 2001有修改)

Fig. 1. Histogram showing the thermal maturity derived from molecular thermal maturity parameters for samples containing fluid inclusion oils with different fluorescence colour populations in Australian

下载: 全尺寸图片幻灯片

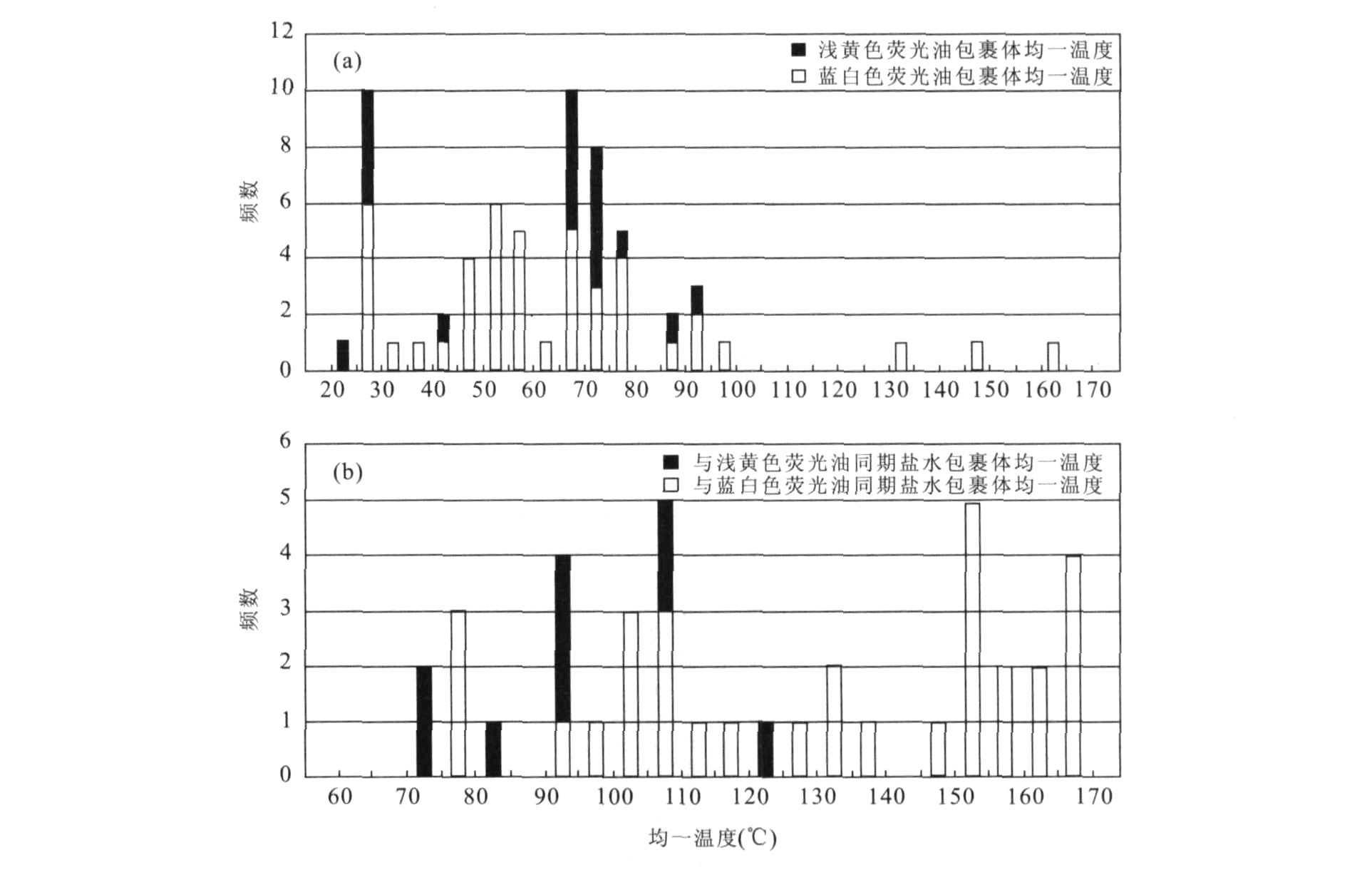

图 2 准噶尔盆地准东地区不同荧光颜色油包裹体(a)和与其同期的盐水包裹体(b) 均一温度对比图

台49井J₁bb、T₂k层位; B82井J₁s、J₂t; B101井J₁s层位; 台58井P₃wt层位; 北88井P₃wt层位

Fig. 2. Histogram showing the homogenization temperature of oil fluid inclusions with different fluorescence colors (a) and the coeval aqueous fluid inclusions with oil fluid inclusions (b) in the east of Junggar basin

下载: 全尺寸图片幻灯片

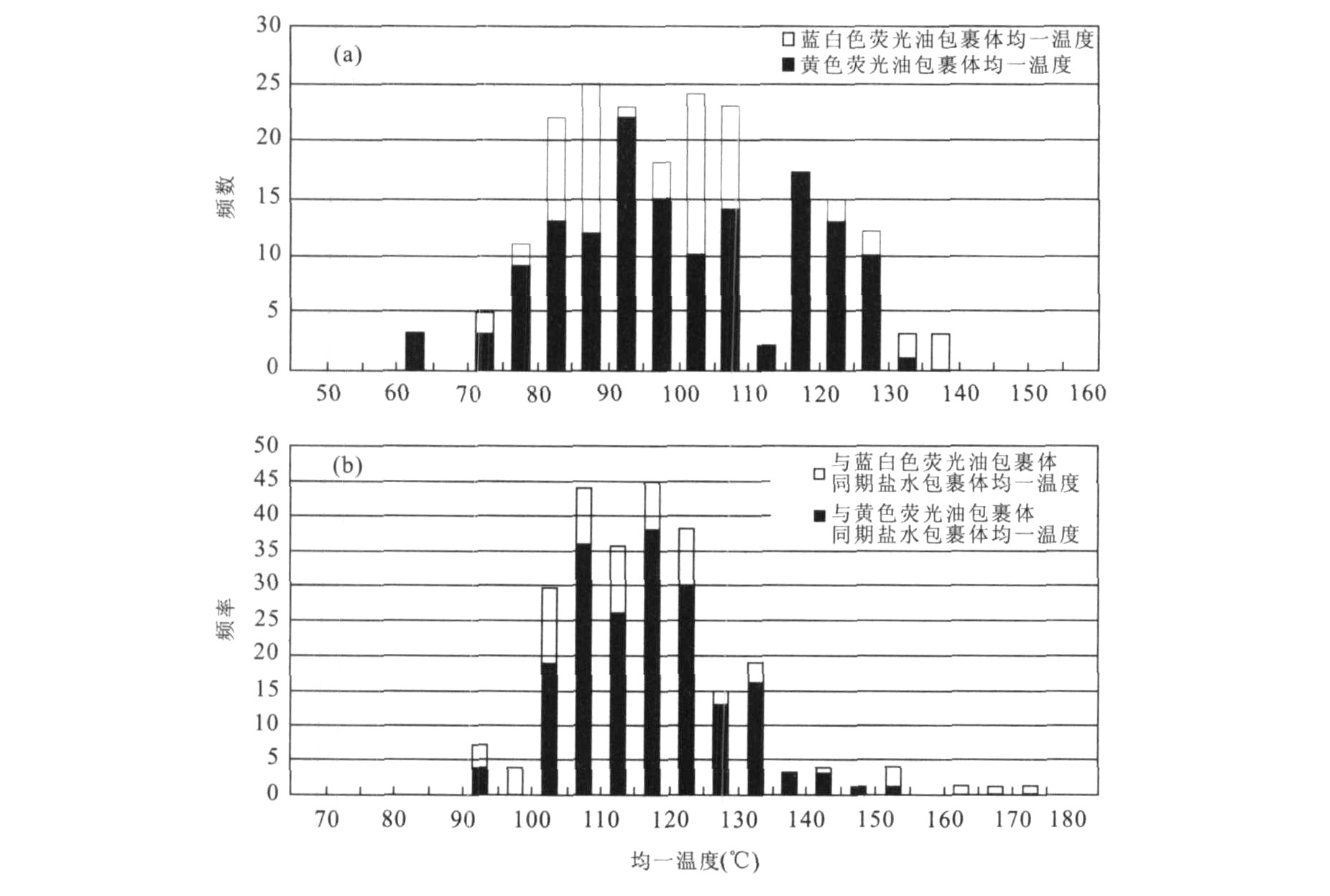

图 3 东营凹陷不同荧光颜色油包裹体(a)和与其同期的盐水包裹体(b) 均一温度对比图

牛103井; 牛105井; 牛106井; 史11井; 史130井; 坨741井; 营67井; 营11-48井

Fig. 3. Histogram showing the homogenization temperature of oil fluid inclusions with different fluorescence colors (a) and the coeval aqueous fluid inclusions with the oil fluid inclusions (b) in Dongying depression

下载: 全尺寸图片幻灯片

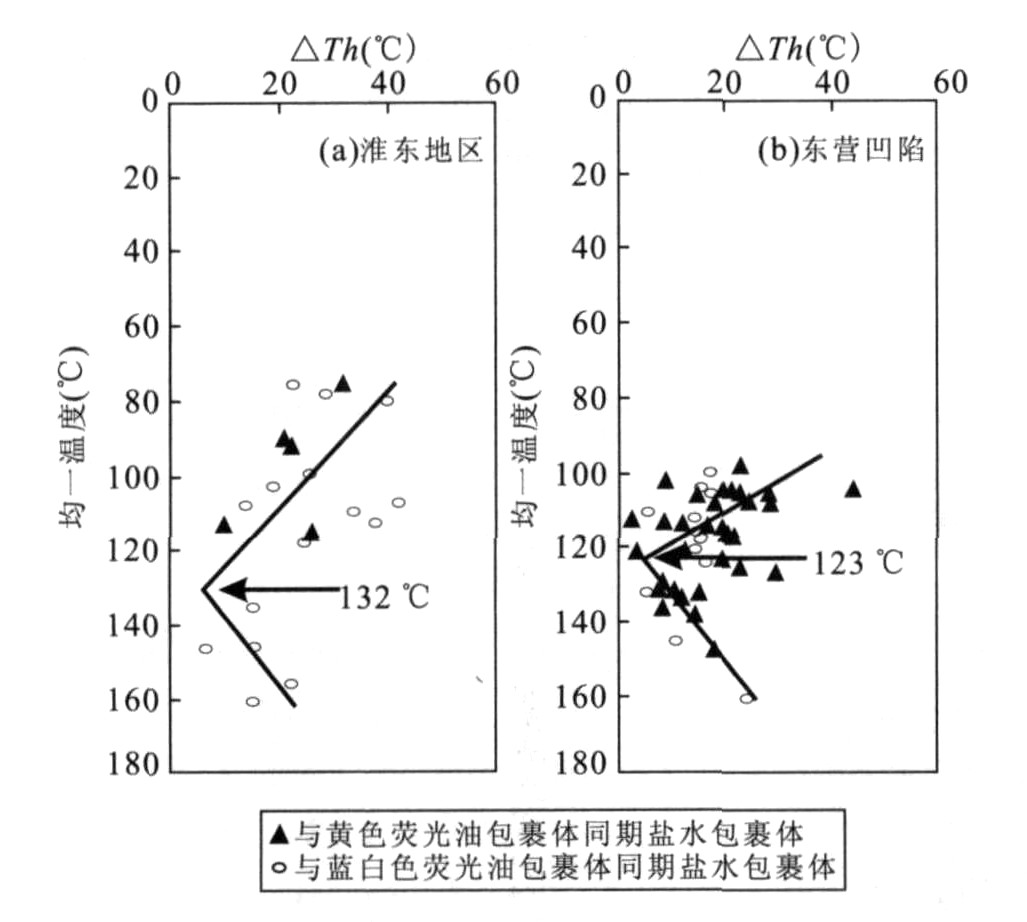

图 4 与油包裹体同期盐水包裹体的均一温度(Th_aq) 与△Th关系对比图

△Th表示同期盐水包裹体均一温度与油包裹体均一温度之差值

Fig. 4. The plot of homogenization temperature of the coeval aqueous inclusion vs. △Th

下载: 全尺寸图片幻灯片

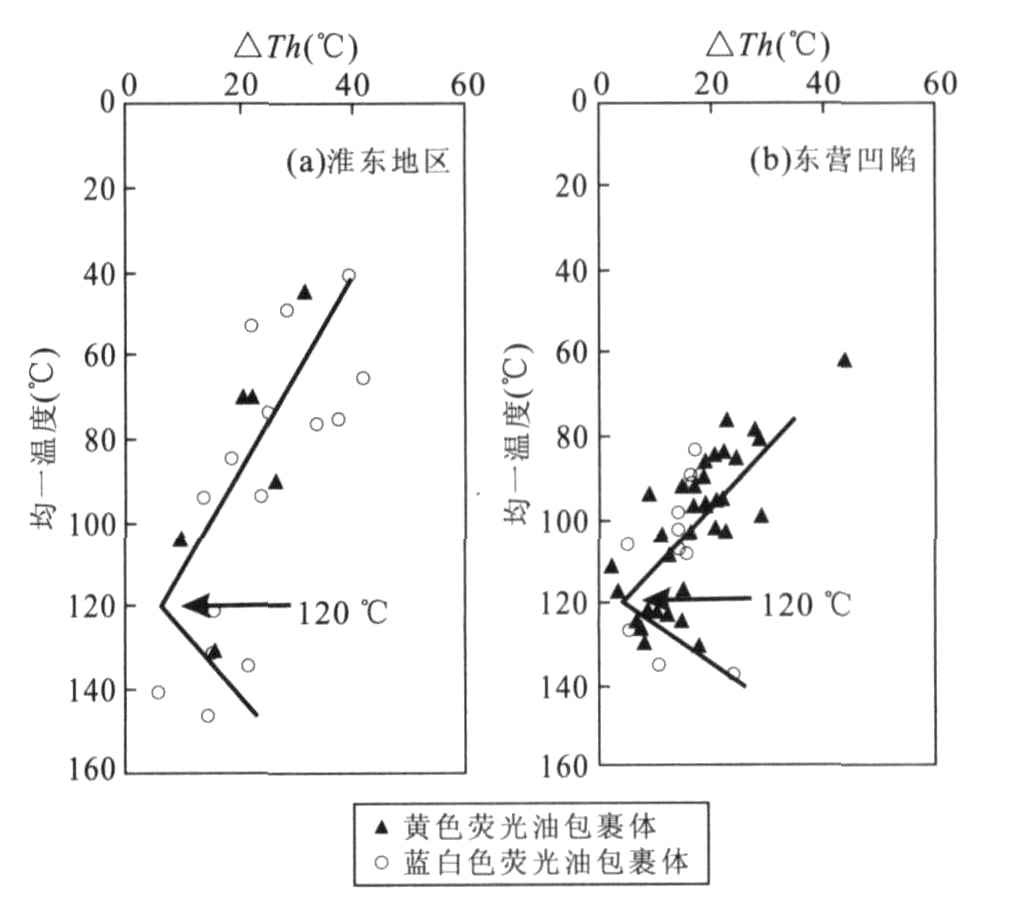

图 5 油包裹体均一温度(Th_oil) 与△Th关系对比图

△Th表示同期盐水包裹体均一温度与油包裹体均一温度差值

Fig. 5. The plot of homogenization temperature of oil coeval aqueous inclusion vs. △Th

下载: 全尺寸图片幻灯片

参考文献(28)

George, S. C., Ruble, T. E., Dutkiewicz, A., et al., 2001. Assessing the maturity of oil trapped in fluid inclusions using molecular geochemistry data and visually-determined fluorescence colours. Applied Geochemistry, 16: 451-473. doi: 10.1016/S0883-2927(00)00051-2
George, S. C., Ruble, T. E., Dutkiewicz, A., et al., 2002. Reply to comment by Oxtoby on "Assessing the maturity of oil trapped in fluid inclusions using molecular geochemistry data and visually-determined fluorescence colours". Applied Geochemistry, 17: 1375-1378. doi: 10.1016/S0883-2927(02)00027-6
Goldstein, R. H., Reynolds, T. J., 1994. Systematics of fluid inclusions in diagenetic minerals. SEPM Short Course, 31: 69-85. https://pubs.geoscienceworld.org/sepm/books/book/1047/Systematics-of-Fluid-Inclusions-in-Diagenetic
Hao, X. F., Chen, H. H., Gao, Q. L., et al., 2006. Micro-charging processes of hydrocarbon in the Niuzhuang lentoid sandy reservoirs, Dongying depression. Earth Science—Journal of China University of Geosciences, 31 (2): 182-190 (in Chinese with English abstract).
Li, C. Q., Chen, H. H., Chen, H. L., 2004. Organic inclusions in the Ordovician reservoir in Tahe oil field. Natural Gas Industry, 24 (10): 24-26 (in Chinese with English abstract).
Li, R. X., Jin, K. L., Liao, Y. S., 1998. Analysis of organic inclusions using micro-FTIR and fluorescence microscopy and its significance. Geochemica, 27 (3): 244-245 (in Chinese with English abstract).
Liu, S. B., Gu, J. Y., 1997. Analytical methods of fluid inclusions and applications to the study of oil and gas. Petroleum Exploration and Development, 24 (3): 29-33 (in Chinese with English abstract).
Liu, W. B., Yao, S. P., Hu, W. X., et al., 2003. Application and research approaches of fluid inclusions. Xinjiang Petroleum Geology, 24 (3): 264-267 (in Chinese with English abstract).
Lu, H. Z., Fan, H. R., Ni, P., et al., 2004. Fluid inclusions. Science Press, Beijing (in Chinese).
Munz, I. A., 2001. Petroleum inclusions in sedimentary basins: Systematics, analytical methods and applications. Lithos, 55: 195-212. doi: 10.1016/S0024-4937(00)00045-1
Munz, I. A., Johansen, H., Holm, K., et al., 1999. The petroleum characteristics and filling history of the Frϕy field and the rind discovery, Norwegian north sea. Marine and Petroleum Geology, 16: 633-651. doi: 10.1016/S0264-8172(99)00025-2
Okubo, S., 2005. Effects of thermal cracking of hydrocarbons on the homogenization temperature of fluid inclusions from the Niigata oil and gas fields, Japan. Applied Geochemistry, 20: 255-260. doi: 10.1016/j.apgeochem.2004.09.001
Oxtoby, N. H., 2002. Comments on: Assessing the maturity of oil trapped in fluid inclusions using molecular geochemistry data and visually-determined fluorescence colours. Applied Geochemistry, 17: 1371-1374. doi: 10.1016/S0883-2927(02)00026-4
Peters, K. E., Moldowan, J. M., 1993. The biomarker guide, interpreting molecular fossil in petroleum and ancient sediments. Englewood Cliffs, Prentice Hall, New Jersey.
Przyjalgowski, M. A., Ryder, A. G., Feely, M., 2005. Analysis of hydrocarbon-bearing fluid inclusions (HCFI) using time-resolved fluorescence spectroscopy. Optical Sensing and Spectroscopy, 5826: 173-184.
Stasiuk, L. D., Snowdon. L. R., 1997. Fluoresence micro-spectrometry of synthetic and natural hydrocarbon fluid inclusion: Crude oil chemistry, density and application to petroleum migration. Applied Geochemistry, 12: 229-241. doi: 10.1016/S0883-2927(96)00047-9
Yu, X. Y., Shi, J. X., 1996. Ultraviolet and fluorescence analyses and their application in the study of organic inclusions. Infrared, 16 (2): 212-217 (in Chinese with English abstract).
Zhang, Y. J., 2003. The proof of fluid geochemistry for the controlling of fault on oil in Junggar basin. Xinjiang Petroleum Geology, 24 (2): 100-106 (in Chinese with English abstract).
Zou, H. F, Xu, X. C, Gao, F. H., 2002. Micro-fluorescence analysis and oil-gas migration, accumulation of Dagang exploration area. World Geology, 21 (3): 247-248 (in Chinese with English abstract).
郝雪峰, 陈红汉, 高秋丽, 等, 2006. 东营凹陷牛庄砂岩透镜体油气藏微观充注机理. 地球科学——中国地质大学学报, 31 (2): 182-190. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX200602006.htm
李纯泉, 陈红汉, 陈汉林, 2004. 塔河油田奥陶系有机包裹体的油气指示意义. 天然气工业, 24 (10): 24-26. doi: 10.3321/j.issn:1000-0976.2004.10.007
李荣西, 金奎励, 廖永胜, 1998. 有机包裹体显微傅立叶红外光谱和荧光光谱测定及其意义. 地球化学, 27 (3): 244-245. doi: 10.3321/j.issn:0379-1726.1998.03.005
柳少波, 顾家裕, 1997. 流体包裹体成分研究方法及其在油气研究中的应用. 石油勘探与开发, 24 (3): 29-33. doi: 10.3321/j.issn:1000-0747.1997.03.007
刘文斌, 姚素平, 胡文蠧, 等, 2003. 流体包裹体的研究方法及应用. 新疆石油地质, 24 (3): 264-267. doi: 10.3969/j.issn.1001-3873.2003.03.027
卢焕章, 范宏瑞, 倪培, 等, 2004. 流体包裹体. 北京: 科学出版社.
余孝颍, 施继锡, 1996. 红外、紫外及荧光分析在有机包裹体研究中的应用. 矿物学报, 16 (2): 212-217. doi: 10.3321/j.issn:1000-4734.1996.02.017
张义杰, 2003. 准噶尔盆地断裂控油的流体地球化学证据. 新疆石油地质, 24 (2): 100-106. doi: 10.3969/j.issn.1001-3873.2003.02.003
邹海峰, 徐学纯, 高福红, 2002. 大港探区前第三系显微荧光分析及油气运聚特征研究. 世界地质, 21 (3): 247-248. doi: 10.3969/j.issn.1004-5589.2002.03.007
