The Inversion Structures and Their Genetic Mechanisms of Bayindulan Sag, Erlian Basin
-
摘要: 二连盆地的构造反转事件一直有争议.为了查明二连盆地巴音都兰凹陷早白垩世期间反转构造的发育期次以及不同时期发生反转构造的动力机制，利用新处理的覆盖全凹陷的3D地震数据和钻井资料，识别并分析了研究区在裂陷期发育的4期正反转构造，分别对应阿三段沉积末期、阿四段沉积末期、腾一下段沉积末期以及腾二段沉积期.研究表明：研究区早白垩世岩浆底辟较为活跃，在阿三段、阿四段和腾一下段以及腾二段沉积末期均发育过岩浆底辟活动，并导致盆地局部发生构造正反转，而腾二段沉积期间除了发育岩浆底辟作用导致构造反转外，还发育左旋压扭活动，并导致构造正反转.因此，研究区在早白垩世发育了两种不同成因类型的正反转构造，这主要与二连盆地在早白垩世期间伊泽纳琦板块对欧亚大陆的俯冲和异常地幔隆升引起的岩浆底辟作用以及腾二段沉积期伊泽纳琦板块俯冲方向发生改变而导致的区域走滑作用密切相关.Abstract: The Geologic structure of Erlian basin has been controversial. To make clear the developmental periods of inversion structure and their genetic dynamic mechanism of Bayindulan sag, Erlian basin in Early Cretaceous, we make use of the new processing of 3D seismic data covering the all sag to identify the important tectonic unconformity interfaces and to make sure the contact relationship between the strata developed in Early Cretaceous. Combined the igneous rock revealing in drilling data, we think that the late 3rd Member of K1ba Formation, and the late 4th member of K1ba Formation, the late K1bt1, and the late K1bt2 mainly all developed normal inversion structures. The further studies indicate that the four positive inversion structures in the Early Cretaceous were caused by the developing magmatic diapiric structure under the setting of the regional extensional stress field; while inversion structure in early K1bt2 was typically caused by the regional strike-slip movement. Therefore, the genetic mechanisms of various inversion structures developed in different periods are dissimilar, which was closely coordinated with the subduction of Paleo-Pacific plate to Eurasia, the effects of the magmatic diapiric caused by the metasomatic mantle and regional strike-slip action resulted by the change of subduction direction of Paleo-Pacific plate during the Early Cretaceous period.
-
Key words:
- Bayindulan sag /
- Early Cretaceous /
- inversion structure /
- genetic mechanism /
- petroleum geology
-

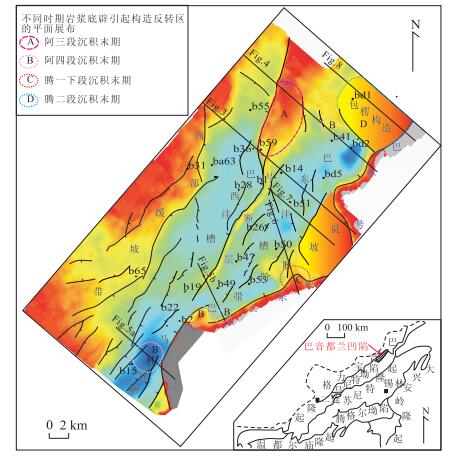

图 1 巴音都兰凹陷南部洼陷构造单元划分
Fig. 1. The distribution of tectonic units in the south sub-sag of Bayindulan sag

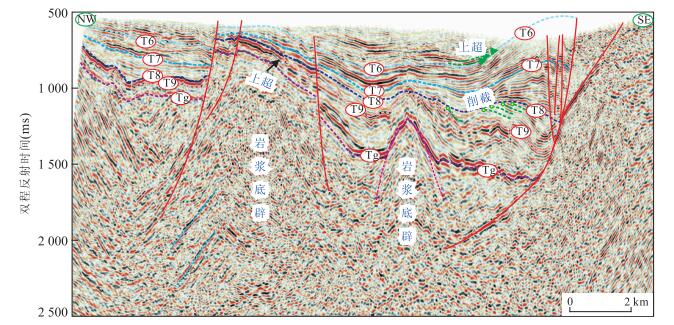

图 4 阿三段和阿四段沉积末期的岩浆底辟构造特征
平面位置见图 1
Fig. 4. The magmatic diapiric structure feature in the late K1ba3 and the late K1ba4
图 6 腾一下段沉积末期的反转构造特征
平面位置见图 1
Fig. 6. The inversion structure feature in the lower 1st segment of Tenggeer Formation

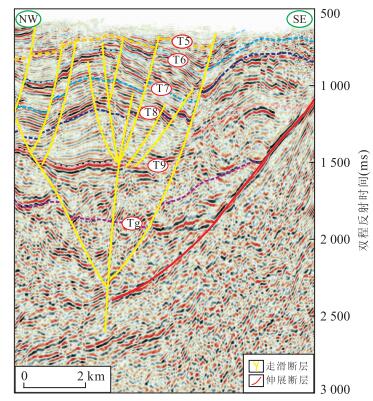

图 7 腾二段沉积期的反转构造特征
平面位置见图 1
Fig. 7. The inversion structure feature in the 2nd segment of Tenggeer Formation
-
Bonini, M., Sani, F., Antonielli, B., 2012.Basin Inversion and Contractional Reactivation of Inherited Normal Faults:A Review Based on Previous and New Experimental Models.Tectonophysics, 522-523:55-88.doi: 10.1016/j.tecto.2011.11.014 Buiter, S.J.H., Pfiffner, O.A., Beaumont, C., 2009.Inversion of Extensional Sedimentary Basins:A Numerical Evaluation of the Localisation of Shortening.Earth and Planetary Science Letters, 288(3):492-504.doi: 10.1016/j.epsl.2009.10.011 Chen, S.G., Ren, J.Y., Xin, Y.L., et al., 2015.Structure and Evolution Analyses of the Shabei Area of Bohai Gulf Basin.Geotectonica et Metallogenia, 39(5):816-827 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-DGYK201505006.htm Chen, W.J., He, D.F., Gui, B.L., et al., 2014.Tectono-Stratigraphic Sequence and Basin Evolution in Southern Songliao Basin.Acta Geologica Sinica, 88(5):932-942 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DZXE201405010.htm Chen, Z.L., Liu, G.D., Lu, X.J., et al., 2015.Quantatitive Study on Inversion Degree of Inversion Tectonics and Its Impact on Hydrocarbon Accumulation in Erlian Basin, Northern China.Journal of Central South University (Science and Technology), 46(11):4136-4145 (in Chinese with English abstract). https://www.researchgate.net/publication/290290158_Quantatitive_study_on_inversion_degree_of_inversion_tectonics_and_its_impact_on_hydrocarbon_accumulation_in_Erlian_Basin_Northern_China Chu, Q.Z., 2004.Summary of Inversion Structure on Petroliferous Basin.Journal of Xi'an Shiyou University, 19(1):28-33 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-XASY200401007.htm Cooper, M.A., Williams, G.D., De Graciansky, P.C., et al., 1989.Inversion Tectonics-A Discussion.Geological Society, London, Special Publications, 44(1):335-347.doi: 10.1144/GSL.SP.1989.044.01.18 Dewey, J.F., 1989.Kinematics and Dynamics of Basin Inversion.Geological Society, London, Special Publications, 44(1):352.doi: 10.1144/GSL.SP.1989.044.01.20 Engebretson, D.C., 1985.Relative Motions between Oceanic and Continental Plates in the Pacific Basins.Geological Society of America Special Paper, 206:1-59.doi: 10.1130/SPE206-p1 Eisenstadt, G., Withjack, M.O., 1995.Estimating Inversion:Results from Clay Models.Geological Society, London, Special Publications, 88(1):119-136.doi: 10.1144/GSL.SP.1995.088.01.08 Fei, B.S., Zhu, Y.H., Zhou, W.H., et al., 2001.The Oil and Gas Geology of Erlian Rifting Basins.Petroleum Industry Press, Beijing, 1-23 (in Chinese). Harding, T.P., 1985.Seismic Characteristics and Identification of Negative Flower Structures, Positive Flower Structures and Positive Structural Inversion.AAPG Bulletin, 69(4):582-600.doi: 10.1306/AD462538-16F7-11D7-8645000102C1865D Hu, W.S., Li, R.S., Li, T., et al., 2007.Discussion on Dynamic Genesis of Positive Inversion Structure.Journal of Oil and Gas Technology, 29(4):23-27, 164 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-JHSX200704003.htm Korsch, R.J., Totterdell, J.M., Fomin, T., et al., 2009.Contractional Structures and Deformational Events in the Bowen, Gunnedah and Surat Basins, Eastern Australia.Australian Journal of Earth Sciences, 56(3):477-499.doi: 10.1080/08120090802698745 Li, X.N., Wang, T.H., 1997.Inversion Structures and Oil-Gas in Erlian Basin.China Offshore Oil and Gas (Geology), 11(2):106-110 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-ZHSD199702005.htm Liu, J.B., Xia, B., Lü, B.F., et al., 2010.Comparative Analysis of Inversion Structure with Its Easily Confused Structures.Geoscience, 24(4):744-748 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-XDDZ201004015.htm Liu, X.F., Dong, Y.X., Wang, H., 2010.Antiformal Negative Flower Structure in Nanpu Sag, Bohai Bay Basin.Earth Science, 35(6):1029-1034 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DQKX201006014.htm Maruyama, S., Isozaki, Y., Kimura, G., 1997.Paleogeographic Maps of the Japanese Islands:Plate Tectonic Systhesis from 750 Ma to the Present.Island Arc, 6(1):121-142.doi: 10.1111/j.1440-1738.1997.tb00043.x Qi, J.F., Xia, Y.P., Yang, Q., 2007.The Structural Analysis in the Oildom.Petroleum Industry Press, Beijing (in Chinese). Qi, J.F., Zhao, X.Z., Li, X.P., et al., 2015.The Distribution of Early Cretaceous Faulted-Sags and Their Relationship with Basement Structure within Erlian Basin.Earth Science Frontiers, 22(3):118-128 (in Chinese with English abstract). https://www.researchgate.net/publication/282210241_The_distribution_of_Early_Cretaceous_faulted-sags_and_their_relationship_with_basement_structure_within_Erlian_Basin Ren, J.Y., Lin, C.S., Li, S.T., et al., 1999.Sequence Stratigraphic Framework of Wuliyasitai Faulted Basin in Erlian Basin Group and Its Episodic Filling Evolution.Acta Sedimentologica Sinica, 17(4):553-559 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-CJXB199904007.htm Ren, Z.L., Liu, C.Y., Feng, J.H., et al., 2000.Research on Geothermal History of Bayindulan Depression in Erlian Basin.Acta Petrolei Sinica, 21(4):42-45 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-SYXB200004009.htm Scisciani, V., 2009.Styles of Positive Inversion Tectonics in the Central Apennines and in the Adriatic Foreland:Implications for the Evolution of the Apennine Chain (Italy).Journal of Structural Geology, 31(11):1276-1294.doi: 10.1016/j.jsg.2009.02.004 Shinn, Y.J., 2015.Geological Structures and Controls on Half-Graben Inversion in the Western Gunsan Basin, Yellow Sea.Marine & Petroleum Geology, 68:480-491.doi: 10.1016/j.marpetgeo.2015.09.013 Su, J., Zhu, W., Lu, H., et al., 2009.Geometry Styles and Quantification of Inversion Structures in the Jiyang Depression, Bohai Bay Basin, Eastern China.Marine and Petroleum Geology, 26(1):25-38.doi: 10.1016/j.marpetgeo.2007.08.003 Sun, Y.H., Chen, Y.B., Sun, J.G., et al., 2013.Evolutionary Sequence of Faults and the Formation of Inversion Structural Belts in the Northern Songliao Basin.Petroleum Exploration and Development, 40(3):275-283 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-SKYK201303005.htm Turner, J.P., Williams, G.A., 2004.Sedimentary Basin Inversion and Intra-Plate Shortening.Earth Science Reviews, 65(3):277-304. http://www.deepdyve.com/lp/elsevier/sedimentary-basin-inversion-and-intra-plate-shortening-nIV6IThvMU Wang, G.C., 1998.Relationship of Tanlu Fault to the Inversion and Flower Structures in Bohai Bay.China Offshore Oil and Gas (Geology), (5):1-7 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-ZHSD199805000.htm Xiao, A.C., Yang, S.F., Chen, H.L., 2001.Geodynamic Background on Formation of Erlian Basin.Oil & Gas Geology, 22(2):137-140 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-SYYT200102010.htm Yang, F.L., Wang, M.X., Zhuang, J.J., et al., 2010.Kinematical Processes of Inversion Structure and its Contribution to Hydrocarbon Accumulation in Xihu Depression of East China Sea Basin.Acta Petrolei Sinica, 31(4):596-601 (in Chinese with English abstract). https://www.researchgate.net/publication/289275593_Kinematical_processes_of_inversion_structure_and_its_contribution_to_hydrocarbon_accumulation_in_Xihu_Depression_of_East_China_Sea_Basin Yang, K.J., Qi, J.F., Yu, Y.X., et al., 2016.The Inversion Structures within Liaozhong Depression and Its Responds to the Strike-Slip Activities of Tan-Lu Fault Zone.Acta Petrologica Sinica, 32(4):1182-1196 (in Chinese with English abstract). https://www.researchgate.net/publication/301728179_The_inversion_structures_within_Liaozhong_depression_and_its_responds_to_the_strike-slip_activities_of_Tan-Lu_fault_zone Yang, H.Z., Ren, J.Y., Lu, J.B., 2009.Tectonic Styles and Kinematic Characteristics of Negative Inversion Structure in Dongying Depression.Earth Science, 34(3):493-501 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DQKX200903014.htm Yang, Y.T., Guo, Z.X., Song, C.C., et al., 2014.A Short-Lived but Significant Mongol-Okhotsk Collisional Orogeny in Latest Jurassic-Earliest Cretaceous.Gondwana Research, 28(3):1096-1116.doi: 10.1016/j.gr.2014.09.010 Zhang, G.C., Xu, H., Liu, H.F., et al., 1996.Inversion Structures in Relation to Oil and Gas Field Distribution in Songliao Basin.Acta Petrolei Sinica, 17(2):9-14 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-SYXB602.001.htm Zhu, G., Niu M.L., Liu, G.S., 2002.Structural, Magmatic and Sedimentary Events of the Tanlu Fault Belt during Its Early Cretaceous Strike-Slip Movement.Acta Geologica Sinica, 76(3):325-334 (in Chinese with English abstract). https://www.researchgate.net/publication/288808880_Structural_magmatic_and_sedimentary_events_of_the_Tan-Lu_Fault_Belt_during_its_early_Cretaceous_strike-slip_movement Zhao, X.Z., Jin, F.M., Wang, Q., et al., 2016.Re-Exploration Program for Petroleum-Rich Sags in Continental Fault Basin.Petroleum Industry Press, Beijing, 410-411 (in Chinese). Zhou, X.H., 2006.Major Transformation of Subcontinental Lithosphere Beneath Eastern China in the Cenozoic-Mesozoic:Review and Prospect.Earth Science Frontiers, 13(2):50-64 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DXQY200602005.htm Zhou, X.M., Li, X.W., 2000.Origin of Late Mesozoic Igneous Rocks in South Eastern China:Implications for Lithosphere Subduction and Underplating of Mafic Magmas.Tectonophysics, 326(3-4):269-287.doi: 10.1016/S0040-1951(00)00120-7 陈树光, 任建业, 辛云路, 等, 2015.渤海湾沙北地区盆地结构构造及其演化分析.大地构造与成矿学, 39(5): 816-827. http://www.cnki.com.cn/Article/CJFDTOTAL-DGYK201505006.htm 陈为佳, 何登发, 桂宝玲, 等, 2014.松南地区构造-地层层序与盆地演化.地质学报, 88(5): 932-942. http://www.cnki.com.cn/Article/CJFDTOTAL-DZXE201405010.htm 陈哲龙, 柳广弟, 卢学军, 等, 2015.二连盆地反转构造程度定量研究及对油气成藏的影响.中南大学学报 (自然科学版), 46(11): 4136-4145. http://www.cnki.com.cn/Article/CJFDTOTAL-ZNGD201511023.htm 褚庆忠, 2004.含油气盆地反转构造研究综述.西安石油大学学报:自然科学版, 19(1): 28-33. http://www.cnki.com.cn/Article/CJFDTOTAL-XASY200401007.htm 费宝生, 祝玉衡, 邹伟宏, 等, 2001.二连裂谷盆地群油气地质.北京:石油工业出版社, 1-23. 胡望水, 李瑞升, 李涛, 等, 2007.正反转构造动力学成因探讨.石油天然气学报, 29(4): 23-27, 164. http://www.cnki.com.cn/Article/CJFDTOTAL-JHSX200704003.htm 李心宁, 王同和, 1997.二连盆地反转构造与油气.中国海上油气地质, 11(2): 106-110. http://www.cnki.com.cn/Article/CJFDTOTAL-KJDB200711010.htm 刘见宝, 夏斌, 吕宝凤, 等, 2010.反转构造与其易混淆构造的对比分析.现代地质, 24(4): 744-748. http://www.cnki.com.cn/Article/CJFDTOTAL-XDDZ201004015.htm 刘晓峰, 董月霞, 王华, 2010.渤海湾盆地南堡凹陷的背形负花状构造.地球科学, 35(6): 1029-1034. http://www.earth-science.net/WebPage/Article.aspx?id=2047 漆家福, 夏义平, 杨桥, 2007.油区构造解析.北京:石油工业出版社. 漆家福, 赵贤正, 李先平, 等, 2015.二连盆地早白垩世断陷分布及其与基底构造的关系.地学前缘, 22(3): 118-128. http://www.cnki.com.cn/Article/CJFDTOTAL-DXQY201503012.htm 任建业, 林畅松, 李思田, 等, 1999.二连盆地乌里亚斯太断陷层序地层格架及其幕式充填演化.沉积学报, 17(4): 553-559. http://www.cnki.com.cn/Article/CJFDTOTAL-CJXB199904007.htm 任战利, 刘池阳, 冯建辉, 等, 2000.二连盆地巴音都兰凹陷热演化史研究.石油学报, 21(4): 42-45. doi: 10.7623/syxb200004008 孙永河, 陈艺博, 孙继刚, 等, 2013.松辽盆地北部断裂演化序列与反转构造带形成机制.石油勘探与开发, 40(3): 275-283. doi: 10.11698/PED.2013.03.03 王国纯, 1998.郯庐断裂与渤海海域反转构造及花状构造.中国海上油气地质, (5): 1-7. http://www.cnki.com.cn/Article/CJFDTOTAL-ZHSD199805000.htm 肖安成, 杨树峰, 陈汉林, 2001.二连盆地形成的地球动力学背景.石油与天然气地质, 22(2): 137-140. doi: 10.11743/ogg20010211 杨风丽, 王敏雪, 庄建建, 等, 2010.西湖凹陷反转构造定量运动学过程及对油气的控制作用.石油学报, 31(4): 596-601. doi: 10.7623/syxb201004013 杨克基, 漆家福, 余一欣, 等, 2016.辽中凹陷反转构造及其对郯庐断裂带走滑活动的响应.岩石学报, 32(4): 1182-1196. http://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201604017.htm 阳怀忠, 任建业, 陆金波, 2009.东营凹陷负反转构造样式及其运动学特征.地球科学, 34(3): 493-501. http://www.earth-science.net/WebPage/Article.aspx?id=1853 张功成, 徐宏, 刘和甫, 等, 1996.松辽盆地反转构造与油气田分布.石油学报, 17(2): 9-14. http://www.cnki.com.cn/Article/CJFDTOTAL-SYXB602.001.htm 赵贤正, 金凤鸣, 王权, 等, 2016.陆相断陷盆地富油凹陷二次勘探工程.北京:石油工业出版社, 410-411. 周新华, 2006.中国东部中、新生代岩石圈转型与减薄研究若干问题.地学前缘, 13(2): 50-64. http://www.cnki.com.cn/Article/CJFDTOTAL-DXQY200602005.htm 朱光, 牛漫兰, 刘国生, 2002.郯庐断裂带早白垩世走滑运动中的构造、岩浆、沉积事件.地质学报, 76(3): 325-334. http://www.cnki.com.cn/Article/CJFDTOTAL-DZXE200203007.htm -
